Toyota Land Cruiser (1990 – 1997) Fuse Box Location & Diagrams
The 1990–1997 Toyota Land Cruiser (80 Series) is legendary for its “bulletproof” reliability, but even the toughest off-road icons can encounter electrical hiccups. Whether your power windows have stopped mid-roll or your headlights have gone dark on the trail, the first place you should look is the fuse box. Understanding the layout and location of your fuses is essential for any DIY owner or overlander. In this guide, we provide high-resolution fuse box diagrams, clear location maps, and a complete amperage breakdown for both the passenger cabin and engine compartment. We’ll help you identify which fuse controls which circuit so you can get back behind the wheel with confidence.
Fuse Box Locations

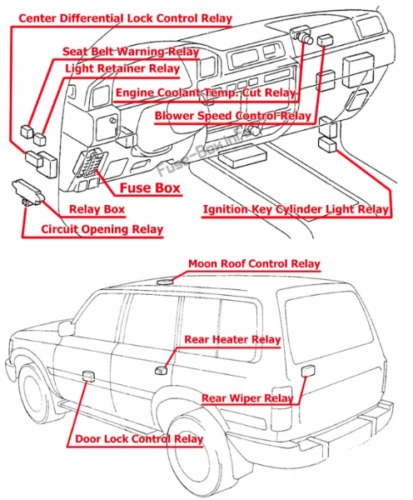

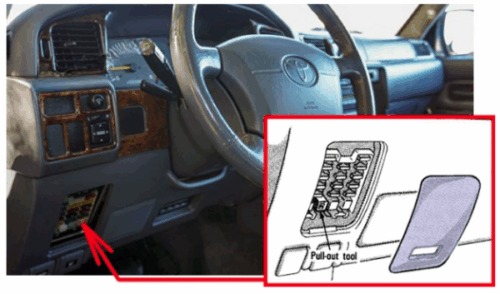

Passenger Compartment

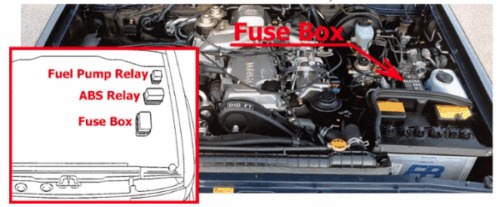

Engine Compartment

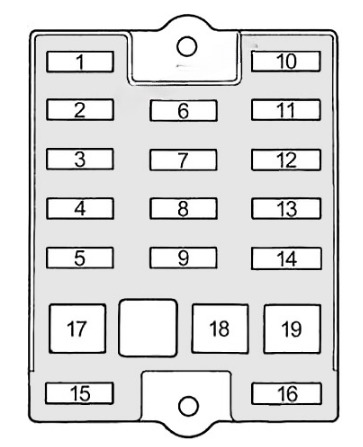

Passenger Compartment Fuse Box Diagrams
Toyota Land Cruiser (1990 to 1997)
| № | Name | Amp | Description |
|---|---|---|---|
| 1 | CIG | 15A | Cigarette lighter, power rear view mirrors, digital clock display, radio, cassette tape player, power antenna, automatic transmission shift lock system, SRS airbag system |
| 2 | TAIL | 15A | Tail lights, license plate lights, parking and front side marker lights, instrument panel lights, clock, glovebox light |
| 3 | OBD | 15A | On-board diagnosis system |
| 4 | STOP | 10A | Stop lights, multiport fuel injection system/sequential multiport fuel injection system, cruise control cancel device, automatic transmission shift lock system |
| 5 | DEFOG | 20A | Rear window defogger |
| 6 | WIPER | 20A | Windshield wipers and washer, rear window wiper and washer |
| 7 | GAUGE | 10A | Gauges and meters, service reminder indicators and warning buzzers (except discharge and open door warning lights), back-up lights |
| 8 | TURN | 7.5A | Turn signal lights |
| 9 | ECU-IG | 15A | Cruise control system |
| 10 | ECU-B | 10A | SRS airbag system |
| 11 | REAR-HTR | 20A | Air conditioning system |
| 12 | IGN | 7.5A | Multiport fuel injection system/sequential multiport fuel injection system, emission control system, SRS airbag system |
| 13 | A.C | 10A | Air conditioning system |
| 14 | DIFF | 30A | Differential lock system |
| 15 | – | – | Not used |
| 16 | – | – | Not used |
| 17 | – | – | Not used |
| 18 | FL HEATER | 40A | Air conditioning system |
| 19 | FL POWER | 30A | Power windows, power door lock system, electric moon roof |

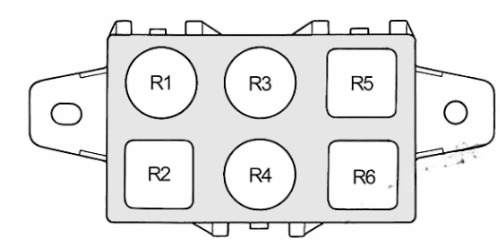

Relay Box
| № | Relay |
|---|---|
| R1 | Defogger |
| R2 | Heater |
| R3 | Power Relay |
| R4 | Taillight |
| R5 | Flasher |
| R6 | Not used |
| R7 | Cooling Fan |
| R8 | Blower High |

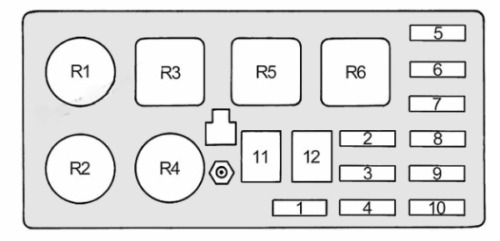

Engine Compartment Fuse Box
Toyota Land Cruiser (1990 to 1997)
Fuse Box Diagrams
| № | Name | Amp | Description | Relay | Relay Function |
|---|---|---|---|---|---|
| 1 | – | – | Not used | R1 | EFI Main |
| 2 | CHARGE | 7.5A | Charging system, discharge warning light | R2 | Horn |
| 3 | EFI | 15A | Multiport fuel injection system/sequential multiport fuel injection system | R3 | Not used |
| 4 | CDS-FAN | 20A | No circuit | R4 | Not used |
| 5 | HEAD (RH) | 15A | Right-hand headlights | R5 | Headlight |
| 6 | HEAD (LH) | 15A | Left-hand headlights | R6 | Not used |
| 7 | – | – | Not used | – | – |
| 8 | – | – | Not used | – | – |
| 9 | HAZ-HORN | 15A | Emergency flashers, horns | – | – |
| 10 | DOME | 10A | Interior lights, personal light, luggage compartment light, ignition switch light, open door warning light, clock, radio, cassette tape player, power antenna, vanity lights | – | – |
| 11 | AM1 | 50A | All components in “CIG”, “WIPER”, “GAUGE”, “TURN”, “ECU-IG”, “REAR-HTR”, “IGN”, “DIFF” and “FL POWER” circuits | – | – |
| 12 | ABS | 60A | Anti-lock brake system | – | – |
