Toyota RAV4 (1995 – 1997) Fuse Box Location & Diagrams
The first-generation Toyota RAV4 (1995–1997) uses fuse boxes to protect its electrical systems. Knowing where they are and how the fuses are arranged makes fixing electrical issues easier. This guide shows clear diagrams and simple steps to locate and check each fuse
Passenger Compartment Fuse Boxes
Toyota RAV4 (1995, 1996 and 1997)

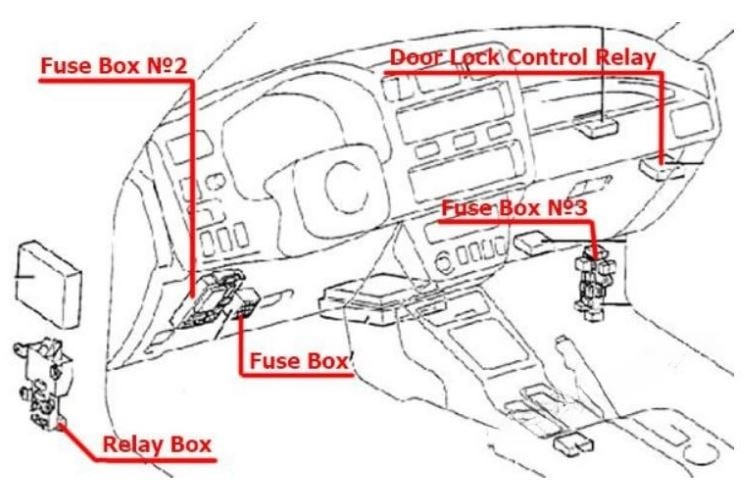

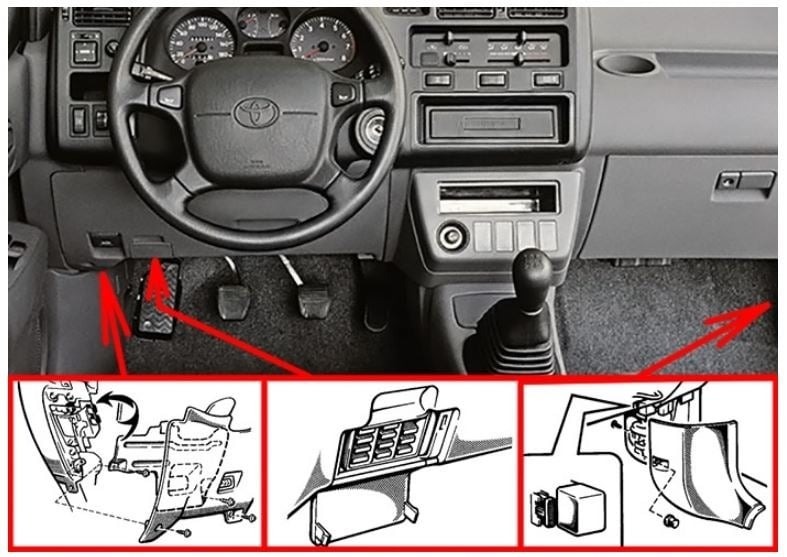

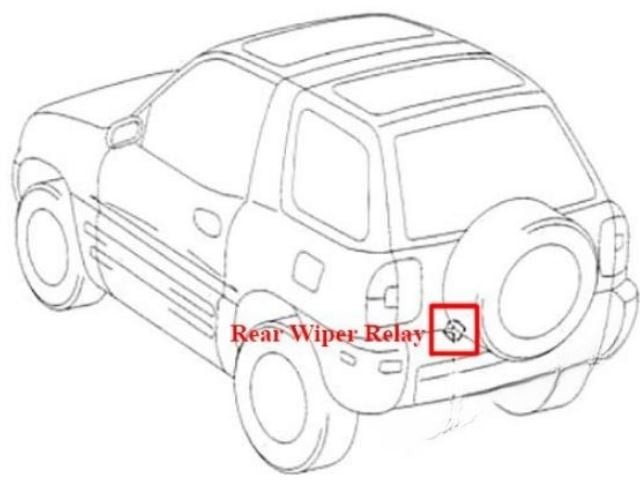

Fuse box location

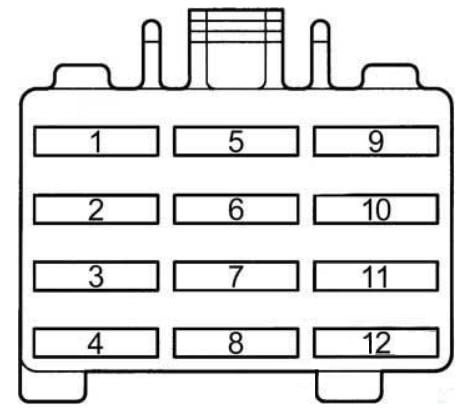

Fuse Box No.1 Diagram
The fuse box is located in the left side of the instrument panel, behind the cover.
Assignment of the fuses in the Passenger Compartment Fuse Box No.1
| No | Name | Amp | Circuit |
|---|---|---|---|
| 1 | TAIL | 10 | Tail lights, parking lights, license plate lights, interior lights |
| 2 | GAUGE | 11 | Gauges and meters, service reminder indicators (except discharge and open door warning lights), backup lights, air conditioning system, power windows, rear window defogger, center differential lock system, electronically controlled automatic transmission system |
| 3 | TURN | 7.5 | Turn signal lights |
| 4 | CIG & RAD | 15 | Cigarette lighter, clock, car audio system, power rear view mirrors |
| 5 | DEF-I/UP | 7.5 | Multiport fuel injection system/sequential multiport fuel injection system |
| 6 | IGN | 7.5 | Multiport fuel injection system/sequential multiport fuel injection system, discharge warning light |
| 7 | ECU-IG | 7.5 | Anti-lock brake system, electronically controlled automatic transmission system |
| 8 | WIPER | 20 | Windshield wipers and washer, rear window wiper and washer |
| 9 | – | – | – |
| 10 | SRS | 7.5 | SRS airbag system |
| 11 | OBD | 7.5 | On-board diagnosis system |
| 12 | STOP | 10 | Stop lights |

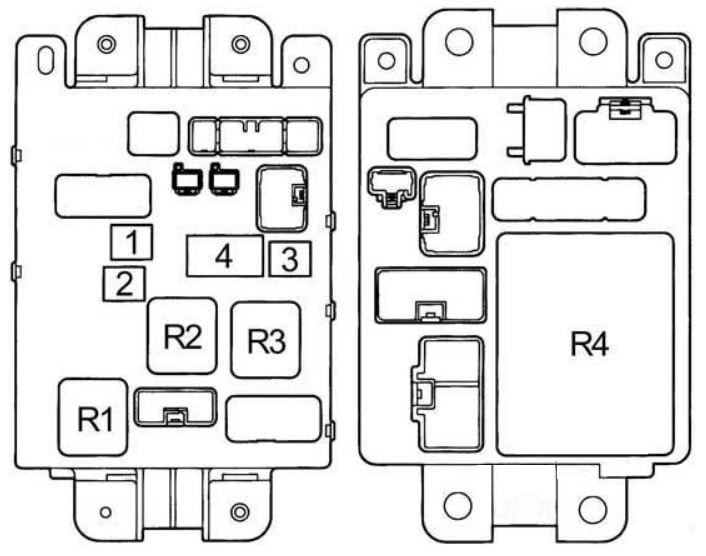

Fuse Box No.2 Diagram
Assignment of the fuses and relay in the Passenger Compartment Fuse Box No.2
| № | Name | Amp | Circuit |
|---|---|---|---|
| 1 | POWER | 30 | Power windows, power door lock system |
| 2 | DEF | 30 | Rear window defogger |
| 3 | AM1 | 40 | “CIG & RAD”, “WIPER”, “GAUGE”, “ECU-IG”, “TURN”, “TAIL” and “PANEL” fuses |
| 4 | – | – | Noise Filter |
| Relay | |||
| R1 | Defogger | ||
| R2 | Power Main Relay | ||
| R3 | Taillight | ||
| R4 | Integration Relay |

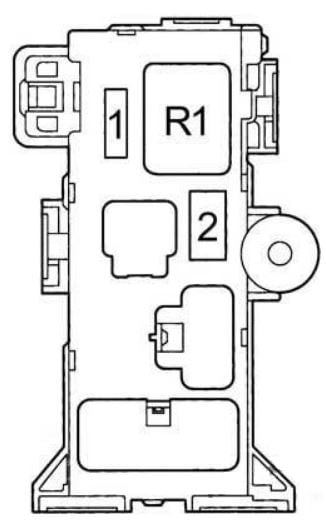

Fuse Box No.3 Diagram
Assignment of the fuses and relay in the Passenger Compartment Fuse Box No.3
| No | Name | Amp | Circuit |
|---|---|---|---|
| 1 | A/C | 7.5 | Air conditioning system |
| 2 | – | – | – |
| Relay | |||
| R1 | Heater |

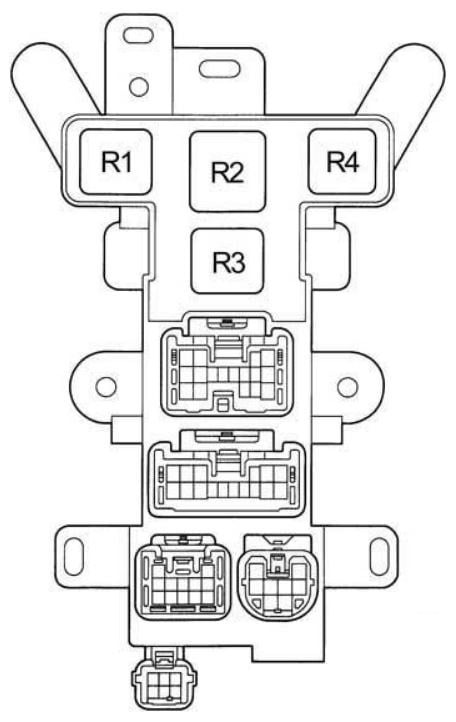

Relay Box
| No | Relay |
|---|---|
| R1 | Circuit Opening Relay |
| R2 | – |
| R3 | Turn Signal Flasher |
| R4 | – |
Engine Compartment Fuse Boxes
Toyota RAV4 (1995, 1996 and 1997)

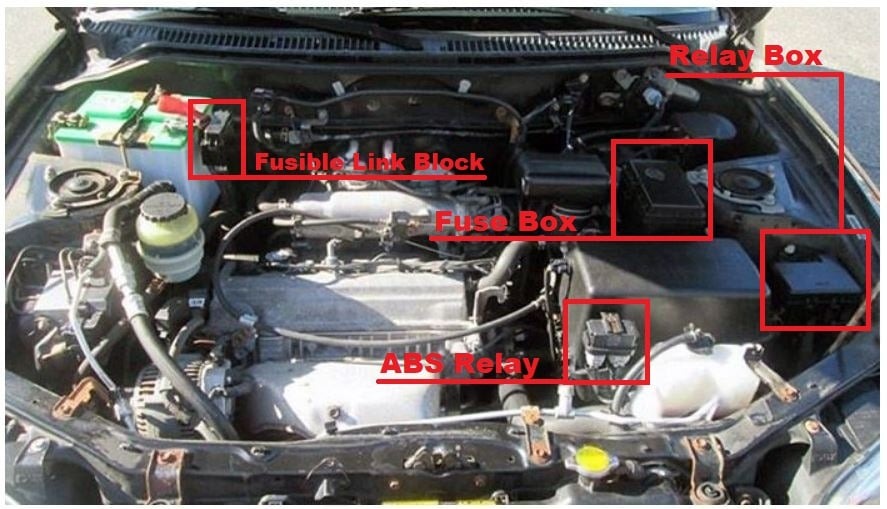

Fuse box location

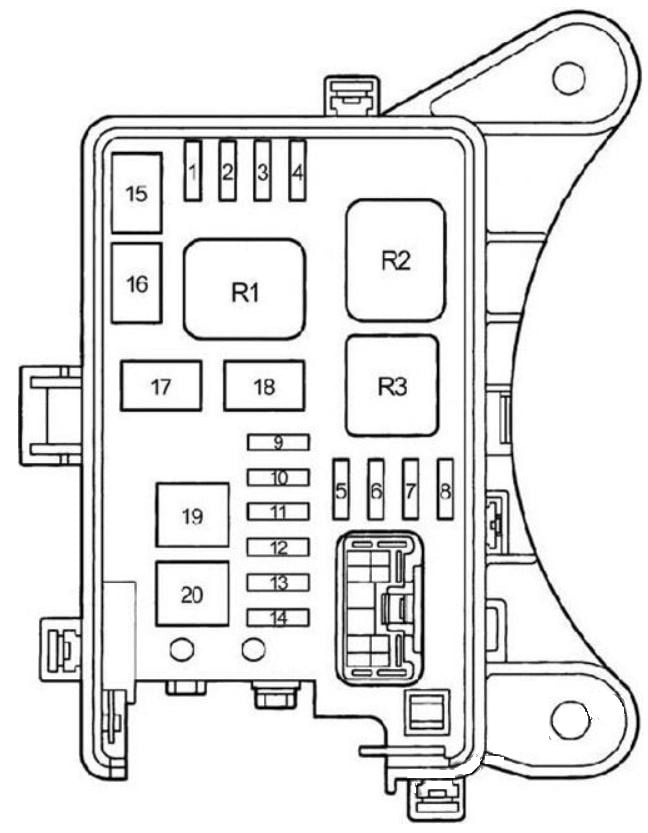

Fuse box diagram
Assignment of the fuses and relay in the Engine Compartment
| No | Name | Amp | Circuit |
|---|---|---|---|
| 1 | – | – | – |
| 2 | – | – | – |
| 3 | H-LP (LH) | 15 | Left-hand headlight |
| 4 | H-LP (RH) | 15 | Right-hand headlight |
| 5 | – | – | – |
| 6 | – | – | – |
| 7 | SPARE | 15 | Spare fuse |
| 8 | SPARE | 10 | Spare fuse |
| 9 | ALT-S | 5 | Charging system |
| 10 | – | – | – |
| 11 | HAZ-HORN | 15 | Emergency flashers, horns |
| 12 | EFI | 15 | Multiport fuel injection system/sequential multiport fuel injection system |
| 13 | DOME | 15 | Personal lights, open door warning light, clock |
| 14 | AM2 | 20 | Multiport fuel injection system/sequential multiport fuel injection system, charging system |
| 15 | CDS FAN | 30 | Electric cooling fan |
| 16 | RDI FAN | 30 | Electric cooling fan |
| 17 | – | – | – |
| 18 | MAIN No. 1 | 30 | Starting system, headlights |
| 19 | ABS | 60 | -1997: Anti-lock brake system |
| 20 | – | – | – |
| Relay | |||
| R1 | Main | ||
| R2 | Headlights | ||
| R3 | Starter |

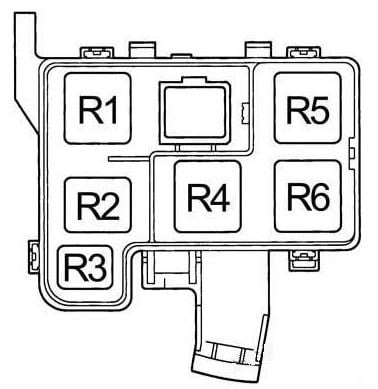

Relay Box
| No | Relay |
|---|---|
| R1 | EFI Main |
| R2 | Electric cooling fan (No.1) |
| R3 | Horn |
| R4 | Electric cooling fan (No.3) |
| R5 | Magnetic clutch (A/C) |
| R6 | Electric cooling fan (No.2) |
Fusible Link Block
| No | Name | Amp | Circuit |
|---|---|---|---|
| 1 | Main | 80 | “AM2”, “HAZ-HORN”, “EFI” “DOME”, “RADIO” and “ALT-S” fuses |
| 2 | ALT | 100 | Tail lights, “ABS”, “RADIO”, “HTR”, “AM1”, “POWER”, “STOP” and “DEF” fuses |
| 3 | HTR | 50 | Air conditioning system |
