UAZ PROFI 2017 Fuse Box Location & Diagrams
The UAZ Profi (2017) uses fuses to protect important electrical circuits and components. Knowing the correct fuse locations and assignments helps with troubleshooting electrical problems. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the UAZ Profi.
Fuse Box Location

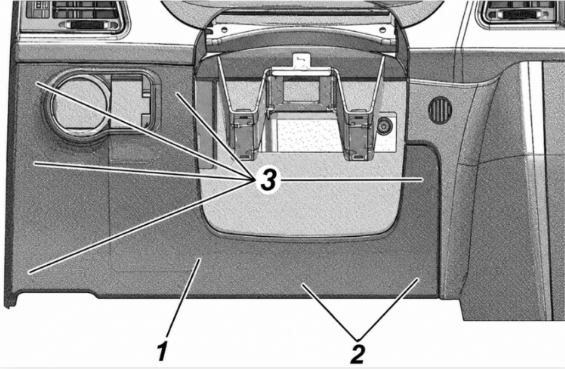

Passenger Compartment Fuse Box
The relay and fuse box in the cabin is located under the cover on the dashboard to the left of the steering column.
- The cover of the relay and fuse box
- cover latches
- cover clips

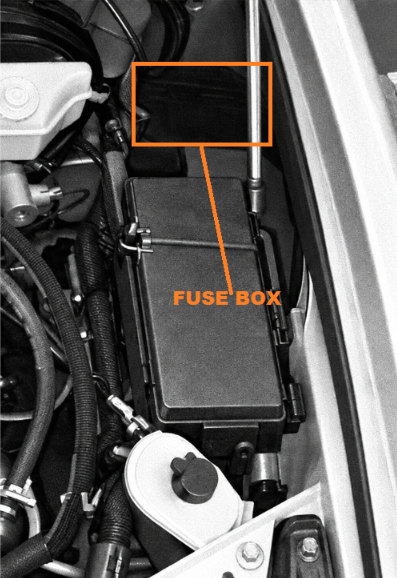

Engine Compartment Fuse Box
The relay and fuse box under the hood is located on the left extension of the vehicle mudguard. The layout chart of the relays and fuses is located on the inside of the unit cover.
Fuse Box Diagrams

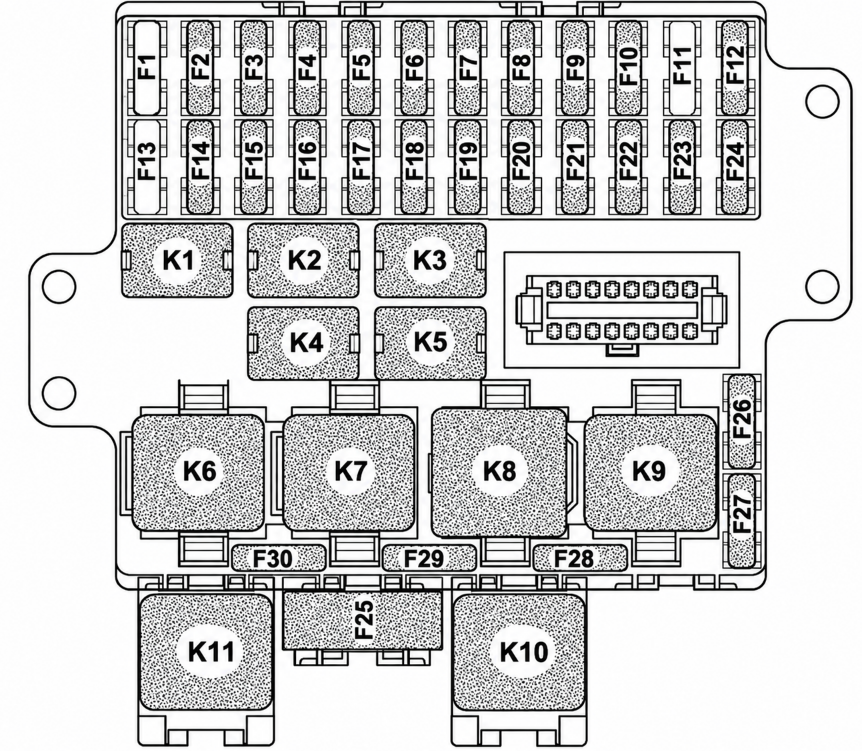

Passenger Compartment Fuse Box
| Designation | Current (A) | Protected Circuits / Functions |
|---|---|---|
| F1 | — | Not installed |
| F2 | 15A | Cabin socket connection |
| F3 | 10A | Air conditioner compressor |
| F4 | 30A | Power options relay box |
| F5 | 7.5A | Stop light switch, interior lighting, floodlamp lighting, glove compartment lighting, baggage compartment lighting |
| F6 | 40A | Heating and air conditioning system, rear window and mirror heating switch |
| F7 | 10A | Left fog light |
| F8 | 10A | Right fog light |
| F9 | 20A | Windshield wiper switch, windshield wiper, driver’s switch box, rear-seat passenger switch box, rear body heater |
| F10 | 20A | Heated tailgate glass, heated mirrors, light control module |
| F11 | — | Not installed |
| F12 | 20A | Cigarette lighter |
| F13 | — | Not installed |
| F14 | 10A | Power windows (driver’s door module) |
| F15 | 5A | Instrument cluster (34A), reverse gear switch, alarm signal switch (2A) |
| F16 | 15A | Airbag system |
| F17 | 10A | Media system |
| F18 | 15A | Differential lock |
| F19 | 10A | Left high-beam headlight |
| F20 | 10A | Right high-beam headlight |
| F21 | 7.5A | Left low-beam headlight |
| F22 | 7.5A | Right low-beam headlight |
| F23 | 5A | Right parking light |
| F24 | 5A | Left parking light |
| F25 | 60A | Heated windshield |
| F26 | 10A | Spare |
| F27 | 10A | Spare |
| F28 | 30A | Spare |
| F29 | 25A | Spare |
| F30 | 20A | Spare |
| K1 | — | Fog light activation relay |
| K2 | — | High-beam headlight relay |
| K3 | — | Cabin auxiliary heater relay |
| K4 | — | Low-beam headlight relay |
| K5 | — | Air conditioner compressor relay |
| K6 | — | Mirror heating relay |
| K7 | — | Windshield wiper intermittent relay |
| K8 | — | Auxiliary (load-shedding) relay |
| K9 | — | Windshield heating relay |
| K10 | — | Windshield heating timer relay |
| K11 | — | Rear axle differential lock relay |

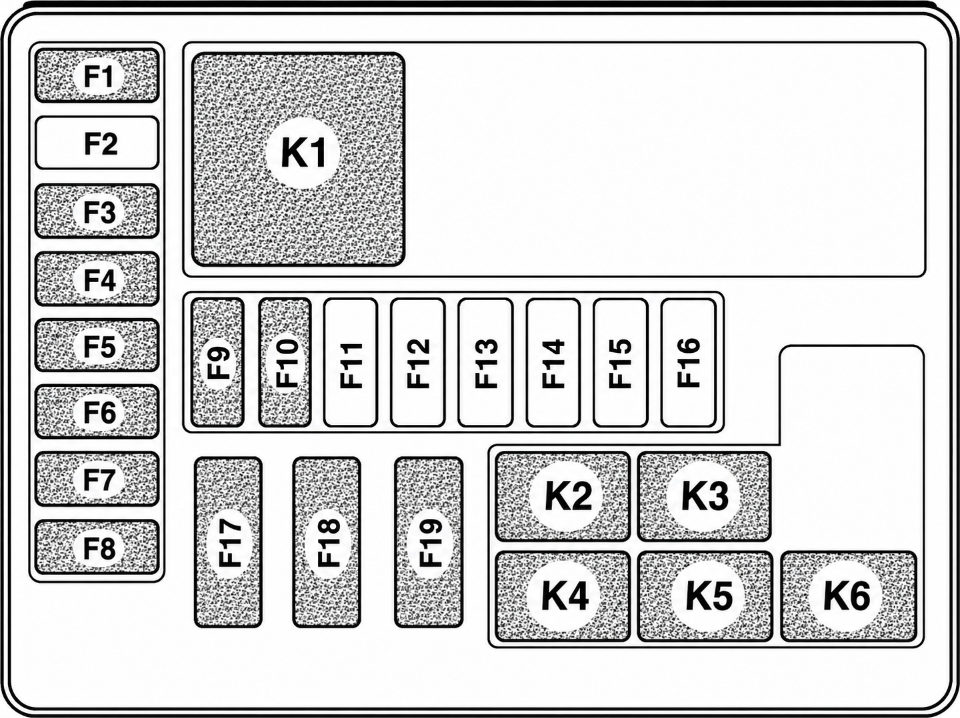

Engine Compartment Fuse Box
| Designation | Current (A) | Protected Circuits / Functions |
|---|---|---|
| F1 | 15A | Audio alarm |
| F2 | — | Not installed |
| F3 | 30A | Electric fan 2 |
| F4 | 25A | ABS (Anti-lock Braking System) |
| F5 | 5A | Instrument cluster |
| F6 | 20A | Fuel pump |
| F7 | 20A | Starter |
| F8 | 30A | Electric fan |
| F9 | 10A | Integrated Microprocessor Traffic Management System |
| F10 | 10A | ABS (Anti-lock Braking System) |
| F11 | — | Not installed |
| F12 | — | Not installed |
| F13 | — | Not installed |
| F14 | — | Not installed |
| F15 | — | Not installed |
| F16 | — | Not installed |
| F17 | 60A | Punch-down block |
| F18 | 40A | ABS (Anti-lock Braking System) |
| F19 | 60A | Punch-down block |
| K1 | — | Starter relay |
| K2 | — | Horn relay |
| K3 | — | Integrated Microprocessor Traffic Management System relay |
| K4 | — | Electric fan relay |
| K5 | — | Fuel pump relay |
| K6 | — | Electric fan relay |
