Volvo C70 (2008 – 2013) Fuse Box Location & Diagrams
This blog covers the Volvo C70 (2008–2013) fuse box locations and diagrams, helping you identify fuse positions, ratings, and protected components. Find clear information for checking or replacing blown fuses and understanding the electrical system, making troubleshooting easier for common electrical issues.
Fuse Box Location

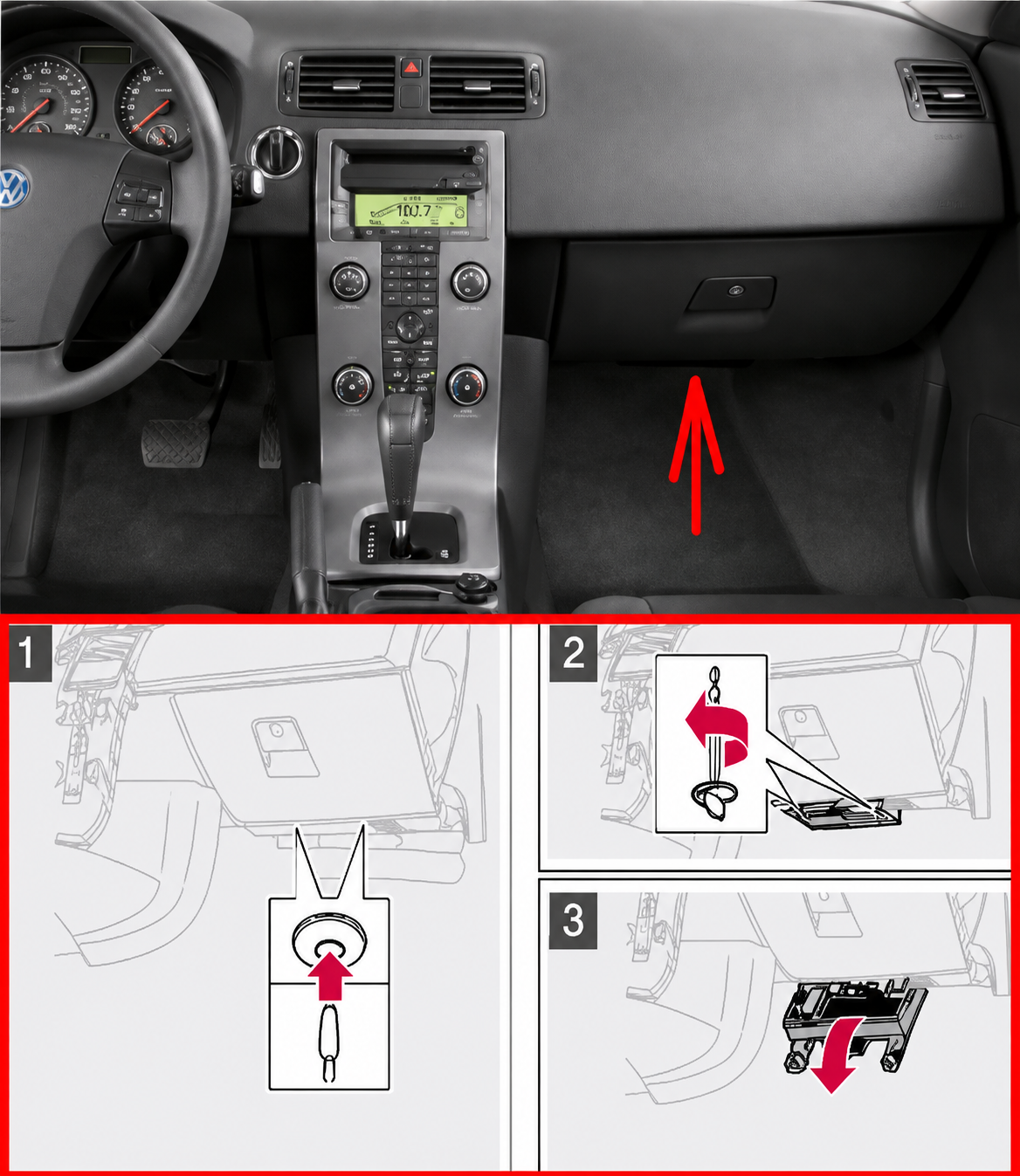

Passenger Compartment Fuse Box
The fuse box is located under the glove compartment.

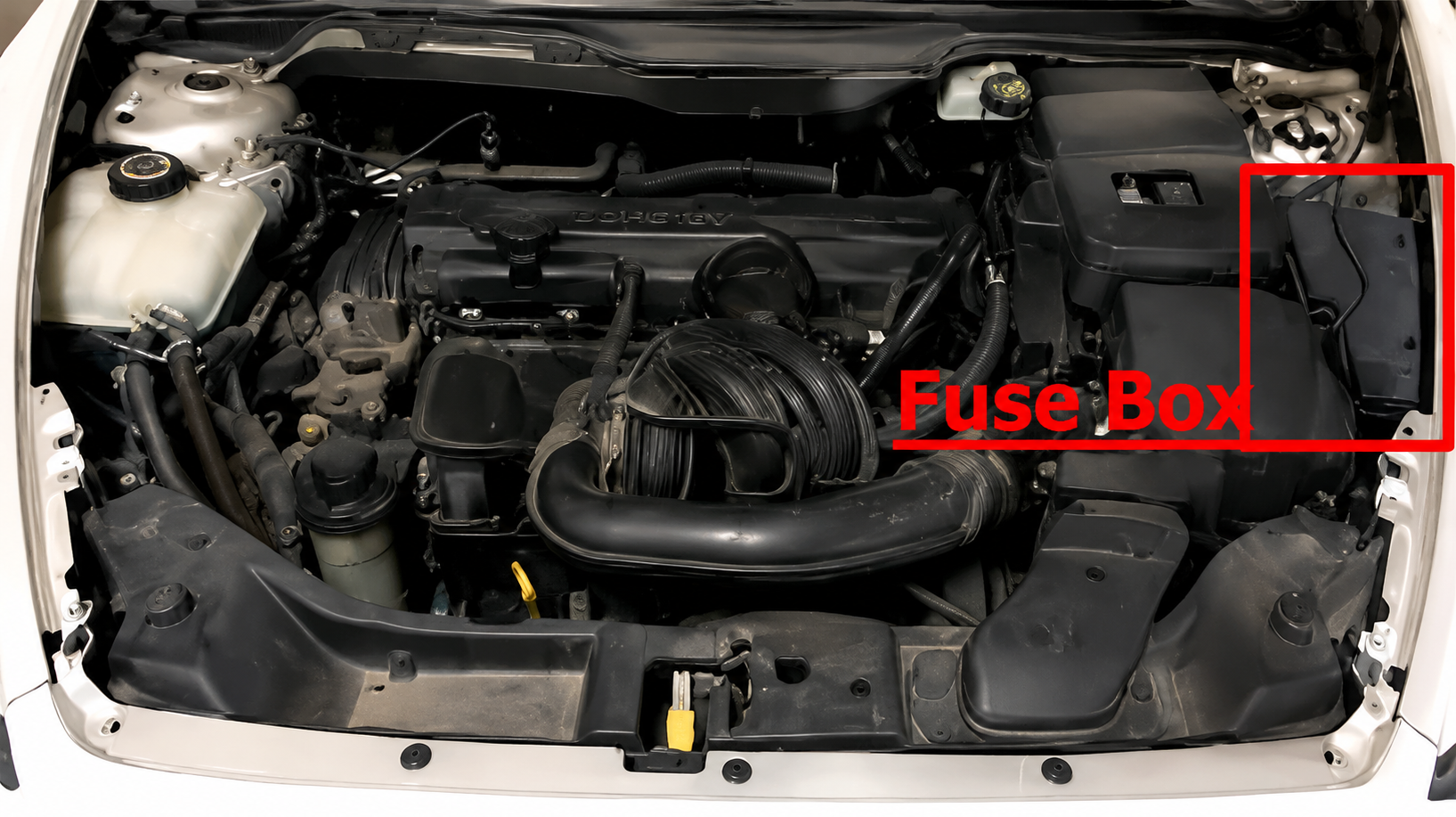

Engine Compartment Fuse Box
Fuse Box Diagrams

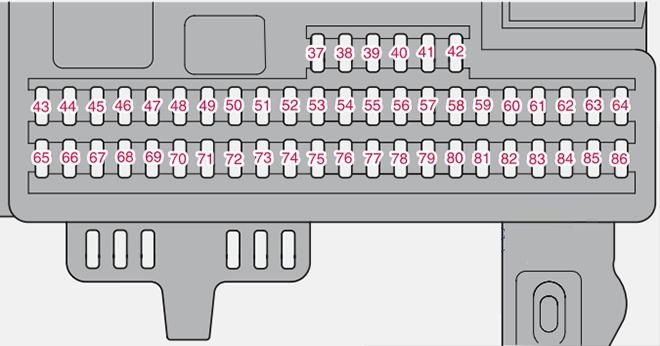

Passenger Compartment Fuse Box
| № | Description | Amp |
|---|---|---|
| – | Fuse 37-42, not in use | – |
| 43. | Audio system, Bluetooth, Volvo Navigation system (Option) 2008: Audio system, Volvo Navigation system (option) | 15A |
| 44. | Supplemental Restraint System (SRS), engine control module | 10A |
| 45. | 12-volt socket in passenger compartment | 15A |
| 46. | Lighting – glove compartment, instrument panel, and footwells | 5A |
| 47. | Interior lighting | 5A |
| 48. | Windshield washers | 15A |
| 49. | Supplemental Restraint System (SRS), Occupant Weight Sensor (OWS) | 10A |
| 50. | Not in use | |
| 51. | Fuel filter relay | 10A |
| 52. | Transmission control module (TCM), ABS | 5A |
| 53. | Power steering | 10A |
| 54. | Park assist (option), Bi-Xenon® headlights (option) 2011-2013: Park assist (Option), Active Bending Lights (Option) | 10A |
| 55. | Not in use | |
| 56. | Volvo Navigation System remote key module, alarm siren control module | 10A |
| 57. | On-board diagnostic socket, brake light switch | 15A |
| 58. | Right high beam, auxiliary lights relay | 7.5A |
| 59. | Left high beam | 7.5A/5A |
| 60. | Heated driver’s seat (Option) | 15A |
| 61. | Heated passenger’s seat (Option) | 15A |
| 62. | Not in use | |
| 63. | Power window rear passenger’s side | 20A |
| 64. | Volvo Navigation system (Option), lock indicator lights in door panels 2008: Lock indicator lights door panels, Volvo Navigation system(option) 2011-2013: Sirius satellite radio (Option) | 5A |
| 65. | Audio system | 5A |
| 66. | Audio system control module (ICM), climate system | 10A |
| 67. | Not in use | |
| 68. | Cruise control | 5A |
| 69. | Climate system, rain sensor (Option), BUS button (Option) | 5A |
| 70. | Not in use | |
| 71. | Not in use | |
| 72. | Not in use | |
| 73. | Front ceiling lighting | 5A |
| 74. | Fuel pump relay | 15A |
| 75. | Not in use | |
| 76. | Not in use | |
| 77. | 12-volt socket in trunk, auxiliary equipment control module (AEM) | 15A |
| 78. | Not in use | |
| 79. | Back-up lights | 5A |
| 80. | Not in use | |
| 81. | Power window – rear driver’s side | 20A |
| 82. | Power window and door lock – front passenger’s side door | 25A |
| 83. | Power window and door lock – front driver’s side door | 25A |
| 84. | Power passenger’s seat | 25A |
| 85. | Power driver’s seat | 25A |
| 86. | Interior lighting relay, trunk light, power seats | 5A |

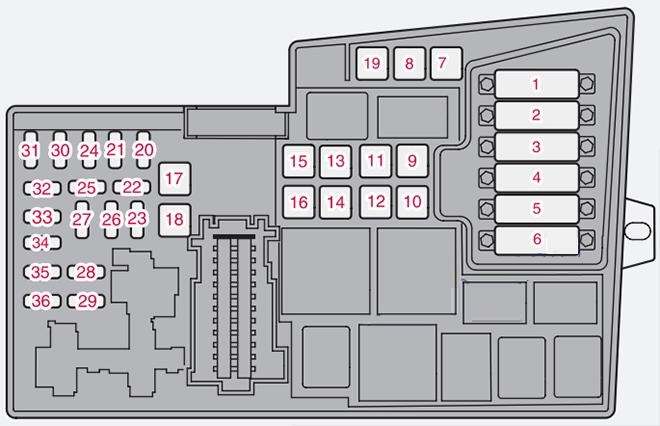

Engine Compartment Fuse Box
| № | Description | Amp |
|---|---|---|
| 1. | Coolant fan (radiator) | 50A |
| 2. | Power steering | 80A |
| 3. | Feed to passenger compartment fuse box | 60A |
| 4. | Feed to passenger compartment fuse box | 60A |
| 5. | Element, climate unit 2008: Not in use | 80A |
| 6. | Not in use | |
| 7. | ABS pump | 30A |
| 8. | ABS valves | 20A |
| 9. | Engine functions | 30A |
| 10. | Climate system blower | 40A |
| 11. | Headlight washers, climate system blower, power retractable hard top, locking storage compartments 2008: Headlight washers, power retractable hard top, locking storage compartments 2011-2013: Headlight washers, climate system blower, power retractable hard top | 20A |
| 12. | Feed to heated rear window | 30A |
| 13. | Starter motor relay | 30A |
| 14. | Trailer connector (accessory) | 40A |
| 15. | Power retractable hard top | 30A |
| 16. | Feed to audio system | 40A |
| 17. | Windshield wipers | 30A |
| 18. | Feed to passenger compartment fuse box | 40A |
| 19. | Not in use | |
| 20. | Horn | 10A/15A |
| 21. | Not in use | 20A |
| 22. | Subwoofer | 20A/25A |
| 23. | Engine control module (ECM)/transmission control module (TCM) | 10A |
| 24. | Not in use | |
| 25. | Not in use | |
| 26. | Ignition switch | 15A |
| 27. | A/C compressor | 10A |
| 28. | Not in use | |
| 29. | Front fog lights (option) | 15A |
| 30. | Not in use | |
| 31. | Not in use | |
| 32. | Fuel injectors | 10A |
| 33. | Heated oxygen sensor, vacuum pump | 20A |
| 34. | Ignition coils, climate unit pressure sensor | 10A |
| 35. | Engine sensor valves, A/C relay, PTC element oil trap, charcoal filter, air mass sensor 2011-2013: Engine sensor valves, A/C relay, relay coil, PTC element oil trap, canister, mass air meter 2009-2010: Engine sensor valves, A/C relay, relay coil, PTC element oil trap, canister, mass air meter | 10A |
| 36. | Engine control module (ECM), throttle sensor | 10A |
