Volvo V40 (2013 – 2019) Fuse Box Location & Diagrams
The Volvo V40 (2013–2019) has several fuse boxes protecting its electrical systems and components. Knowing their locations and fuse assignments makes it easier to identify electrical faults, replace blown fuses, and understand circuit protection. This resource provides clear fuse box locations, diagrams, fuse ratings, and component details.
Fuse Box Location
Passenger Compartment Fuse Box
Under the glove box:
- Take hold of the recess and pull until the locking lugs in the lower edge of the cover are released from the fuse box.
- Remove the cover
Under the right-hand front seat: Tucked beneath the front seat on the right side of the car. It is often easiest to access by sliding the seat all the way forward
Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

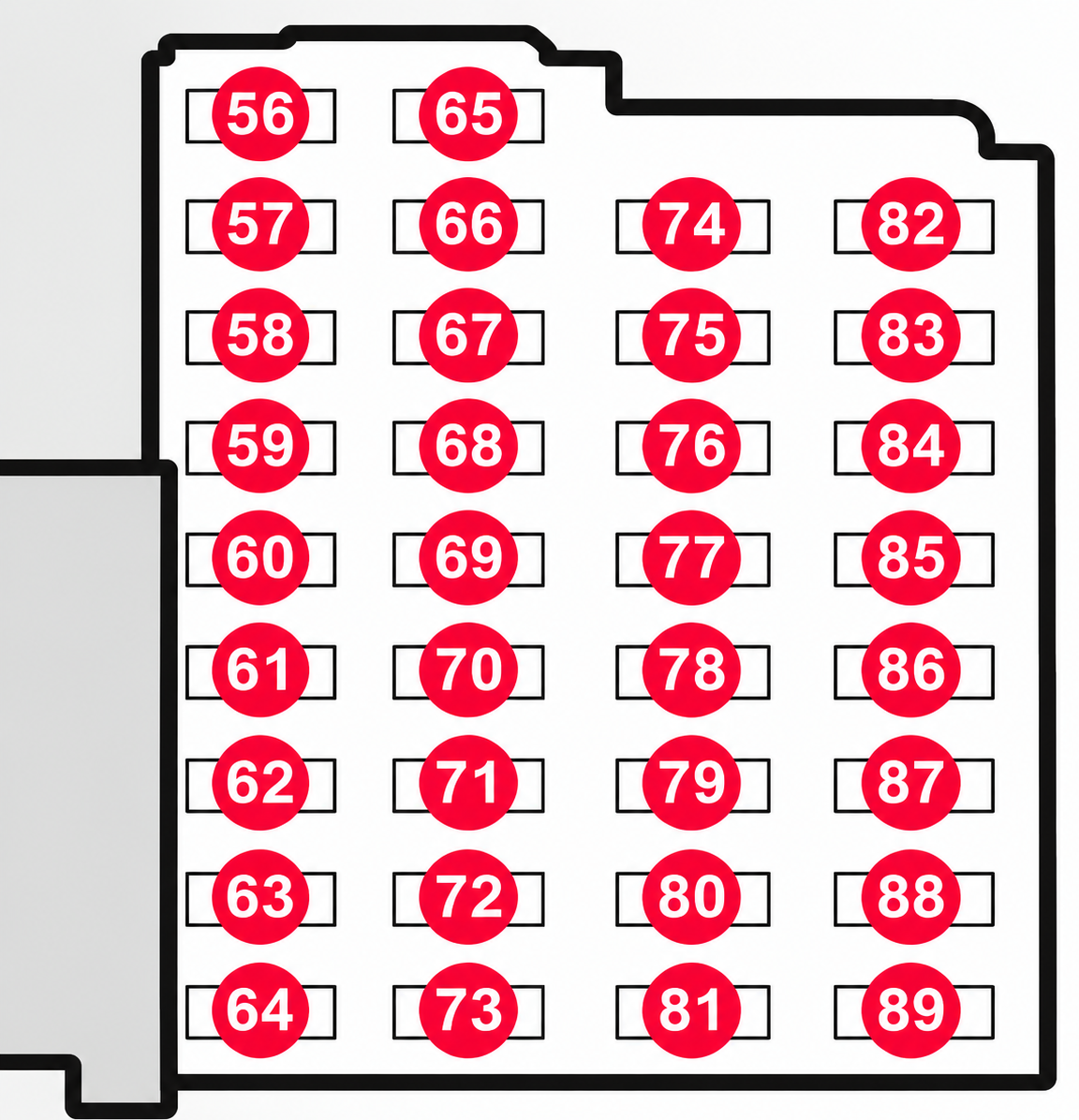

Under the Glovebox
| № | Function | Amp |
|---|---|---|
| 56 | Fuel pump | 20 |
| 57 | – | – |
| 58 | Rear window wiper | 15 |
| 59 | Display in roof console (Seatbelt reminder/Indicator for airbag on the front passenger seat) 2013-2014: Reserve position, interior lighting | 5 |
| 60 | Interior lighting, Controls in roof console for front reading lamps and passenger compartment lighting; Power seats (option) 2013-2014: Interior lighting; Power seats | 7.5 |
| 61 | Power-operated roller blind, glass roof (option) 2013-2014: Blind, glass roof (option) | 10 |
| 62 | Rain sensor (option); Dimming, interior rearview mirror (option); Moisture sensor (option) | 5 |
| 63 | Collision warning system (option) | 5 |
| 64 | – | – |
| 65 | Unlocking, tailgate (See also fuse 84) | 10 |
| 66 | ||
| 67 | Reserve position 3, constant voltage | 5 |
| 68 | Steering lock | 15 |
| 69 | Combined instrument panel | 5 |
| 70 | Central locking system, fuel filler flap (See also fuse 83) | 10 |
| 71 | Climate panel | 10 |
| 72 | Steering wheel module | 7.5 |
| 73 | Siren alarm (option); Data link connector OBDII | 5 |
| 74 | Main beam | 15 |
| 75 | ||
| 76 | Reversing lamp | 10 |
| 77 | Windscreen wipers (See also fuse 82); Rear windscreen wiper (See also fuse 82) | 20 |
| 78 | Immobiliser | 5 |
| 79 | Reserve position 1, constant voltage | 15 |
| 80 | Reserve position 2, constant voltage | 20 |
| 81 | Movement sensor alarm (option); Remote receiver | 5 |
| 82 | Windscreen wipers (See also fuse 77); Rear windscreen wiper (See also fuse 77) | 20 |
| 83 | Central locking system, fuel filler flap (See also fuse 70) | 10 |
| 84 | Unlocking, tailgate (See also fuse 65) | 10 |
| 85 | Electric additional heater(option); Button seat heating rear (option) 2013-2014: PTC element, air preheater (option); Button, rear seat heating (option) | 7.5 |
| 86 | Airbags; Pedestrian airbag | 7.5/10 |
| 87 | Reserve position 4, constant voltage | 7.5 |
| 88 | ||
| 89 |

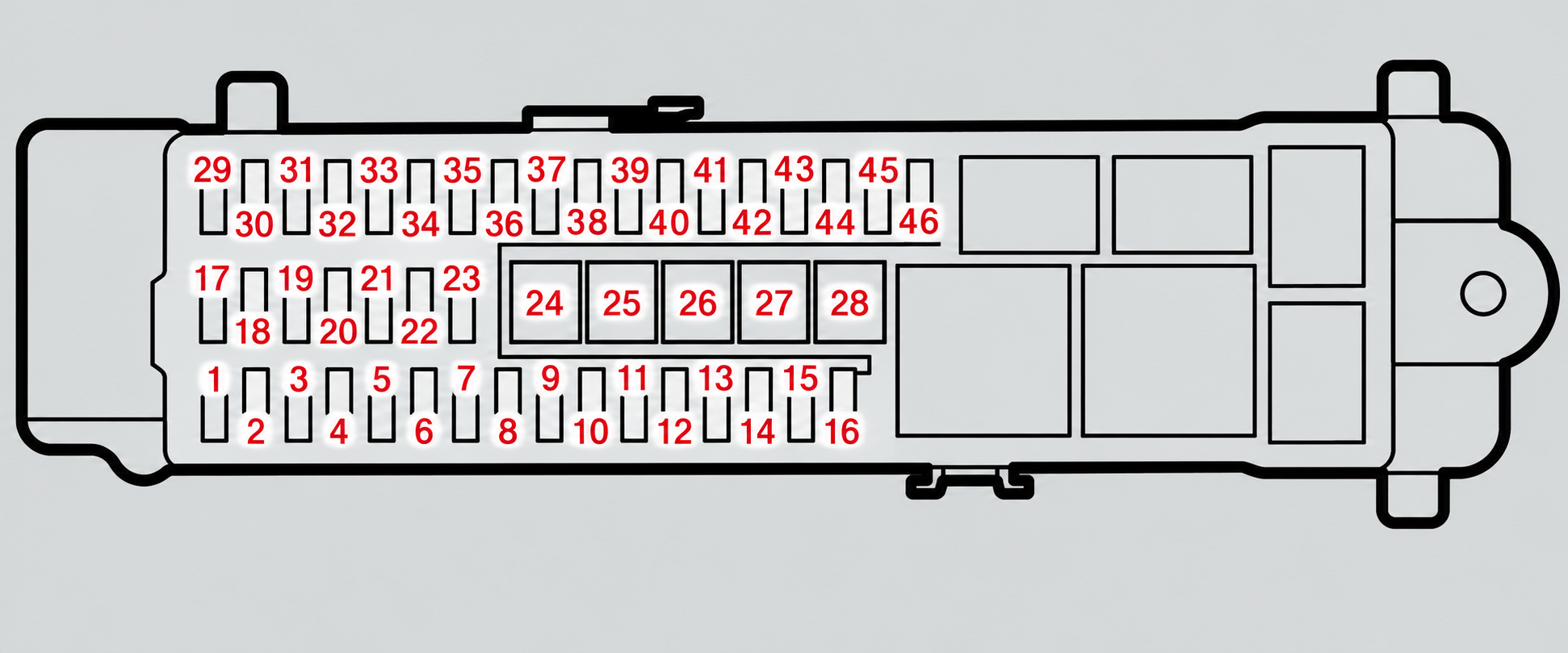

Under the Front Seat
| № | Function | Amp |
|---|---|---|
| 1 | ||
| 2 | Keyless (option) | 10 |
| 3 | Door handle (Keyless (option)) | 5 |
| 4 | Control panel, left front door | 25 |
| 5 | Control panel, right front door | 25 |
| 6 | Control panel, left rear door | 25 |
| 7 | Control panel, right rear door | 25 |
| 8 | Primary fuse for fuses 12-16: Infotainment 2013-2014: – | 25 |
| 9 | Power seat, left (option) | 20 |
| 10 | ||
| 11 | Internal relay coil 2013-2014: – | 5 |
| 12 | 2013-2015: Audio control unit (amplifier) (option), signal for diagnosis | 5 |
| 13 | ||
| 14 | 2013-2015: Telematics (option); Bluetooth (option) | 5 |
| 15 | 2015: Audio control module or Control module Sensus A ; Infotainment control module or Screen A 2013-2014: Audio; Infotainment control unit | 7.5/15 |
| 16 | 2013-2015: Digital radio (option); TV (option) | 15/10 |
| 17 | 12 V socket, cargo area | 15 |
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | Trailer socket 2 (option) | 20 |
| 24 | Audio control unit (amplifier) (option) 2013-2014: Primary fuse for fuses 12-16; Infotainment | 30/40 |
| 25 | – | – |
| 26 | Trailer socket 1 (option) | 40 |
| 27 | Rear window defroster | 30 |
| 28 | ||
| 29 | BLIS (option) | 5 |
| 30 | Parking assistance (option) | 5 |
| 31 | Parking camera (option) | 5 |
| 32 | ||
| 33 | ||
| 34 | Seat heating, front driver’s side | 15 |
| 35 | Seat heating, front passenger side | 15 |
| 36 | ||
| 37 | ||
| 38 | ||
| 39 | Seat heating, rear right (option) | 15 |
| 40 | Seat heating, rear left (option) | 15 |
| 41 | 2013-2014: AWD control module (option) | 15 |
| 42 | ||
| 43 | ||
| 44 | ||
| 45 | Audio control module (amplifier) (option), signal for diagnosis; Audio control module or Control module Sensus (Certain model variants); Infotainment control module or Screen (Certain model variants); Digital radio (option); TV (option) 2013-2015: – | 15 |
| 46 | Telematics (option); Bluetooth (option) 2013-2015: – | 5 |

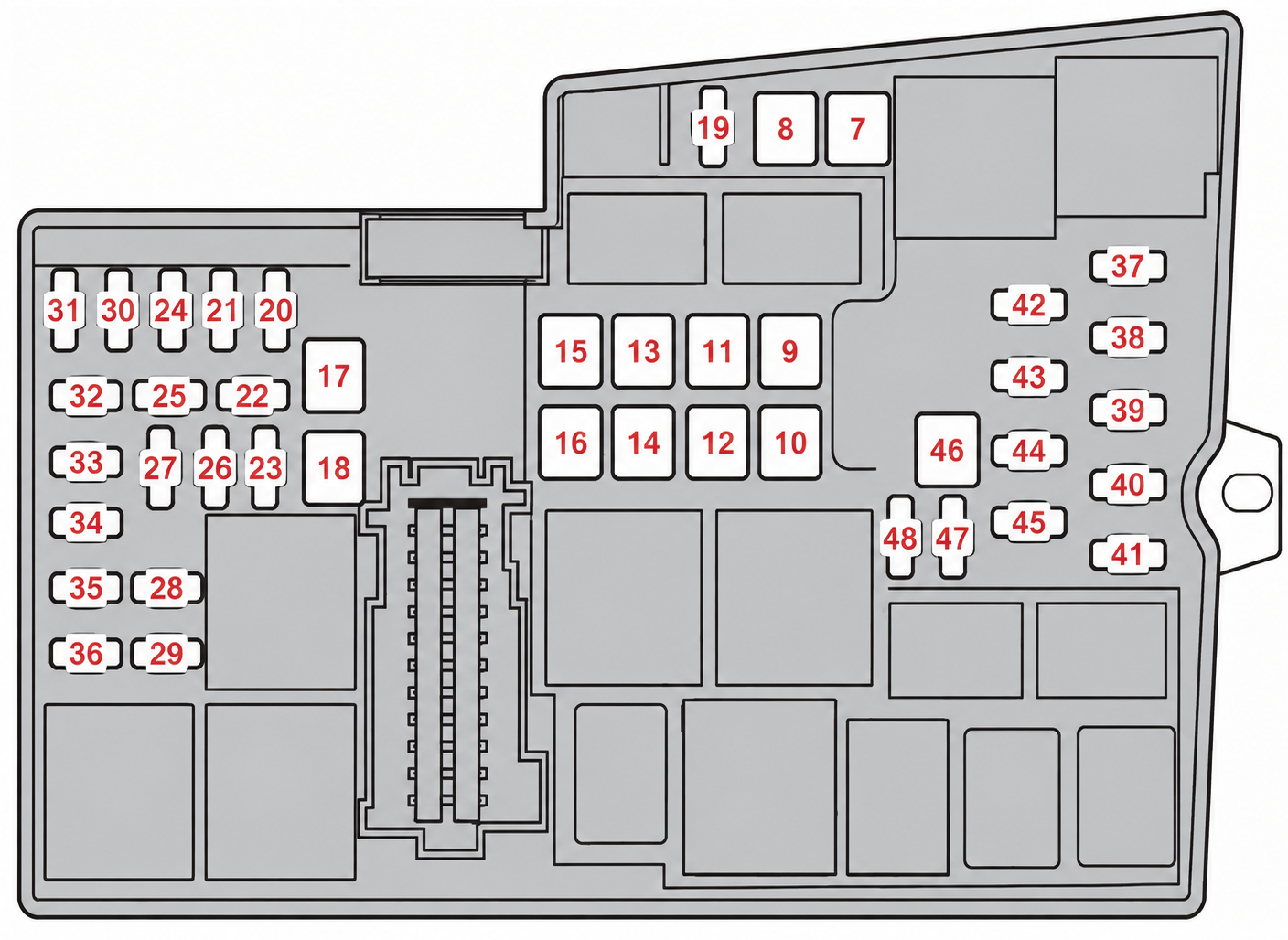

Engine Compartment Fuse Box
| № | Function | Amp |
|---|---|---|
| 7 | ABS pump | 40 |
| 8 | ABS valves | 30 |
| 9 | Headlamp washers (option) | 20 |
| 10 | Ventilation fan | 40 |
| 11 | – | – |
| 12 | Primary fuse for fuses 32-36 | 30 |
| 13 | – 2013-2014: Starter motor actuator solenoid (not Start/Stop) | – 30 |
| 14 | Heated windscreen, right-hand side (option) | 40 |
| 15 | – | – |
| 16 | Heated windscreen, left-hand side (option) 2013-2014: Electric windscreen, left side (option) | 40 |
| 17 | Parking heater (option) | 20 |
| 18 | Windscreen wipers | 20 |
| 19 | Central electronic module, reference voltage, standby battery (Start/Stop) | 5 |
| 20 | Horn | 15 |
| 21 | Brake light | 5 |
| 22 | – | – |
| 23 | Headlamp control | 5 |
| 24 | Internal relay coils | 5 |
| 25 | 12 V socket, tunnel console front | 15 |
| 26 | Transmission control module | 15 |
| 27 | 2015: Solenoid clutch A/C (1.6 litre, 5- cyl. petrol) 2013-2014: Solenoid clutch A/C | 15 |
| 28 | 12 V socket, tunnel console rear | 15 |
| 29 | – 2013-2014: Climate sensor (option); air intake throttle motors | – 10 |
| 30 | Engine Control Module (ECM) 2015: Engine control module (4-cyl. 2.0 l, 5-cyl.) 2013-2014: Engine control module (5-cyl.) | 5 |
| 31 | Power seat, right (option) | 20 |
| 32 | Lambda-sonds; Relay coil in relay for cooling fan 2015: Lambda sonds (4-cyl. 2.0 l); Relay coil in relay for cooling fan (4-cyl. 2.0 l) 2013-2015: Relay coil in cooling fan relay (5-cyl. petrol); Lambda-sonds (5-cyl. petrol) 2015: Relay coil in cooling fan relay (4-cyl. 1.6 l, 5-cyl. diesel); Lambda-sonds (4-cyl. 1.6 l petrol); Mass air flow meter (1.6 l diesel, 5-cyl. diesel), Bypass valve, EGR cooling (1.6 l diesel); Bypass solenoid EGR cooling (5-cyl. diesel); Regulator valve, fuel flow (5-cyl. diesel); Regulator valve, fuel pressure (5-cyl. diesel) 2013-2014: Relay coil in cooling fan relay (4-cyl., 5-cyl. diesel); Lambda-sonds (4-cyl. petrol); Mass air flow meter (diesel), Bypass valve, EGR cooling (diesel); Regulator valve, fuel flow (5-cyl. diesel); Regulator valve, fuel pressure (5-cyl. diesel) | 20/15/10 |
| 33 | Vacuum regulators; Valves; Control module, radiator roller cover; Control module, spoiler roller cover (diesel); Compressor A/C; Solenoid for engine oil pump; Cooling valve for climate control system (diesel); Glow control module (diesel); Relay coils in relays for Start/Stop functions 2015: Oil pump automatic gearbox (5-cyl.); Mass air flow sensor (1.6 l petrol, 5-cyl. petrol); EVAP valve (1.6 l petrol); Valves (4 cyl. 2.0 l 5-cyl. petrol); Solenoids (5- cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Control motor turbo (1.6 l diesel); Regulator valve, fuel flow (1.6 l diesel); Control module radiator roller cover (1.6 l diesel); Solenoid piston cooling (5-cyl. diesel); Turbo control valve (5-cyl. diesel); Oil level sensor (5-cyl. diesel); Compressor A/C (4-cyl. 2.0 l 5-cyl. diesel); Oil pump (4- cyl. 2.0 l); Cooling valve for climate control system (4-cyl. 2.0 l diesel); Relay coils in relays for Start/Stop functions 2013-2014: Mass air flow meter (4-cyl. petrol); EVAP valve (4-cyl. petrol); Injection valves (5-cyl. petrol); Control motor, turbo (4-cyl. diesel); Regulator valve, fuel flow (4- cyl. diesel); Solenoid, piston cooling (5-cyl. diesel); Turbo regulator valve (5-cyl. diesel); Oil level sensor (5-cyl. diesel) | 10 |
| 34 | EGR valve (diesel); EVAP valve (petrol); Engine control module; Thermostat for engine cooling system (petrol); Cooling pump for EGR (diesel) 2015: Valves (1.6 l petrol); Solenoids (1.6 l petrol); Injectors (5-cyl. petrol); Lambda-sond (5-cyl. diesel); Crankcase ventilation heater (5-cyl. diesel) 2015: Valve (4-cyl 2.0 l diesel); EVAP valve (4-cyl. 2.0 l petrol); Crankcase ventilation heater (4 cyl. 2.0 l petrol); Engine control module (4-cyl. 2.0 l), Mass air flow sensor (4-cyl. 2.0 l); Thermostat (4-cyl. 2.0 l petrol); Cooling pump for EGR (4 cyl. 2.0 l diesel); Glow control module (4-cyl. 2.0 l diesel) 2013-2014: Valves (petrol); Solenoids (petrol); Lambda probe (diesel); Crankcase ventilation heater (5-cyl.); Mass air flow meter (5-cyl. petrol) | 15/10 |
| 35 | Ignition coils (petrol) 2015: Ignition coils (1.6 l petrol, 5-cyl. petrol) 2015: Ignition coils (4-cyl. 2.0 l petrol); Diesel filter heater (1.6 l diesel, 5-cyl. diesel); Glow control module (5-cyl. diesel) 2013-2014: Diesel filter heater; Glow plug control unit (5-cyl. diesel); Oil pump, automatic gearbox (5-cyl. diesel Start/Stop) | 10/15 |
| 35 | Diesel filter heater (diesel) 2015: Diesel filter heater (4-cyl. 2.0 l diesel) | 25 |
| 36 | Engine Control Module (ECM) 2015: Engine control module (1.6 l) 2015: Engine control module (4-cyl. 2.0 l, 5-cyl.); Throttle unit (5-cyl. petrol) 2013-2014: Engine control module (4-cyl.) 2013-2014: Engine control module (5-cyl.); Throttle unit (5-cyl. petrol) | 15/10 |
| 37 | ABS | 5 |
| 38 | Engine control module; Transmission control module; Airbags | 10 |
| 39 | Headlamp levelling (option) | 10 |
| 40 | Electric control servo | 5 |
| 41 | Central electronic module | 15 |
| 42 | – | – |
| 43 | – 2013-2014: Coolant pump (Start/Stop) | – 10 |
| 44 | Collision warning system | 5 |
| 45 | Accelerator pedal sensor | 5 |
| 46 | 2013-2015: Charging point, standby battery | – |
| 47 | – | – |
| 48 | Coolant pump (when no parking heater is available) 2013-2015: – | 10 |
