Acura RL (2000 – 2004) Fuse Box Location & Diagrams
The Acura RL (2000 2004) is equipped with multiple fuse boxes that safeguard its sophisticated electrical systems.This guide offers detailed fuse box diagrams and accurate locations, enabling you to efficiently identify and replace fuses to ensure optimal performance of all your vehicle’s components.
Fuse Box Locations
Passenger Compartment Fuse Box

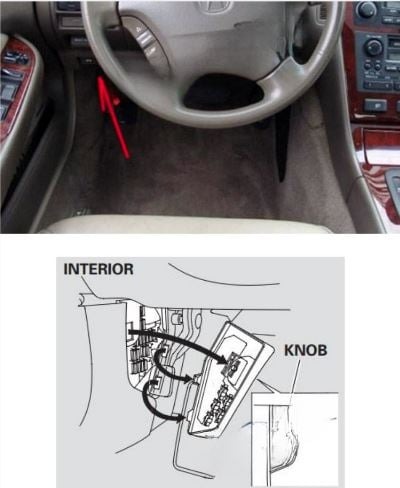

It is located underneath the dashboard on the driver’s side.
Engine Compartment Fuse Box

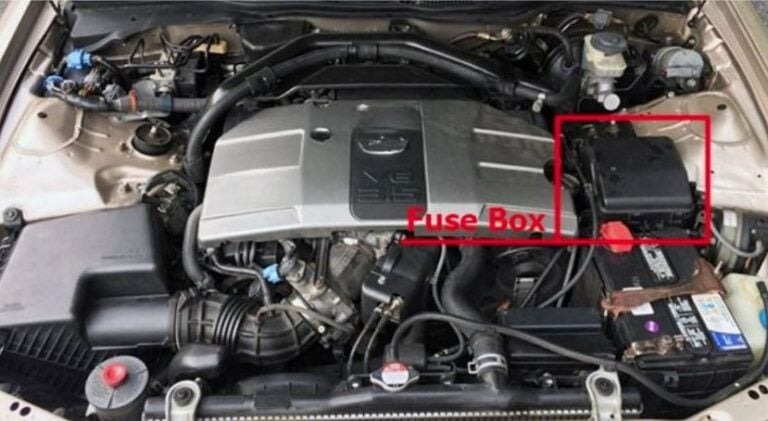

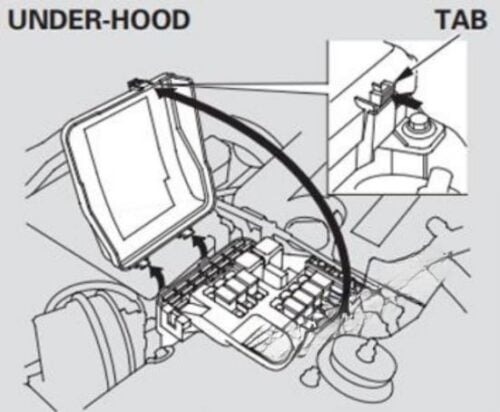

The under-hood fuse box is located in the engine compartment next to the battery.

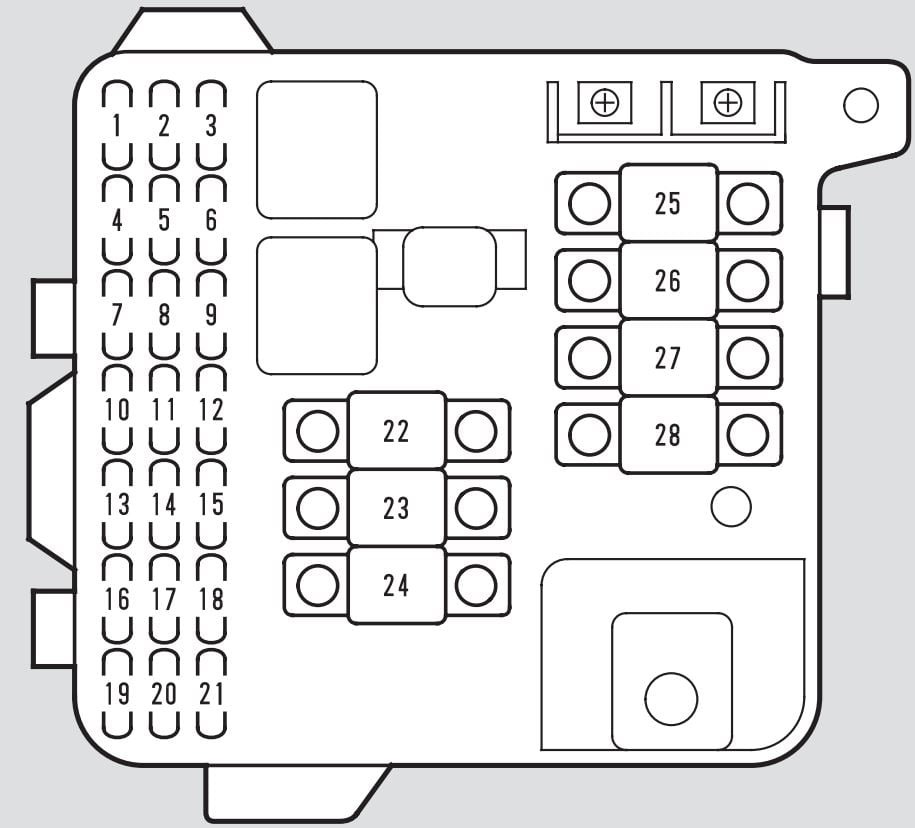

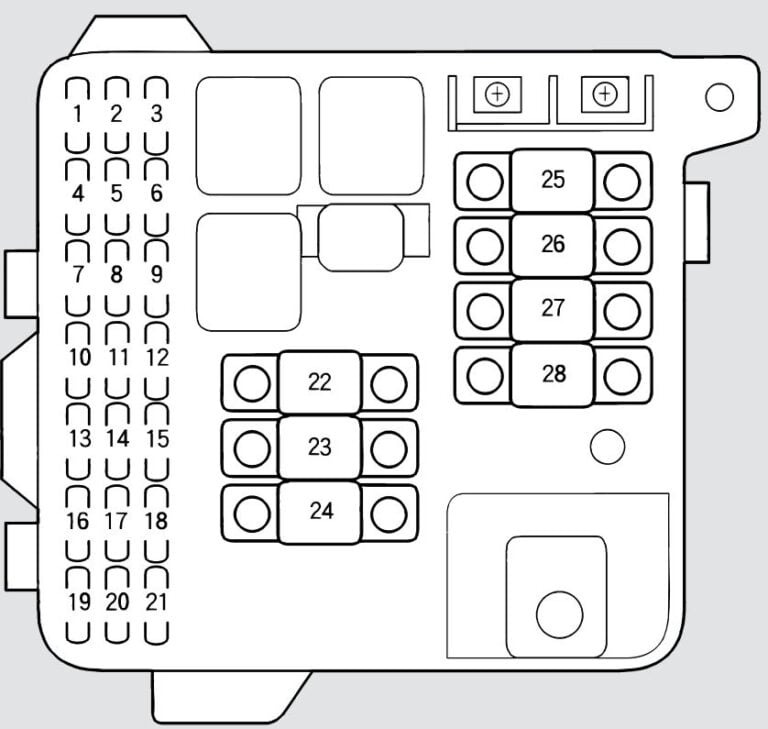

Engine Compartment Fuse Box Diagram
Acura RL (2000 to 2003)
| No. | Amps. | Circuits Protected |
| 1 | — | Not Used |
| 2 | 20 A | Stop, Horn |
| 3 | 10 A | Hazard |
| 4 | 20 A | Driver Power Window |
| 5 | 15 A | TCS (Traction Control System) |
| 6 | 20 A | VSA (Vehicle Stability Assist) |
| 7 | 20 A | Power Door Lock |
| 8 | 20 A | Right Headlight Low |
| 9 | 20 A | Left Headlight Low |
| 10 | 20 A | Cooling Fan |
| 11 | 10 A | Left Headlight High |
| 12 | 10 A | Right Headlight High |
| 13 | 20 A | Condenser Fan |
| 14 | 30 A | Moonroof |
| 15 | 30 A | Front Passenger’s Power Seat |
| 16 | 20 A | Front Fog Light |
| 17 | 20 A | ETS (Electrical Tilt / Telescope Steering) |
| 18 | 15 A | Meter |
| 19 | 7.5 A | Back-up, Radio |
| 20 | 20 A | Interior Lights |
| 21 | 30 A | Wiper Motor |
| 22 | 50 A | Ignition Switch |
| 23 | 40 A | Power Window |
| 24 | 40 A | Heater Motor |
| 25 | 120 A | Battery |
| 26 | 40 A | VSA Motor |
| 27 | 40 A | Rear Window Defogger |
| 28 | 50 A | Fuse box |
Acura RL (2004)
| No. | Amps. | Circuits Protected |
| 1 | — | Not Used |
| 2 | 20 A | Brake, Horn |
| 3 | 10 A | Hazard |
| 4 | 20 A | Driver Power Window |
| 5 | 15 A | TCS |
| 6 | 20 A | VSA |
| 7 | 20 A | Power Door Lock |
| 8 | 20 A | Right Headlight Low |
| 9 | 20 A | Left Headlight Low |
| 10 | 20 A | Cooling Fan |
| 11 | 10 A | Left Headlight High |
| 12 | 10 A | Right Headlight High |
| 13 | 20 A | Condenser Fan |
| 14 | 30 A | Moonroof |
| 15 | 30 A | Front Passenger’s Power Seat |
| 16 | 20 A | Front Fog Light |
| 17 | 20 A | ETS (Electrical Tilt / Telescope Steering) |
| 18 | 15 A | Meter |
| 19 | 7.5 A | Back-up, Radio |
| 20 | 20 A | Interior Lights |
| 21 | 30 A | Wiper Motor |
| 22 | 50 A | Ignition Switch |
| 23 | 40 A | Power Window |
| 24 | 40 A | Heater Motor |
| 25 | 120 A | Battery |
| 26 | 40 A | VSA Motor |
| 27 | 40 A | Rear Window Defogger |
| 28 | 50 A | Fuse box |

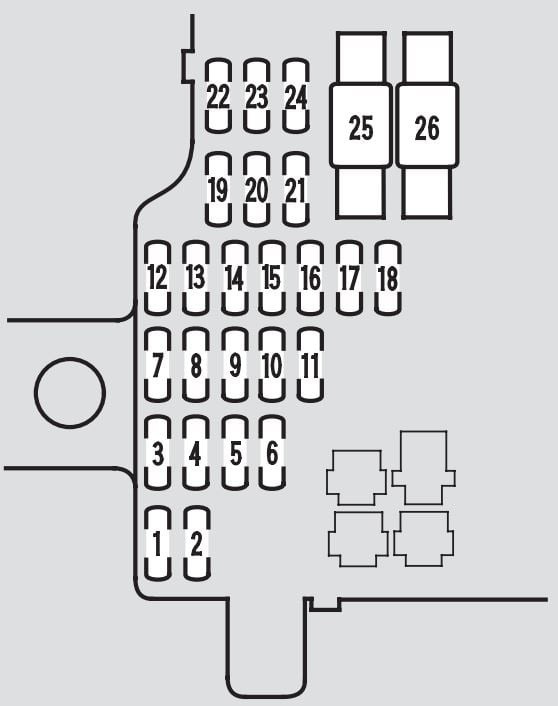

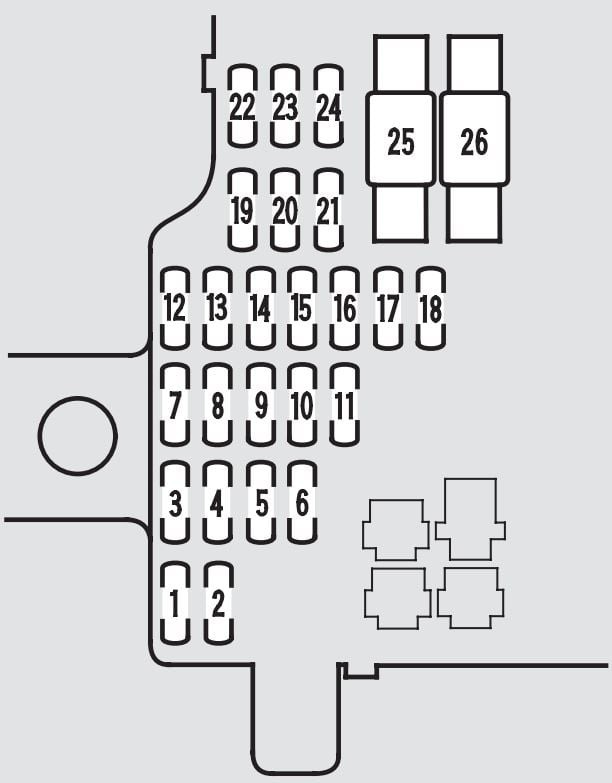

Passenger Compartment Fuse Box Diagram
Acura RL (2000 to 2003)
| No. | Amps. | Circuits Protected |
| 1 | 15 A | Small Light |
| 2 | — | Not Used (OP) |
| 3 | 7.5 A | Rear Window Defogger Relay, Cooling Fan Relay |
| 4 | 10 A | Radio, ACC |
| 5 | 20 A | A/C Clutch, Heated Seat |
| 6 | 20 A | ECU (PCM) |
| 7 | 10 A | SRS |
| 8 | 20 A | Driver’s Power Seat |
| 9 | 20 A | Bose Audio System |
| 10 | 10 A | Daytime Running Lights$^{*1}$ |
| 11 | 20 A | Driver’s Power Seat |
| 12 | 7.5 A | Daytime Running Lights$^{*1}$ |
| 13 | 7.5 A | Meter, Moonroof |
| 14 | 7.5 A | Starter Signal |
| 15 | 7.5 A | ACG |
| 16 | 10 A | ACC Socket |
| 17 | 7.5 A | Power Window MPCS |
| 18 | 20 A | Front Right Power Window |
| 19 | 7.5 A | Mirror |
| 20 | 20 A | ECU (Body) |
| 21 | 20 A | Rear Right Power Window |
| 22 | 20 A | Fuel Pump |
| 23 | 7.5 A | SRS |
| 24 | 20 A | Rear Left Power Window |
| 25 | 30 A | Ignition Coils |
| 26 | — | Not Used |
Acura RL (2004)
| No. | Amps. | Circuits Protected |
| 1 | 15 A | Small Light |
| 2 | — | Not Used (OP) |
| 3 | 7.5 A | Condenser Fan Relay, Cooling Fan Relay |
| 4 | 10 A | ACC, Radio |
| 5 | 20 A | A/C Clutch, Front Heated Seat |
| 6 | 20 A | ECU (PCM) |
| 7 | 10 A | SRS |
| 8 | 20 A | Driver’s Power Seat Reclining/Rear Height/Power Lumbar |
| 9 | 20 A | Bose Audio System |
| 10 | 10 A | Daytime Running Lights*¹ |
| 11 | 20 A | Driver’s Power Seat Slide/Front Height |
| 12 | 7.5 A | Daytime Running Lights*¹ |
| 13 | 7.5 A | Meter, Moonroof |
| 14 | 7.5 A | Starter Signal |
| 15 | 7.5 A | ACG |
| 16 | 10 A | ACC Socket |
| 17 | 7.5 A | Power Window MPCS |
| 18 | 20 A | Front Right Power Window |
| 19 | 7.5 A | Mirror |
| 20 | 20 A | ECU (Body) |
| 21 | 20 A | Rear Left Power Window |
| 22 | 20 A | Fuel Pump |
| 23 | 7.5 A | SRS |
| 24 | 20 A | Rear Right Power Window |
| 25 | 30 A | Ignition Coils |
| 26 | — | Not Used |
