Acura RL (2005 – 2012) Fuse Box Location & Diagrams

The Acura RL (2005 – 2012) features a complex network of electronics, ranging from its advanced SH-AWD system to high-end interior comforts. This guide provides clear fuse box diagrams and exact locations across the various interior and engine bay panels, making it easy to identify and replace fuses to keep your vehicle’s electrical components running smoothly.

Fuse Box Locations

Passenger Compartment Fuse Box

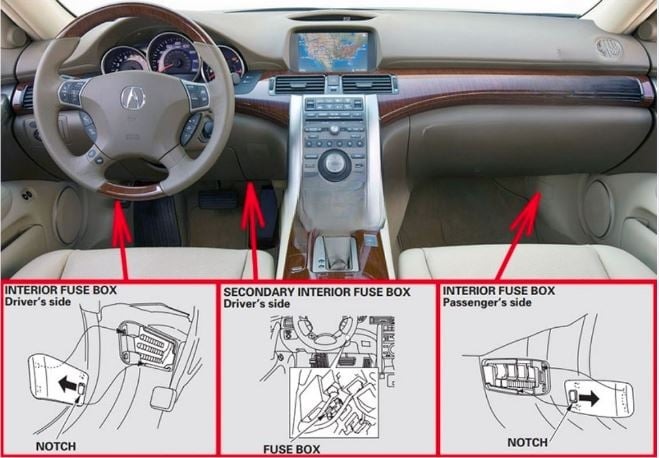

The interior fuse boxes are located under the dashboard on the driver’s and passenger’s side.

Engine Compartment Fuse Box

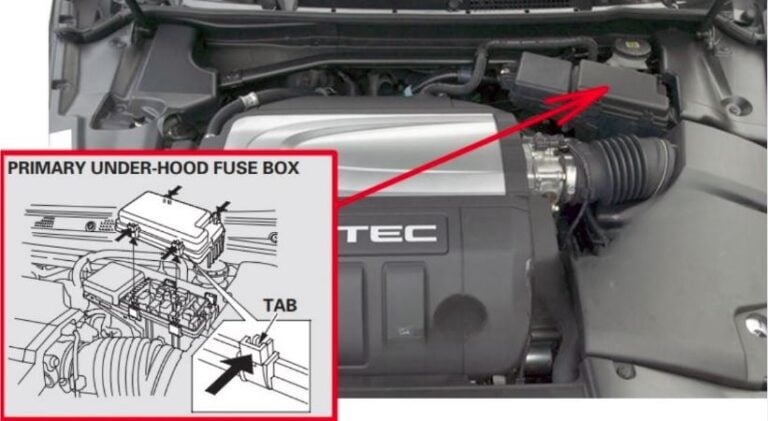

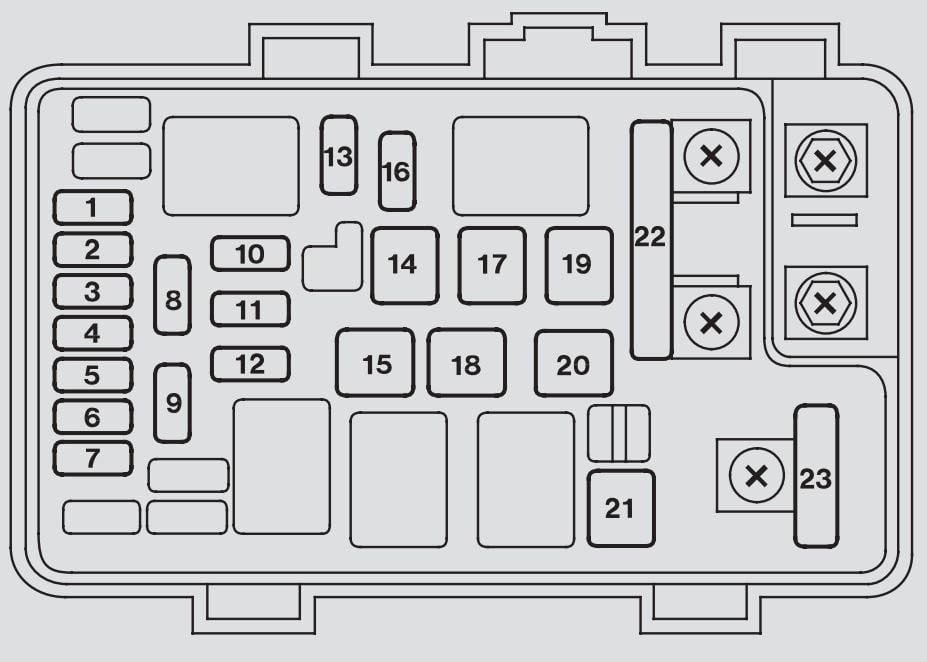

The primary under-hood fuse box is in the engine compartment on the driver’s side.

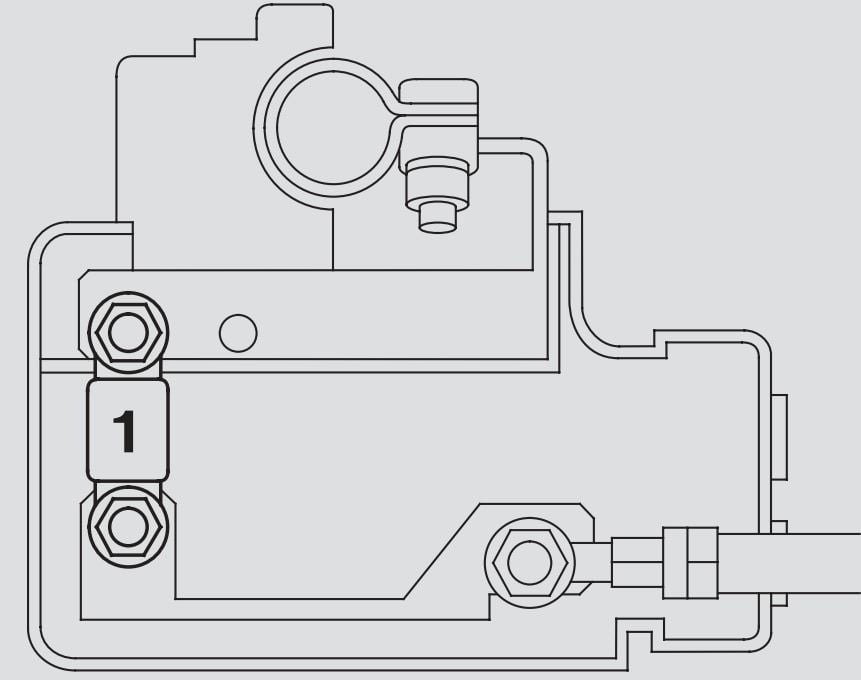

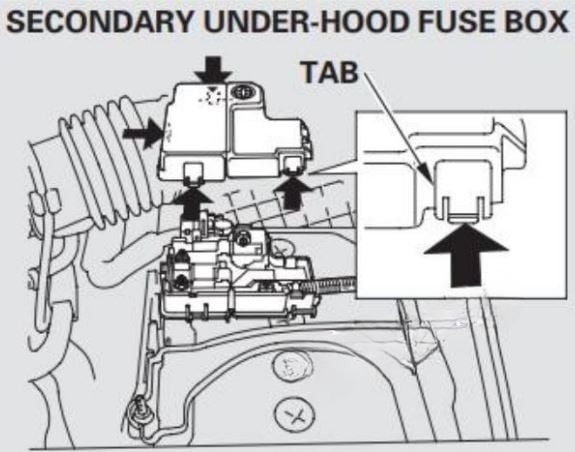

The secondary is on the battery.

Passenger Compartment Fuse Box Diagram

Acura RL ( 2005 and 2006 )

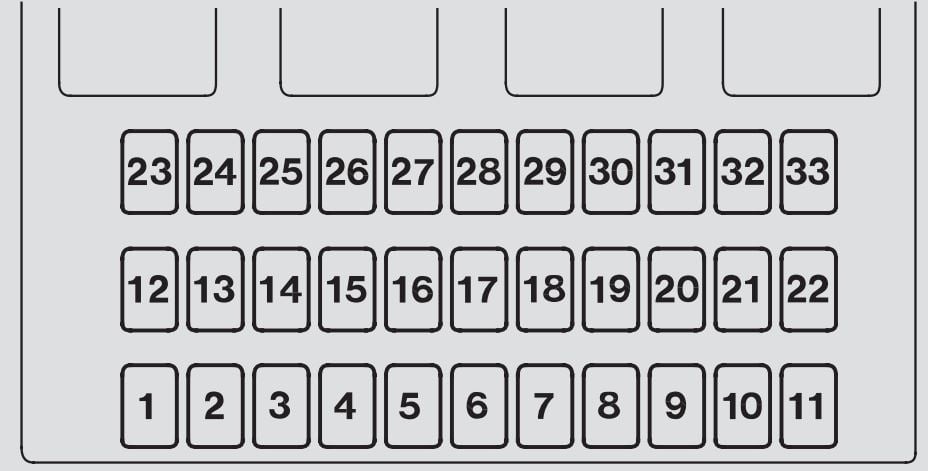

INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected
1	15 A	Drive by Wire
2	15 A	Ignition coil
3	10 A	Daytime running light
4	15 A	Laf heater
5	7.5 A	Radio
6	7.5 A	Interior light
7	10 A	Back-up
8	20 A	Door lock
9	20 A	Accessory socket
10	7.5 A	Occupant position detection system
11	7.5 A	Wiper
12	7.5 A	Tire pressure monitoring system
13	20 A	Passenger’s power seat reclining
14	20 A	Driver’s power seat sliding
15	10 A	Power lumbar support
16	20 A	Driver’s power seat reclining
17	20 A	Passenger’s power seat sliding
18	15 A	ACG
19	20 A	Fuel Pump
20	15 A	IGN SOL
21	7.5 A	Meter
22	10 A	SRS
23	7.5 A	IGP (PGM-FI ECU)
24	20 A	Left rear power window
25	20 A	ETS (telescopic)
26	20 A	ETS (tilt)
27	30 A	Driver’s power window
28	20 A	Moonroof
29	7.5 A	AFS
30	7.5 A	A/C
31	7.5 A	SH-AWD
32	10 A	ACC
33	(7.5 A)	Option

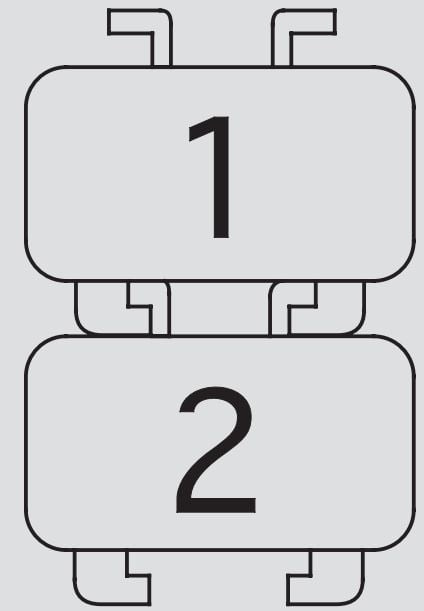

SECONDARY INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected
1	7.5 A	Starter diag.
2	7.5 A	Starter signal

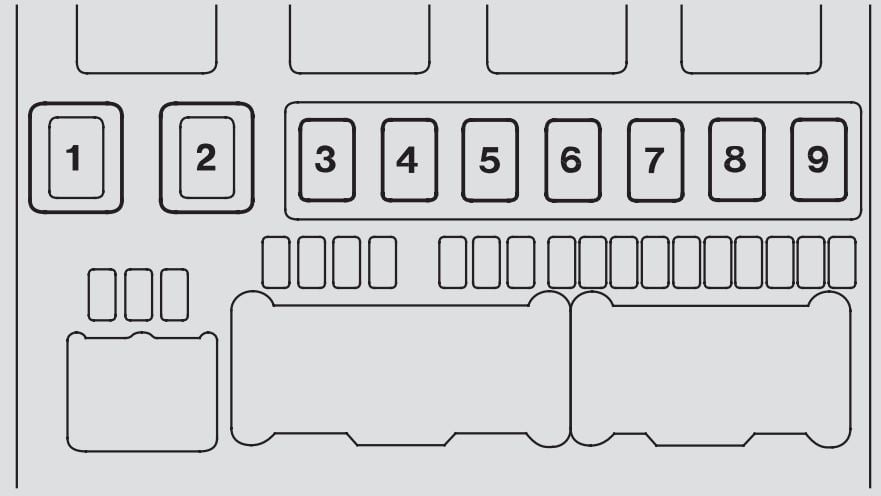

PASSENGERS’S SIDE

No.	Amps.	Circuits Protected
1	30 A	SH-AWD
2	30 A	Premium amplifier
3	30 A	Passenger’s power window
4	30 A	Driver’s automatic seat belt tensioner
5	20 A	Right rear power window
6	20 A	Heated seats
7	7.5 A	Interior lights
8	30 A	Passenger’s automatic seat belt tensioner
9	7.5 A	Air conditioner

Acura RL ( 2007 to 2010 )

INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected
1	15 A	Drive by Wire
2	15 A	Ignition coil
3	10 A	Daytime running light
4	15 A	LAF heater
5	7.5 A	Radio
6	7.5 A	Interior light
7	10 A	Back-up
8	20 A	Door lock
9	20 A	Accessory socket
10	7.5 A	Occupant position detection system
11	(2009-2010) 15 A (2007-2008) 7.5 A	Wiper
12	(2009-2010) 15 A (2007-2008) 7.5 A	(2009-2010) Rear heated seat (2007-2008) Tire pressure monitoring system
13	20 A	Passenger’s power seat reclining
14	20 A	Driver’s power seat sliding
15	(2007-2008) 10 A (2009-2010) 7.5 A	(2007-2008) Power lumbar support (2009-2010) Tire pressure monitoring system
16	20 A	Driver’s power seat reclining
17	20 A	Passenger’s power seat sliding
18	15 A	ACG
19	20 A	Fuel Pump
20	15 A	IGN SOL
21	10 A	Meter
22	10 A	SRS
23	7.5 A	IGP (PGM-FI ECU)
24	20 A	Left rear power window
25	20 A	ETS (telescopic)
26	20 A	ETS (tilt)
27	30 A	Driver’s power window
28	20 A	Moonroof
29	7.5 A	Adaptive Front Lighting System
30	7.5 A	Air Conditioner
31	7.5 A	e-pretensioner
32	10 A	ACC
33	(7.5 A)	Option

SECONDARY INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected

1	7.5 A	Starter diag.
2	7.5 A	Starter signal

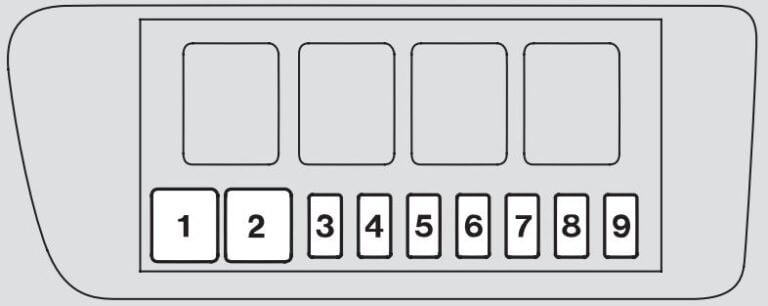

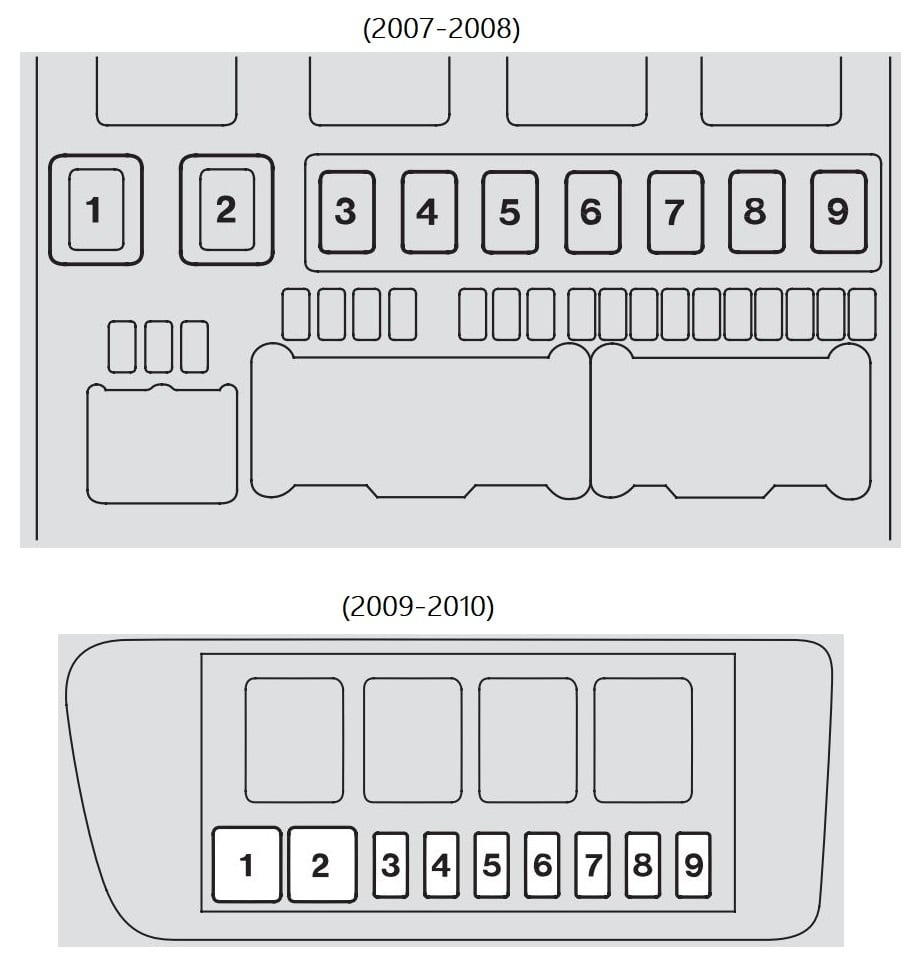

PASSENGERS’S SIDE

No.	Amps.	Circuits Protected
1	30 A	SH-AWD
2	30 A	Premium amplifier
3	30 A	Passenger’s power window
4	30 A	Driver’s automatic seat belt tensioner/e-pretensioner
5	20 A	Right rear power window
6	20 A	Heated seats
7	7.5 A	(2007-2008 ) Interior lights (2009-2010 ) Illumination lights
8	30 A	Passenger’s automatic seat belt tensioner/e-pretensioner
9	7.5 A	Air conditioner

Acura RL ( 2011 and 2012 )

INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected
1	15 A	Drive by Wire
2	15 A	Ignition coil
3	10 A	Daytime running light
4	15 A	LAF heater
5	7.5 A	Radio
6	7.5 A	Interior light
7	10 A	Back-up
8	20 A	Door lock
9	20 A	Accessory socket
10	7.5 A	Occupant position detection system (OPDS)
11	15 A	Wiper
12	15 A	Rear heated seat
13	20 A	Passenger’s power seat reclining
14	20 A	Driver’s power seat sliding
15	7.5 A	Tire pressure monitoring system (TPMS)
16	20 A	Driver’s power seat reclining
17	20 A	Passenger’s power seat sliding
18	15 A	ACG
19	20 A	Fuel Pump
20	15 A	IGN SOL
21	10 A	Meter
22	10 A	SRS
23	7.5 A	IGP (PGM-FI ECU)
24	20 A	Left rear power window
25	20 A	ETS (telescopic)
26	20 A	ETS (tilt)
27	30 A	Driver’s power window
28	20 A	Moonroof
29	7.5 A	Adaptive Front Lighting System
30	7.5 A	Air Conditioner
31	7.5 A	e-pretensioner
32	10 A	ACC
33	—	Not Used

SECONDARY INTERIOR FUSE BOX Driver’s side

No.	Amps.	Circuits Protected
1	7.5 A	Starter diag.
2	7.5 A	Starter signal

PASSENGERS’S SIDE

No.	Amps.	Circuits Protected
1	30 A	SH-AWD
2	30 A	Premium amplifier
3	30 A	Passenger’s power window
4	30 A	Driver’s automatic seat belt tensioner/e-pretensioner
5	20 A	Right rear power window
6	20 A	Heated seats
7	7.5 A	Illumination lights
8	30 A	Passenger’s automatic seat belt tensioner/e-pretensioner
9	7.5 A	Air conditioner
