Are you struggling to locate or understand the fuse box layout in your BMW 5-Series F10, F11, F07, F18 (2010 – 2017)? Electrical issues can be frustrating, but finding the right fuse is easier than you think. This comprehensive guide provides detailed location maps and clear diagrams to help you identify and replace the correct fuses quickly, saving you both time and unnecessary repair costs.

Fuse Box Location

Passenger Compartment Fuse Box

Fuse box in the glove compartment

Open the glove compartment, remove the cover.

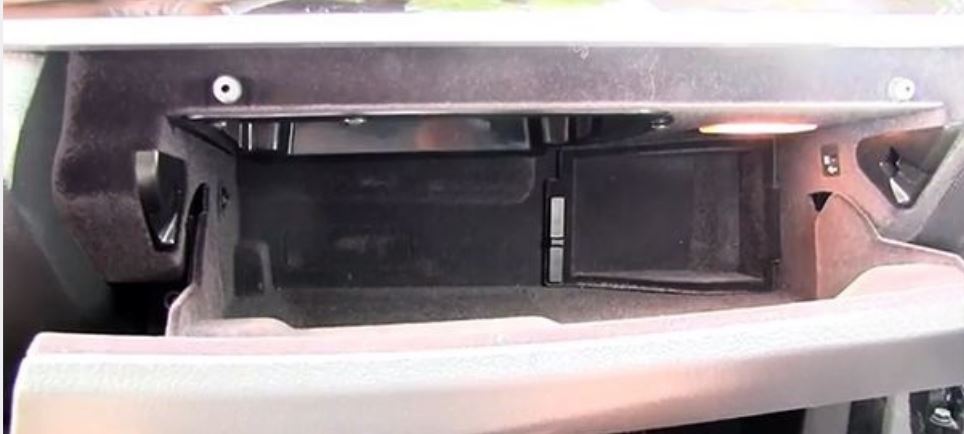

BMW 5-Series (F10, F11, F07, F18) passenger Fuse Box location

Luggage Compartment Fuse Boxes

It is located on the right side, behind the cover.

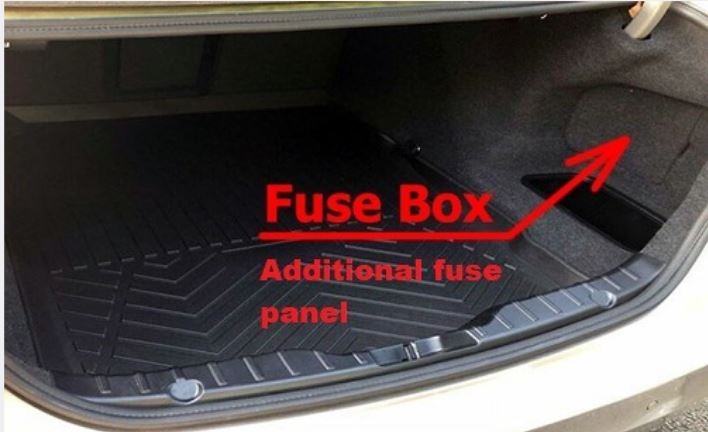

BMW 5-Series (F10, F11, F07, F18) luggage Fuse Box location

Fuse Box Diagram

Passenger Compartment Fuse Box

BMW 5-Series (F10, F11, F07, F18) passenger Fuse Box diagrams

№AmpsDescription
110AFootwell control unit
25ADynamic Stability Control (DSC), Door control unit
35ACentral Control Gateway, Diagnostic connector
45AControl unit
510AInterior lights, Instrument cluster
6Fuse Shunt
730AJunction Box
830AJunction Box
930AJunction Box
1010AInstrument cluster
117.5AHeating and air conditioning control unit
125AGlove box light
135ASteering column switches, Switch, Driver assistance system
1415AJunction box
1520AJunction box
1640AFootwell control unit
1730AFootwell control unit
1830AFootwell control unit
1920ATrailer control unit
2020ADigital Motor Electronics (DME) / Integrated Voltage Module (IVM)
2130ADigital Motor Electronics (DME) / Integrated Voltage Module (IVM)
2230APressure control valve, Fuel metering solenoid, Camshaft sensor, Boost pressure regulator solenoid, Mass flow meter, Turbo control solenoid, Compressor bypass
235ATelematics
2410ASteering column switches
255AHead-Head Display Control Unit
265AInstrument cluster
275AEject box
285AVideo system
295ARear control unit, Touchbox control device
315ARear climate control unit, Heated rear seat switch
327.5ADriver’s seat adjustment switch, Door switch control unit, Front passenger seat adjustment switch, Exterior mirror, Hatch module, Back light
335ASeat belt pretensioner control unit, Heating control unit, Tank vent valve, Fuel tank shut-off valve, Seat belt pretensioner control unit, Heating control unit
345AChassis Integration Module
3515ADDE main relay
3630AHeadlight washer pump
3730AVertical dynamics control
3840AVehicle access control unit
3940APower steering control unit
4030ADynamic Stability Control (DSC)
4230AElectro-hydraulic solenoids for engine mounting, EGR Cooling Bypass Valve, Oil quality sensor, Oxygen sensor behind the catalytic converter, Oxygen sensor before catalytic converter, Mass flow meter, Compressor bypass, Oil level sensor, Damper control solenoid
435AElectromechanical power steering, Throttle Position Valve, Electromechanical power steering
445AAutomatic air conditioning, Camera control unit
455AVertical Dynamics Control, Power steering control unit
465ARadiator damper control unit, Cruise control
4720AExhaust gas recirculation coolant pump, Exhaust Gas Recirculation Solenoid
485AElectrochromic rear view mirror, Engine crankcase heater
5040AABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
5130AWiper Module
5230ADriver’s seat control unit, Driver’s seat adjustment switch
5330APassenger seat control unit, Front passenger seat adjustment switch
5420AFront and rear 12V sockets, cigarette lighter
5520ARear wiper
565AVehicle access control unit
585ANoise filter, Hatch module
5910AIntercooler pump
605AParking brake switch
6120ASunroof
6215ASignal
6310AAutomatic Transmission
647.5ASelector Switch
6515AAdditional 12V socket
6520AAuxiliary heating system
667.5AHatch, Door switch control unit, Exterior mirror
6710ASeat adjustment switch, Driver’s seat adjustment switch, Front passenger seat adjustment switch, Valve block, lumbar support

Luggage Compartment Fuse Box

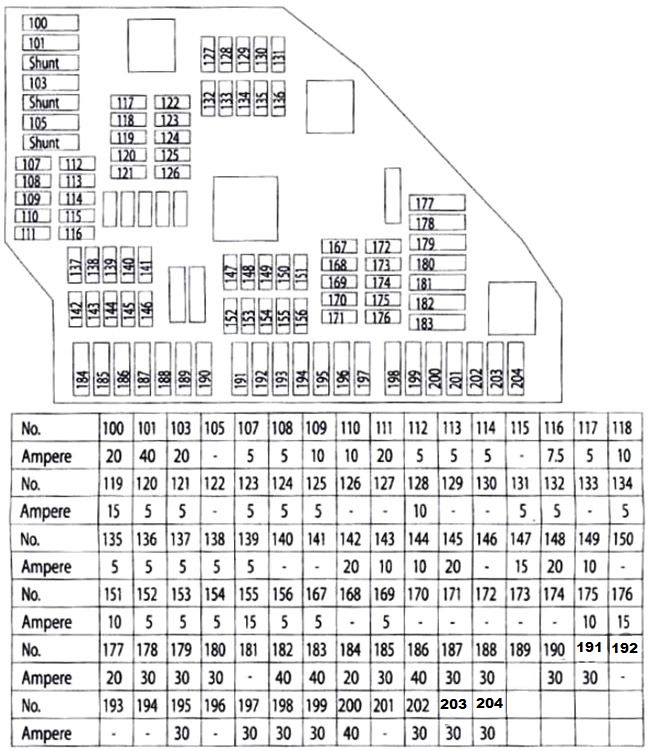

BMW 5-Series (F10, F11, F07, F18) luggage Fuse Box diagrams

№AmpsDescription
10020ATrailer control unit
10140AFootwell control unit
10530AHi-Fi amplifier, Headset connection module
1075ACharging control, Dynamic Stability Control (DSC)
1085AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
1095AElectric rear sunshade
11010AAutomatic door
1125ASeat adjustment
1135AHead-Up Display (HUD)
1145ASeat adjustment, Electric rear sunshade
1167.5ARear information display
1175ATelematics, USB
11810AInformation display, Rear infotainment control unit
11915AHeadset Connection Module, Audio system
1205AHi-Fi amplifier, DVD
1215AInfotainment control unit, Fan, Video system, Infotainment control unit, Fan
1235ACamera control unit
1245ANight vision system control unit
1255AVideo system
12810ADamper control solenoid
1315ALane Detection Warning
1325AAdditional heater, Retractable roof control unit, Additional heater, Right high beam headlight
1345ARear axle camber sensor, Parking assistance, Rear axle camber sensor, Servotronic
1355AElectrical changeover valve, outlet damper
1365ADC-DC converter, Retractable roof control unit
1375ACooling fan cut-off relay
1385ATransfer case
1395AFuel tank leak diagnosis, Tire pressure monitoring
14220AAuxiliary heating system
14310AAutomatic door
14410AAutomatic door
14520ATermination Connector
14715AAdditional 12V socket
14720AAdditional 12V socket
14820AConvertible roof control unit, Trailer towing module
14910AAutomatic door
15110AElectric rear sunshade
1525ARide Height Control
1535ATrunk lid remote control, Rear door switch
1545ATrunk light(s)
15515ARear door/trunk lock
1565AAir conditioner system
1675AParking brake control unit
1695AAlarm, Emergency system, Vacuum leak detection
17510ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
17615AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
17720AHeater fan
17830ATransfer case
17930AParking brake control unit
18030AParking brake control unit
18240ACompressor clutch relay, Soft top
18340ARemote control for trunk lid
18420AFuel pump control
18530AHi-Fi amplifier
18630ADC-DC converter
18730AHeated rear seat control unit, Rear seat control unit
18830AHeated rear seat control unit, Rear seat control unit
19030ADriver seat heating control unit
19130APassenger seat heating control unit
19530AAuxiliary heater
19830ASeat belt pretensioner control unit, not used
19930ASeat belt pretensioner control unit, not used
20040AHi-Fi amplifier
20230AAuxiliary heater
20330AHeated rear window

Additional fuse panel

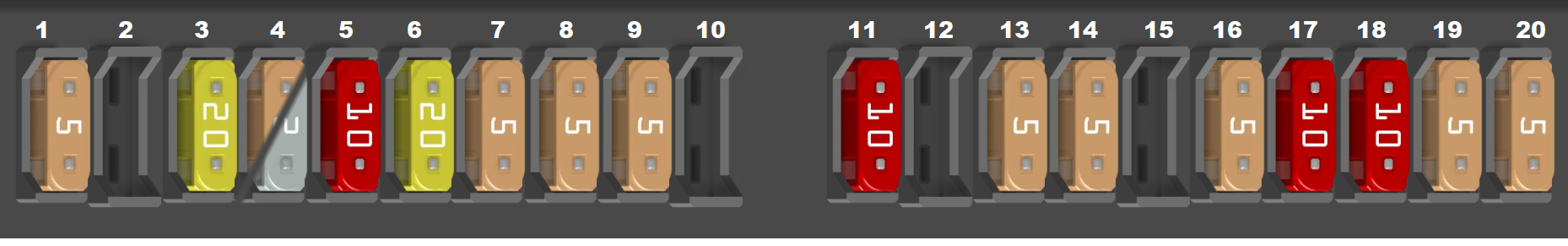

Additional fuse panel
TypeNo.Description
Fuse MINI

5A

1
Additional battery control unit
Fuse MINI

20A

3
Additional battery control unit
Fuse MINI

5A

4
Sound control unit
Fuse MINI

2A

4
Sound control unit
Fuse MINI

10A

5
Charging connector
Fuse MINI

20A

6
Sound control unit
Fuse MINI

5A

7
Reserve
Fuse MINI

5A

8
Reserve
Fuse MINI

5A

9
Additional battery control unit
Fuse MINI

10A

11
Charging connector
Fuse MINI

5A

13
Reserve
Fuse MINI

5A

14
Switches
Fuse MINI

5A

16
Additional battery control unit
Fuse MINI

10A

17
Reserve
Fuse MINI

10A

18
Additional battery control unit
Fuse MINI

5A

19
Additional battery control unit
Fuse MINI

5A

20
Additional battery control unit
