Chevrolet Malibu (2004 – 2007) Fuse Box Location and Diagrams
This blog discusses the locations and schematics of the fuse boxes for the Chevrolet Malibu (2004–2007). Learn to identify fuse panels, comprehend how they work, and locate essential parts so that you can properly diagnose and fix Malibu electrical problems.
Fuse Box Locations
Passenger Compartment Fuse Box

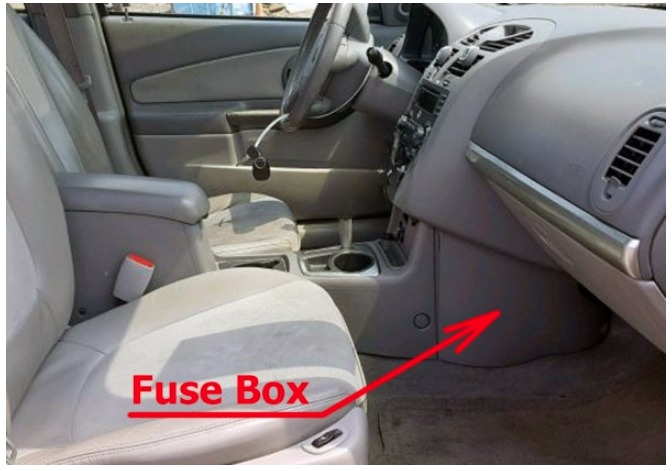

The instrument panel fuse blocks is located at on the lower front side of the console, on the passenger side of the vehicle.
To access the fuses, open the fuse panel door by pulling out. To reinstall the door, insert the hooks at the front end first, then push the door into the center console panel to secure it.
Engine Compartment Fuse Box

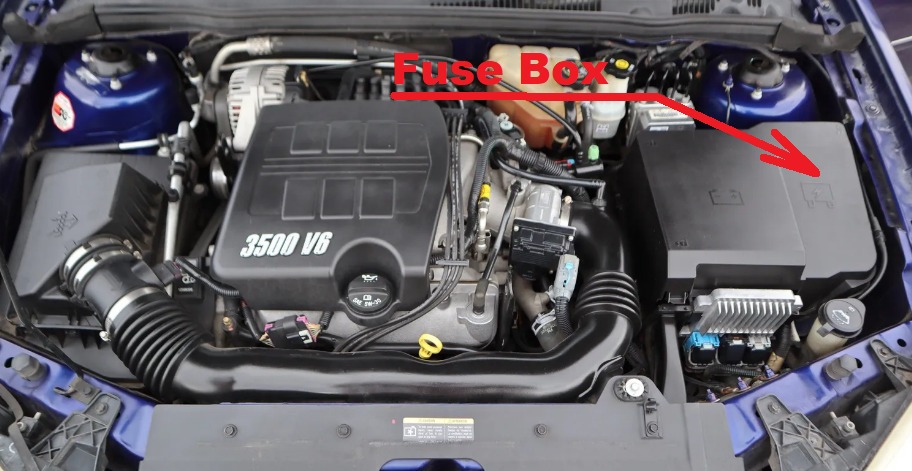

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.
Luggage Compartment Fuse Box

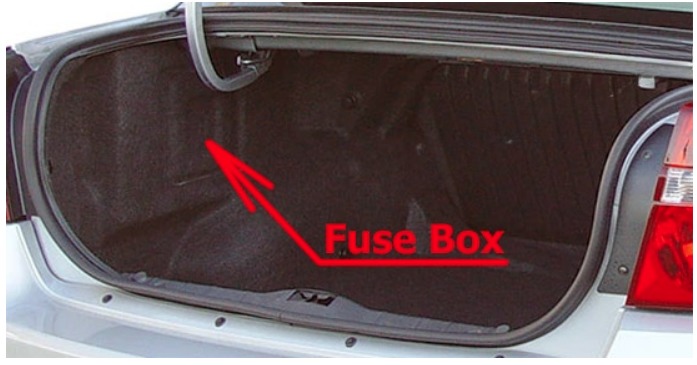

The rear compartment fuse block is located in the trunk
of the vehicle. Access the fuse block through the trunk panel on the driver’s side of the rear cargo area.

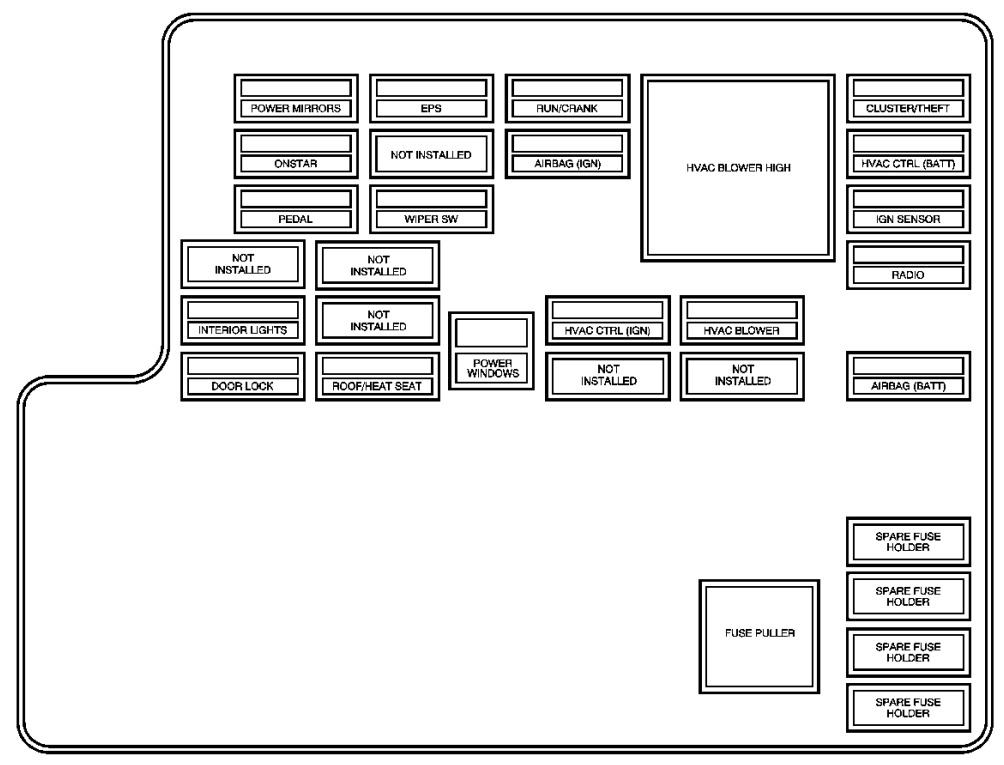

Passenger Compartment Fuse Box Diagram
Chevrolet Malibu (2004 to 2007)
| Fuses | Usage |
| POWER MIRRORS | Power Mirrors |
| EPS | Electric Power Steering |
| RUN/CRANK | Cruise Control, Electronic Range Select |
| HVAC BLOWER HIGH (Relay) | Climate Control System |
| CLUSTER/THEFT | Instrument Panel Cluster, Theft Deterrent System |
| ONSTAR® | OnStar® System |
| NOT INSTALLED | Not Used |
| AIRBAG (IGN) | Airbag System |
| HVAC CTRL (BATT) | Climate Control System |
| PEDAL | Adjustable Throttle and Brake Pedal |
| WIPER SW | Windshield Wiper/Washer Switch |
| IGN SENSOR | Ignition Switch |
| NOT INSTALLED | Not Used |
| NOT INSTALLED | Not Used |
| RADIO | Audio System |
| INTERIOR LIGHTS | Overhead Lighting, Trunk/Cargo Lighting |
| NOT INSTALLED | Not Used |
| HVAC CTRL (IGN) | Climate Control System |
| HVAC BLOWER | Climate Control System |
| DOOR LOCK | Automatic Door Lock System |
| ROOF/HEAT SEAT | Sunroof, Heated Seats, Automatic Dimming Rearview Mirror |
| POWER WINDOWS | Power Window Switch |
| NOT INSTALLED | Not Used |
| NOT INSTALLED | Not Used |
| AIRBAG (BATT) | Airbag System |
| FUSE PULLER | Fuse Puller |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
Engine Compartment Fuse Box Diagram

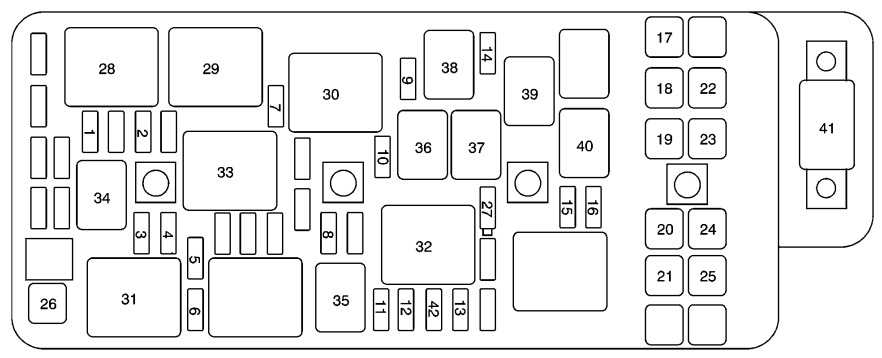

Chevrolet Malibu (2004 and 2005)
The high-current fuses are coded as follows:
| Fuses | Usage |
| 1 | A/C CLU |
| 2 | Electronic Throttle Control |
| 3 | Ignition Module |
| 4 | Transmission |
| 5 | Fuel Injectors |
| 6 | EMISSION 1 |
| 7 | Left Headlamp Low-Beam |
| 8 | Horn |
| 9 | Right Headlamp Low-Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High-Beam |
| 12 | Right Headlamp High-Beam |
| 13 | Powertrain Control Module (Batt) |
| 14 | Windshield Wiper |
| 15 | Anti-Lock Brake System |
| 16 | Powertrain Control Module (IGN 1) |
| 17 | Cooling Fan 1 |
| 18 | Cooling Fan 2 |
| 19 | RUN RELAY |
| 20 | IBCM 1 |
| 21 | IBCM (R/C) |
| 22 | RBEC 1 |
| 23 | RBEC 2 |
| 24 | Anti-lock Brake System |
| 25 | IBCM 2 |
| 26 | STARTER |
| 27 (DIODE) | Windshield Wiper |
| 41 | Electric Power Steering |
| 42 (Resistor) | Brake Lamp Diagnostic |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Mode |
| 30 | Cooling Fan 2 |
| 31 | STARTER |
| 32 | RUN/CRANK Ignition |
| 33 | POWERTRAIN |
| 34 | A/C CLUTCH |
| 35 | High-Beam Headlamps |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low-Beam Headlamps |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |

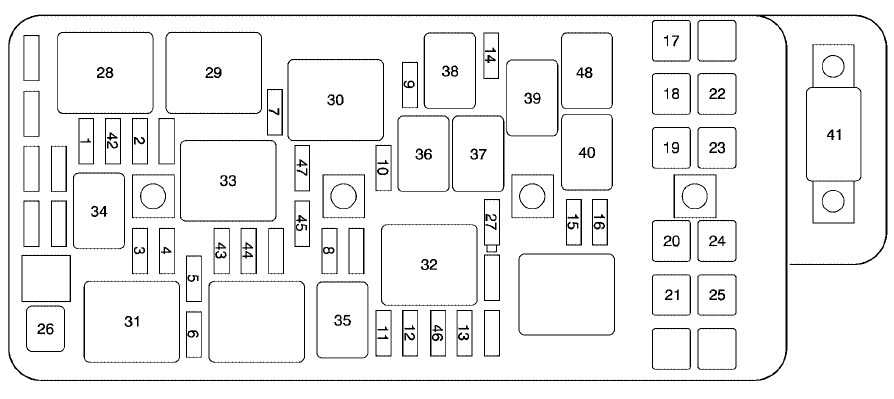

Chevrolet Malibu (2006 and 2007)
The high-current fuses are coded as follows:
| Fuses | Usage |
| 1 | Air Conditioning Clutch |
| 2 | Electronic Throttle Control |
| 3 | Ignition Module |
| 4 | Transmission |
| 5 | (2006) Fuel Injectors |
| 6 | Emission 1 |
| 7 | Left Headlamp Low-Beam |
| 8 | Horn |
| 9 | Right Headlamp Low-Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High-Beam |
| 12 | Right Headlamp High-Beam |
| 13 | Powertrain Control Module (Batt) |
| 14 | Windshield Wiper |
| 15 | Anti-lock Brake System |
| 16 | Powertrain Control Module (IGN 1) |
| 17 | Cooling Fan 1 |
| Fuses | Usage |
| 18 | Cooling Fan 2 |
| 19 | Run Relay |
| 20 | IBCM 1 |
| 21 | IBCM (R/C) |
| 22 | Rear Electrical Center 1 |
| 23 | Rear Electrical Center 2 |
| 24 | Anti-lock Brake System |
| 25 | IBCM 2 |
| 26 | Starter |
| 27 (DIODE) | Windshield Wiper |
| 41 | Electric Power Steering |
| 42 | Transmission Control Module |
| 43 | Ignition Module |
| 44 | Fuel Injectors |
| 45 | Intake Tuning Valve |
| 46 (Resistor) | Brake Lamp Diagnostic |
| 47 | Daytime Running Lamps |
| Relays | Usage |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Mode Series/Parallel |
| 30 | Cooling Fan 2 |
| 31 | Starter |
| 32 | Run/Crank, Ignition |
| 33 | Powertrain |
| 34 | Air Conditioning Clutch |
| 35 | High-Beam Headlamps |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low-Beam Headlamps |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |
| 48 | Daytime Running Lamps |
Luggage Compartment Fuse Box Diagram
Chevrolet Malibu (2004 to 2007)
| Fuses | Usage |
| 1 | Not Used |
| 2 | Driver Seat Controls |
| 3 | Not Used |
| 4 (Resistor) | Driver Door Key Lock Cylinder |
| 5 | Emission |
| 6 | Parklamps |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Not Used |
| 10 | Sunroof Controls |
| 11 | Not Used |
| 12 | Auxiliary Power 2 |
| 13 | Not Used |
| 14 | Heated Seat Controls |
| 15 | Not Used |
| 16 | Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink |
| 17 | Back-up Lamps |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Cigarette Lighter, Auxiliary Power Outlet |
| 21 | Not Used |
| 22 | Trunk |
| 23 | Rear Window Defogger |
| 24 | Heated Mirror Controls |
| 25 | Fuel Pump |
| 26 | Rear Window Defogger |
| 27 | Parklamps |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Back-up Lamps |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Trunk |
| 37 | Fuel Pump |
| 38 (Diode) | Cargo Lamps |
To access the fuses, open the fuse panel door by pulling out. To reinstall the door, insert the hooks at the front end first, then push the door into the center console panel to secure it.
