Chevrolet Malibu (2008 – 2012) Fuse Box Location and Diagrams

Chevrolet Malibu (2008 – 2012) Fuse Box Location and Diagrams

This blog covers Chevrolet Malibu (2008–2012) fuse box schematics and locations. To fix electrical issues and keep your Malibu running smoothly, understand how to find, access, and understand fuse operations.

Fuse Box Locations

Passenger Compartment Fuse Box

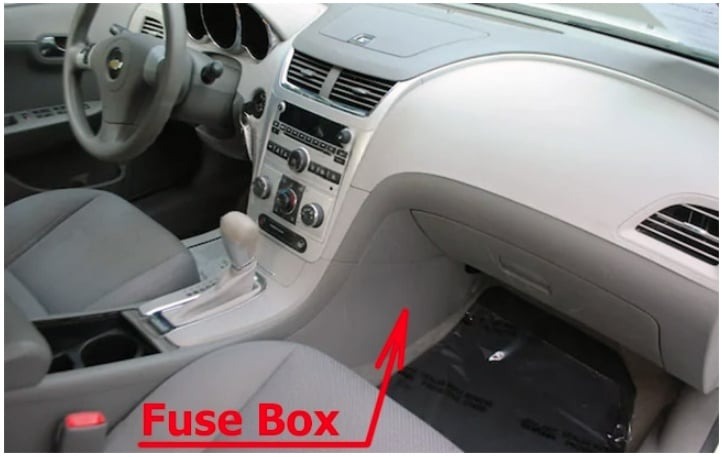

The instrument panel fuse block is located on the passenger side of the vehicle, on the lower portion of the instrument panel near the floor.

Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 1Engine Compartment Fuse Box

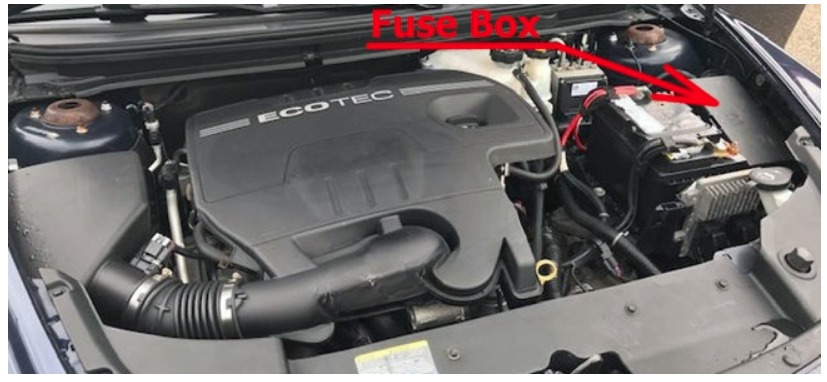

The engine compartment fuse block is located on the driver side of the engine compartment, near the battery

Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 2Luggage Compartment Fuse Box

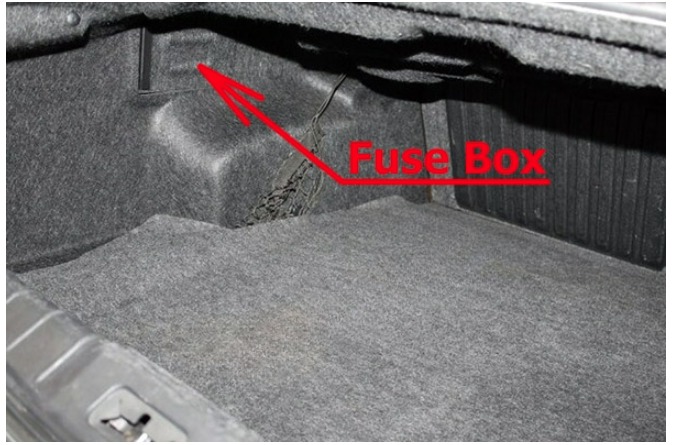

The rear compartment fuse block is located in the trunk of the vehicle. Access the fuse block through the trunk panel on the driver side of the rear cargo area.Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 3

Passenger Compartment Fuse Box Diagram

Chevrolet Malibu (2008 to 2012)Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 4
FusesUsage
POWER MIRRORSPower Mirrors
EPSElectronic Power Steering
RUN/CRANKCruise Control Switch, Passenger Airbag Status Indicator
HVAC BLOWER HIGHHeating Ventilation Air Conditioning Blower – High Speed Relay
CLUSTER/ THEFTInstrument Panel Cluster, Theft Deterrent System
ONSTAROnStar®
NOT INSTALLEDNot Used
AIRBAG (IGN)Airbag (Ignition)
HVAC CTRL (BATT)Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDALAdjustable Pedals
WIPER SWWindshield Wiper/Washer Switch
IGN SENSORIgnition Switch
STRG WHL ILLUMSteering Wheel Illumination
NOT INSTALLEDNot Used
RADIOAudio System
INTERIOR LIGHTSInterior Lamps
NOT INSTALLEDNot Used
POWER WINDOWSPower Windows
HVAC CTRL (IGN)Heating Ventilation Air Conditioning Control (Ignition)
HVAC BLOWERHeating Ventilation Air Conditioning Blower Switch
DOOR LOCKDoor Locks
ROOF/HEAT SEATSunroof, Power Windows
NOT INSTALLEDNot Used
NOT INSTALLEDNot Used
AIRBAG (BATT)Airbag (Battery)
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
FUSE PULLERFuse Puller

Engine Compartment Fuse Box Diagram

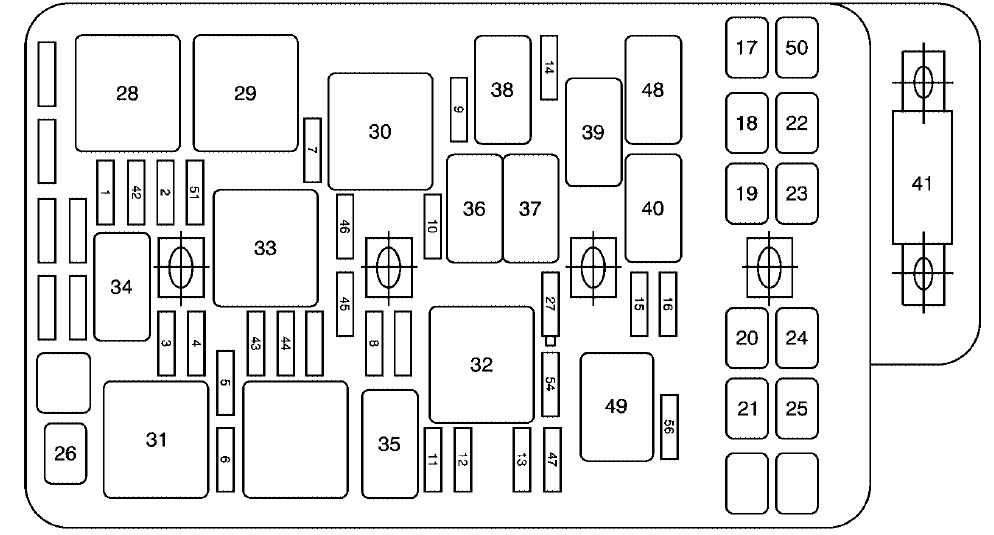

Chevrolet Malibu (2008 and 2009)Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 5
FusesUsage
1Air Conditioner Clutch
2Electronic Throttle Control
3Engine Control Module IGN 1 (LZ4)
FusesUsage
4Transmission Control Module Ignition 1
5Mass Airflow Sensor (LY7)
6Emission
7Left Headlamp Low-Beam
8Horn
9Right Headlamp Low-Beam
10Front Fog Lamps
11Left Headlamp High-Beam
12Right Headlamp High-Beam
13Engine Control Module BATT (LY7 & LE5)
14Windshield Wiper
15Antilock Brake System (IGN 1)
16Engine Control Module IGN 1 (LY7 & LE5)
17Cooling Fan 1
18Cooling Fan 2
19Run Relay, Heating, Ventilation, Air Conditioning Blower
20Body Control Module 1
21Body Control Module Run/Crank
22Rear Electrical Center 1
23Rear Electrical Center 2
24Antilock Brake System
25Body Control Module 2
26Starter
41Electric Power Steering
42Transmission Control Module Battery
43Ignition Module (LZ4 & LE5); Injectors, Ignition Coils Odd (LY7)
44Injectors (LZ4 & LE5); Injectors, Ignition Coils Even (LY7)
45Post Cat 02 Sensor Heaters (LY7 & LZ4)
46Daytime Running Lamps
47Center High-Mounted Stoplamp
50Driver Power Window
51

52

Engine Control Module BATT (LZ4)

(2009) AIR Solenoid

54Regulated Voltage Control
55DC/AC Inverter
56Antilock Brake System BATT
RelaysUsage
28Cooling Fan 1
29Cooling Fan Series/Parallel
30Cooling Fan 2
31Starter
32Run/Crank, Ignition
33Powertrain
34Air Conditioning Clutch
35High Beam
36Front Fog Lamps
37Horn
38Low-Beam Headlamp
39Windshield Wiper 1
40Windshield Wiper 2
48Daytime Running Lamps
49Stoplamps
DiodesUsage
27Wiper

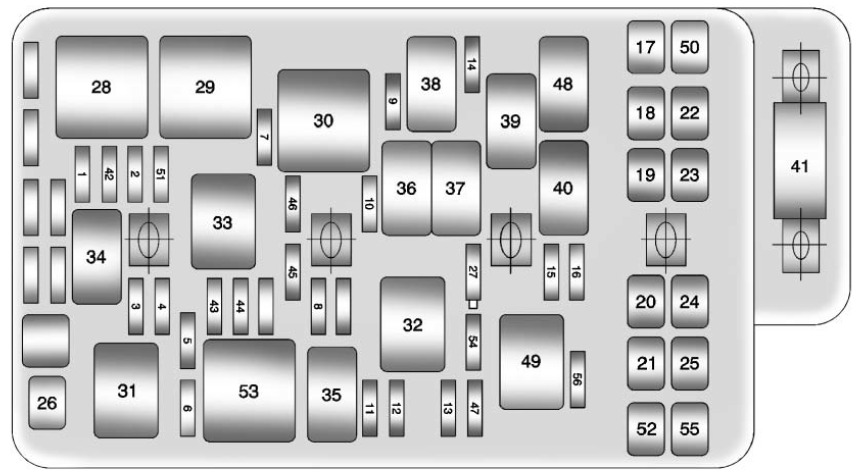

Chevrolet Malibu (2010, 2011 and 2012)Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 6
FusesUsage
1Air Conditioner Clutch
2Electronic Throttle Control
3Not Used
4Transmission Control Module Ignition 1
5Mass Airflow Sensor (LY7)
6Emission
7Left Headlamp Low-Beam
8Horn
9Right Headlamp Low-Beam
10Front Fog Lamps
11Left Headlamp High-Beam
12Right Headlamp High-Beam
13Engine Control Module BATT
14Windshield Wiper
15Antilock Brake System (IGN 1)
16Engine Control Module IGN 1
17Cooling Fan 1
18Cooling Fan 2


19

Run Relay, Heating, Ventilation, Air Conditioning Blower
20Body Control Module 1
21Body Control Module Run/Crank
22Rear Electrical Center 1
23Rear Electrical Center 2
24Antilock Brake System
25Body Control Module 2
26Starter
41Electric Power Steering
42Transmission Control Module Battery


43

Ignition Module (LE9 & LE5);

Injectors, Ignition Coils Odd (LY7)



44

Injectors (LE9 & LE5); Injectors, Ignition Coils Even (LY7)
45Post Cat 02 Sensor Heaters (LY7)
46Daytime Running Lamps
47Center High-Mounted Stoplamp
50Driver Power Window
51Not Used
52AIR Solenoid
54Regulated Voltage Control
55DC/AC Inverter
56Antilock Brake System BATT
RelaysUsage
28Cooling Fan 1
29Cooling Fan Series/ Parallel
30Cooling Fan 2
31Starter
32Run/Crank, Ignition
33Powertrain
34Air Conditioning Clutch
35High Beam
36Front Fog Lamps
37Horn
38Low-Beam Headlamp
39Windshield Wiper 1
40Windshield Wiper 2
48Daytime Running Lamps
49Stoplamps
53AIR Solenoid
DiodesUsage
27Wiper

Luggage Compartment Fuse Box Diagram

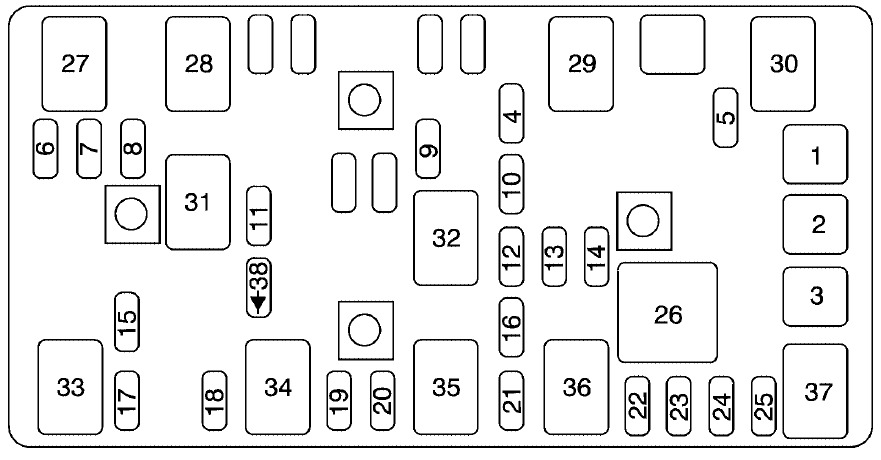

Chevrolet Malibu (2008 to 2012)Chevrolet Malibu Fuse Box Location and Diagrams User Guide (2008 - 2012) Fig 7
FusesUsage
1Passenger Seat Controls
2Driver Seat Controls
3Not Used
4Not Used
5Emission 2, Canister Vent Solenoid
6Park Lamps, Instrument Panel Dimming
7Not Used
8Not Used
9Not Used
10Sunroof Controls
11Not Used
12Not Used
13Audio Amplifier
14Heated Seat Controls
15Not Used


16

Remote Keyless Entry (RKE) System, XM™ Satellite Radio, UGDO
17Back-up Lamps
18Not Used
19Not Used
20Auxiliary Power Outlets
21Not Used
22Trunk Release
23Rear Defog
24Heated Mirrors
25Fuel Pump
RelaysUsage
26Rear Window Defogger
27Park Lamps
28Not Used
29Not Used
30Not Used
31Not Used
32Not Used
33Back-up Lamps
34Not Used
35Not Used
36Trunk Release
37Fuel Pump
38 (Diode)Cargo Lamp
