Chevrolet Malibu (2013 – 2016) Fuse Box Location and Diagrams
This guide shows Chevrolet Malibu (2013–2016) fuse box diagrams and locations. To keep your Malibu’s systems functioning smoothly, understand how to identify each fuse, understand its function, and repair electrical difficulties.
Fuse Box Locations

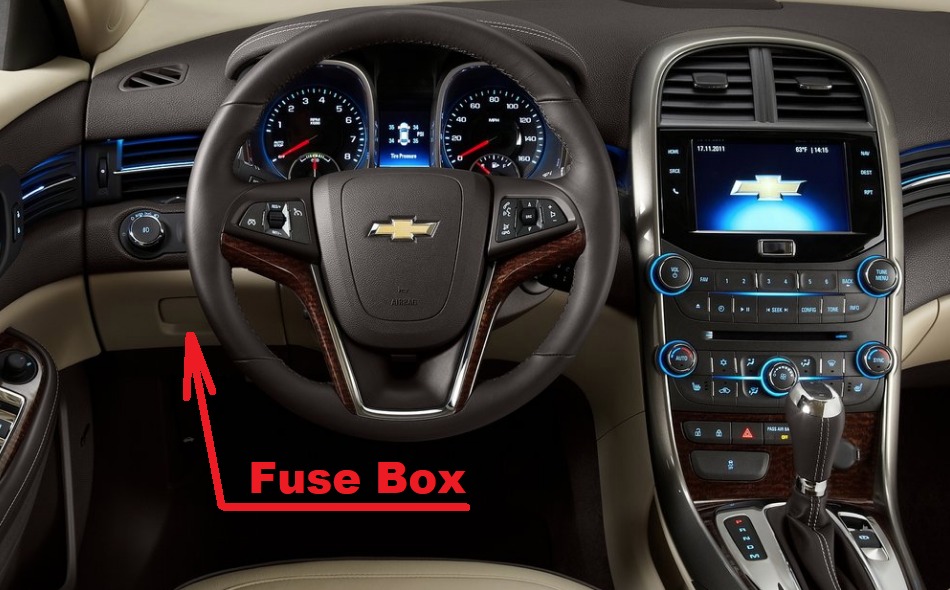

Passenger Compartment Fuse Box

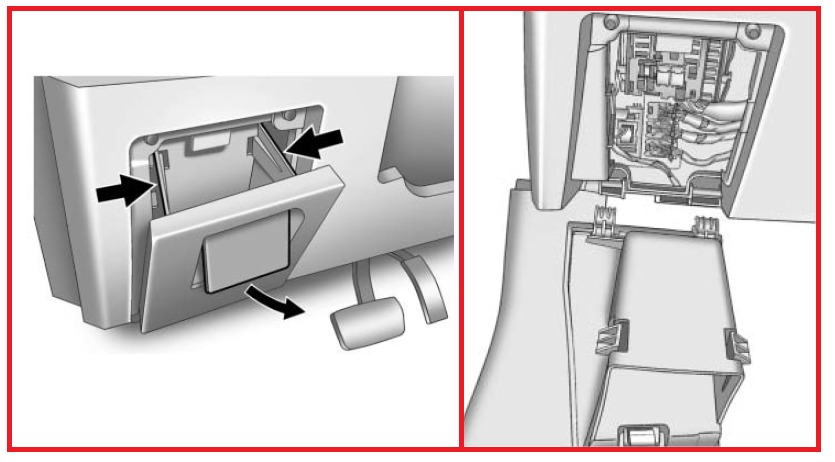

The instrument panel fuse block is in the instrument panel, on the driver side of the vehicle. To access the fuses, open the fuse panel door by pulling down at the top.
- Press in on the sides of the door to release it from the instrument panel.
- Pull the door toward you to release it from the hinge.
Engine Compartment Fuse Box

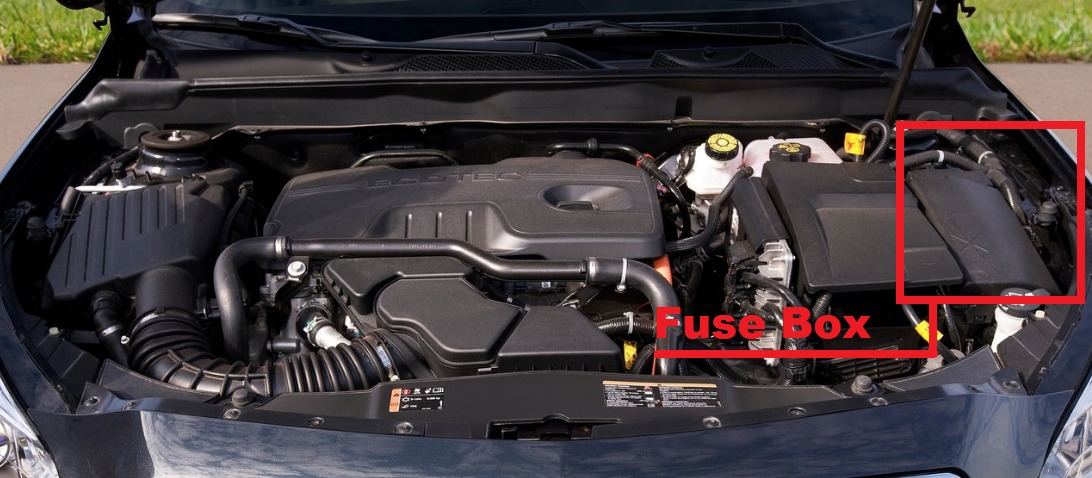

The engine compartment fuse block is on the driver side of the engine compartment, near the battery.
Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

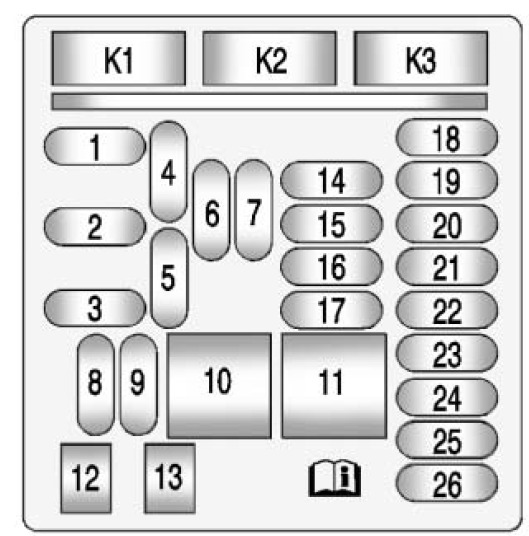

Passenger Compartment Fuse Box Diagram
Chevrolet Malibu (2013 to 2016)
The vehicle may not be equipped with all of the fuses, relays, and features shown.
| Fuses | Usage |
| 1 | Steering Wheel Controls Backlight |
| 2 | Right Rear Turn Signal, Left Mirror Turn Signal, Left Front Turn Signal, Door Locks |
| 3 | Left Stoplamp, Left DRL Lamp, Headlamp Control, Right Taillamp, Right Park/Sidemarker Lamps, Right Mirror Turn, Right Front Turn Signals |
| 4 | Radio |
| 5 | OnStar |
| 6 | Front Accessory Power Outlet |
| 7 | Console Bin Power Outlet |
| 8 | License Plate Lamp, Center High-Mounted Stoplamp, Rear Fog Lamps, Right Front Park/Sidemarker Lamps, LED Indicator Dim, Washer Pump, Right Stoplamp, Trunk Release |
| 9 | Left Low-Beam Headlamp, DRL |
| 10 | Body Control Module 8 (J-Case Fuse), Power Locks |
| 11 | Front Heater Ventilation Air Conditioning/Blower (J-Case Fuse) |
| 12 | Passenger Seat (Circuit Breaker) |
| 13 | Driver Seat (Circuit Breaker) |
| 14 | Diagnostic Link Connector |
| 15 | Airbag, SDM |
| 16 | Trunk Release |
| 17 | Heater Ventilation Air Conditioning Controller |
| 18 | Audio Main |
| 19 | Displays |
| 20 | Passenger Occupant Sense |
| 21 | Instrument Cluster |
| 22 | Ignition Switch |
| 23 | Right Low-Beam Headlamp, DRL |
| 24 | Ambient Light, Switch Backlighting (LED), Trunk Lamp, Shift Lock, Key Capture |
| 25 | 110V AC |
| 26 | Spare |
| Relays | Usage |
| K1 | Trunk Release |
| K2 | Not Used |
| K3 | Power Outlet Relay |

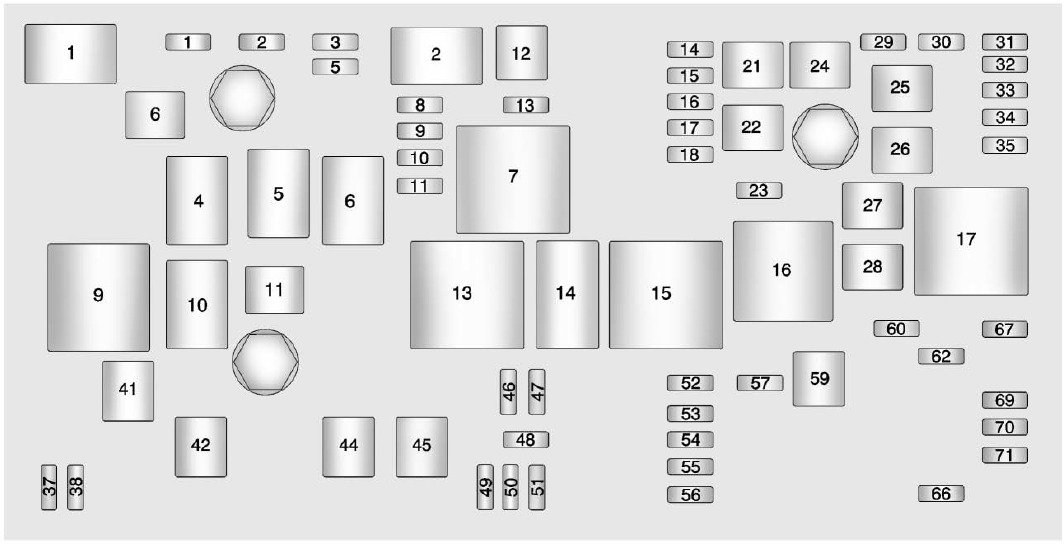

Engine Compartment Fuse Box Diagram
Chevrolet Malibu (2013)
The vehicle may not be equipped with all of the fuses, relays, and features shown.
| Mini Fuses | Usage |
| 1 | Transmission Control Module Battery |
| 2 | Engine Control Module Battery |
| 3 | Air Conditioning Compressor Clutch |
| 5 | Engine Control Module Ignition |
| 8 | Spare |
| 9 | Ignition Coils |
| 10 | Engine Control Module |
| 11 | Emissions |
| 13 | Transmission Module Ignition |
| 14 | Cabin Heater Coolant Pump/SAIR Solenoid |
| 15 | MGU Coolant Pump |
| 16 | Aero Shutter/eAssist Ignition |
| 17 | SDM Ignition |
| 18 | Spare |
| 23 | eAssist Module |
| 29 | Left Seat Power Lumber Control |
| 30 | Right Seat Power Lumber Control |
| 31 | eAssist Module/ Chassis Control Module |
| 32 | Back-Up Lamps/ Interior Lamps |
| 33 | Front Heated Seats |
| 34 | Antilock Brake System Valve |
| 35 | Amplifier |
| 37 | Right High Beam |
| 38 | Left High Beam |
| 46 | Cooling Fan |
| 47 | Emissions |
| 48 | Foglamp |
| 49 | Low Beam HID Headlamp Right |
| 50 | Low Beam HID Headlamp Left |
| 51 | Horn/Dual Horn |
| 52 | Cluster Ignition |
| 53 | Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition |
| 54 | Heating, Ventilation, and Air Conditioning Module Ignition |
| 55 | Front Power Windows/Mirrors |
| 56 | Windshield Washer |
| 57 | Spare |
| 60 | Heated Mirror |
| 62 | Canister Vent Solenoid |
| 66 | SAIR Solenoid |
| 67 | Fuel Module |
| 69 | Battery Voltage Sensor |
| 70 | Lane Departure/Rear Parking Aid |
| 71 | PEPS BATT |
| J-Case Fuses | Usage |
| 6 | Front Wiper |
| 12 | Starter |
| 21 | Rear Power Window |
| 22 | Sunroof |
| 24 | Front Power Window |
| 25 | PEPS MTR |
| 26 | Antilock Brake System Pump |
| 27 | Electric Parking Brake |
| 28 | Rear Defogger |
| 41 | Brake Vacuum Pump |
| 42 | Cooling Fan K2 |
| 44 | Transmission Auxiliary Pump (eAssist) |
| 45 | Cooling Fan K1 |
| 59 | Air Pump Emissions |
| Mini Relays | Usage |
| 7 | Powertrain |
| 9 | Cooling Fan K2 |
| 13 | Cooling Fan K1 |
| 15 | Run/Crank |
| 16 | Air Pump Emissions |
| 17 | Window/Mirror Defogger |
| Micro Relays | Usage |
| 1 | Air Conditioning Compressor Clutch |
| 2 | Starter Solenoid |
| 4 | Front Wiper Speed |
| 5 | Front Wiper On |
| 6 | Cabin Pump eAssist/ SAIR Solenoid |
| 10 | Cooling Fan K3 |
| 11 | Transmission Oil Pump |
| 14 | Headlamp Low Beam/DRL |
Chevrolet Malibu (2014)
| Mini Fuses | Usage |
| 1 | Transmission Control Module Battery |
| 2 | Engine Control Module Battery (LTG/ LUK)/Air Conditioning Compressor Clutch (LWK) |
| 3 | Air Conditioning Compressor Clutch (LTG/LUK) |
| 4 | Air Conditioning Compressor Clutch (LTG/LUK) |
| 5 | Engine Control Module Battery (LKW) |
| 7 | Engine Control Module Ignition (LKW) |
| 8 | Spare |
| 9 | Ignition Coils |
| 10 | Engine Control Module |
| 11 | Emissions |
| 13 | Transmission Module Ignition |
| 14 | Cabin Heater Coolant Pump/SAIR Solenoid |
| 15 | MGU Coolant Pump |
| 16 | Aero Shutter/eAssist Ignition |
| 17 | SDM Ignition |
| 18 | R/C Dual Battery Isolator Module |
| 20 | Transmission Auxiliary Oil Pump (LKW) |
| 23 | eAssist Module/ Spare (LKW) |
| 29 | Left Seat Power Lumber Control |
| 30 | Right Seat Power Lumber Control |
| 31 | eAssist Module/ Chassis Control Module |
| 32 | Back-Up Lamps/ Interior Lamps |
| 33 | Front Heated Seats |
| 34 | Antilock Brake System Valve |
| 35 | Amplifier |
| 37 | Right High Beam |
| 38 | Left High Beam |
| 46 | Cooling Fan |
| 47 | Emissions |
| 48 | Foglamp |
| 49 | Low Beam HID Headlamp Right |
| 50 | Low Beam HID Headlamp Left |
| 51 | Horn/Dual Horn |
| 52 | Cluster Ignition |
| 53 | Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition |
| 54 | Heating, Ventilation, and Air Conditioning Module Ignition |
| 55 | Front Power Windows/Mirrors |
| 56 | Windshield Washer |
| 57 | Spare |
| 60 | Heated Mirror |
| 62 | Canister Vent Solenoid |
| 66 | SAIR Solenoid |
| 67 | Fuel Module |
| 69 | Battery Voltage Sensor |
| 70 | Lane Departure/Rear Parking Aid/Side Blind Zone Assist |
| 71 | PEPS BATT |
| J-Case Fuses | Usage |
| 6 | Front Wiper |
| 12 | Starter 1 |
| 21 | Rear Power Window |
| 22 | Sunroof |
| 24 | Front Power Window |
| 25 | PEPS MTR |
| 26 | Antilock Brake System Pump |
| 27 | Not Used |
| 28 | Rear Defogger |
| 41 | Brake Vacuum Pump |
| 42 | Cooling Fan K2 |
| 44 | Starter 2 |
| 45 | Cooling Fan K1 |
| 59 | Air Pump Emissions |
| Mini Relays | Usage |
| 7 | Powertrain |
| 9 | Cooling Fan K2 |
| 13 | Cooling Fan K1 |
| 15 | Run/Crank |
| 16 | Air Pump Emissions |
| 17 | Window/Mirror Defogger |
| Micro Relays | Usage |
| 1 | Air Conditioning Compressor Clutch |
| 2 | Starter Solenoid |
| 4 | Front Wiper Speed |
| 5 | Front Wiper On |
| 6 | Cabin Pump eAssist/ SAIR Solenoid |
| 8 | Transmission Auxiliary Oil Pump (LKW) |
| 10 | Cooling Fan K3 |
| 11 | Transmission Oil Pump (LUK)/Starter 2 Solenoid (LKW) |
| 14 | Headlamp Low Beam/DRL |
Chevrolet Malibu (2015 and 2016)
| Mini Fuses | Usage |
| 1 | Transmission Control Module Battery |
| 2 | Engine Control Module Battery (LTG)/ Air Conditioning Compressor Clutch (LKW) |
| 3 | Air Conditioning Compressor Clutch (LTG) |
| 4 | Air Conditioning Compressor Clutch (LTG) |
| 5 | Engine Control Module Battery (LKW) |
| 7 | Engine Control Module Ignition (LKW) |
| 8 | Spare |
| 9 | Ignition Coils |
| 10 | Engine Control Module |
| 11 | Emissions |
| 13 | Transmission Module Ignition |
| 14 | Cabin Heater Coolant Pump |
| 15 | Spare |
| 16 | Aero Shutter |
| 17 | Spare |
| 18 | R/C Dual Battery Isolator Module |
| 20 | Transmission Auxiliary Oil Pump (LKW) |
| 23 | Spare (LKW) |
| 29 | Left Seat Power Lumber Control |
| 30 | Right Seat Power Lumber Control |
| 31 | Chassis Control Module |
| 32 | Back-Up Lamps/ Interior Lamps |
| 33 | Front Heated Seats |
| 34 | Antilock Brake System Valve |
| 35 | Amplifier |
| 37 | Right High Beam |
| 38 | Left High Beam |
| 46 | Cooling Fan |
| 47 | Emissions |
| 48 | Foglamp |
| 49 | Low Beam HID Headlamp Right |
| 50 | Low Beam HID Headlamp Left |
| 51 | Horn/Dual Horn |
| 52 | Cluster Ignition |
| 53 | Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition |
| 54 | Heating, Ventilation, and Air Conditioning Module Ignition |
| 55 | Front Power Windows/Mirrors |
| 56 | Windshield Washer |
| 57 | Spare |
| 60 | Heated Mirror |
| 62 | Canister Vent Solenoid |
| 66 | Spare |
| 67 | Fuel Module |
| 69 | Battery Voltage Sensor |
| 70 | Lane Departure/Rear Parking Aid/Side Blind Zone Assist |
| J-Case Fuses | Usage |
| 6 | Front Wiper |
| 12 | Starter 1 |
| 21 | Rear Power Window |
| 22 | Sunroof |
| 24 | Front Power Window |
| 25 | PEPS MTR |
| 26 | Antilock Brake System Pump |
| 27 | Not Used |
| 28 | Rear Defogger |
| 41 | Brake Vacuum Pump |
| 42 | Cooling Fan K2 |
| 44 | Starter 2 |
| 45 | Cooling Fan K1 |
| Mini Relays | Usage |
| 7 | Powertrain |
| 9 | Cooling Fan K2 |
| 13 | Cooling Fan K1 |
| 15 | Run/Crank |
| 16 | Spare |
| 17 | Window/Mirror Defogger |
| Micro Relays | Usage |
| 1 | Air Conditioning Compressor Clutch |
| 2 | Starter Solenoid |
| 4 | Front Wiper Speed |
| 5 | Front Wiper On |
| 6 | Spare |
| 8 | Transmission Auxiliary Oil Pump (LKW) |
| 10 | Cooling Fan K3 |
| 11 | Starter 2 Solenoid (LKW) |
| 14 | Headlamp Low Beam/DRL |
