Chevrolet Trax (2024 – 2026) Fuse Box Location & Diagrams
Discover the fuse box locations and detailed fuse diagrams for the Chevrolet Trax (2024–2026). This blog helps you quickly identify fuse assignments, locate interior and engine compartment fuse boxes, and troubleshoot electrical components, making maintenance and fuse replacement easier and more convenient.
Fuse Box Location

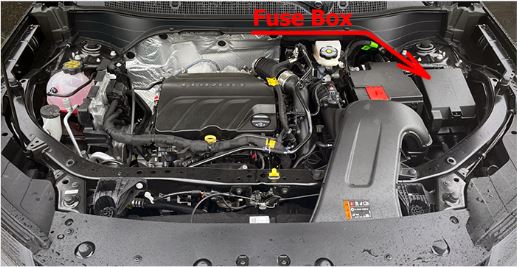

Engine Compartment Fuse Box
To remove the fuse block cover, squeeze the clip.

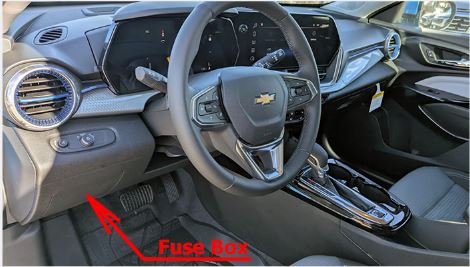

Passenger Compartment Fuse Box
The instrument panel fuse block is on the underside of the driver’s side instrument panel. To access the fuses, remove the storage compartment. To remove the storage compartment, open the compartment and pull it out.
Fuse Box Diagrams

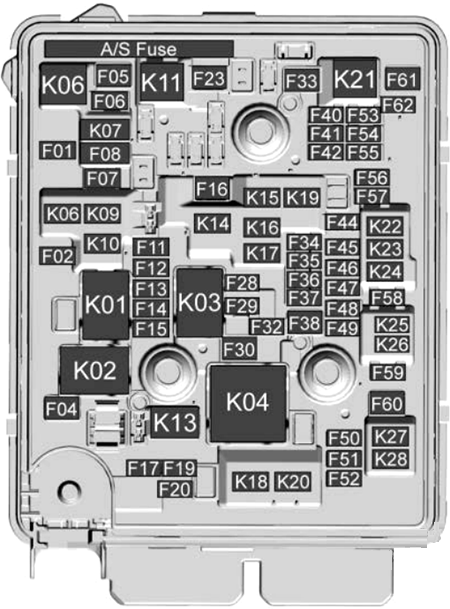

Engine Compartment Fuse Box
| № | Usage |
|---|---|
| Micro Fuses | |
| F01 | L/GATE RELEASE – Liftgate Release |
| F02 | A/C CLUTCH – Air Conditioning Clutch |
| F06 | HTD OSRVM – Heated Outside Rear View Mirror |
| F08 | HORN |
| F10 | – |
| F11 | ECM PT1 – Electronic Control Module Powertrain 1 |
| F12 | IGNITION COIL |
| F13 | ENG COMPONENT 2 |
| F14 | ENG COMPONENT 1 |
| F15 | ECM PT 2 – Electronic Control Module Powertrain 2 |
| F16 | – |
| F17 | – |
| F18 | RVC |
| F19 | ECM BATT – Electronic Control Module Battery |
| F20 | AUX WATER PUMP – Auxiliary Water Pump |
| F21 | PEPS |
| F24 | HTD/SEAT1 |
| F25 | HTD/SEAT2 |
| F28 | CAC SHUTTER |
| F29 | – |
| F31 | FTZM – Fuel Tank Zone Module |
| F32 | TCM BATT – Traction Control Module Battery |
| F34 | ESCL RUN/CRANK – Electric Steering Column Lock Run/Crank |
| F35 | – |
| F36 | – |
| F37 | ECM TCM RUN/CRANK – Electronic Control Module Traction Control Module Run/Crank |
| F40 | – |
| F41 | HDLP LEVELING – Headlight Leveling |
| F42 | CLUSTER |
| F44 | WASH PUMP |
| F45 | – |
| F46 | – |
| F47 | CNSTR VENT SOL – Canister Vent Solenoid |
| F48 | – |
| F49 | REAR WIPER PARK |
| F50 | – |
| F51 | – |
| F52 | – |
| F53 | VENT SEAT |
| F54 | – |
| F55 | – |
| F56 | ISRVM/RLAD – Inside Rear View Mirror/ Reflective LED Alert Display |
| F57 | – |
| F58 | REAR WIPER |
| F59 | – |
| F62 | LUMBAR |
| M-case Fuses | |
| F03 | STARTER SOL |
| F04 | – |
| F05 | RR DEFOG |
| F07 | COOLING FAN MID |
| F09 | – |
| F22 | FRONT WIPER |
| F23 | – |
| F26 | COOLING FAN LOW |
| F27 | – |
| F30 | – |
| F33 | – |
| F38 | EBCM 2 – Electronic Brake Control Module 2 |
| F39 | COOLING FAN HIGH |
| F43 | – |
| F60 | POWER WINDOW LT |
| F61 | POWER WINDOW RT |
| Relays | |
| K01 | STARTER SOL RELAY |
| K02 | – |
| K03 | POWERTRAIN RELAY |
| K04 | COOLING FAN HIGH RELAY |

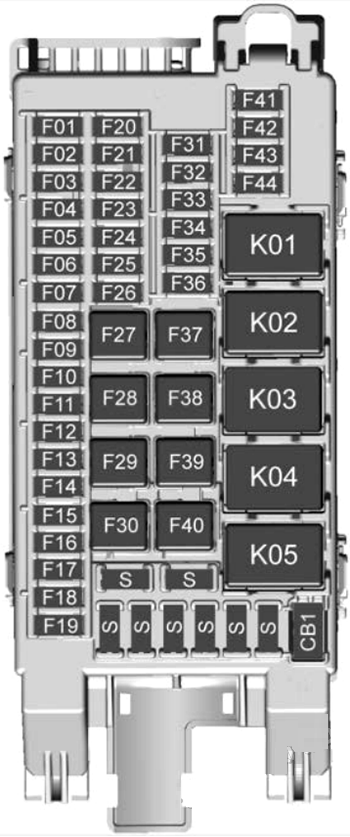

Passenger Compartment Fuse Box
| № | Usage |
|---|---|
| F01 | ONSTAR for NA market |
| F02 | Sunshade Motor |
| F03 | Body Control Module 3 |
| F04 | Body Control Module 7 |
| F05 | Body Control Module 6 |
| F06 | HVAC Module 1 |
| F07 | CGM – Central Gateway Module |
| F08 | HSWM – Heated Steering Wheel Module |
| F09 | Virtual Cockpit Display/ Instrument Panel Display/ HVAC Display |
| F10 | Radio/Virtual Cockpit Unit Module |
| F11 | ONSTAR for Non-NA market |
| F12 | Side Blind Zone Alert Module/ Camera Module/ Ultrasonic Park Assist Module |
| F13 | HVAC Module IGN |
| F14 | Wireless Charger Module/ Remote Electronic PRNDL Display |
| FI 5 | BCM2 – Body Control Module 2 |
| F16 | BCM1 – Body Control Module 1 |
| F17 | Steering Wheel Controls Backlighting |
| F18 | – |
| F19 | – |
| F20 | Steering Wheel Controls Switch |
| F21 | BCM5 – Body Control Module 5 |
| F22 | DLC – Data Link Connector |
| F23 | SDM – Sensing Diagnostic Module |
| F24 | – |
| F24 | Discrete Logic Ignition Switch |
| F25 | PTM1 – Power Tailgate Modulel |
| F26 | Logistic |
| F27 | – |
| F28 | BCM8 – Body Control Module 8 |
| F29 | DC to DC Converter 2 |
| F30 | PTM 2 – Power Tailgate Module 2 (Motor) |
| F31 | OSRVM/ETC/Rain Light Humidity Sensor/ Humidity Sensor |
| F32 | Headlight Low Beam Light LEFT |
| F33 | BCM4 – Body Control Module 4 |
| F34 | Headlight Low Beam Light RIGHT |
| F35 | – |
| F36 | – |
| F37 | Seat Position Switch DRIVER |
| F38 | DC to DC Converter 1 |
| F39 | ACC/RAP Relay/RUN Relay |
| F40 | Blower Motor Control Module |
| F41 | Auxiliary Audio/Video Jack/FRT USB |
| F42 | Auxiliary RR USB Power Outlet |
| F43 | – |
| F44 | – |
| S | SPARE |
| Circuit Breaker | |
| CB1 | Auxiliary DC Power Outlet |
| Relay | |
| K01 | ACC/RAP Relay |
| K02 | RUN Relay |
| K03 | Logistics Relay |
| K04 | – |
| K05 | – |
