Skoda Superb (2024 – 2026) Fuse Box Location & Diagrams
The Skoda Superb (2024–2026) combines premium comfort, advanced technology, and refined performance in a stylish sedan. Understanding the fuse box locations and fuse layouts helps owners quickly identify and resolve electrical issues, making maintenance easier while ensuring the vehicle’s systems continue operating safely and efficiently.
Fuse Box Location
Passenger Compartment Fuse Box

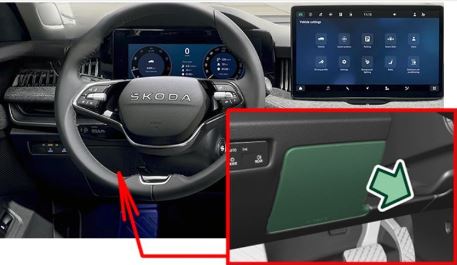

Left-hand drive: Open the fuse box cover.

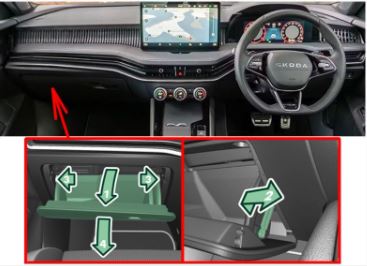

Right-hand drive:
- Open the glove compartment on the passenger’s side.
- Release the box brake pull pin.
- Press the side walls of the box lining and keep them pressed.
- Tilt the box out.

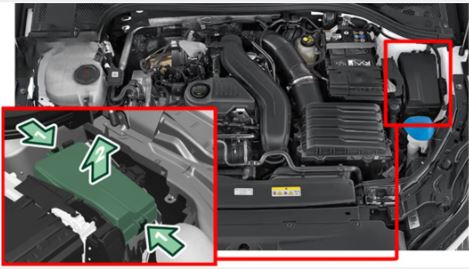

Engine Compartment Fuse Box
Press and hold the fuse latch, and remove the cover.
Fuse Box Diagram

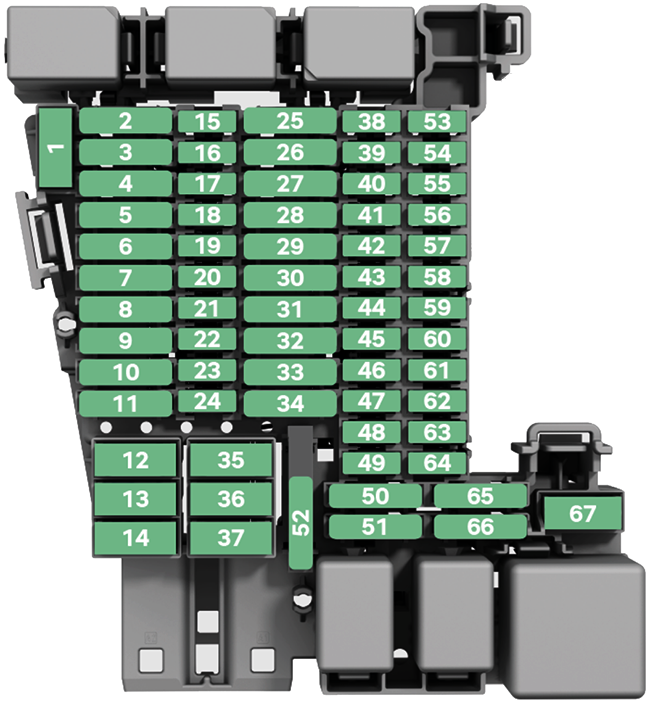

Passenger Compartment Fuse Box
| № | Consumer |
|---|---|
| 3 | Towing bracket |
| 4 | SCR (AdBlue) |
| 5 | Gearbox control |
| 6 | Interior lighting and backlighting |
| 7 | Front seat heating |
| 8 | Sliding/tilting roof |
| 9 | Window controls (left-hand side), left exterior mirror (heating, tilting, glass position adjustment), central locking (left-hand side) |
| 11 | Towing bracket |
| 12 | Vehicle exterior lighting |
| 13 | Central locking, windscreen washers |
| 14 | Music amplifier |
| 16 | Airbags |
| 18 | KESSY (keyless locking), steering wheel lock |
| 19 | Instrument cluster, emergency call, online services |
| 20 | USB sockets at the front and rear, Phone box |
| 21 | Rear radar sensors, Park Assist, rear view camera, monitoring the surroundings system (Top View), contactless operation of the electric boot lid, Car2X communication unit |
| 22 | Front camera for assistance systems, front radar sensors, front radar |
| 23 | Front right seat with massage function, front right seat ventilation |
| 24 | All-wheel drive |
| 25 | Front left seat belt retractor |
| 26 | Window controls (right-hand side), right exterior mirror (heating, tilting, glass position adjustment), central locking (right-hand side) |
| 27 | Front right seat belt retractor |
| 29 | Towing bracket |
| 30 | The Infotainment system |
| 31 | Towing bracket |
| 32 | Rear seat heating |
| 33 | Front left seat with massage function, front left seat ventilation |
| 35 | Vehicle exterior lighting |
| 36 | Heating/air conditioning fan |
| 37 | 2024: Electrically operated boot lid 2025-2026: Electrically operated boot lid, electrically operated roll-up luggage compartment cover |
| 39 | Steering wheel heating |
| 40 | Alarm |
| 41 | Data bus |
| 43 | 2024: Air conditioning, independent heating, rear window heating, tyre pressure monitoring 2025-2026: Air conditioning/heating, independent heating, rear window heating, tyre pressure monitoring, Smart Dials |
| 44 | Front interior lighting, parking brake, rain and light sensor, lights control, alarm system, diagnostic socket, headlights |
| 45 | Control lever under the steering wheel |
| 46 | The Infotainment system, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 48 | 2024-2025: USB charging – at the interior rear-view mirror |
| 52 | 12V sockets |
| 58 | Parking |
| 59 | 2024-2025: Interior rear-view mirror with auto-dimming, air conditioning coolant sensor, air quality sensor |
| 60 | 2024-2025: Diagnostic socket 2026: Diagnostic socket, interior rear-view mirror with auto-dimming, air conditioning coolant sensor |
| 61 | Starter |
| 62 | 2026: USB at the interior rear-view mirror |
| 66 | Rear wiper |
| 67 | Rear window heating |
Engine Compartment Fuse Box

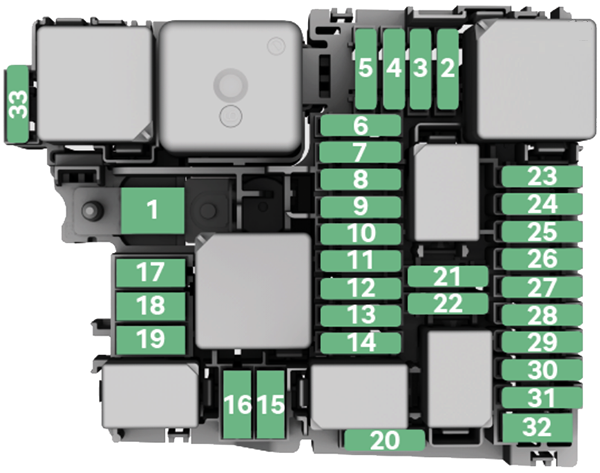

Superb
| № | Consumer |
|---|---|
| 2 | ESP, engine control system, starter-generator (mHEV) |
| 3 | Ignition |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 7 | Automatic transmission oil pump |
| 9 | Horn |
| 10 | Front wipers |
| 12 | Automatic gearbox |
| 14 | Independent heater |
| 17 | Electric auxiliary heater |
| 18 | Electric auxiliary heater |
| 21 | Engine control system |
| 22 | Starter |
| 23 | Engine control system |
| 24 | Engine components |
| 25 | Engine components |
| 26 | Engine components |
| 27 | Engine components |
| 28 | Engine components |
| 29 | Fuel pump |
| 30 | 2024: Engine components |
| 32 | Windscreen heating |
| 33 | Electric auxiliary heater |
Superb iV
| № | Consumer |
|---|---|
| 2 | ESP, engine control system |
| 3 | High-voltage battery charger, charging interface control unit, power electronics for electric drive |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 9 | Horn |
| 10 | Front wipers |
| 11 | Air conditioning / heating |
| 14 | Engine sound generator |
| 16 | Automatic gearbox |
| 23 | Engine control system |
| 24 | Engine components |
| 25 | Engine components |
| 26 | Engine components |
| 27 | Engine components |
| 28 | Engine components |
| 29 | Fuel pump |
| 30 | Engine components |
| 32 | Windscreen heating |
