Chevrolet Volt (2016 – 2019) Fuse Box Location & Diagrams
Discover the fuse box diagrams and locations for the second-generation Chevrolet Volt (2016–2019). This guide provides detailed insights into each fuse, helping you quickly identify, locate, and understand your vehicle’s fuses for efficient maintenance and electrical troubleshooting.
Instrument panel Fuse Box
Chevrolet Volt (2016 to 2019)
Fuse Box Location

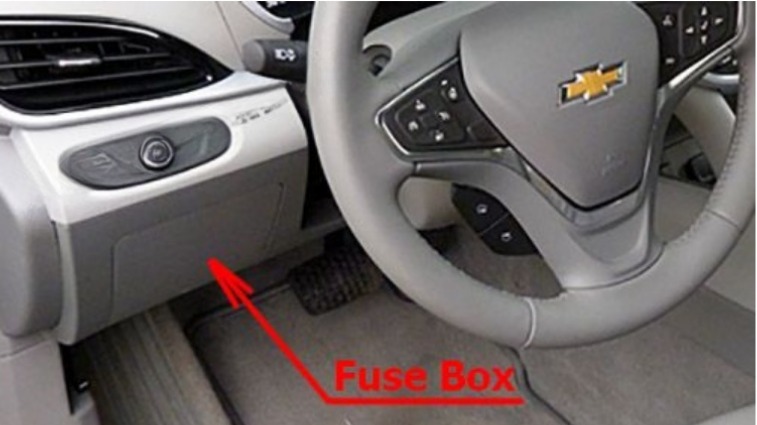

The instrument panel fuse block is on the left side of the instrument
panel. To access the fuses, open the fuse panel door by pulling out.

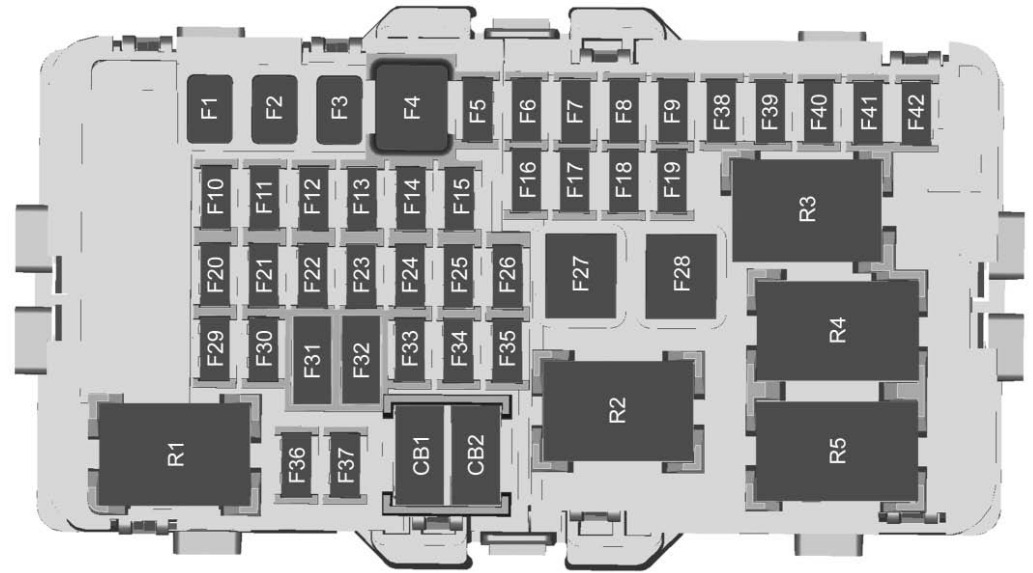

Fuse Box Diagram
| No | Usage |
|---|---|
| F1 | Empty |
| F2 | Empty |
| F3 | Empty |
| F4 | Heater, ventilation, and air conditioning blower |
| F5 | Body control module 2 |
| F6 | Empty |
| F7 | 2016-2017: Empty 2018-2019: CGM |
| F8 | Body control module 3 |
| F9 | Fuel power pump module |
| F10 | Empty |
| F11 | Empty |
| F12 | Empty |
| F13 | Empty |
| F14 | Empty |
| F15 | Empty |
| F16 | Empty |
| F17 | Data link connector |
| F18 | Body control module 7 |
| F19 | Cluster |
| F20 | Body control module 1 |
| F21 | Body control module 4 |
| F22 | Body control module 6 |
| F23 | OnStar |
| F24 | Airbag |
| F25 | Display |
| F26 | 2016-2018: Infotainment 2019: Universal serial bus |
| F27 | Empty |
| F28 | Empty |
| F29 | Overhead console |
| F30 | Radio/Infotainment |
| F31 | Steering wheel controls |
| F32 | Body control module 8 |
| F33 | Heater, ventilation, and air conditioning/ Integrated light solar sensor |
| F34 | Passive entry/ Passive start |
| F35 | Rear closure |
| F36 | Charger |
| F37 | Empty |
| F38 | Empty |
| F39 | Empty |
| F40 | Empty |
| F41 | Empty |
| F42 | Empty |
| Circuit Breakers | |
| CB1 | Front auxiliary power outlet |
| CB2 | Rear auxiliary power outlet |
| Relays | |
| R1 | Empty |
| R2 | Retained accessory power |
| R3 | Hatch |
| R4 | Empty |
| R5 | Empty |
Engine Compartment Fuse Box
Chevrolet Volt (2016 to 2019)
Fuse Box Location

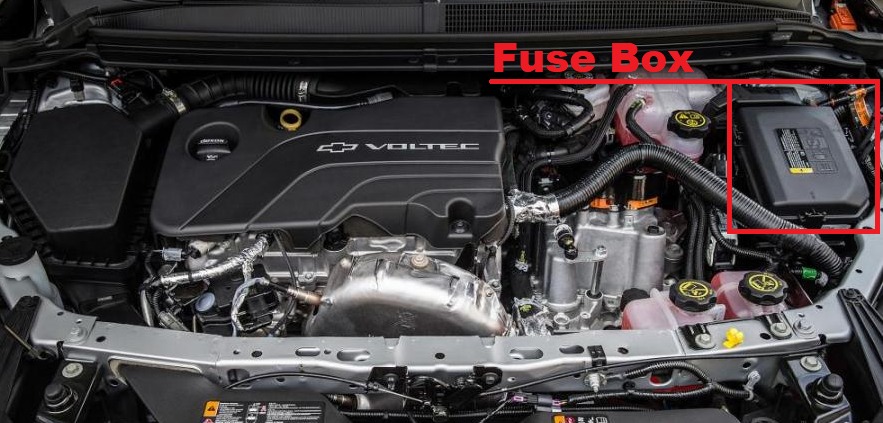

It is located in the engine compartment on the driver’s side.

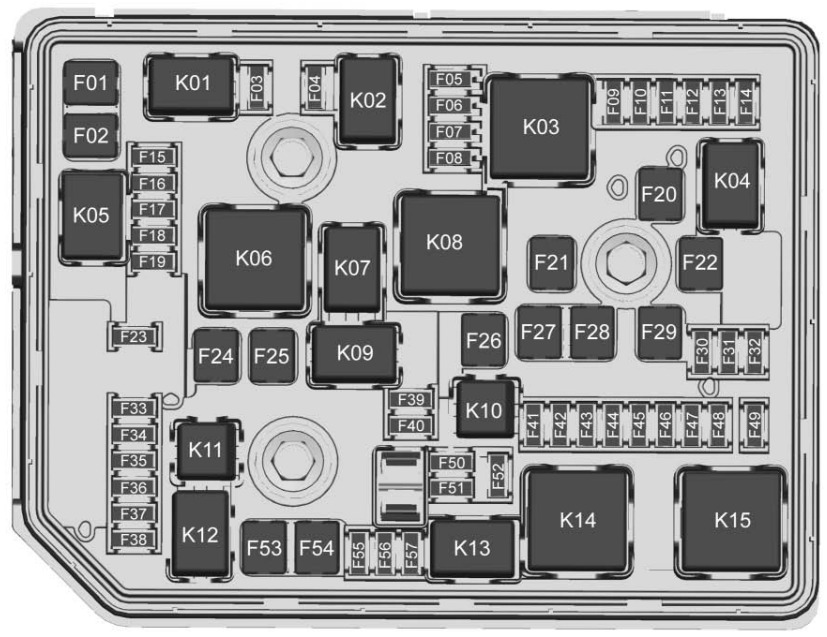

Fuse Box Diagram
| No | Usage |
|---|---|
| F01 | Empty |
| F02 | Empty |
| F03 | Non walk home |
| F04 | Engine control module |
| F05 | Aeroshutter |
| F06 | Traction power inverter module 1 |
| F07 | Traction power inverter module 2 |
| F08 | Engine control module |
| F09 | Air conditioning control module |
| F10 | Vehicle integration control module |
| F11 | Electric brake boost |
| F12 | Rechargeable energy storage system |
| F13 | Cabin heater control module |
| F14 | Coolant heater control module |
| F15 | Emissions |
| F16 | Ignition coils |
| F17 | Engine control module |
| F18 | Empty |
| F19 | Empty |
| F20 | Electric brake boost |
| F21 | Front wiper |
| F22 | Antilock brake system pump |
| F23 | Front windshield wiper |
| F24 | Empty |
| F25 | Empty |
| F26 | Empty |
| F27 | Antilock brake system module |
| F28 | Left power window |
| F29 | Rear window defogger |
| F30 | Heated mirrors |
| F31 | Empty |
| F32 | Variable functions |
| F33 | Empty |
| F34 | Horn |
| F35 | Coolant rechargeable energy storage system |
| F36 | Right high-beam headlamp |
| F37 | Left high-beam headlamp |
| F38 | Empty |
| F39 | Empty |
| F40 | Empty |
| F41 | Miscellaneous run, crank |
| F42 | Run, crank 3 |
| F43 | Empty |
| F44 | Voltage current temperature module run, crank |
| F45 | Heated steering wheel |
| F46 | Vehicle integration control module run, crank |
| F47 | Empty |
| F48 | Empty |
| F49 | Empty |
| F50 | Empty |
| F51 | Empty |
| F52 | Engine control module/Traction power inverter module |
| F53 | Left cooling fan |
| F54 | Right cooling fan |
| F55 | Electric pump |
| F56 | Empty |
| F57 | Empty |
| Relays | |
| K01 | Empty |
| K02 | Empty |
| K03 | Engine control module |
| K04 | 2016-2018: Empty 2019: Pedestrian friendly alert function |
| K05 | Empty |
| K06 | Empty |
| K07 | Empty |
| K08 | Empty |
| K09 | Empty |
| K10 | Empty |
| K11 | Empty |
| K12 | High beam headlamps |
| K13 | Empty |
| K14 | Run, crank |
| K15 | Rear window defogger |
| K16 | Horn PCB relay |
| K17 | Empty |
| K18 | Empty |
| K19 | Coolant pump PCB relay |
| K20 | Empty |
| K21 | Empty |
| K22 | Front washer |
| K23 | Empty |
Rear Compartment Fuse Box
Chevrolet Volt (2016 to 2019)
Fuse Box Location

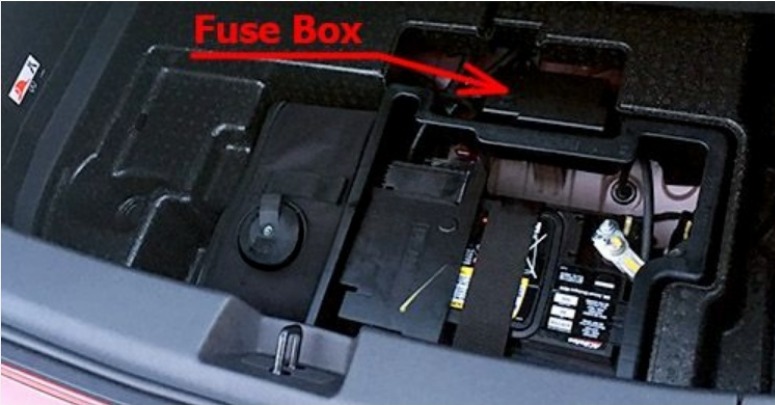

It is located in the center of the rear compartment beneath the load floor.

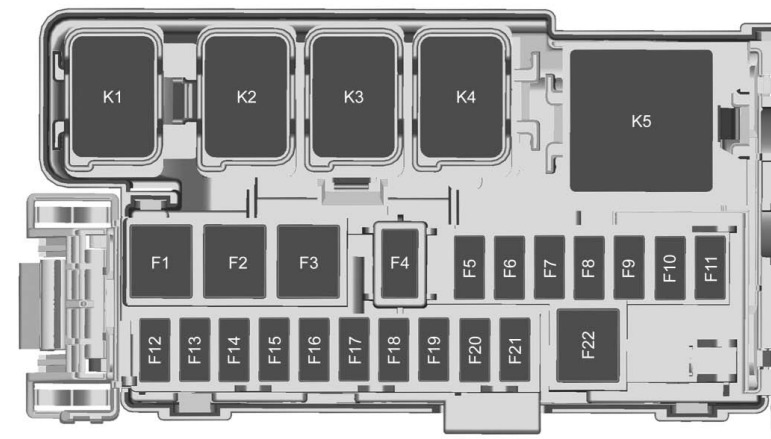

Fuse Box Diagram
| No | Usage |
|---|---|
| F1 | 2016-2018: Empty 2019: Driver power seat |
| F2 | Empty |
| F3 | Empty |
| F4 | 2016-2018: Empty 2019: Driver lumbar control/Keypass |
| F5 | Pedestrian protection |
| F6 | On-board charger module |
| F7 | Front heated seat |
| F8 | Front heated seat |
| F9 | Driver door/Mirror switches |
| F10 | Empty |
| F11 | Amplifier |
| F12 | Steering wheel switch backlighting |
| F13 | Empty |
| F14 | Empty |
| F15 | Empty |
| F16 | Empty |
| F17 | Empty |
| F18 | Empty |
| F19 | Obstacle detection |
| F20 | Fuel |
| F21 | Rear heated seat |
| F22 | Right power windows |
| Relays | |
| K1 | Empty |
| K2 | Empty |
| K3 | Empty |
| K4 | Empty |
| K5 | Empty |
