Honda Fit (2007 – 2008) Fuse Box Location & Diagrams
Find first-generation Honda Fit (2007–2008) fuse box diagrams and locations. This guide covers only fuses, letting you easily identify, access, and replace them to keep your vehicle’s electrical system running well.
Passenger Compartment Fuse Box
Honda Fit (2007 to 2008)
Fuse Box Location

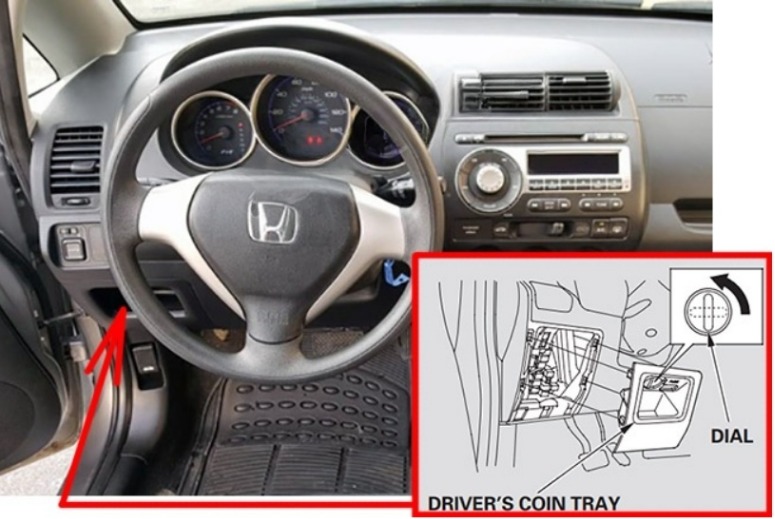

The interior fuse box is behind the driver’s coin tray.
To access it, remove the tray by turning the dial counterclockwise then pulling it toward you. To install the coin tray, line up the tabs on the bottom, pivot the tray up to engage its side clips, then turn the dial clockwise.

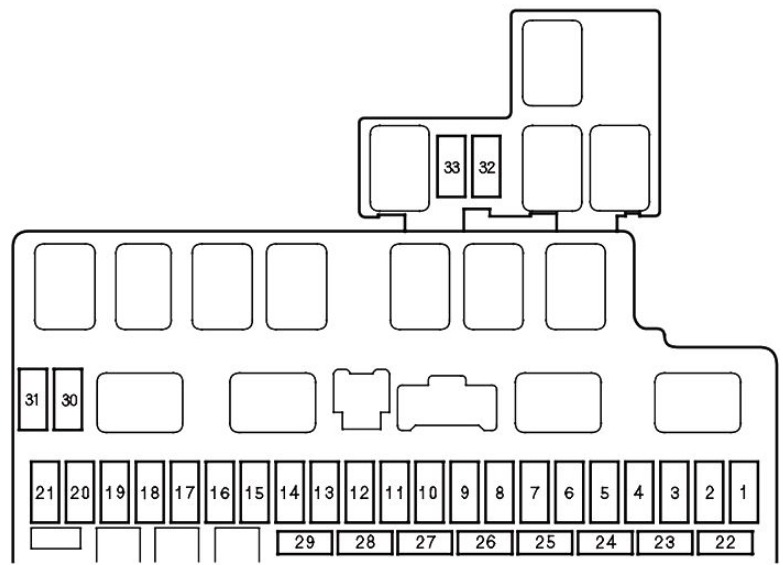

Fuse Box Diagram
| No | Amps. | Circuits Protected |
|---|---|---|
| 1 | 10 A | Back Up Light |
| 2 | — | Not Used |
| 3 | 10 A | METER |
| 4 | 10 A | Turn Light |
| 5 | — | Not Used |
| 6 | 30 A | Front Wipers |
| 7 | 10 A | SRS |
| 8 | (7.5 A) | Daytime Running Light (Canadian models) |
| 9 | 20 A | Rear Defogger |
| 10 | 7.5 A | HAC |
| 11 | 15 A | Fuel Pump |
| 12 | 10 A | Rear Wiper |
| 13 | 10 A | SRS |
| 14 | 15 A | IGP |
| 15 | 20 A | Left Rear Power Window |
| 16 | 20 A | Right Rear Power Window |
| 17 | 20 A | Right Front Power Window |
| 18 | (7.5 A) | TPMS (If equipped) |
| 18 | (10 A) | Daytime Running Light (Canadian models) |
| 19 | — | Not Used |
| 20 | — | Not Used |
| 21 | (20 A) | Fog Light (If equipped) |
| 22 | 10 A | Small Light |
| 23 | 10 A | LAF |
| 24 | — | Not Used |
| 25 | 7.5 A | ABS |
| 26 | 7.5 A | Radio |
| 27 | 15 A | ACC Socket |
| 28 | (20 A) | Power Door Lock (If equipped) |
| 29 | 20 A | Driver’s Power Window |
| 30 | — | Not Used |
| 31 | 7.5 A | LAF |
| 32 | 15 A | DBW |
| 33 | 15 A | Ignition Coil |
Engine Compartment Fuse Box
Honda Fit (2007 to 2008)
Fuse Box Location

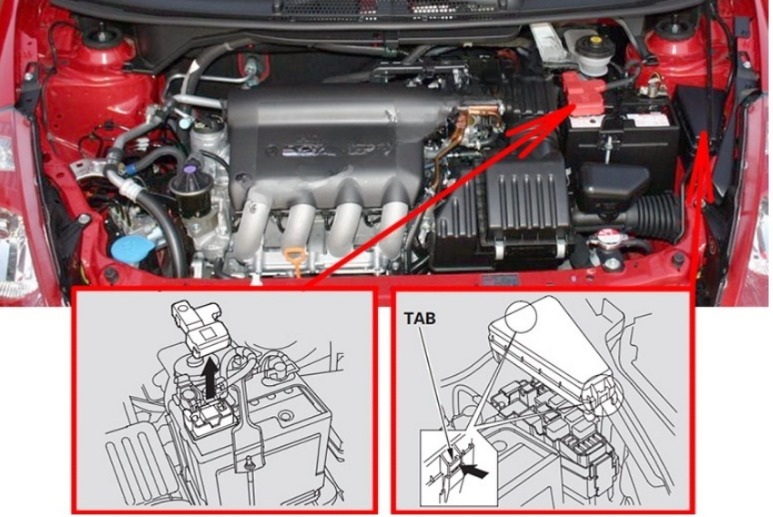

The primary under-hood fuse box is in the engine compartment on the driver’s side.
The secondary fuse box is on the positive terminal of the battery.

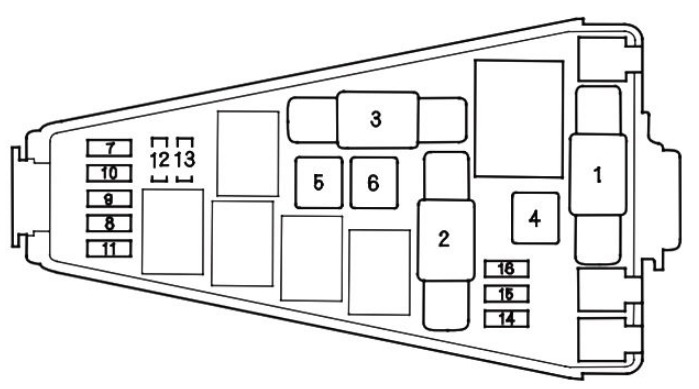

Fuse Box Diagram
| No | Amps. | Circuits Protected |
|---|---|---|
| 1 | 80 A | Battery |
| 2 | 60 A | EPS |
| 3 | 50 A | Ignition |
| 4 | 30 A | ABS |
| 5 | 40 A | Blower Relay |
| 6 | 40 A | Power Window |
| 7 | (30 A) | (HAC Option) |
| 8 | 10 A | Back Up |
| 9 | 30 A | Small Light |
| 10 | 30 A | Cooling Fan |
| 11 | 30 A | Condenser Fan, MG Clutch (If equipped) |
| 12 | 20 A | Right Headlight |
| 13 | 20 A | Left Headlight |
| 14 | 10 A | Hazard |
| 15 | 30 A | ABS F/S |
| 16 | 15 A | Horn, Stop |
| Secondary Fuse Box (On the battery) | ||
| 80 A | Battery |
