Honda Fit (2009 – 2014) Fuse Box Location & Diagrams
A well-organized fuse box protects the electrical components of the second-generation Honda Fit (2009–2014). This blog provides fuse box schematics and locations to help you find, check, and replace fuses to keep your Fit working smoothly.
Fuse Box Locations

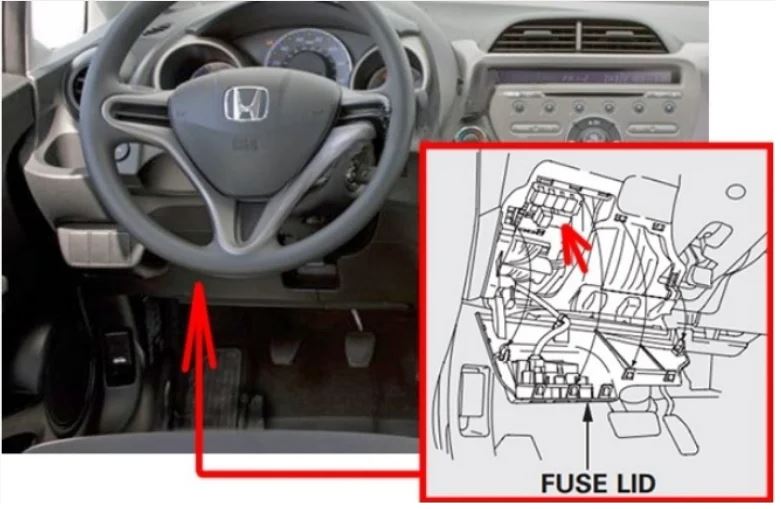

Passenger Compartment Fuse Box
The interior fuse box is behind the panel.

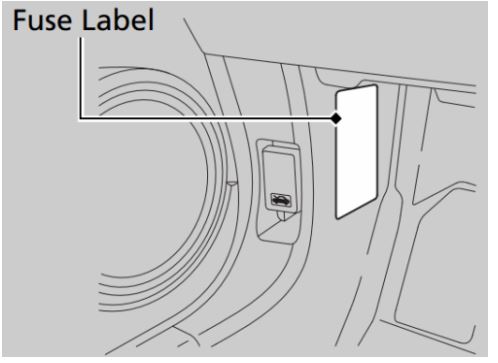

To access it, pull the fuse lid toward you. Fuse locations are shown on the label on the side panel.

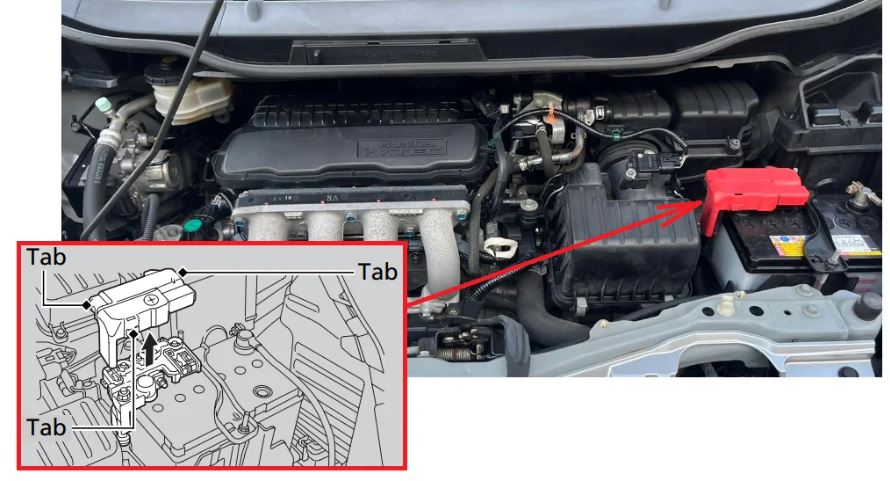

Engine Compartment Fuse Box
The under-hood fuse box is on the positive terminal of the battery.

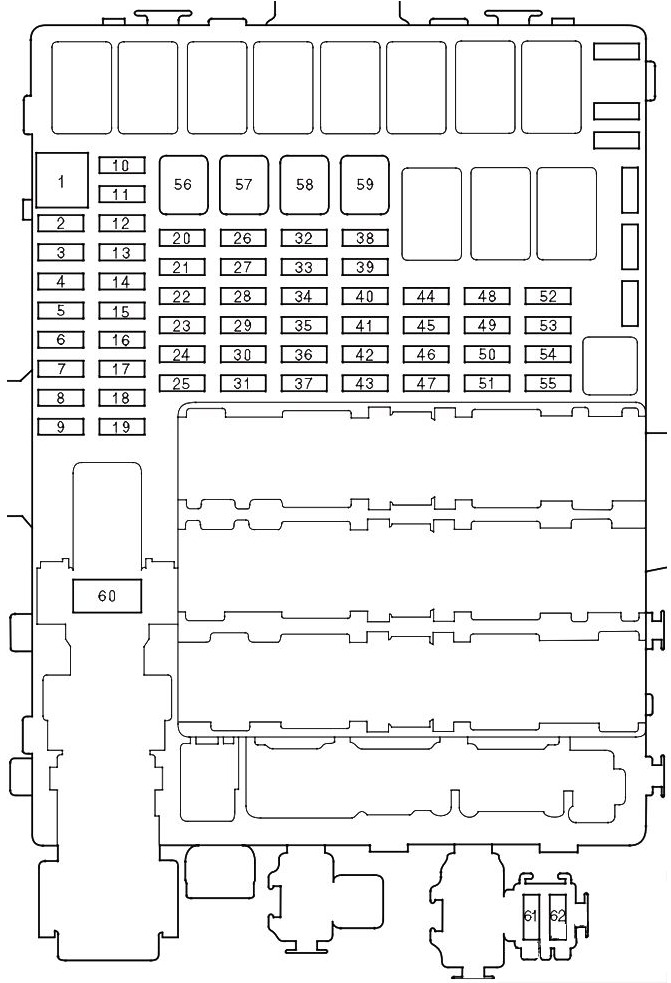

Passenger Compartment Fuse Box
Honda Fit (2009 to 2014)
| No | Amps. | Circuits Protected |
|---|---|---|
| 1 | 10 A | Back Up |
| 2 | (7.5 A) | TPMS (If equipped) |
| 3 | 20 A | Driver’s Power Window |
| 4 | — | Not Used |
| 5 | 10 A | Back Up light |
| 6 | 10 A | SRS |
| 7 | (10 A) | Transmission SOL (If equipped) |
| 8 | 7.5 A | SRS |
| 9 | (20 A) | Fog Light (If equipped) |
| 10 | 7.5 A | A/C (If equipped) |
| 11 | 7.5 A | ABS/VSA (If equipped) |
| 12 | 10 A | ACG |
| 13 | 20 A | ACC Socket |
| 14 | 7.5 A | Key Lock/Radio |
| 15 | 7.5 A | Daytime Running Light |
| 16 | 10 A | Rear Wiper |
| 17 | 20 A | Front Passenger’s Power Window |
| 18 | 20 A | Rear Passenger’s Side Power Window |
| 19 | 20 A | Rear Driver’s Side Power Window |
| 20 | 15 A | Fuel Pump |
| 21 | 15 A | Washer |
| 22 | 7.5 A | Meter |
| 23 | 10 A | Hazard |
| 24 | 10 A | Stop/Horn |
| 25 | — | Not Used |
| 26 | 10 A | LAF |
| 27 | (30 A) | Door Lock Main (If equipped) |
| 28 | 20 A | Headlight Main |
| 29 | 10 A | Small Light |
| 30 | 30 A | Main Fan Motor |
| 31 | — | Not Used |
| 32 | 10 A | Right Headlight Low Beam |
| 33 | 15 A | IG Coil |
| 34 | 10 A | Left Headlight Low Beam |
| 35 | (15 A) | Door Lock (If equipped) |
| 36 | (15 A) | Door Lock (If equipped) |
| 37 | 30 A | ABS/VSA FSR (If equipped) |
| 38 | (15 A) | Door Lock (If equipped) |
| 39 | 15 A | IGP |
| 40 | — | Not Used |
| 41 | — | Not Used |
| 42 | — | Not Used |
| 43 | (7.5 A) | MG Clutch |
| 44 | 7.5 A | STS |
| 45 | — | Not Used |
| 46 | — | Not Used |
| 47 | (30 A) | Sub Fan Motor |
| 48 | 10 A | Left Headlight High Beam |
| 49 | (15 A) | Door Lock (If equipped) |
| 50 | (15 A) | Door Lock (If equipped) |
| 51 | 10 A | Right Headlight High Beam |
| 52 | 15 A | DBW |
| 53 | — | Not Used |
| 54 | 20 A | Rear Defogger (If equipped) |
| 55 | 10 A | Heated Mirror (If equipped) |
| 56 | 30 A | Front Wiper |
| 57 | 30 A | Blower Motor |
| 58 | 30 A | ABS/VSA Motor (If equipped) |
| 59 | 20 A 30 A | Rear Defogger |
| 60 | 50 A / 40 A | IG Main/Option Main |
| 61 | 30 A | Radio |
| 62 | — | Not Used |

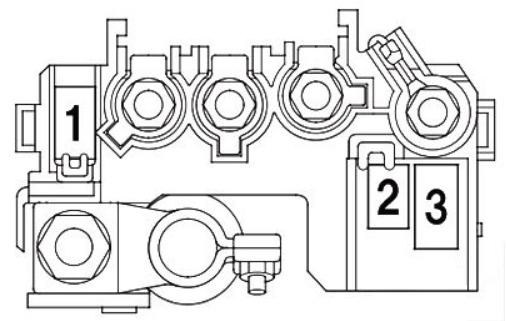

Engine Compartment (on the battery)
Honda Fit (2009 to 2014)
| Amps. | Circuits Protected |
|---|---|
| 100 A | Battery |
| 70 A | EPS |
| 20 A | Horn/Hazard |
