Chrysler 300 & 300C (2020 – 2023) Fuse Box Location & Diagrams
This article provides detailed fuse box locations and diagrams for the Chrysler 300 and 300C models from 2020 to 2023. It helps owners quickly identify fuse assignments, locate fuse panels, and troubleshoot electrical components with accurate diagram references for maintenance, repairs, and vehicle diagnostics.
Fuse Box Location

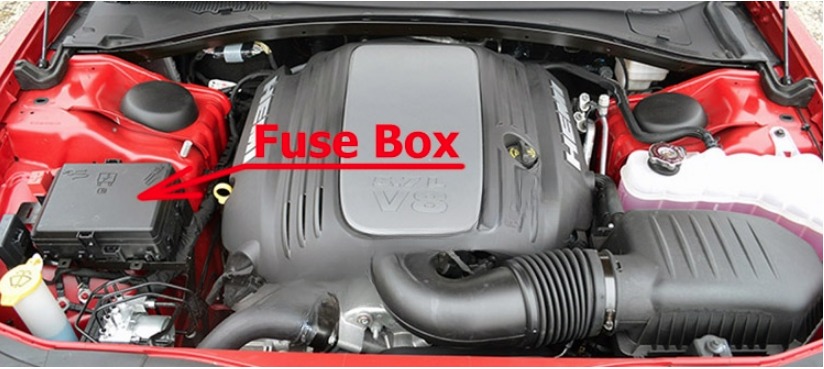

Engine Compartment Fuse Box
Front Power Distribution Center is located in the engine compartment.
Luggage Compartment Fuse Box
Rear Power Distribution Center
Rear Power Distribution Center is located in the trunk under the spare tire access panel.
Fuse Box Diagrams
Engine Compartment Fuse Box
Chrysler 300 & 300C (2020)
| Type | No. | Description |
| Fuse puller | 1 | Fuse – Spare |
| Fuse FMX/JCase 40A | 2 | Radiator Fan #1 – [Non 6.2L Supercharged] |
| Fuse FMX/JCase 50A | 3 | Electric Power Steering #1 – If Equipped |
| Fuse FMX/JCase 30A | 4 | Starter |
| Fuse FMX/JCase 40A | 5 | Anti-Lock Brake |
| Fuse FMX/JCase 30A | 6 | Anti-Lock Brake |
| Fuse FMX/JCase 20A | 7 | Police Ignition Run / ACC #1 |
| Fuse FMX/JCase 50A | 8 | Radiator Fan [6.2L Supercharged] / Police Ignition Run / ACC # 2 |
| Fuse FMX/JCase 20A | 8 | Radiator Fan [6.2L Supercharged] / Police Ignition Run / ACC # 2 |
| Fuse MINI 20A | 9 | All-Wheel Drive Module – If Equipped |
| Fuse MINI 10A | 10 | Intrusion MOD [300] – If Equipped / Under Hood Lamp – Police |
| Fuse MINI 20A | 11 | Horns |
| Fuse MINI 10A | 12 | Air Conditioning Clutch |
| Fuse MINI | 13 | Fuse – Spare |
| Fuse MINI | 14 | Fuse – Spare |
| Fuse MINI 20A | 15 | Left HID Headlamp – If Equipped |
| Fuse MINI 20A | 16 | Right HID Headlamp – If Equipped |
| Fuse FMX/JCase 50A | 18 | Radiator Fan – [Non 6.2L Supercharged] |
| Fuse FMX/JCase 50A | 19 | Electric Power Steering #2 – If Equipped |
| Fuse FMX/JCase 30A | 20 | Wiper Motor |
| Fuse FMX/JCase 30A | 21 | Headlamp Washers – If Equipped Police Bat Feed #2 |
| Fuse FMX/JCase 20A | 21 | Headlamp Washers – If Equipped Police Bat Feed #2 |
| Fuse FMX/JCase 40A | 22 | Engine Cooling Pump [6.2L Supercharged] / Police Bat Feed # 3 |
| Fuse FMX/JCase 20A | 22 | Engine Cooling Pump [6.2L Supercharged] / Police Bat Feed # 3 |
| Fuse FMX/JCase 20A | 23 | Police Bat Feed # 1 |
| Fuse FMX/JCase 50A | 24 | Radiator Fan [6.2L Supercharged] / Police Ignition Run/ACC Feed # 3 |
| Fuse FMX/JCase 20A | 24 | Radiator Fan [6.2L Supercharged] / Police Ignition Run/ACC Feed # 3 |
| Fuse MINI | 28 | Fuse – Spare |
| Fuse MINI 15A | 29 | Transmission Control Module [Challenger / Charger Police] |
| Fuse MINI | 30 | Fuse – Spare |
| Fuse MINI 25A | 31 | Engine Module |
| Fuse MINI | 32 | Fuse – Spare |
| Fuse MINI | 33 | Fuse – Spare |
| Fuse MINI 25A | 34 | ASD Feed #1 |
| Fuse MINI 20A | 35 | ASD Feed #2 |
| Fuse MINI 10A | 36 | Anti-Lock Brake Module / Steering Column Lock Module [300 if equipped] |
| Fuse MINI 10A | 37 | Engine Controller |
| Fuse MINI 10A | 38 | Airbag Module |
| Fuse MINI 10A | 39 | A/C Clutch / EPS – If Equipped / Vacuum Pump – If Equipped |
| Fuse MINI 10A | 48 | AWD Module / Front Axle Disconnect – If Equipped |
| Fuse MINI | 49 | Fuse – Spare |
| Fuse MINI | 50 | Fuse – Spare |
| Fuse MINI 20A | 51 | Vacuum Pump – If Equipped |
| Fuse MINI 5A | 52 | Adaptive Cruise – If Equipped |
| Fuse MINI | 53 | Fuse – Spare |

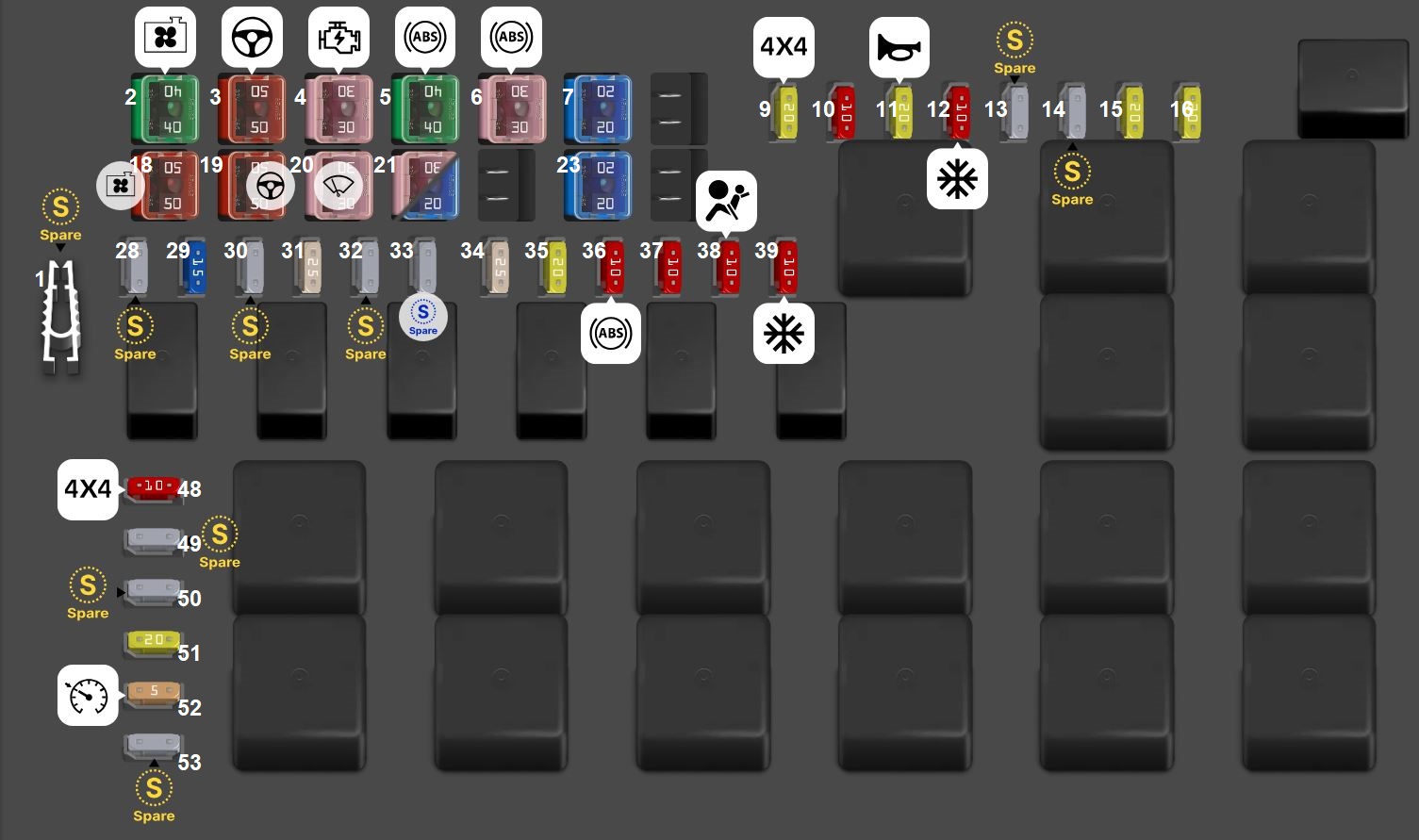

Chrysler (300 & 300C) (2021)
| Type | No. | Description |
| Fuse puller | 1 | Spare |
| Fuse FMX/JCase 40A | 2 | Radiator Fan #1 – [Non 6.2L Supercharged] |
| Fuse FMX/JCase 50A | 3 | Electric Power Steering #1 If Equipped |
| Fuse FMX/JCase 30A | 4 | Starter |
| Fuse FMX/JCase 40A | 5 | Anti Lock Brake |
| Fuse FMX/JCase 30A | 6 | Anti Lock Brake |
| Fuse FMX/JCase 20A | 7 | Police Ignition Run / ACC #1 |
| Fuse MINI 20A | 9 | All-Wheel Drive Module If Equipped |
| Fuse MINI 10A | 10 | Intrusion MOD [300] If Equipped / Under Hood Lamp – [Police] |
| Fuse MINI 20A | 11 | Horns |
| Fuse MINI 10A | 12 | Air Conditioning Clutch |
| Fuse MINI | 13 | Spare |
| Fuse MINI | 14 | Spare |
| Fuse MINI 20A | 15 | Left HID Headlamp If Equipped |
| Fuse MINI 20A | 16 | Right HID Headlamp If Equipped |
| Fuse FMX/JCase 50A | 18 | Radiator Fan – [Non 6.2L Supercharged] |
| Fuse FMX/JCase 50A | 19 | Electric Power Steering #2 If Equipped |
| Fuse FMX/JCase 30A | 20 | Wiper Motor |
| Fuse FMX/JCase 30A | 21 | Headlamp Washers If Equipped |
| Fuse FMX/JCase 20A | 21 | Police Bat Feed #2 |
| Fuse FMX/JCase 20A | 23 | Police Bat Feed # 1 |
| Fuse MINI | 28 | Spare |
| Fuse MINI 15A | 29 | Auto Trans [Challenger, / Charger Police] |
| Fuse MINI | 30 | Spare |
| Fuse MINI 25A | 31 | Engine Module |
| Fuse MINI | 32 | Spare |
| Fuse MINI | 33 | Spare |
| Fuse MINI 25A | 34 | ASD Feed #1 |
| Fuse MINI 20A | 35 | ASD Feed #2 |
| Fuse MINI 10A | 36 | Anti-Lock Brake Module / Steering Column Lock Module [300 If Equipped] |
| Fuse MINI 10A | 37 | Engine Controller |
| Fuse MINI 10A | 38 | Airbag Module |
| Fuse MINI 10A | 39 | A/C Clutch / EPS If Equipped/ Vacuum Pump If Equipped |
| Fuse MINI 10A | 48 | AWD Module / Front Axle Disconnect If Equipped |
| Fuse MINI | 49 | Spare |
| Fuse MINI | 50 | Spare |
| Fuse MINI 20A | 51 | Vacuum Pump If Equipped |
| Fuse MINI 5A | 52 | Adaptive Cruise Control If Equipped |
| Fuse MINI | 53 | Spare |

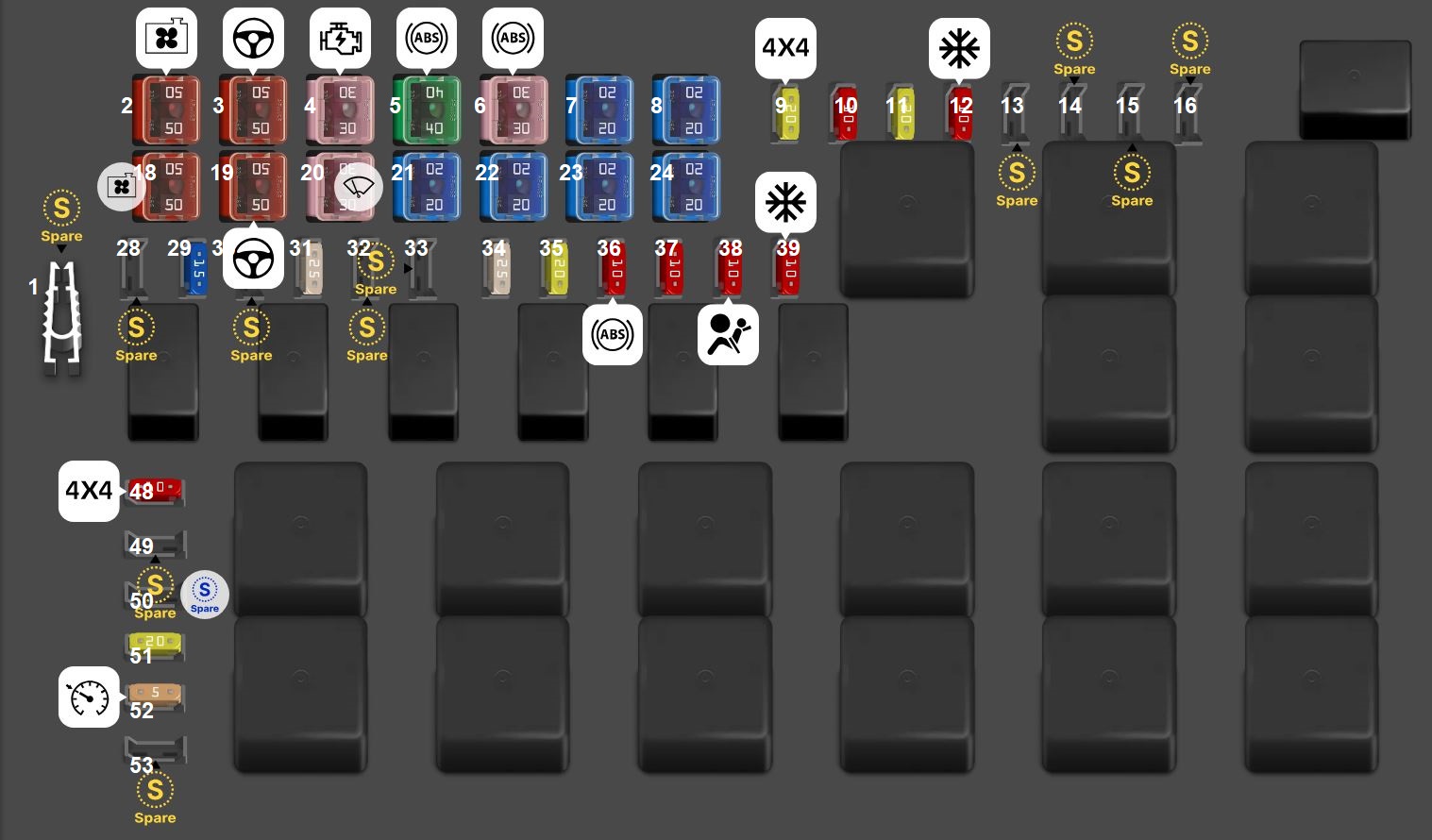

Chrysler (300 & 300C) (2022 – 2023)
| Type | No. | Description |
| Fuse puller | 1 | Spare |
| Fuse FMX/JCase 50A | 2 | Radiator Fan [6.2L & Police] |
| Fuse FMX/JCase 50A | 3 | Electric Power Steering #1 (If equipped) |
| Fuse FMX/JCase 30A | 4 | Starter |
| Fuse FMX/JCase 40A | 5 | Anti-Lock Brake |
| Fuse FMX/JCase 30A | 6 | Anti-Lock Brake |
| Fuse FMX/JCase 20A | 7 | Police Ignition Run / ACC #1 |
| Fuse FMX/JCase 20A | 8 | Police Ignition Run / ACC # 2 |
| Fuse MINI 20A | 9 | All-Wheel Drive Module (If equipped) |
| Fuse MINI 10A | 10 | Intrusion MOD (300) (If equipped) / Under Hood Lamp – Police |
| Fuse MINI 20A | 11 | Homs |
| Fuse MINI 10A | 12 | Air Conditioning Clutch |
| Fuse MINI – | 13 | Spare |
| Fuse MINI – | 14 | Spare |
| Fuse MINI – | 15 | Spare |
| Fuse MINI – | 16 | Spare |
| Fuse FMX/JCase 50A | 18 | Radiator Fan #2 |
| Fuse FMX/JCase 50A | 19 | Electric Power Steering #2 |
| Fuse FMX/JCase 30A | 20 | Wiper Motor |
| Fuse FMX/JCase 20A | 21 | Police Bat Feed #2 |
| Fuse FMX/JCase 20A | 22 | Police Bat Feed # 3 |
| Fuse FMX/JCase 20A | 23 | Police Bat Feed # 1 |
| Fuse FMX/JCase 20A | 24 | Police Ignition Run/ACC Feed # 3 |
| Fuse MINI – | 28 | Spare |
| Fuse MINI 15A | 29 | Auto Trans (Challenger / Police) |
| Fuse MINI – | 30 | Spare |
| Fuse MINI 25A | 31 | Engine Module |
| Fuse MINI – | 32 | Spare |
| Fuse MINI – | 33 | Spare |
| Fuse MINI 25A | 34 | ASD Feed #1 |
| Fuse MINI 20A | 35 | ASD Feed #2 |
| Fuse MINI 10A | 36 | Anti-Lock Brake Module/Steering Column Lock Module (If equipped) |
| Fuse MINI 10A | 37 | Engine Controller |
| Fuse MINI 10A | 38 | Airbag Module |
| Fuse MINI 10A | 39 | A/C Clutch / EPS (If equipped)/ Vacuum Pump (If equipped) |
| Fuse MINI 10A | 48 | AWD Module / Front Axle Disconnect (If equipped) |
| Fuse MINI – | 49 | Spare |
| Fuse MINI – | 50 | Spare |
| Fuse MINI 20A | 51 | Vacuum Pump + |
| Fuse MINI 5A | 52 | Adaptive Cruise Control |
| Fuse MINI – | 53 | Spare |
Luggage Compartment Fuse Box

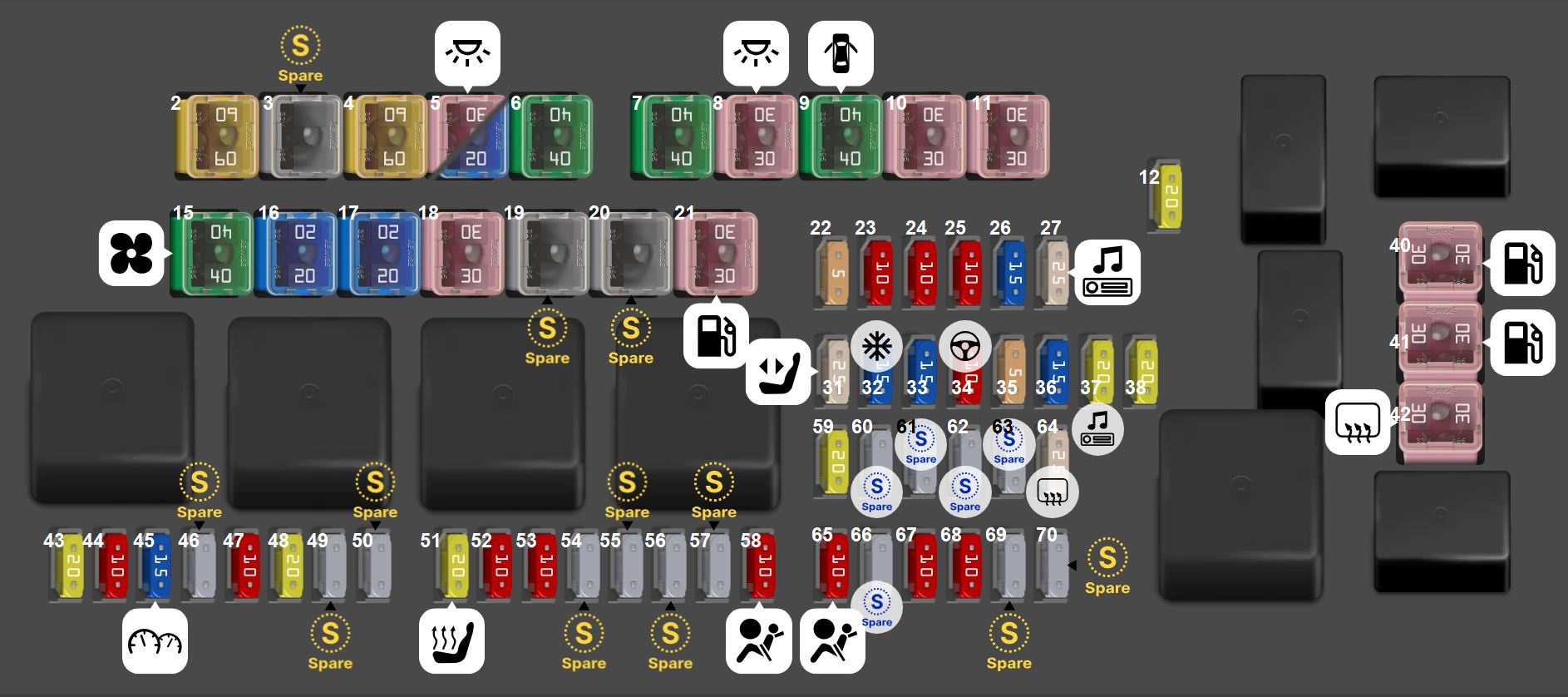

Chrysler (300 & 300C) (2020)
Rear Power Distribution Center
| Type | No. | Description |
| Fuse FMX/JCase 60A | 2 | Front PDC Feed #1 |
| Fuse FMX/JCase | 3 | Fuse – Spare |
| Fuse FMX/JCase 60A | 4 | Front PDC Feed #2 |
| Fuse FMX/JCase 30A | 5 | Sunroof/Dome Lamp – Police |
| Fuse FMX/JCase 20A | 5 | Sunroof/Dome Lamp – Police |
| Fuse FMX/JCase 40A | 6 | Exterior Lighting #1 |
| Fuse FMX/JCase 40A | 7 | Exterior Lighting #2 |
| Fuse FMX/JCase 30A | 8 | Interior Lighting |
| Fuse FMX/JCase 40A | 9 | Power Locks |
| Fuse FMX/JCase 30A | 10 | Driver Door Control Module |
| Fuse FMX/JCase 30A | 11 | Passenger Door Control Module |
| Fuse MINI 20A | 12 | Dual USB Center Console Rear/+12 Volt Power Outlet IP – If Equipped / IP APO – If Equipped |
| Fuse FMX/JCase 40A | 15 | HVAC Blower |
| Fuse FMX/JCase 20A | 16 | Left Spot Lamp – Police |
| Fuse FMX/JCase 20A | 17 | Right Spot Lamp – Police |
| Fuse FMX/JCase 30A | 18 | Mod Network Interface – [Police] |
| Fuse FMX/JCase | 19 | Fuse – Spare |
| Fuse FMX/JCase | 20 | Fuse – Spare |
| Fuse FMX/JCase 30A | 21 | Fuel Pump [Non 6.2L SRT] |
| Fuse MINI 5A | 22 | Cyber Gateway Module |
| Fuse MINI 10A | 23 | Fuel Door – If Equipped/Diagnostic Port |
| Fuse MINI 10A | 24 | Integrated Center Stack |
| Fuse MINI 10A | 25 | Tire Pressure Monitor System |
| Fuse MINI 15A | 26 | Cygnus Transmission Module [Charger Non – Police/300] |
| Fuse MINI 25A | 27 | Amplifier – If Equipped |
| Fuse MINI 25A | 31 | Power Seats – If Equipped |
| Fuse MINI 15A | 32 | HVAC Module/Cluster |
| Fuse MINI 15A | 33 | Ignition Switch/RF Hub Module/Steering Column Lock [300] – If Equipped / Remote Start – If Equipped |
| Fuse MINI 10A | 34 | Steering Column Module/Clock [300] |
| Fuse MINI 5A | 35 | Battery Sensor |
| Fuse MINI 15A | 36 | Electronic Exhaust Valve – If Equipped |
| Fuse MINI 20A | 37 | Radio |
| Fuse MINI 20A | 38 | Media Hub / Console APO |
| Fuse FMX/JCase 30A | 40 | Fuel Pump [6.2L SRT – If Equipped] |
| Fuse FMX/JCase 30A | 41 | Fuel Pump [6.2L SRT – If Equipped] |
| Fuse FMX/JCase 30A | 42 | Rear Defrost |
| Fuse MINI 20A | 43 | Rear Heated Seats – If Equipped / Heated Steering Wheel – If Equipped |
| Fuse MINI 10A | 44 | Park Assist / Blind Spot / Rear View Camera |
| Fuse MINI 15A | 45 | Cluster / Rearview Mirror / Lane Departure |
| Fuse MINI | 46 | Fuse – Spare |
| Fuse MINI 10A | 47 | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
| Fuse MINI 20A | 48 | Active Suspensión – [6.4L] |
| Fuse MINI | 49 | Fuse – Spare |
| Fuse MINI | 50 | Fuse – Spare |
| Fuse MINI 20A | 51 | Front Heated / Vented Seats – If Equipped |
| Fuse MINI 10A | 52 | Heated/Cooled Cup Holders/Real Heated Seat Switches – If Equipped |
| Fuse MINI 10A | 53 | HVAC Module/In Vehicle Temperature Sensor |
| Fuse MINI | 54 | Fuse – Spare |
| Fuse MINI | 55 | Fuse – Spare |
| Fuse MINI | 56 | Fuse – Spare |
| Fuse MINI | 57 | Fuse – Spare |
| Fuse MINI 10A | 58 | Airbag Module |
| Fuse MINI 20A | 59 | Adjustable Pedals – Police |
| Fuse MINI | 60 | Fuse – Spare |
| Fuse MINI | 61 | Fuse – Spare |
| Fuse MINI | 62 | Fuse – Spare |
| Fuse MINI | 63 | Fuse – Spare |
| Fuse MINI 25A | 64 | Rear Windows [Charger/300] |
| Fuse MINI 10A | 65 | Airbag Module |
| Fuse MINI | 66 | Fuse – Spare |
| Fuse MINI 10A | 67 | Rain and Light Sensor / Sunroof / Inside RearView Mirror / Police Run Acc Relay |
| Fuse MINI 10A | 68 | Rear USB Timer / Rear Sunshade – If Equipped |
| Fuse MINI | 69 | Fuse – Spare |
| Fuse MINI | 70 | Fuse – Spare |

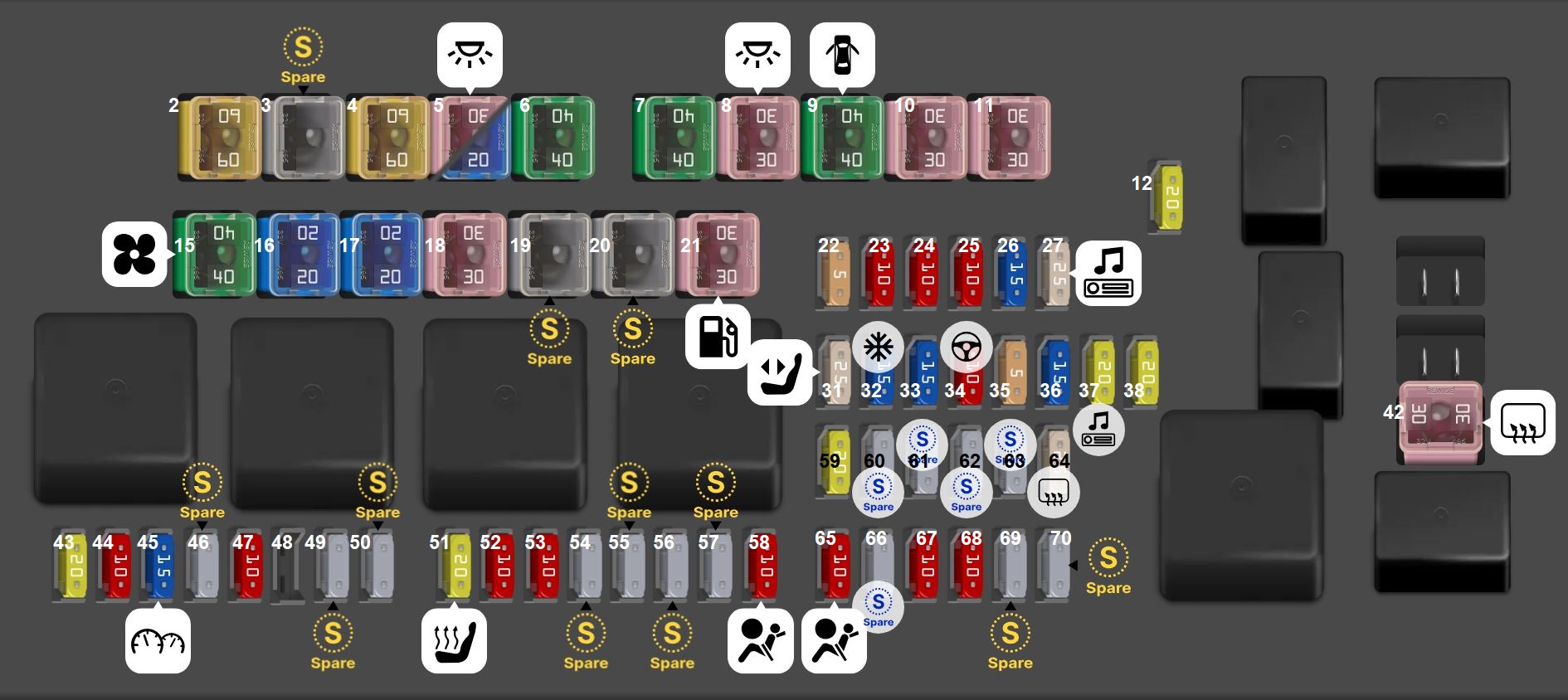

Chrysler (300 & 300C) (2021)
Rear Power Distribution Center
| Type | No. | Description |
| Fuse FMX/JCase 60A | 2 | Front PDC Feed #1 |
| Fuse FMX/JCase | 3 | Spare |
| Fuse FMX/JCase 60A | 4 | Front PDC Feed #2 |
| Fuse FMX/JCase 30A | 5 | Sunroof/Dome Lamp – Police |
| Fuse FMX/JCase 20A | 5 | Sunroof/Dome Lamp – Police |
| Fuse FMX/JCase 40A | 6 | Exterior Lighting #1 |
| Fuse FMX/JCase 40A | 7 | Exterior Lighting #2 |
| Fuse FMX/JCase 30A | 8 | Interior Lighting |
| Fuse FMX/JCase 40A | 9 | Power Locks |
| Fuse FMX/JCase 30A | 10 | Driver Door Control Module |
| Fuse FMX/JCase 30A | 11 | Passenger Door Control Module |
| Fuse MINI 20A | 12 | Cigar Lighter/IP APO/RR USB (Selectable Fuse) If Equipped |
| Fuse FMX/JCase 40A | 15 | HVAC Blower |
| Fuse FMX/JCase 20A | 16 | Left Spot Lamp – [Police] |
| Fuse FMX/JCase 20A | 17 | Right Spot Lamp – [Police] |
| Fuse FMX/JCase 30A | 18 | VISM Mod [Police] |
| Fuse FMX/JCase | 19 | Spare |
| Fuse FMX/JCase | 20 | Spare |
| Fuse FMX/JCase 30A | 21 | Fuel Pump [Non 6.2L SRT] |
| Fuse MINI 5A | 22 | Cyber Gateway Module |
| Fuse MINI 10A | 23 | Fuel Door If Equipped / Diagnostic Port |
| Fuse MINI 10A | 24 | Integrated Center Stack |
| Fuse MINI 10A | 25 | Tire Pressure Monitor System |
| Fuse MINI 15A | 26 | Trans Mod [Charger Non-Police/300] |
| Fuse MINI 25A | 27 | Amplifier If Equipped |
| Fuse MINI 25A | 31 | Power Seats If Equipped |
| Fuse MINI 15A | 32 | HVAC Module/Cluster |
| Fuse MINI 15A | 33 | IGN SW/Wireless Mod/Steer Clmn Lock Mod/Remote Start If Equipped |
| Fuse MINI 10A | 34 | Steering Column Module/Clock [300] |
| Fuse MINI 5A | 35 | Battery Sensor |
| Fuse MINI 15A | 36 | Active Exhaust Valve If Equipped |
| Fuse MINI 20A | 37 | Radio |
| Fuse MINI 20A | 38 | Media Hub / Console APO |
| Fuse FMX/JCase 30A | 42 | Rear Defrost |
| Fuse MINI 20A | 43 | Rear Heated Seats If Equipped / Heated Steering Wheel If Equipped |
| Fuse MINI 10A | 44 | Park Assist / Blind Spot / Rear View Camera |
| Fuse MINI 15A | 45 | Cluster / Rearview Mirror / Lane Departure |
| Fuse MINI | 46 | Spare |
| Fuse MINI 10A | 47 | Adaptive Front Lighting / Day Time Running Lamps If Equipped |
| Fuse MINI | 49 | Spare |
| Fuse MINI | 50 | Spare |
| Fuse MINI 20A | 51 | Front Heated / Vented Seats If Equipped |
| Fuse MINI 10A | 52 | Heated/Cooled Cup Holders/Rear Heated Seat Switches If Equipped |
| Fuse MINI 10A | 53 | HVAC Module/In Vehicle Temperature Sensor |
| Fuse MINI | 54 | Spare |
| Fuse MINI | 55 | Spare |
| Fuse MINI | 56 | Spare |
| Fuse MINI | 57 | Spare |
| Fuse MINI 10A | 58 | Airbag Module |
| Fuse MINI 20A | 59 | Adjustable Pedals – [Police] |
| Fuse MINI | 60 | Spare |
| Fuse MINI | 61 | Spare |
| Fuse MINI | 62 | Spare |
| Fuse MINI | 63 | Spare |
| Fuse MINI 25A | 64 | Rear Windows [Charger/300] |
| Fuse MINI 10A | 65 | Airbag Module |
| Fuse MINI | 66 | Spare |
| Fuse MINI 10A | 67 | Rain and Light Sensor / Sunroof / Inside RearView Mirror / [Police] Run Acc Relay |
| Fuse MINI 10A | 68 | Rear USB Timer / Rear Sunshade If Equipped |
| Fuse MINI | 69 | Spare |
| Fuse MINI | 70 | Spare |

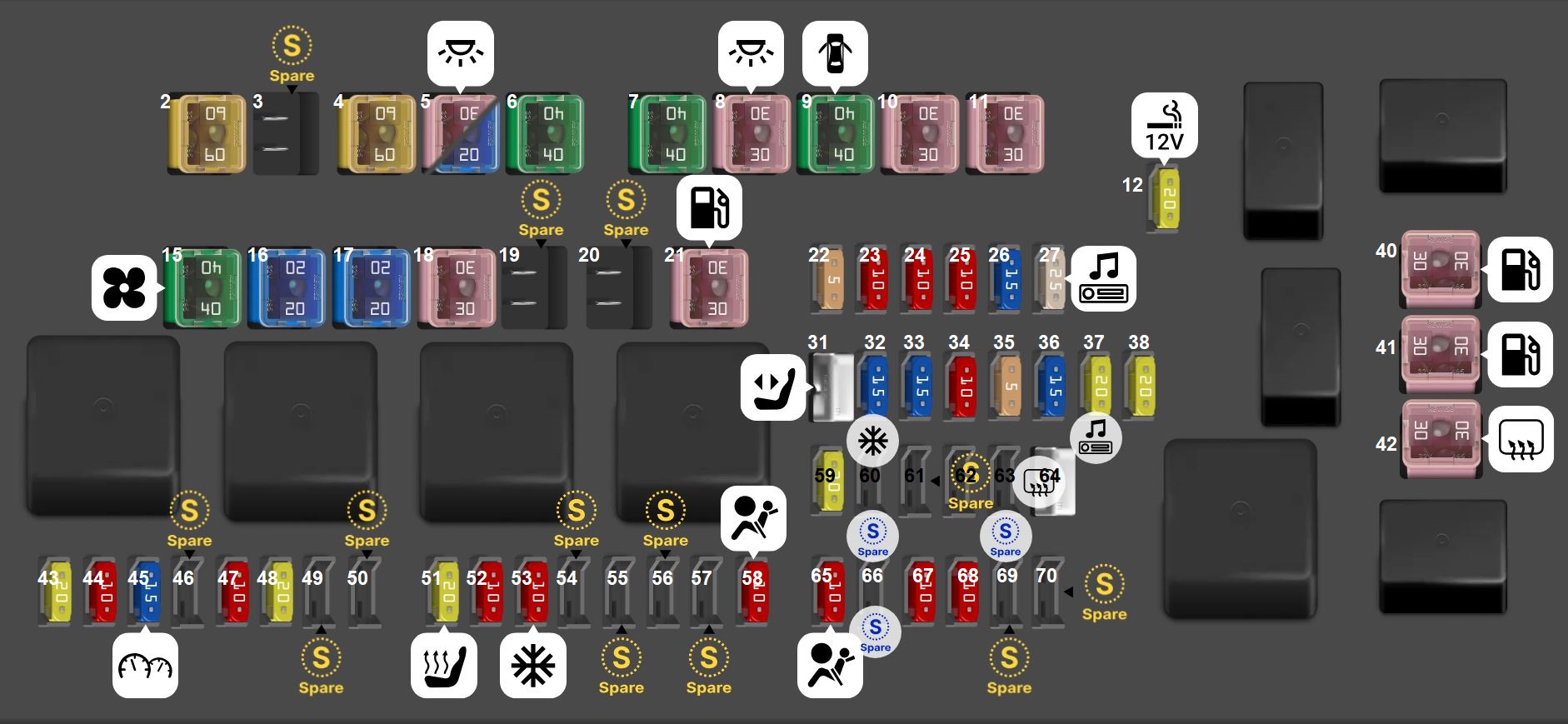

Chrysler (300 & 300C) (2022 – 2023)
Rear Power Distribution Center
| Type | No. | Description |
| Fuse FMX/JCase 60A | 2 | Front PDC Feed #1 |
| Fuse FMX/JCase – | 3 | Spare |
| Fuse FMX/JCase 60A | 4 | Front PDC Feed #2 |
| Fuse FMX/JCase 30A | 5 | Sunroof |
| Fuse FMX/JCase 20A | 5 | Dome Lamp – Police |
| Fuse FMX/JCase 40A | 6 | Exterior Lighting #1 |
| Fuse FMX/JCase 40A | 7 | Exterior Lighting #2 |
| Fuse FMX/JCase 30A | 8 | Interior Lighting |
| Fuse FMX/JCase 40A | 9 | Power Locks |
| Fuse FMX/JCase 30A | 10 | Driver Door Control Module |
| Fuse FMX/JCase 30A | 11 | Passenger Door Control Module |
| Fuse MINI 20A | 12 | Cigar Lighter / IP APO / RR USB (Selectable Fuse) + |
| Fuse FMX/JCase 40A | 15 | HVAC Blower |
| Fuse FMX/JCase 20A | 16 | Left Spot Lamp – Police |
| Fuse FMX/JCase 20A | 17 | Right Spot Lamp – Police |
| Fuse FMX/JCase 30A | 18 | VISM Mod [Police] |
| Fuse FMX/JCase – | 19 | Spare |
| Fuse FMX/JCase – | 20 | Spare |
| Fuse FMX/JCase 30A | 21 | Fuel Pump [Non 6.2L ADR] |
| Fuse MINI 5A | 22 | Cyber Gateway Module |
| Fuse MINI 10A | 23 | Fuel Door SW . / Diagnostic Port |
| Fuse MINI 10A | 24 | Integrated Center Stack |
| Fuse MINI 10A | 25 | Tire Pressure Monitor |
| Fuse MINI 15A | 26 | Trans Mod [Charger / 300] |
| Fuse MINI 25A | 27 | Amplifier (If equipped) |
| Circuit breaker MINI | 31 | Power Seats . |
| Fuse MINI 15A | 32 | HVAC Module/Cluster |
| Fuse MINI 15A | 33 | IGN SW / Wireless Mod/Steer Cimr Lock Mod/Remote Start (If equipped) |
| Fuse MINI 10A | 34 | Steering Column Module/Clock (300) |
| Fuse MINI 5A | 35 | Battery Sensor |
| Fuse MINI 15A | 36 | Active Exhaust Valve. |
| Fuse MINI 20A | 37 | Radio |
| Fuse MINI 20A | 38 | Media Hub / Console APO |
| Fuse FMX/JCase 30A | 40 | Fuel Pump #1 [6.2L ADR] |
| Fuse FMX/JCase 30A | 41 | Fuel Pump #2 [6.2L ADR] |
| Fuse FMX/JCase 30A | 42 | Rear Defrost |
| Fuse MINI 20A | 43 | Rear Heated Seats (If equipped) / Heated Steering Wheel (If equipped) |
| Fuse MINI 10A | 44 | Park Assist (If equipped)/ Blind Spot (If equipped)/Rear View Camera (If equipped) |
| Fuse MINI 15A | 45 | Cluster / Rearview Mirror / Lane Departure |
| Fuse MINI – | 46 | Spare |
| Fuse MINI 10A | 47 | Adaptive Front Lighting / Day Time Running Lamps . |
| Fuse MINI 20A | 48 | Active Suspensión – [6.4L (If equipped) /6.2L] |
| Fuse MINI – | 49 | Spare |
| Fuse MINI – | 50 | Spare |
| Fuse MINI 20A | 51 | Front Heated (If equipped)/ Vented Seats . |
| Fuse MINI 10A | 52 | Heated Cup Holders (If equipped)/ Rear Heated Seat Switches (If equipped) |
| Fuse MINI 10A | 53 | HVAC Module / In Vehicle Temperature Sensor |
| Fuse MINI – | 54 | Spare |
| Fuse MINI – | 55 | Spare |
| Fuse MINI – | 56 | Spare |
| Fuse MINI – | 57 | Spare |
| Fuse MINI 10A | 58 | Airbag Module |
| Fuse MINI 20A | 59 | Adjustable Pedals – Police |
| Fuse MINI – | 60 | Spare |
| Fuse MINI – | 61 | Spare |
| Fuse MINI – | 62 | Spare |
| Fuse MINI – | 63 | Spare |
| Circuit breaker MINI | 64 | Rear Windows [Charger/300] |
| Fuse MINI 10A | 65 | Airbag Module |
| Fuse MINI – | 66 | Spare |
| Fuse MINI 10A | 67 | Rain & Light Sensor (If equipped)/ Sunroof (If equipped)/ Inside RearView Mirror / Police Run Acc |
| Fuse MINI 10A | 68 | Rear USB Timer / Rear Sunshade + |
| Fuse MINI – | 69 | Spare |
| Fuse MINI – | 70 | Spare |
