Lincoln Navigator (2024 – 2026) Fuse Box Location & Diagrams

This guide provides complete fuse box locations and detailed diagrams for the Lincoln Navigator (2024–2026). Find the exact position of interior and engine compartment fuse panels, along with fuse assignments and relay information, to help with troubleshooting, maintenance, and electrical system repairs quickly and accurately.

Fuse Box Location

Engine Compartment Fuse Box

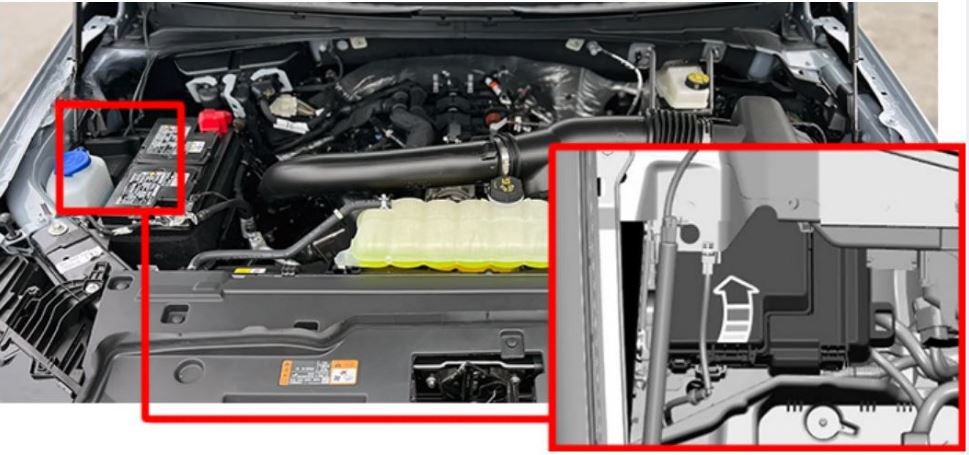

The under-hood fuse box is in the engine compartment. Remove the cover to access the fuses.Passenger Compartment Fuse Box

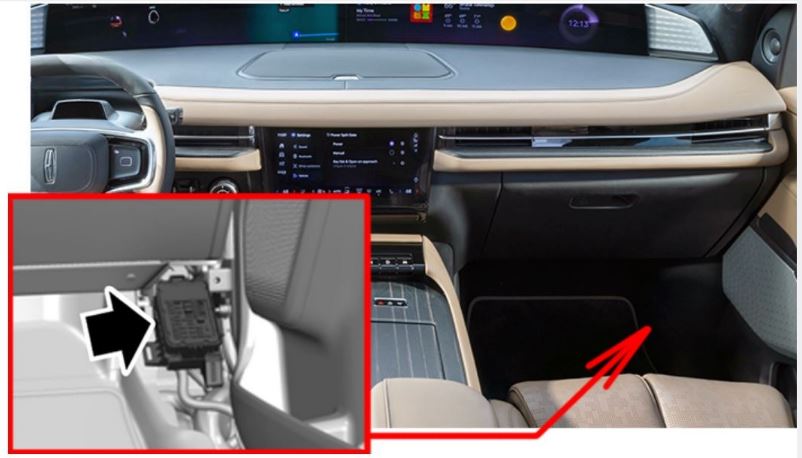

The interior fuse box is in the passenger footwell.

Fuse Box Diagrams

Engine Compartment Fuse Box

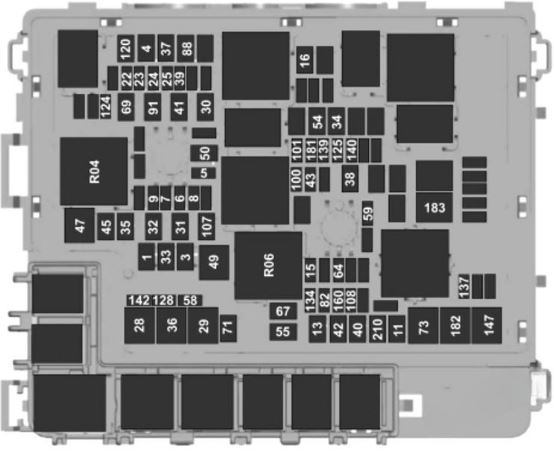

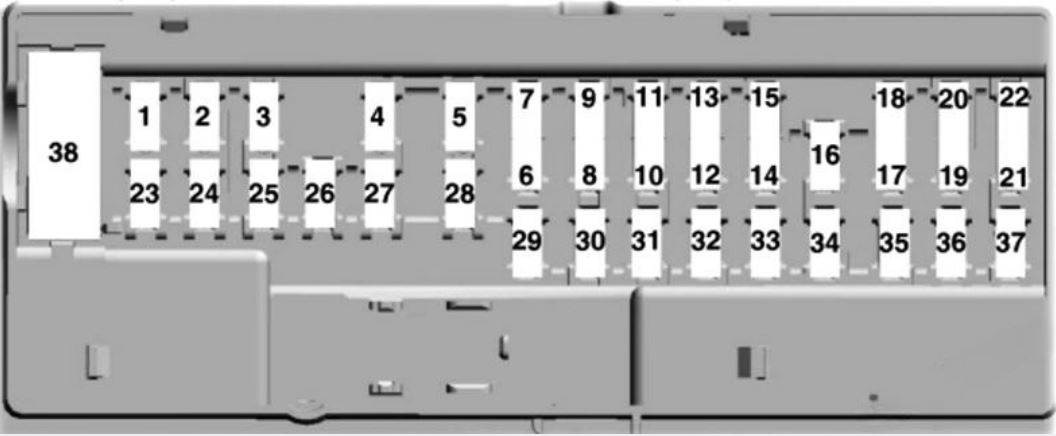

Lincoln Navigator (2024)

№	Amps	Protected Component
1	30A	Body control module 1.
3	30A	Body control module 2.
4	30A	Fuel pump.
5	5A	Powertrain control module relay.
6	20A	Vehicle power 1.
7	25A	Vehicle power 2.
8	20A	Vehicle power 3.
9	20A	Vehicle power 4.
11	30A	Starter relay.
13	40A	Front blower motor.
15	20A	Horn.
16	20A	Windshield washer pump.
22	10A	Electronic power assist steering run/start feed.
23	10A	Anti-lock brake system run/start feed.
24	10A	Powertrain control module. Transmission control module.
25	10A	Rear view camera. Air quality sensor run/start feed.
28	50A	Anti-lock brake system pump.
29	50A	Anti-lock brake system valves.
30	30A	Driver seat motors.
31	30A	Passenger seat motors.
32	20A	Power point 1.
33	–	Not used.
34	20A	Power point 3.
35	20A	Power point 4.
36	40A	Inverter.
37	30A	Climate controlled seats – passenger side.
38	30A	Climate controlled seats – driver side.
39	20A	Second row seat module.
40	40A	Power running boards.
41	30A	Powered liftgate module.
42	30A	Trailer brake control module.
43	5A	Lincoln star lamp.
45	20A	Power point 5.
47	50A	Electric fan 1.
49	50A	Electric fan 2.
50	40A	Heated rear window.
54	40A	Electronic limited slip differential.
55	30A	Trailer tow parking lamps relay.
58	10A	Trailer tow backup lamps.
59	20A	Rear multi-contour seats.
64	25A	Four-wheel drive module 1.
67	15A	Transmission run/start.
69	30A	Left-hand side wiper motor.
71	20A	Rear window wiper relay.
73	50A	Power folding seat module – third row.
82	25A	Four-wheel drive module 2.
88	40A	Auxiliary blower.
91	20A	Trailer tow lighting module power.
100	30A	Left-hand headlamp.
101	30A	Right-hand headlamp.
107	30A	Trailer battery charge.
108	20A	Not used (spare).
120	15A	Fuel injectors.
124	5A	Rain sensor module.
125	5A	USB smart charger 1.
128	7.5A	Family entertainment system.
134	20A	Multi-contour seats relay.
137	20A	Advanced driver-assistance systems module. Connected camera.
139	5A	USB smart charger 2.
140	5A	USB smart charger 3.
142	5A	USB smart charger 5.
147	40A	Not used (spare).
160	10A	Smart data link connector.
181	5A	Headlamp control module.
182	60A	Driver door control module.
183	60A	Passenger door control module.
210	30A	Body control module start stop.
R04		Electric fan 1 relay.
R06		Electric fan 3 relay.

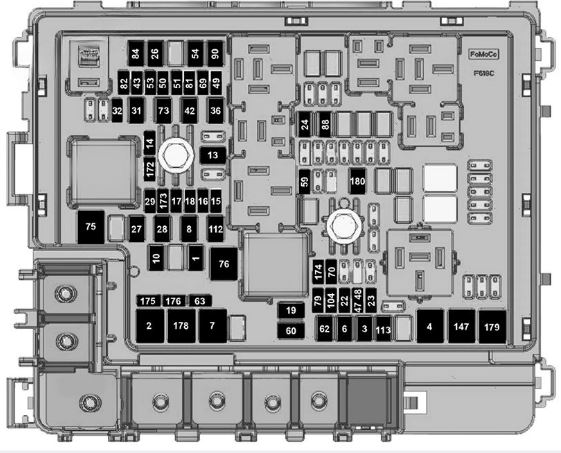

Lincoln Navigator (2025 – 2026)

№	Amp	Protected Component
1	30A	Body control module ignition 1 supply line.
2	30A	Body control module ignition 2 supply line.
3	30A	Body control module permanent power supply line.
4	60A	Brake booster module.
6	30A	Driver heated seat module.
7	60A	Brake booster module.
8	30A	Trailer brake control module.
10	25A	Trailer tow module.
13	40A	Four wheel drive control module.
14	5A	Powertrain control module relay.
15	20A	Powertrain control module ignition.
16	25A	Vehicle power supply 2.
17	20A	Vehicle power supply 3.
18	20A	Vehicle power supply 4.
19	15A	Transmission control module.
22	30A	Right headlamp.
23	30A	Left headlamp.
24	30A	Starter motor.
26	30A	Fuel pump control module.
27	20A	Power outlet 1.
28	20A	Power outlet 2.
29	10A	Cargo USB charging port. Media bin USB charging port.
31	30A	Front wiper motor.
32	5A	Rain sensor module.
36	30A	Body control module permanent power supply line.
42	20A	Trailer brake control module. Trailer tow module.
43	30A	Interior power distribution box.
47	15A	Not used (spare).
48	30A	Digital sound processor. Amplifier.
49	5A	Brake booster module.
50	10A	Powertrain control module.
51	10A	Air quality sensor module.
53	20A	Rear seat control module.
54	40A	Rear window heater module.
59	20A	Horn.
60	30A	Trailer parking lamp.
62	40A	Blower motor.
63	10A	Trailer backup lamp.
69	5A	Power steering.
70	10A	Smart data link connector.
73	20A	Rear wiper motor.
75	50A	Electric cooling fan 1.
76	50A	Electric cooling fan 2.
79	5A	Smart headlamp control module.
81	10A	In-vehicle cooler.
82	5A	Interior power distribution box run/start.
84	15A	Fuel injectors.
88	40A	Rear blower motor.
90	20A	Windshield washer motor.
104	5A	Brand logo lamp.
112	30A	Second row seat motor – left.
113	30A	Second row seat motor – right.
147	40A	Intercooler fan.
172	5A	Ambient lighting.
173	15A	Driver seat USB charging port. Passenger seat USB charging port.
174	15A	Rear entertainment system.
175	5A	Left roof marker light.
176	5A	Right roof marker light.
178	60A	Driver door module.
179	60A	Passenger door module.
180	30A	Passenger heated seat module.

Passenger Compartment Fuse Box

Lincoln Navigator (2024)

№	Amps	Protected Component
1	—	Not used.
2	10A	Driver seat switch.
3	7.5A	Driver door unlock.
4	20A	Speaker amplifier.
5	—	Not used.
6	10A	Smart datalink connector logic.
7	10A	Rear audio control module. Head up display.
8	5A	Wireless accessory charger. Hands-free liftgate module.
9	5A	Keypad. Combined sensor module.
10	—	Not used.
11	—	Not used.
12	7.5A	Instrument cluster.
13	7.5A	Steering column control module. Smart datalink connector logic. Climate control module. Gear shift module.
14	15A	Brake switch.
15	15A	SYNC.
16	—	Not used.
17	7.5A	Headlamp control module.
18	7.5A	Not used (spare).
19	5A	Telematics control unit module. Bluetooth low energy module.
20	5A	Not used (spare).
21	5A	In-vehicle temperature and humidity sensor.
22	5A	Electrochromic mirror. Second row heated seat module.
23	30A	Left-hand front door zone module. Power window switch. Power mirror switch. DVD player.
24	30A	Moonroof logic.
25	20A	Speaker amplifier 2.
26	30A	Right-hand front door zone module.
27	30A	Left-hand rear door zone module.
28	30A	Right-hand rear door zone module.
29	15A	Adjustable column and pedal memory module.
30	5A	Trailer tow control module.
31	10A	Rear climate control module. Drive mode switch module. Terrain management system switch. Radio frequency transceiver module.
32	20A	Audio control module. Rear seat entertainment module. Rear audio control module.
33	—	Not used.
34	30A	Run/start relay.
35	5A	Not used (spare).
36	15A	Image processing module A. Automated park assist module. Continuous control damping module. Air particulate matter sensor.
37	20A	Heated steering wheel.
38	30A Circuit Breaker	Left-hand rear power window. Right-hand rear power window.

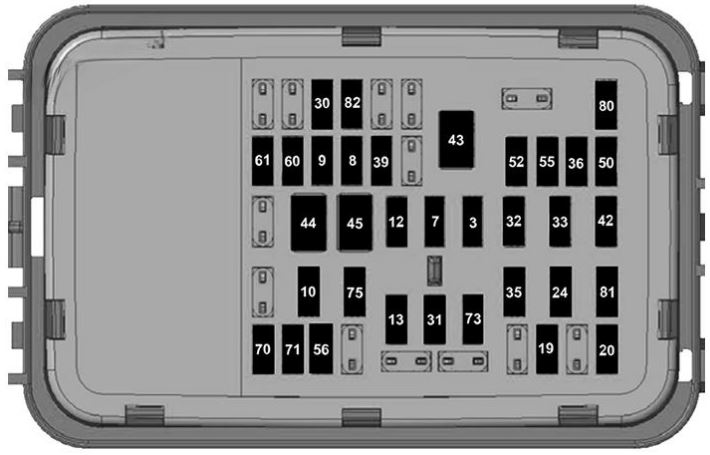

Lincoln Navigator (2025 – 2026)

№	Amp	Protected Component
3	7.5A	Wireless charger control module.
7	10A	Gear shift module.
8	7.5A	Telematics control module.
9	5A	Rear climate control module. Keypad.
10	20A	Front multi-contour seat module.
12	15A	Climate control module.
13	7.5A	Steering wheel control module.
19	5A	Bluetooth low energy module.
20	5A	Headlamp module.
24	30A	Glass roof control module.
30	15A	USB charging port 3. USB charging port 4.
31	10A	Central gateway module. Terrain management gateway module. Roof mounted remote receiver.
32	20A	Audio control module.
33	20A	Instrument cluster control module.
35	10A	Center console control module. Digital scent module. Center stack display.
36	5A	Interior air particulate sensor.
39	5A	Driver state monitor control module.
42	20A	Integrated control panel. Voice control module.
43	50A	Power splitgate control module.
44	30A	Front driver seat motor.
45	30A	Front passenger seat motor.
50	7.5A	Splitgate assembly.
52	5A	Trailer brake switch.
55	15A	Electrochromatic rear view mirror.
56	10A	Driver power window switch.
60	10A	Glass roof. Rear seat entertainment.
61	5A	Center console slide switch.
70	20A	Driver assistance system control module.
73	7.5A	Wireless charger control module.
75	20A	Rear multi-contour seat module.
80	15A	Steering wheel control module.
81	30A	Center console slide motor.
82	10A	Media connector.
