Citroën C4 (2011 – 2017) Fuse Box Location and Diagrams
For the Citroën C4 (2011-2017) generation, this blog covers fuse box diagrams and locations. Fuse functions and placement are identified for easy troubleshooting and repair of Citroën C4 electrical components.
Dashboard Fuse Box
Citroën C4 (2011 to 2017)
Fuse box location

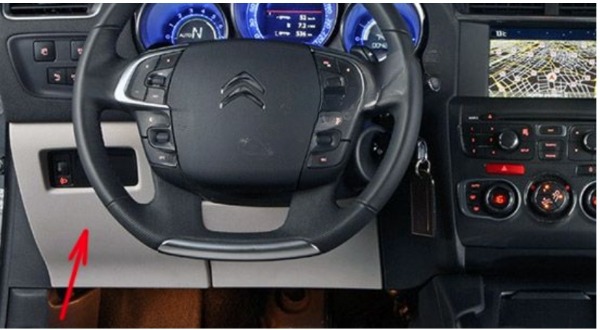

- Left-hand drive vehicles:
The 2 fuseboxes are located in the lower dashboard (left-hand side).

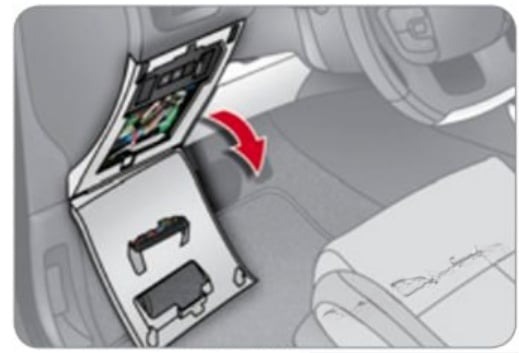

Unclip the cover by pulling at the top right, then left; disengage the cover completely and turn it over.

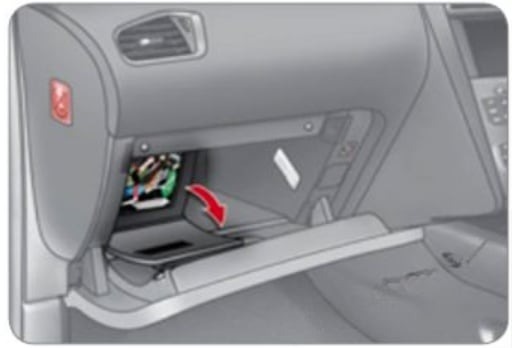

- Right-hand drive vehicles:

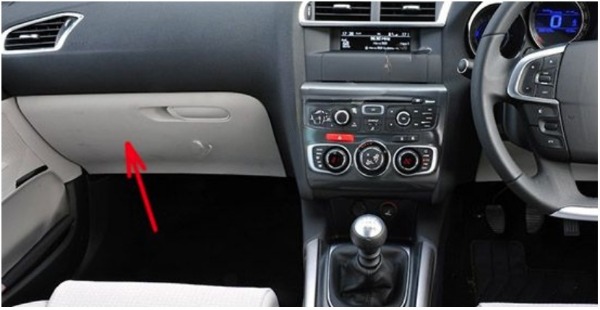

The 2 fuseboxes are placed in the lower dashboard, in the glove box.
Open the glovebox lid, unclip the carrier fitted to the fusebox cover by pulling on the right, open the fusebox cover by pulling at top right, then left, fold down the fusebox cover completely.

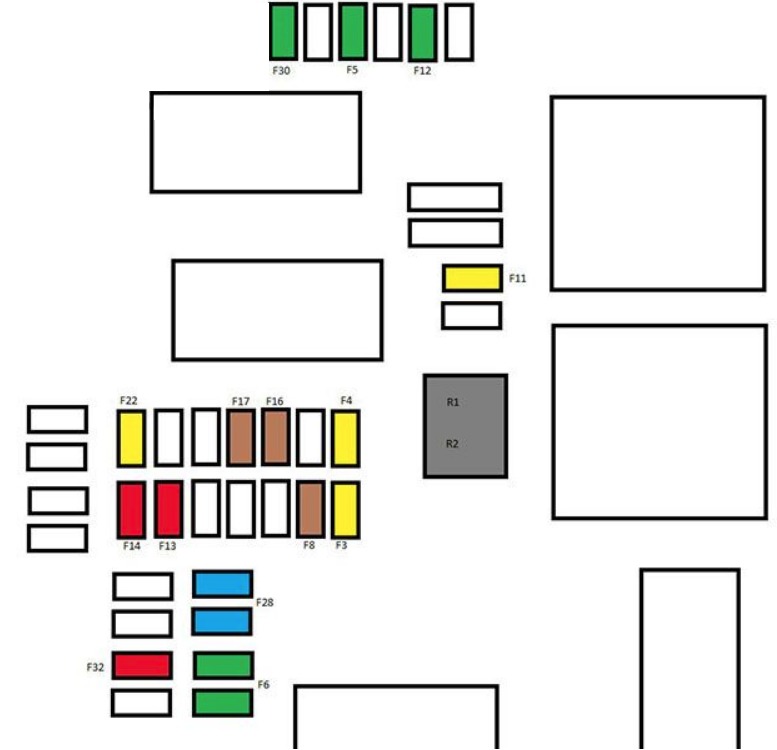

Fuse box diagram (Dashboard fuse box 1)
| No | Rating | Functions |
|---|---|---|
| F3 | 20 A | Parking lamps, trailer hazard warning lamps. |
| F4 | 20 A | Interior lighting, trailer interface. |
| F5 | 30 A | Front one-touch electric windows. |
| F6 | 30 A | Rear one-touch electric windows. |
| F11 | 20 A | 12 V trailer socket. |
| F12 | 30 A | Panoramic sunroof blind. |
| F13 | 30 A | Hi-Fi amplifier. |
| F22 | 20 A | Trailer signalling. |
| F8 | 3 A | Alarm siren, alarm ECU. |
| F13 | 10 A | Cigarette lighter. |
| F14 | 10 A | 12 V socket in boot. |
| F16 | 3 A | Lighting for the large multifunctional storage unit (until 2015), rear map reading lamps, glove box illumination. |
| F17 | 3 A | Sun visor illumination, front map reading lamps. |
| F28 | 15 A | Audio system, radio (after-market). |
| F30 | 20 A | Rear wiper. |
| F32 | 10 A | Hi-Fi amplifier. |
| Removable relay No: | ||
| R1 | – | 230 V/50 Hz socket (except RHD) |
| R2 | – | 12 V socket in boot. |

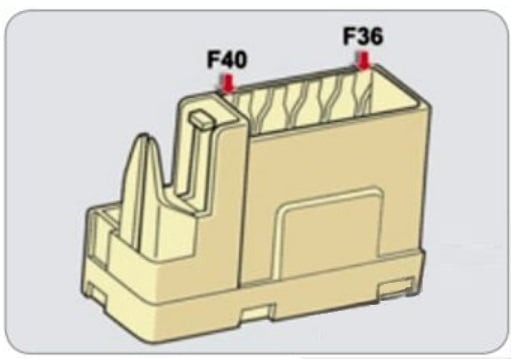

Fuse box diagram (Dashboard fuse box 2)
| No | Rating | Functions |
|---|---|---|
| F36 | 15 A | Rear 12 V socket. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | 25 A | 230 V/50 Hz socket (Except RHD) |
Engine Compartment Fuse Box
Citroën C4 (2011 to 2017)
Fuse box location

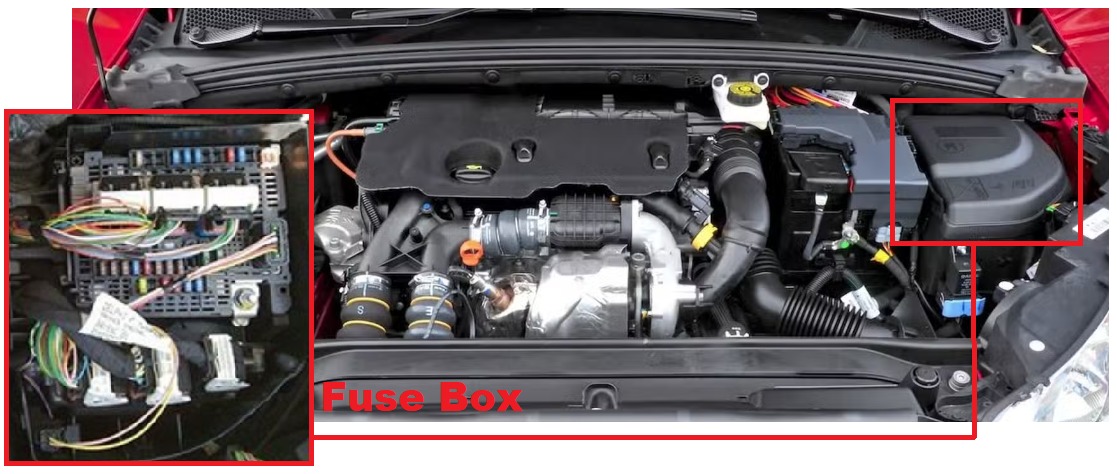

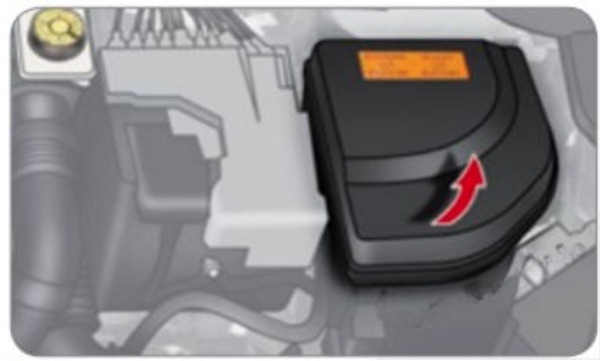

Itx is placed in the engine compartment near the battery (left-hand side).

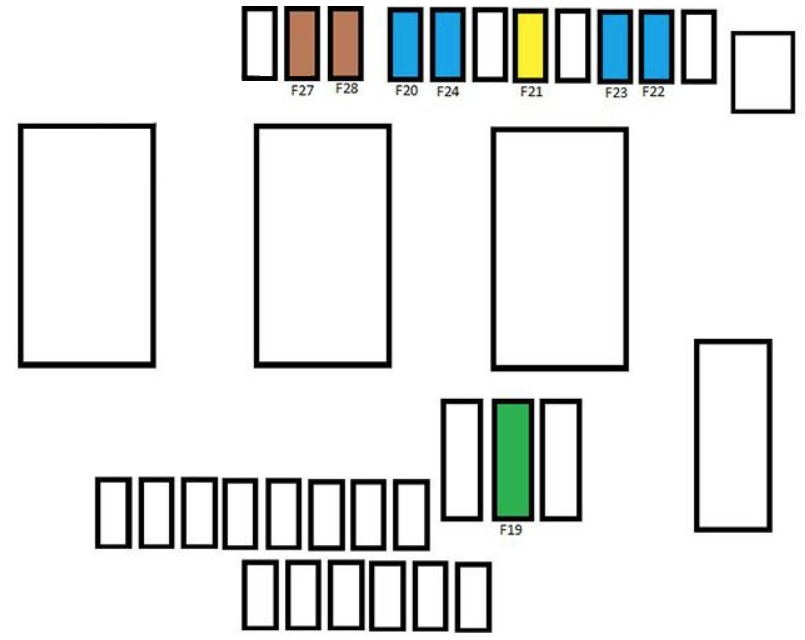

Fuse box diagram
| No | Rating | Functions |
|---|---|---|
| F19 | 30 A | Windscreen wipers slow/fast speed. |
| F20 | 15 A | Front and rear screenwash pump. |
| F21 | 20 A | Headlamp wash pump. |
| F22 | 15 A | Horn. |
| F23 | 15 A | Right-hand main beam headlamp. |
| F24 | 15 A | Left-hand main beam headlamp. |
| F27 | 5 A | Left-hand dipped headlamp. |
| F28 | 5 A | Right-hand dipped headlamp. |

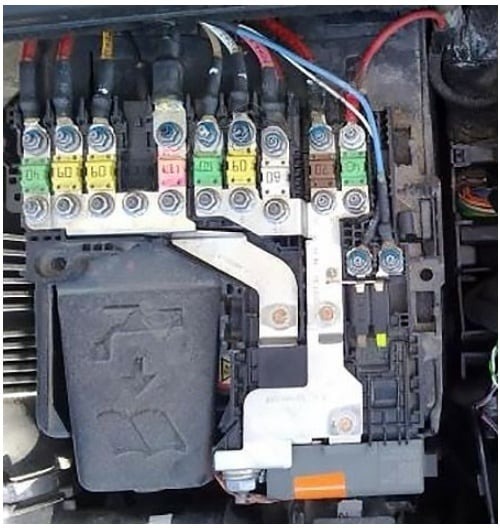

Fuses on the battery
