Citroën C8 (2002 – 2008) Fuse Box Location and Diagrams

Citroën C8 (2002 – 2008) Fuse Box Location and Diagrams

This blog covers Citroën C8 (2002-2008) fuse box diagrams and locations. Knowing the fuse arrangement and access points in your Citroën C8 is crucial for efficient maintenance and speedy electrical problem solutions.

Dashboard Fuse Box

Citroën C8 (2002 to 2008)

Fuse box location

  • Left-hand drive vehicles:

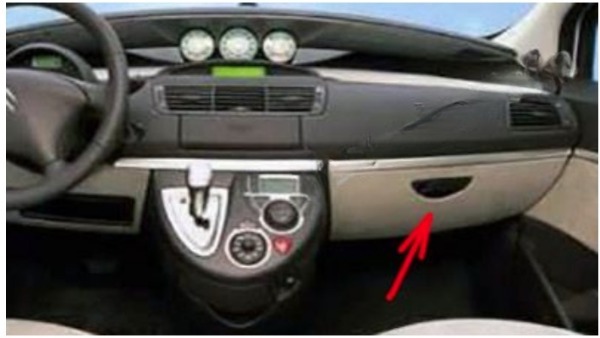

    Open the lower glove box on the right-hand side, pull the handle to open the cover.Citroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 1

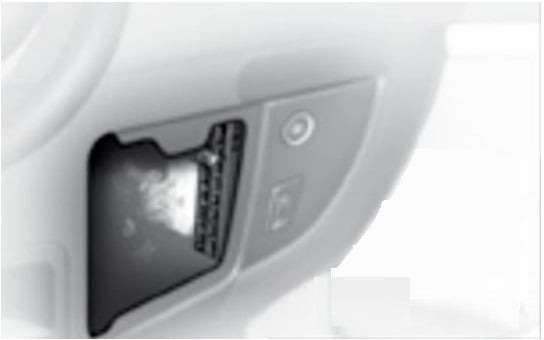

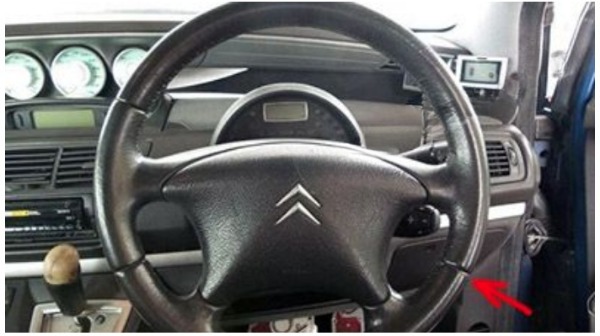

  • Right-hand drive vehicles:Citroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 2Unscrew the bolt a quater of a turn with a coin, then, pull the handle to open the cover.Citroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 3

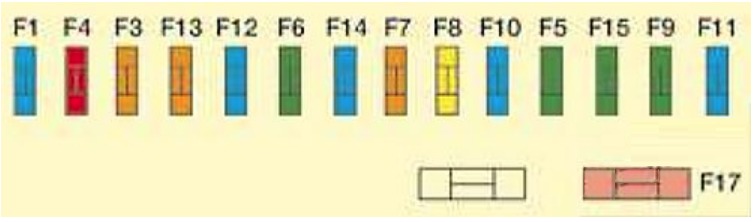

Fuse box diagramCitroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 4

Ref.RatingFunctions
F115 ARear wipe
F35 AAirbag
F410 ASteering angle sensor – ESP – Photochromic interior rear view mirror – Diagnostic socket – Clutch – Air conditioning – Suspension – Particle filter
F530 ASun roof – Front window
F630 ARear window
F75 AInterior lamps – Vanity mirrors – Glovebox
F820 ADisplays – Alarm – Radio – CD changer – Diesel fuel additive system – Deflation detection – Sliding side door
F930 ACigar lighter
F1015 ATrailer relay unit – Controls at the steering wheel
F1115 ADiagnostic socket – Siren – Automatic gearbox – Ignition
F1215 ASeat belts warning lamp – Sliding doors – Airbag – Parking assistance – Driver’s seat memorisation – Passenger’s electric seat – Hands-free kit.
F135 ATrailer relay unit
F1415 ARain sensor – Sun roof – Air conditioning – Odometer warning lamp control unit -Instrument panel – Telematics
F1530 ALocking – Deadlocking – Child safety
F1740 AHeated rear screen

Engine compartment Fuse Box

Citroën C8 (2002 to 2008)

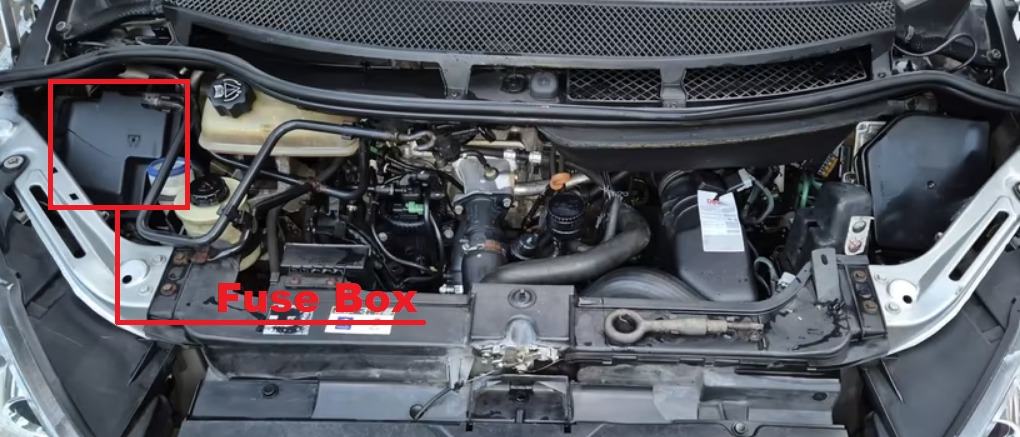

Fuse box locationCitroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 5

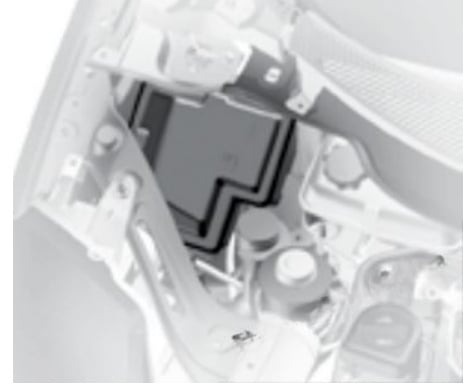

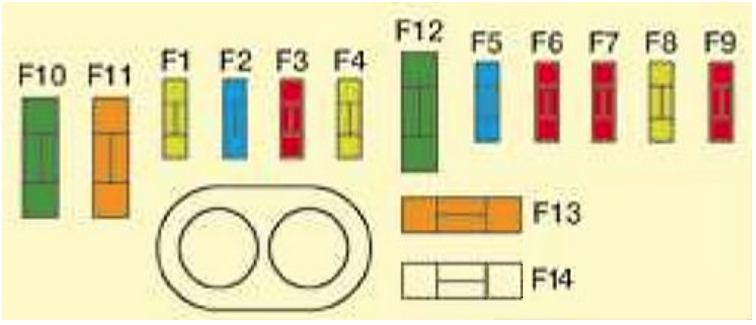

To open the engine compartment fusebox, unclip the screen wash fluid reservoir then detach the cover.Citroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 6Fuse box diagramCitroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 7

Ref.RatingFunctions
F120 AEngine ECU – Exhaust Gas Recycling electrovalve – Diesel fuel high pressure regulation electrovalve – EGR electrovalve
F215 AHorn
F310 AWindscreen/rear screen wash pump
F420 AHeadlamp wash pump
F515 AFuel pump – Regulation electrovalve
F610 AGearbox – Power steering – Air flowmeter – Preheater unit – Engine oil level -Brakes – Headlamps adjustment
F710 AESP
F820 AStarter motor
F910 AEngine ECU
F1030 AElectrovalves – Oxygen sensor – Injectors – Ignition coil – ECU -Diesel fuel heater
F1140 AAir flow
F1230 AWindscreen wipe
F1340 ABuilt-in Systems Interface (lgnition+)
F14–Free

Fuses on the battery

Citroën C8 (2002 to 2008)

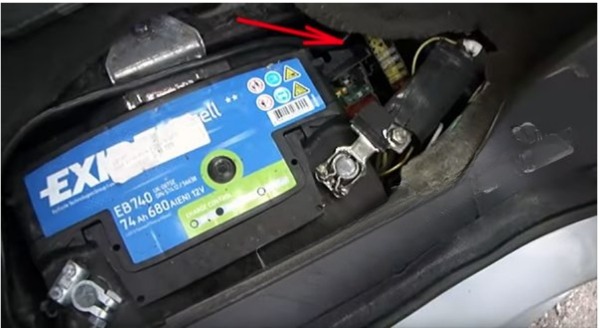

Fuse box locationCitroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 8

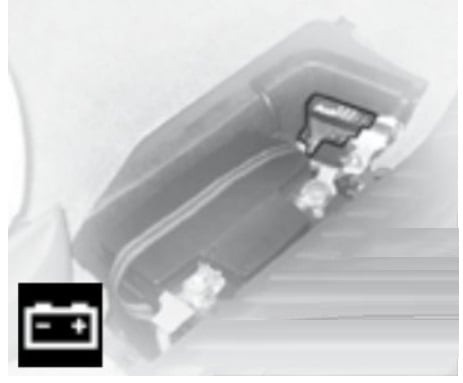

Pull back the floor mat, unclip the cover, located under the floor beneath the front right hand seat, to gain access.Citroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 9

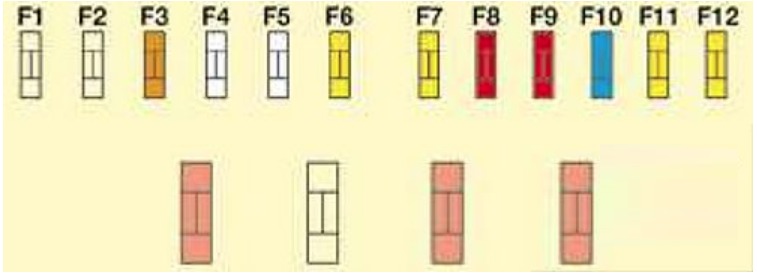

Fuse box diagramCitroën C8 Fuse Box Location and Diagrams User Guide (2002 – 2008) fig 10

Ref.RatingFunctions
F1–Free
F2–Free
F35 ABrakes
F425 ADriver’s seat memorisation
F525 APassenger’s seat memorisation – Sun roof
F620 ASun roof
F720 ASun roof
F810 APassenger’s heated seat
F910 ADriver’s heated seat
F1015 ASignalling
F1120 A3rd row 12V accessory socket
F1220 A2nd row 12V accessory socket
