Citroën C8 (2009 – 2014) Fuse Box Location and Diagrams
This blog covers fuse box diagrams and locations for the Citroën C8 (2009-2014). Understanding fuse placement improves vehicle maintenance and safety by enabling fast identification and repair of electrical faults in your Citroën C8.
Dashboard Fuse Box
Citroën C8 (2009 to 2014)
Fuse box location

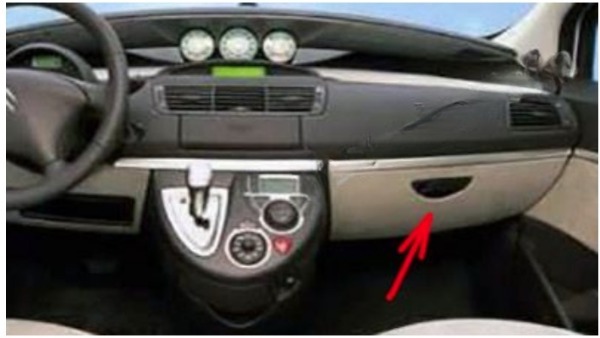

- Left-hand drive vehicles:
Open the lower glove box on the right-hand side, pull the handle to open the cover.

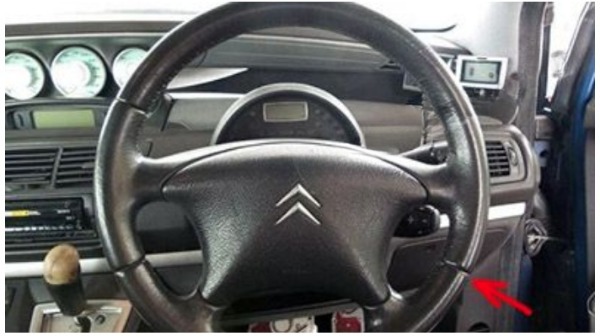

- Right-hand drive vehicles:

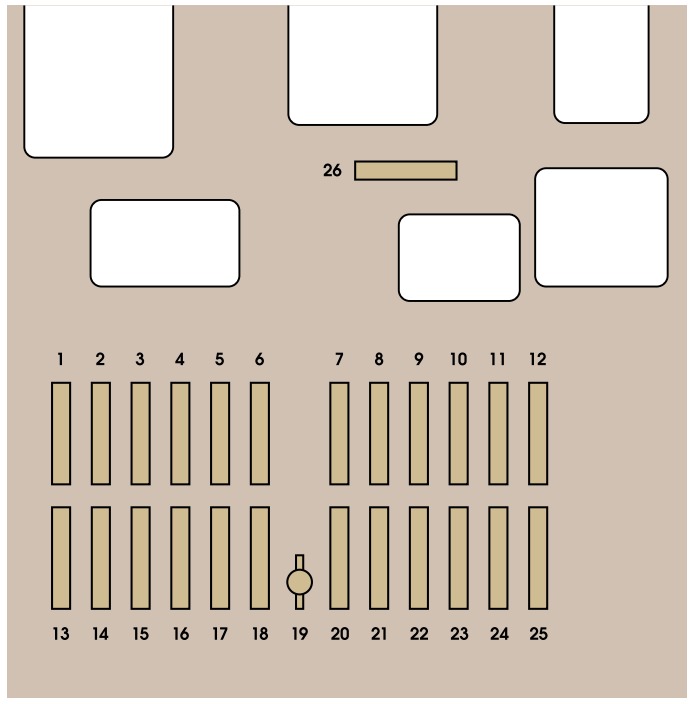

Fuse box diagram
| No | Rating (Amps) | Functions |
|---|---|---|
| 1 | 15 | Rear wiper. |
| 2 | – | Not used. |
| 3 | 5 | Airbag control unit. |
| 4 | 10 | Steering wheel angle sensor, Diagnostic socket, ESP sensor, Manual air conditioning, Clutch switch, Headlamp beam height, Particle emission filter pump, Electrochromatic interior mirror. |
| 5 | 30 | Electric mirrors, Passenger’s electric window motor, Sunroof row 1. |
| 6 | 30 | Front electric windows supply. |
| 7 | 5 | Courtesy lamps, Glove box lamp, Courtesy mirror lamps, Entertainment screen lamps row 2. |
| 8 | 20 | Multifunction display, Anti-theft alarm siren, Audio equipment, Compact disc changer, Audio/ telephone, Diesel additive control unit, Tyre under-inflation detection control unit, Sliding doors module control unit. |
| 9 | 30 | Cigarette lighter. |
| 10 | 15 | Steering wheel switching, Trailer fusebox. |
| 11 | 15 | Diagnostic socket, Ignition switch, Automatic gearbox (4-speed). |
| 12 | 15 | Driver’s seat memory unit, Passenger’s electric seat, Airbag control unit, Parking sensors control unit, Sliding side door buttons, Hands-free kit, Automatic gearbox (6-speed). |
| 13 | 5 | Engine fuse box, Trailer fusebox. |
| 14 | 15 | Rain sensor, Automatic air conditioning, Instrument panel, Sunroofs, Odometer warning lamps unit, Audio-telematics control. |
| 15 | 30 | Passenger’s lock locking. |
| 16 | 30 | Locking/unlocking of the doors. |
| 17 | 40 | Heated rear screen. |
Engine compartment Fuse Box
Citroën C8 (2009 to 2014)
Fuse box location

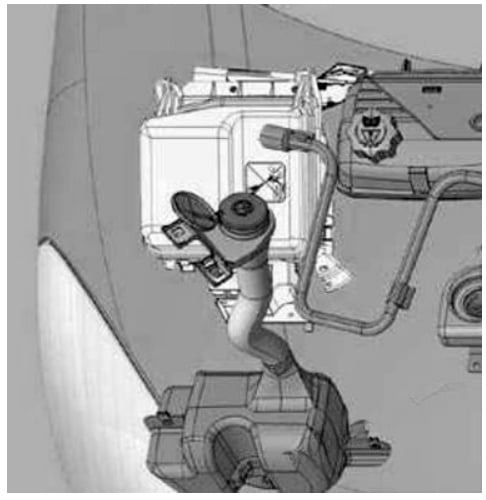

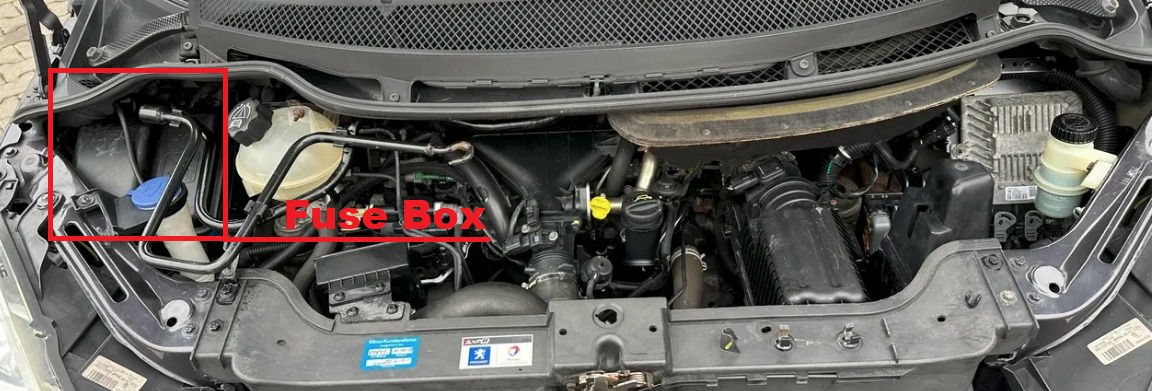

It is located in the engine compartment, to the left of the coolant reservoir.

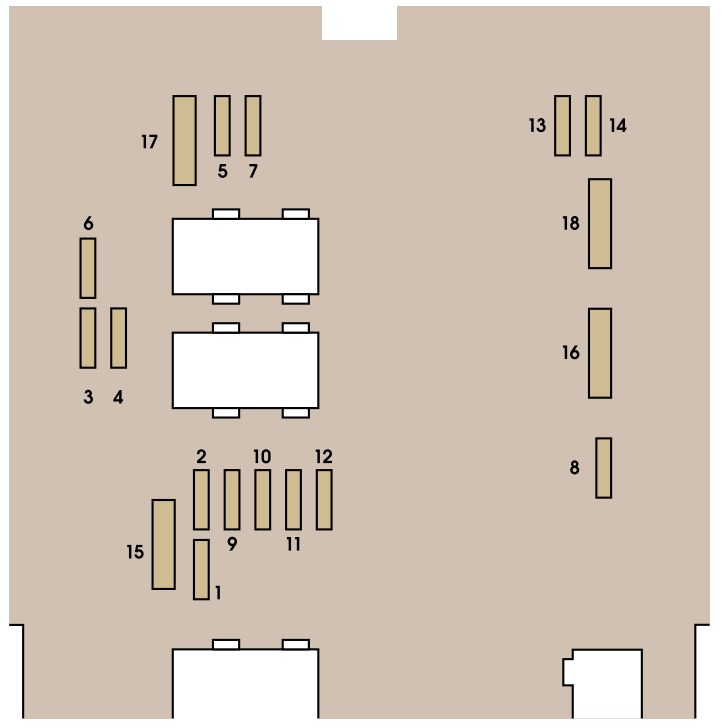

Fuse box diagram
| No | Rating (Amps) | Functions |
|---|---|---|
| 1 | 20 | Engine control unit, Fuel supply and air supply systems, Fan assembly. |
| 2 | 15 | Horn. |
| 3 | 10 | Front and rear wash-wipe pump. |
| 4 | 20 | Headlamp wash pump. |
| 5 | 15 | Fuel supply system. |
| 6 | 10 | Power steering, Secondary brake pedal switch, Automatic gearbox control unit, Air flow sensor, Automatic beam corrector with xenon bulbs. |
| 7 | 10 | Braking system (ABS/ESP). |
| 8 | 20 | Starter control. |
| 9 | 10 | Main brake switch. |
| 10 | 30 | Fuel supply and air supply systems, Emission control systems. |
| 11 | 40 | Front air conditioning. |
| 12 | 30 | Windscreen wipers. |
| 13 | 40 | Built-in systems interface. |
| 14 | 30 | Not used. |
| 15 | 30 | Child lock locking/unlocking/deadlocking control. |
Fuses on the battery
Citroën C8 (2009 to 2014)
Fuse box location

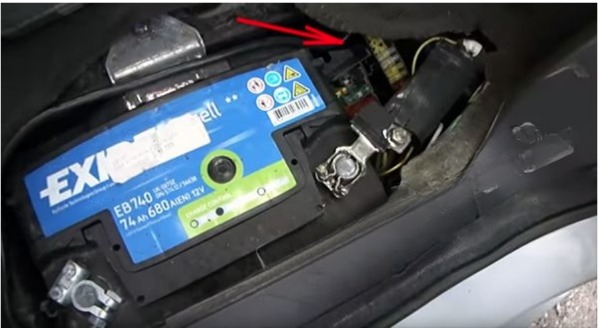

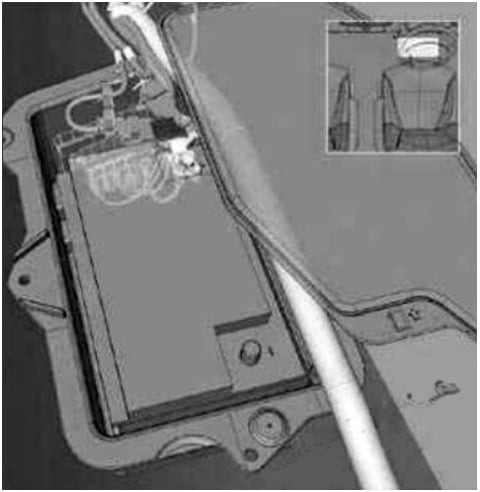

The fuses are located in the battery compartment, housed underneath the floor in front of the seat on the right-hand side.

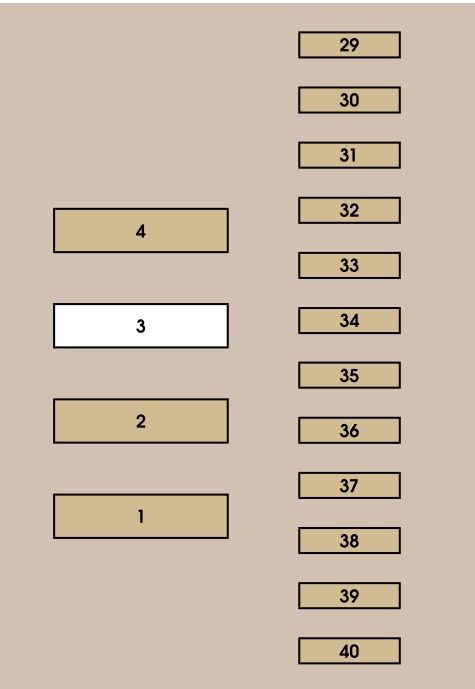

Fuse box diagram
| No | Rating (Amps) | Functions |
|---|---|---|
| 1* | 40 | Electric sliding side door. |
| 2* | 40 | Electric sliding side door. |
| 3* | – | Not used. |
| 4* | 40 | Trailer fusebox. |
| 31 | 5 | Main brake switch. |
| 32 | 25 | Driver’s seat memorisation. |
| 33 | 25 | Passenger’s seat memorisation. |
| 34 | 20 | Sunroof row 3. |
| 35 | 20 | Sunroof row 2. |
| 36 | 10 | Passenger’s heated seat. |
| 37 | 10 | Driver’s heated seat. |
| 38 | 15 | Not used. |
| 39 | 20 | 12 V accessory socket row 3. |
| 40 | 20 | 12 V accessory socket row 2. |
| * The maxi-fuses provide additional protection for the electrical systems. All work must be carried out by a CITROËN dealer |
