Skoda Fabia (1999 – 2006) Fuse Box Location and Diagrams

The first-generation Skoda Fabia (6Y) was built from 1999 to 2006. Fuse box schematics for Skoda Fabia 1999–2006, fuse panel locations, and fuse layout and assignments are here.

Fuses in the dash panel

Skoda Fabia (1999 to 2006)

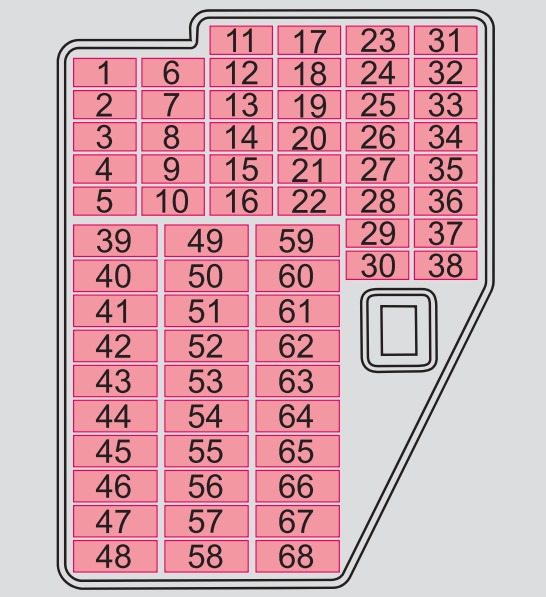

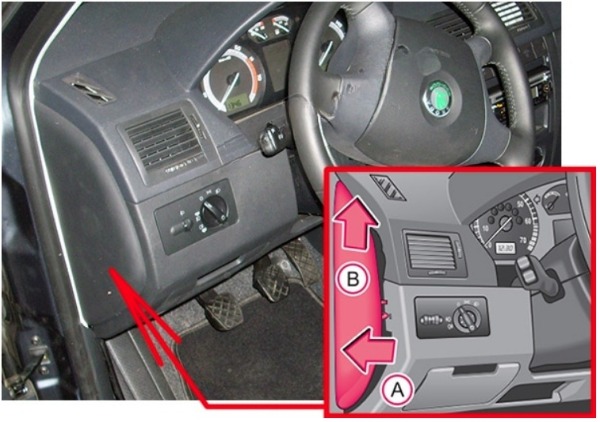

Fuse box locationFuse box diagram

No.	Power consumer	Amperes
1	Instrument cluster, ESP	5
2	Brake lights	10
3	Power supply for the diagnostics, air-conditioning system	5
4	Interior lighting	10
5	Not assigned
6	Lights and Visibility	5
7	Engine electronics, power-assisted steering	5
8	Not assigned
9	Lambda probe	10
10	S-contact (For power consumers, e.g. the radio, which can be operated with the ignition switched off as long as the ignition key is not withdrawn)	5
11	Electrically adjustable rear mirror (For vehicles with an electrical power window system)	5
12	Ventilation system, air-conditioning system, Xenon headlight	5
13	Reversing light	10
14	Diesel engine control unit	10
15	Headlight cleaning system, window wiper	10
16	Instrument cluster	5
17	Petrol engine – control unit (It is 15 amps for a vehicle with a 1.2 litre engine.)	5
18	Phone	5
19	Automatic gearbox	10
20	Control unit for lamp failure	5
21	Heated windscreen washer nozzles	5
22	Not assigned
23	Right main beam	10
24	Engine electronics	10
25	Control unit for ABS, TCS	5
25	control unit for ESP	10
26	Not assigned
27	Not assigned
28	Cruise control, switch for the brake and clutch pedal	5
29	Not assigned
30	Main beam on the left and indicator light	10
31	Central locking system – door lock for the boot lid	10
32	Rear window wiper	10
33	Parking light on the right	5
34	Parking light on the left	5
35	Injector – petrol engine	10
36	Licence plate light	5
37	Rear fog light and indicator light	5
38	Heating of the external mirror	5
39	Rear window heater	20
40	Horn	20
41	Front window wiper	20
42	Cigarette lighter, power socket	15
43	Central control unit, selector lever lock for the automatic gearbox	20
44	Turn signals	15
45	Radio, navigation system	20
46	Electrical power window (at the front on the right)	25
47	Not assigned
48	Diesel engine – control unit, injector	30
49	Central locking system	15
50	Low beam on the right	15
51	Power socket in the luggage compartment	15
52	Ignition	15
53	Electrical power window (at the rear on the right)	25
54	Low beam on the left	15
55	Not assigned
56	Control unit – petrol engine	20
57	Towing device	25
58	Electrical power window (at the front on the left)	25
59	Not assigned
60	Horn for the anti-theft alarm system	15
61	Fuel pump – petrol engine	15
62	Electric sliding/tilting roof	25
63	Seat heaters	15
64	Headlight cleaning system	20
65	Fog lights	15
66	Electrical power window (at the rear on the left)	25
67	Not assigned
68	Fresh air blower	25

Fuses at the battery

Skoda Fabia (1999 to 2006)

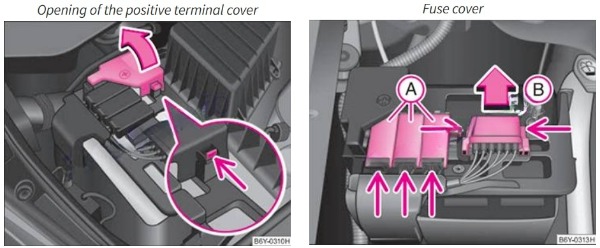

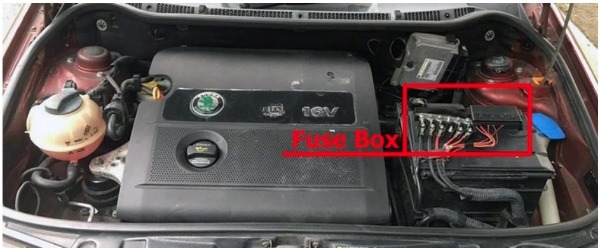

Fuse box location

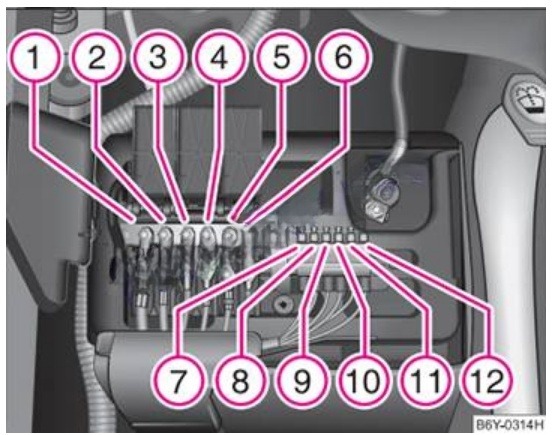

Fuse box diagram (version 1)

No.	Power consumer	Amperes
1	Dynamo	175
2	Interior	110
3	The radiator fan	40
4	ABS or TCS or ESP	40
5	Power steering	50
6	Glow plugs (Only for diesel engine 1.9/96 kW.)	50
7	ABS or TCS or ESP	25
8	The radiator fan	30
9	The air conditioning system	5
10	Engine control unit	15
11	Central control unit	5
12	Automatic gearbox	5

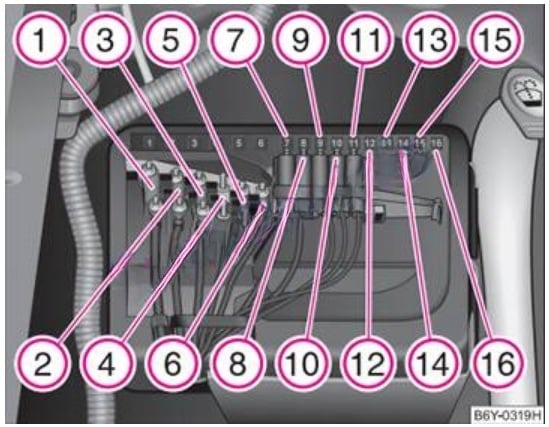

Fuse box diagram (version 2)

No.	Power consumer	Amperes
1	Dynamo	175
2	Interior	110
3	Power steering	50
4	Glow plugs	40
5	The radiator fan	40
6	ABS or TCS or ESP	40
7	ABS or TCS or ESP	25
8	The radiator fan	30
9	Not assigned
10	Central control unit	5
11	The air conditioning system	5
12	Not assigned
13	Automatic gearbox	5
14	Not assigned
15	Not assigned
16	Not assigned
