Dodge Challenger (2020 – 2023) Fuse Box Location & Diagrams
This blog provides fuse box locations and detailed fuse diagrams for the Dodge Challenger models produced from 2020 to 2023. Whether troubleshooting an electrical issue, replacing a blown fuse, or identifying circuit assignments, these diagrams help owners and technicians quickly find the correct fuse and relay.
Fuse Box Location

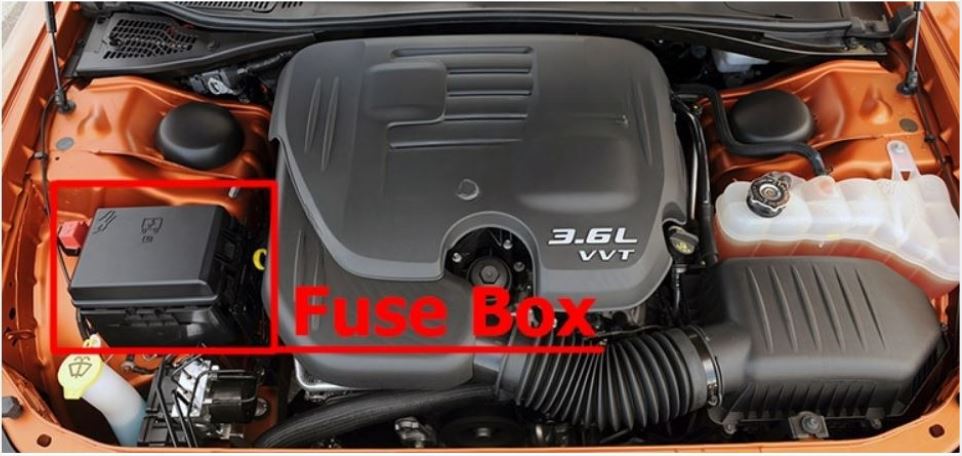

Engine Compartment Fuse Box
The Front Power Distribution Center is located in the engine compartment, on the passenger side.

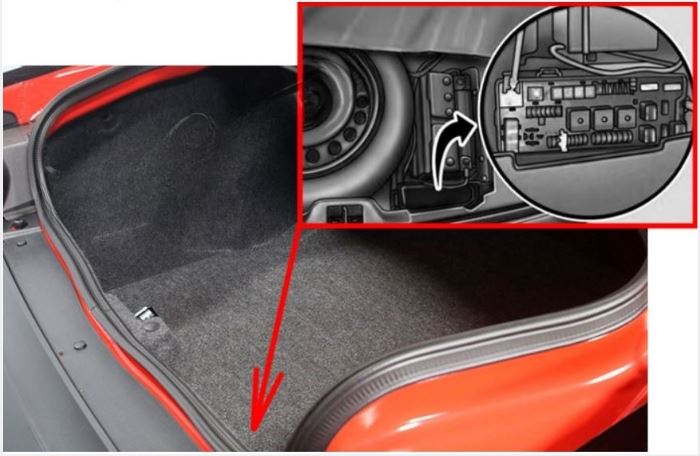

Luggage Compartment Fuse Box
There is also a power distribution centre located in the trunk under the spare tire access panel.
Fuse Box Diagrams

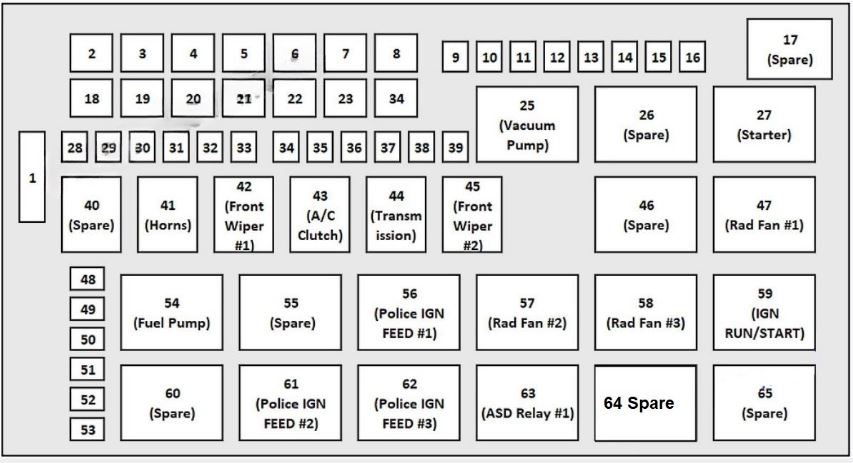

Engine Compartment Fuse Box
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Fuse – Spare |
| 2 | 40 Amp Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
| 3 | 50 Amp Red | – | Electric Power Steering #1 – If Equipped |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Anti Lock Brake |
| 6 | 30 Amp Pink | – | Anti Lock Brake |
| 7 | 20 Amp Blue | – | Police Ignition Run / ACC #1 |
| 8 | 50 Amp Red / 20 Amp Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 10 Amp Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Fuse – Spare |
| 14 | – | – | Fuse – Spare |
| 15 | – | 20 Amp Yellow | Left HID – If Equipped |
| 16 | – | 20 Amp Yellow | Right HID – If Equipped |
| 18 | 50 Amp Red | – | Radiator Fan – (Non 6.2L Supercharged) |
| 19 | 50 Amp Red | – | Electric Power Steering #2 – If Equipped |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink / 20 Amp Blue – Police | – | Headlamp Washers – If Equipped Police Bat Feed #2 |
| 22 | 40 Amp Green / 20 Amp Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 |
| 23 | 20 Amp Blue | – | Police Bat Feed # 1 |
| 24 | 50 Amp Red / 20 Amp Blue | – | Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 |
| 28 | – | – | Fuse – Spare |
| 29 | – | 15 Amp Blue | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) |
| 30 | – | – | Fuse – Spare |
| 31 | – | 25 Amp Clear | Engine Module |
| 32 | – | – | Fuse – Spare |
| 33 | – | – | Fuse – Spare |
| 34 | – | 25 Amp Clear | Powertrain #1 |
| 35 | – | 20 Amp Yellow | Powertrain #2 |
| 36 | – | 10 Amp Red | 2018: Anti-Lock Brake Module 2019-2021: Anti-Lock Brake Module / Steering Column Lock Module (300 if equipped) |
| 37 | – | 10 Amp Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | – | 10 Amp Red | EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger) |
| 48 | – | 10 Amp Red | AWD Module/Front Axle Disconnect – If Equipped |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | – | 5 Amp Tan | Adaptive Cruise – If Equipped |
| 53 | – | – | Fuse – Spare |

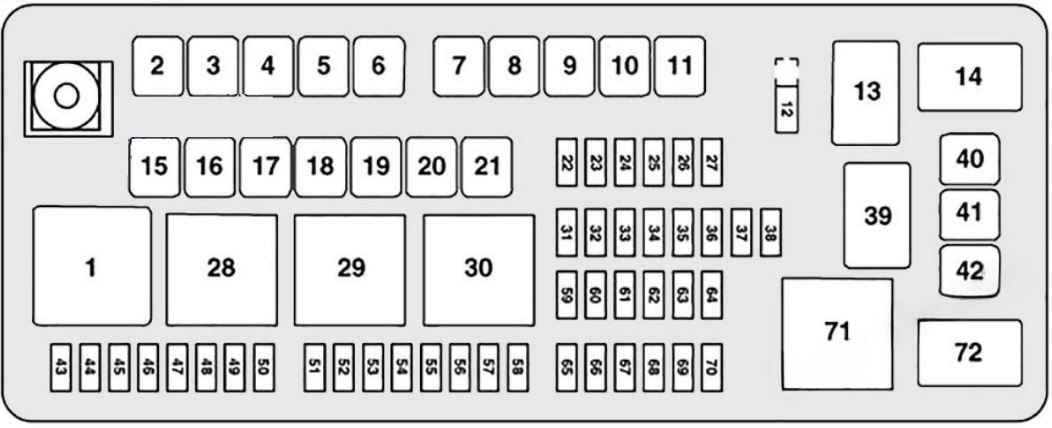

Luggage Compartment Fuse Box
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Fuse – Spare |
| 4 | 60 Amp Yellow | – | Front PDC Feed #2 |
| 5 | 30 Amp Pink 20 Amp Blue – Police | – | Sunroof/Dome Lamp – Police |
| 6 | 40 Amp Green | – | Exterior Lighting #1 |
| 7 | 40 Amp Green | – | Exterior Lighting #2 |
| 8 | 30 Amp Pink | – | Interior Lighting |
| 9 | 40 Amp Green | – | Power Locks |
| 10 | 30 Amp Pink | – | Driver Door Control Module |
| 11 | 30 Amp Pink | – | Passenger Door Control Module |
| 12 | – | 20 Amp Yellow | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
| 15 | 40 Amp Green | – | HVAC Blower |
| 16 | 20 Amp Blue | – | Left Spot Lamp – Police |
| 17 | 20 Amp Blue | – | Right Spot Lamp – Police |
| 18 | 30 Amp Pink | – | Mod Network Interface -Police |
| 19 | – | – | Fuse – Spare |
| 20 | – | – | Fuse – Spare |
| 21 | 30 Amp Pink | – | Fuel Pump (Non 6.2L SRT Demon) |
| 22 | – | 5 Amp Tan | Cyber Gateway Mod |
| 23 | – | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | – | 10 Amp Red | Integrated Center Stack |
| 25 | – | 10 Amp Red | Tire Pressure Monitor |
| 26 | – | 15 Amp Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) |
| 27 | – | 25 Amp Clear | Amplifier – If Equipped |
| 31 | – | 25 Amp Breaker | Power Seats – If Equipped |
| 32 | – | 15 Amp Blue | HVAC Module/Cluster |
| 33 | – | 15 Amp Blue | Ignition Switch/RF Hub Module/Steering Column Lock (300) – If Equipped |
| 34 | – | 10 Amp Red | Steering Column Module/ Clock (300) |
| 35 | – | 5 Amp Tan | Battery Sensor |
| 36 | – | 15 Amp Blue | Electronic Exhaust Valve -If Equipped |
| 37 | – | 20 Amp Yellow | Radio |
| 38 | – | 20 Amp Yellow | Power Outlet Inside Arm Rest/Console Media Hub |
| 40 | 30 Amp Pink | – | Fuel Pump (6.2L SRT Demon – If Equipped) |
| 41 | 30 Amp Pink | – | Fuel Pump (6.2L SRT Demon – If Equipped) |
| 42 | 30 Amp Pink | – | Rear Defrost |
| 43 | – | 20 Amp Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) |
| 44 | – | 10 Amp Red | Park Assist / Blind Spot / Rear View Camera |
| 45 | – | 15 Amp Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway |
| 46 | – | – | Fuse – Spare |
| 47 | – | 10 Amp Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped |
| 48 | – | 20 Amp Yellow | Active Suspension – (6.4L / 6.2L) |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Front Heated / Vented Seats – If Equipped |
| 52 | – | 10 Amp Red | Heated Cupholders/Rear Heated Seat Switches – If Equipped |
| 53 | – | 10 Amp Red | HVAC Module/In Vehicle Temperature Sensor |
| 54 | – | – | Fuse – Spare |
| 55 | – | – | Fuse – Spare |
| 56 | – | – | Fuse – Spare |
| 57 | – | – | Fuse – Spare |
| 58 | – | 10 Amp Red | Airbag Module |
| 59 | – | 20 Amp Yellow | Adjustable Pedals – Police |
| 60 | – | – | Fuse – Spare |
| 61 | – | – | Fuse – Spare |
| 62 | – | – | Fuse – Spare |
| 63 | – | – | Fuse – Spare |
| 64 | – | 25 Amp Breaker | Rear Windows (Charger/ 300) |
| 65 | – | 10 Amp Red | Airbag Module |
| 66 | – | – | Fuse – Spare |
| 67 | – | 10 Amp Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay |
| 68 | – | 10 Amp Red | Dual USB Power Outlet -R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) RR USB Timer |
| 69 | – | – | Fuse – Spare |
| 70 | – | – | Fuse – Spare |
