Suzuki Swift (2024 – 2025) Fuse Box Location & Diagrams
The Suzuki Swift (2024–2025) features a modern design, updated technology, and an efficient electrical system protected by multiple fuses and relays. Knowing the fuse box locations and diagram layout helps drivers quickly identify and resolve electrical issues, ensuring reliable operation and easier vehicle maintenance.
Fuse Box Location

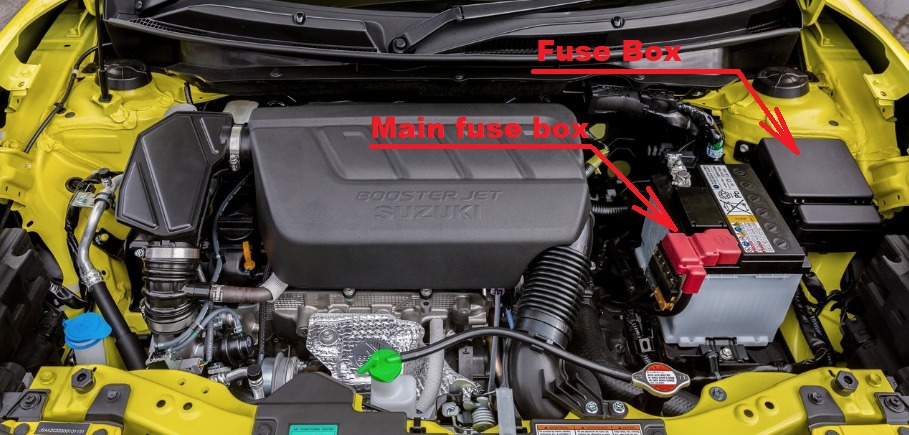

Engine Compartment Fuse Box

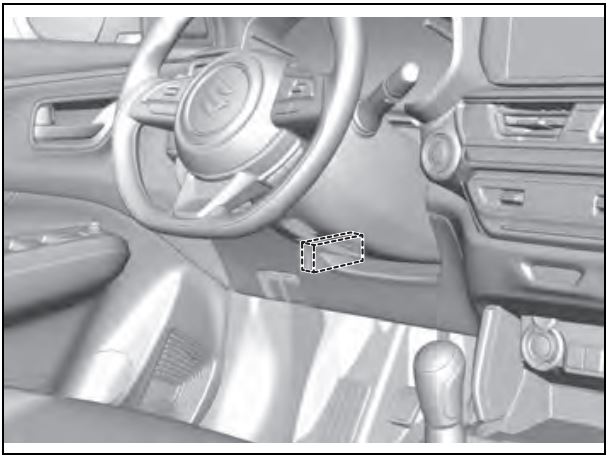

Passenger Compartment Fuse Box
Fuse Box Diagrams

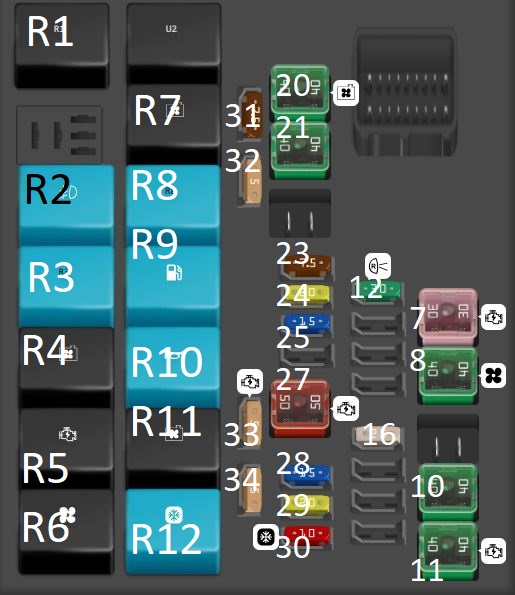

Engine Compartment Fuse Box
Main Fuse Box
| Type | No. | Description |
| Fuse FMX/JCase 30A | 7 | (ST) Starter system |
| Fuse FMX/JCase 40A | 8 | (BLW) AC blower motor |
| Fuse FMX/JCase 40A | 10 | ABS M01 |
| Fuse FMX/JCase 40A | 11 | (IGN) Ignition |
| Fuse MINI 30A | 12 | (B/U) Backup lights |
| Fuse MINI 25A | 16 | (ABS SOL) Anti-lock braking system solenoid |
| Fuse FMX/JCase 40A | 20 | (RDTR) Radiator fan |
| Fuse FMX/JCase 40A | 21 | T/M PUMP |
| Fuse MINI 7.5A | 23 | CNG VLV |
| Fuse MINI 20A | 24 | S/R |
| Fuse MINI 15A | 25 | T/M2 |
| Fuse FMX/JCase 50A | 27 | (IGN2) Ignition |
| Fuse MINI 15A | 28 | T/M |
| Fuse MINI 20A | 29 | FI |
| Fuse MINI 10A | 30 | (CPRSR) Air conditioning compressor |
| Fuse MINI 7.5A | 31 | CNG |
| Fuse MINI 5A | 32 | CNG IG1 |
| Fuse MINI 5A | 33 | (ST SIG) Starter system |
| Fuse MINI 5A | 34 | IG1 SIG4 |
| Relay | R1 | FI MAIN |
| Relay | R2 | (FR FOG) Front fog lights |
| Relay | R3 | BACK |
| Relay | R4 | (RDTR) Radiator fan |
| Relay | R5 | (ST) Starter system |
| Relay | R6 | (BLW) AC blower motor |
| Relay | R7 | (RDTR2) Radiator fan |
| Relay | R8 | ST2 / CNG |
| Relay | R9 | (FUEL PUMP) Fuel pump |
| Relay | R10 | (HORN) Horn |
| Relay | R11 | (RDTR3) Radiator fan |
| Relay | R12 | (CPRSR) Air conditioning compressor |
| Relay | U2 | (IG13) Protects several circuits |
Sub Fuse Box
| Type | No. | Description |
| Fuse FMX/JCase 30A | 1 | EWP |
| Fuse MINI 10A | 3 | (FR FOG) Front fog lights |
| Fuse MINI 30A | 4 | (DC/DC) DC to DC transformer 400 watts |
| Fuse MINI 15A | 5 | (H/L L) Left-hand headlight |
| Fuse MINI 15A | 6 | H/L R |
| Fuse MINI 25A | 7 | (H/L HI) Headlights high beam |
| Fuse MINI 15A | 10 | (H/L HI L) Left-hand headlight high beam |
| Fuse MINI 15A | 11 | (H/L HI R) Right-hand headlight high beam |
| Relay | R1 | EWP |
| Relay | R3 | (H/L HI) Headlights high beam |
| Relay | R4 | H/L R |
| Relay | R5 | (H/L L) Left-hand headlight |

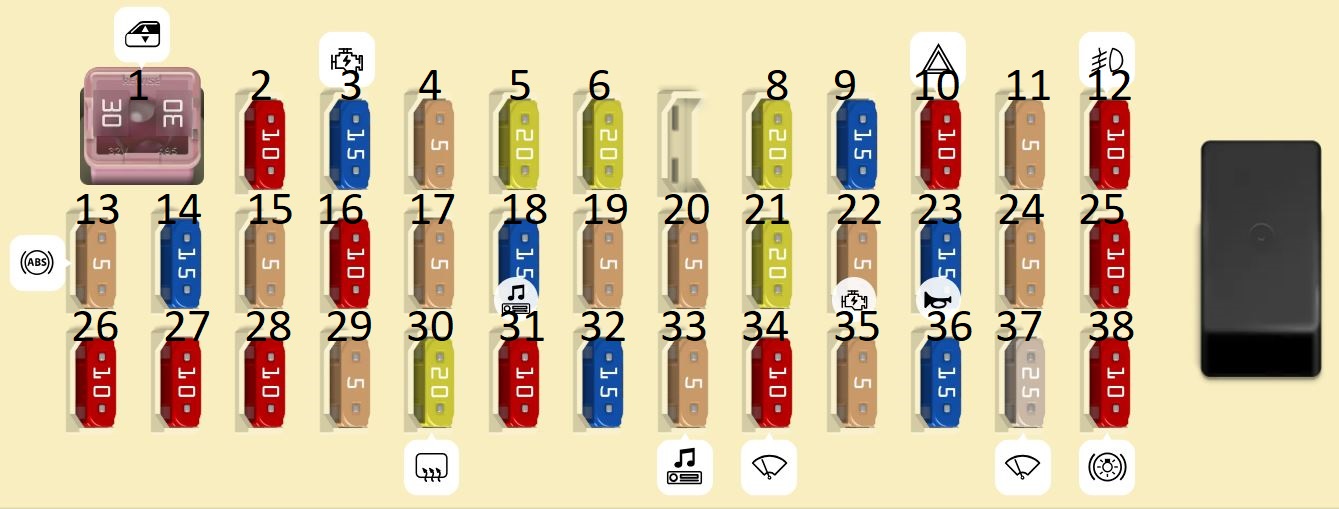

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse FMX/JCase 30A | 1 | (P/W) Power Windows |
| Fuse MINI 10A | 2 | (MTR) Meter |
| Fuse MINI 15A | 3 | (IG) ignition |
| Fuse MINI 5A | 4 | (IG1 SIG2) Power Steering |
| Fuse MINI 20A | 5 | (SHIFT) Not used |
| Fuse MINI 20A | 6 | (S/R) Not used |
| Fuse MINI 20A | 8 | (D/L) Door lock |
| Fuse MINI 15A | 9 | (STL) Steering Lock |
| Fuse MINI 10A | 10 | (HAZ) Hazard |
| Fuse MINI 5A | 11 | (A-STOP) Engine controller |
| Fuse MINI 10A | 12 | (RR FOG) Rear fog lamp |
| Fuse MINI 5A | 13 | (ABS) ABS/ESP |
| Fuse MINI 15A | 14 | (S/H) Seat heater |
| Fuse MINI 5A | 15 | (IG1 SIG3) Camera |
| Fuse MINI 10A | 16 | (DOME2) Interior light |
| Fuse MINI 5A | 17 | (DOME) Meter |
| Fuse MINI 15A | 18 | (RADIO) Radio |
| Fuse MINI 5A | 19 | (CONT) Not used |
| Fuse MINI 5A | 20 | (KEY2) Ignition switch |
| Fuse MINI 20A | 21 | (P/WT) Power window Timer function |
| Fuse MINI 5A | 22 | (KEY) Ignition switch |
| Fuse MINI 15A | 23 | (HORN) Horn |
| Fuse MINI 5A | 24 | (TAIL) Tail lamp left (With auto light system) |
| Fuse MINI 10A | 25 | (TAIL) Tail lamp left and right (Without auto light system) Tail lamp right (With auto light system) |
| Fuse MINI 10A | 26 | (A/B) Airbag |
| Fuse MINI 10A | 27 | (IG1 SIG) Idling stop or BCM |
| Fuse MINI 10A | 28 | (BACK) Backlight |
| Fuse MINI 5A | 29 | (ACC3) Not used |
| Fuse MINI 20A | 30 | (RR DEF) Rear Defogger |
| Fuse MINI 10A | 31 | (MRR HTR) Door mirror heater |
| Fuse MINI 15A | 32 | (ACC2) Accessories socket |
| Fuse MINI 5A | 33 | (ACC) Radio |
| Fuse MINI 10A | 34 | (WIP) Rear wiper |
| Fuse MINI 5A | 35 | (IG2 SIG) Blower fan |
| Fuse MINI 15A | 36 | (WASH) Washer motor |
| Fuse MINI 25A | 37 | (FR WIP) Front Wiper |
| Fuse MINI 10A | 38 | (STOP) Brake light |
