Suzuki Swift (2017 – 2019) Fuse Box Location & Diagrams
In this user guide, we walk you through the Suzuki Swift fuse box location and provide detailed diagrams for the 2017-2019 models. Whether you’re troubleshooting electrical issues or replacing a blown fuse, our step-by-step instructions and clear visuals will help you navigate the fuse box with ease. Save time and effort with this essential guide to your car’s electrical system!
Passenger Compartment Fuse Box
Suzuki Swift (2017, 2018 and 2019)
Fuse Box Location

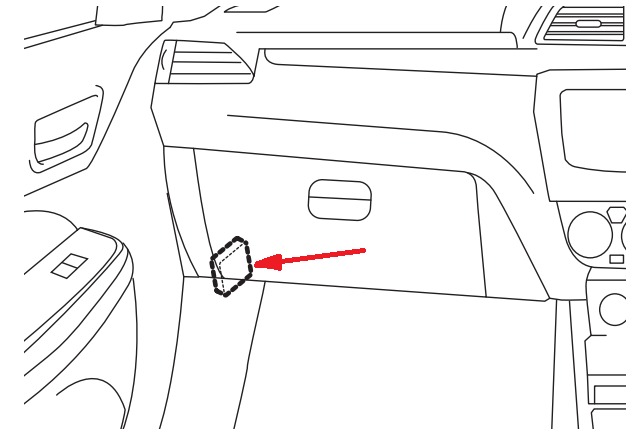

The fuse box is located under the instrument panel (on the left side).

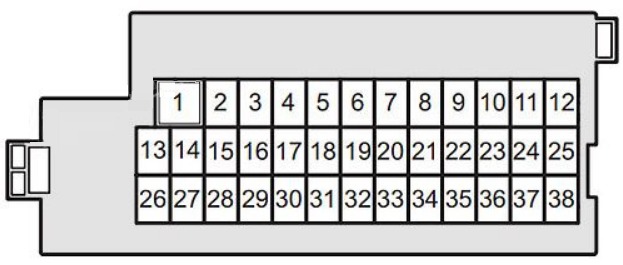

Fuse Box Diagram
Assignment of the fuses in the instrument panel
| № | Name | Amp | Description |
|---|---|---|---|
| 1 | P/W | 30A | Power Windows |
| 2 | MTR | 10A | Meter |
| 3 | IG | 15A | ignition |
| 4 | IG1 SIG2 | 5A | Power Steering |
| 5 | SHIFT | 20A | Not used |
| 6 | S/R | 20A | Not used |
| 7 | — | — | Not used |
| 8 | D/L | 20A | Door lock |
| 9 | STL | 15A | Steering Lock |
| 10 | HAZ | 10A | Hazard |
| 11 | A-STOP | 5A | Engine controller |
| 12 | RR FOG | 10A | Rear fog lamp |
| 13 | ABS | 5A | ABS/ESP |
| 14 | S/H | 15A | Seat heater |
| 15 | IG1 SIG3 | 5A | Camera |
| 16 | DOME2 | 10A | Interior light |
| 17 | DOME | 5A | Meter |
| 18 | RADIO | 15A | Radio |
| 19 | CONT | 5A | Not used |
| 20 | KEY2 | 5A | Ignition switch |
| 21 | P/WT | 20 A | Power window Timer function |
| 22 | KEY | 5A | Ignition switch |
| 23 | HORN | 15A | Horn |
| 24 | TAIL | 5A | Tail lamp left (With auto light system) |
| 25 | TAIL | 10A | Tail lamp left and right (Without auto light system) Tail lamp right (With auto light system) |
| 26 | A/B | 10A | Airbag |
| 27 | IG1 SIG | 10A | Idling stop or BCM |
| 28 | BACK | 10A | Backlight |
| 29 | ACC3 | 5A | Not used |
| 30 | RR DEF | 20A | Rear Defogger |
| 31 | MRR HTR | 10A | Door mirror heater |
| 32 | ACC2 | 15A | Accessories socket |
| 33 | ACC | 5A | Radio |
| 34 | WIP | 10A | Rear wiper |
| 35 | IG2 SIG | 5A | Blower fan |
| 36 | WASH | 15A | Washer motor |
| 37 | FR WIP | 25A | Front Wiper |
| 38 | STOP | 10A | Brake light |
Engine Compartment Fuse Box
Suzuki Swift (2017, 2018 and 2019)

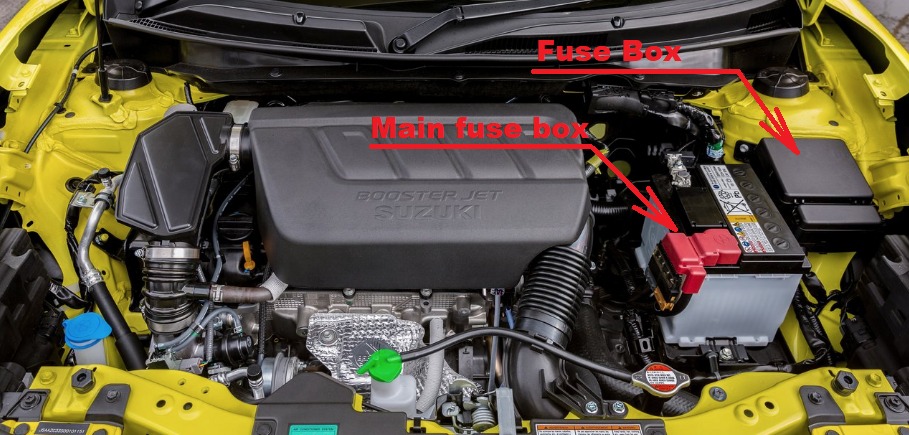

Fuse Box Location
Main fuse
The main fuse takes current directly from the lead-acid battery
Primary fuse
These fuses are between the main fuse and are for electrical load groups.

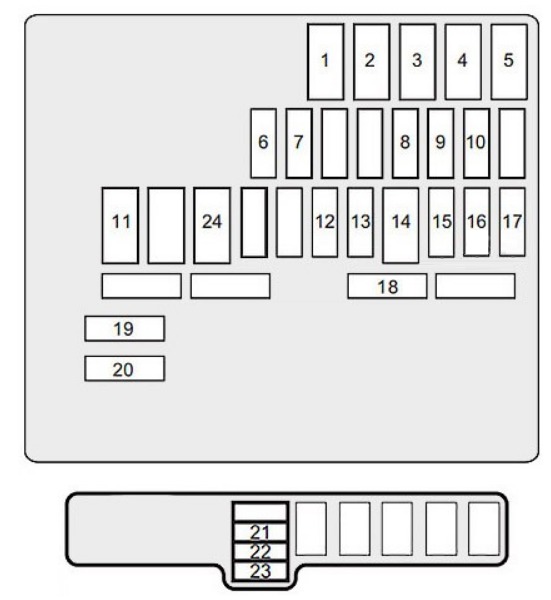

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| № | Name | Amp | Description |
|---|---|---|---|
| 1 | ST | 30A | Starter |
| 2 | BLW | 30A | Blower fan |
| 3 | BTRY | 40A | Relay box #2 |
| 4 | ABS MOT | 40A | ABS motor |
| 5 | IGN | 40A | Ignition |
| 6 | B/U | 30A | Backup |
| 7 | SUB BAT | 30A | Sub battery |
| 8 | ABS SOL | 25A | ABS solenoid |
| 9 | H/LL | 15A | Headlight (left) |
| 10 | H/LR | 15A | Headlight (right) |
| 11 | RDTR | 40A (1.0L) 30A (1.2L) | Radiator fan |
| 12 | FR FOG | 20A | Front Fog lamp |
| 13 | CPRSR | 10A | Compressor |
| 14 | IGN2 | 50A | Ignition 2 |
| 15 | T/M | 15A | AT/CVT controller |
| 16 | FI | 30A (1.0L) 15A (1.2 L) | Fuel injector |
| 17 | F/P | 20A (1.0L) | Fuel pump |
| 17 | T/M PUMP | 15A (1.2L) | Electric oil pump |
| 18 | ST SIG | 5A | Engine controller |
| 19 | INJ DRV | 20A (1.0L) | Fuel injector |
| 20 | FI | 10A (1.0L) | Fuel injector |
| 21 | H/L HI | 25A | Headlight |
| 22 | H/L HI R | 15A | Headlight (right) |
| 23 | H/L HI L | 15A | Headlight (left) |
| 24 | P/S | 60A | Power Steering |
