Ford Escape (2005 – 2007) Fuse Box Location & Diagrams
The Ford Escape (2005–2007) fuse box user guide helps you quickly locate interior and engine-bay fuse panels and understand each fuse’s function. This guide simplifies troubleshooting common electrical problems like lights, power windows, radio, and accessories, making fuse checks and replacements safe and stress-free for owners and DIY users.
Fuse Box Locations

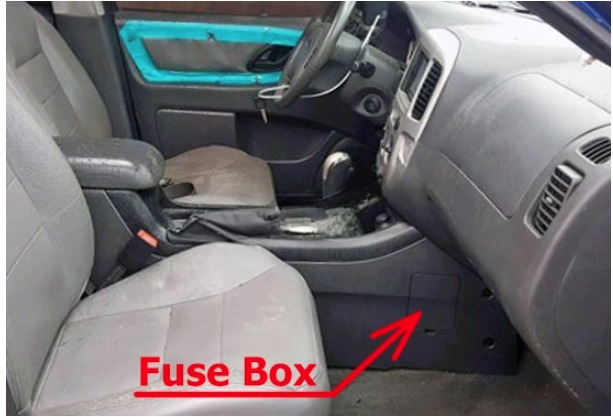

Passenger compartment fuse panel

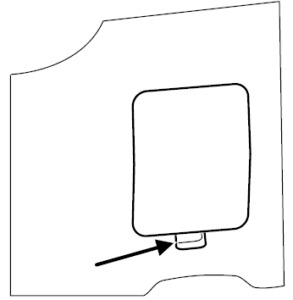

The fuse panel is located on the right-hand side of the center console, by the instrument panel. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel cover.

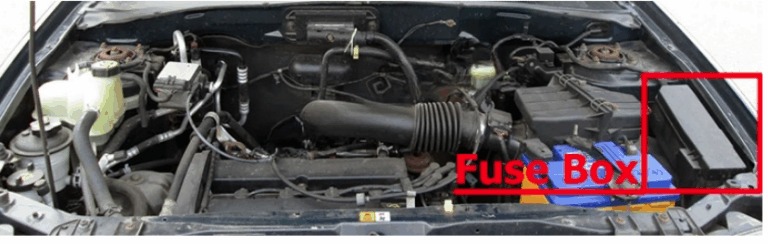

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

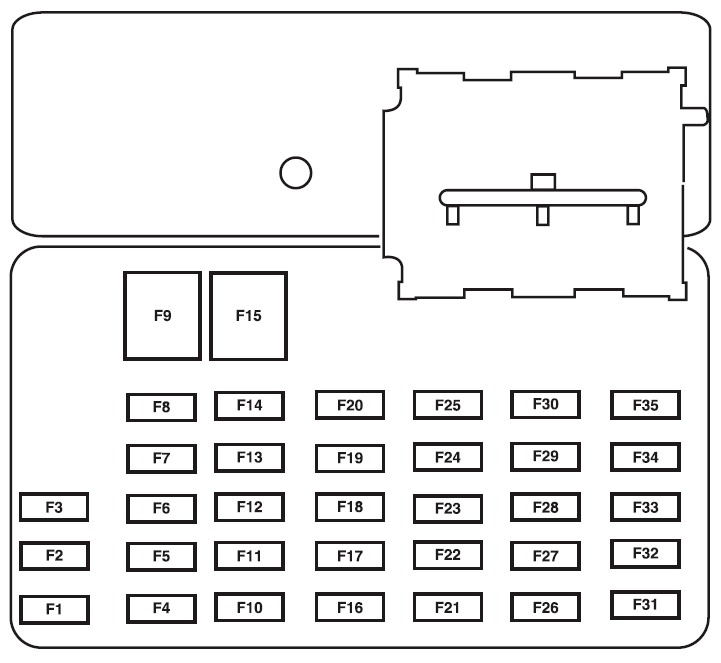

Passenger Compartment Fuse Box Diagram
Ford Escape (2005, 2006 and 2007)
The fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 15A* | Trailer tow park lamps |
| 2 | — | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay, High/Low speed fan relay 2, PATS module |
| 6 | 15A* | Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch |
| 7 | 10A* | Instrument cluster, Diagnostic connector, Power mirror switch, Radio |
| 8 | — 5A* | Not used (2005 and 2006) Canister vent (2007) |
| 9 | 30A** | Power door locks, Power seats |
| 10 | 15A* | Heated mirrors |
| 11 | 15A* | Sunroof, Electrochromatic mirror |
| 12 | 5A* | Radio |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 30A** | Power windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4WD |
| 19 | — | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* 15A* | Rear wiper motor, Rear wiper washer (2005 and 2006) Rear wiper motor, Rear wiper washer (2007) |
| 22 | 10A* | Instrument cluster |
| 23 | — | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Canister vent, Speed control cancel switch |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Reverse park aid |
| 30 | — | Not used |
| 31 | — | Not used |
| 32 | 10A* | Brake-Transmission shift lock |
| 33 | 15A* | Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS) |
| 34 | 5A* | ABS module, Evac and Fill, Speed control |
| 35 | 5A* | Heated seats module, 4WD |
| * Mini fuse ** Cartridge fuse | ||

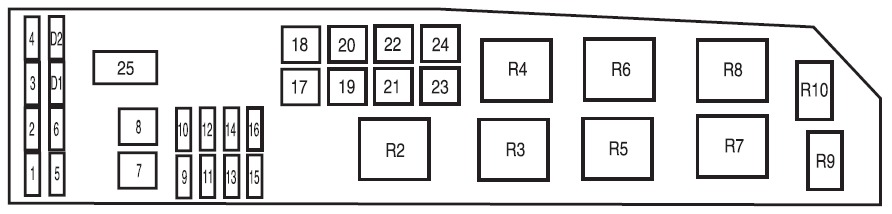

Engine Compartment Fuse Box Diagram
Ford Escape (2005, 2006 and 2007)
The high-current fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 1 | — | Not used |
| 2 | 25A* | Headlamp power |
| 3 | 25A* | High beams, Turn signals, Interior lamps, Headlamp power |
| 4 | 5A* | Keep Alive Power (KA PWR) |
| 5 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 6 | 20A* | Fuel pump |
| 7 | 40A** | RUN/ACC relay – Electrochromatic mirror, Cigar lighter, Front and rear wipers |
| 8 | 30A** | Powertrain Control Module (PCM), Injectors and coil |
| 9 | 15A* | Alternator |
| 10 | 30A* | Heated seats |
| 11 | 10A* | PCM |
| 12 | 20A* | Power point |
| 13 | 20A* | Fog lamps |
| 14 | 15A* | A/C clutch, A/C relay |
| 15 | 30A* | Anti-lock Brake System (ABS) solenoid |
| 16 | 25A* | I/P fuse panel (RUN/START) |
| 17 | 50A** | Ignition (main) |
| 18 | 40A** | Blower motor |
| 19 | 40A** | Accessory delay relay – Subwoofer and 4WD, Low beam |
| 20 | 60A** | ABS |
| 21 | 40A** | Horn, CHMSL, Cluster, Power locks and power seats |
| 22 | 40A** (I4) | Cooling fan |
| 50A** (V6) | ||
| 23 | 40A** | Rear defroster, Park lamps relay |
| 24 | 40A** (I4) | High/Low speed fan |
| 50A** (V6) | ||
| 25 | — | Shunt |
| R2 | — | PCM relay |
| R3 | — | Fuel pump relay |
| R4 | — | Cooling fan relay |
| R5 | — | High/Low speed fan relay 1 |
| R6 | — | Blower motor relay |
| R7 | — | Starter relay |
| R8 | — | High/Low speed fan relay 2 |
| R9 | — | Fog lamps relay |
| R10 | — | A/C relay |
| D1 | — | Not used |
| D2 | — | A/C diode |
| * Mini fuse ** Cartridge fuse | ||
