Ford F-150 (1999-2003) Fuse Box Location and Diagrams
This blog covers Ford F-150 (1999–2003) fuse box locations and schematics, letting you find fuses, correct electrical issues, and confidently manage your truck’s vital systems.
FUSES AND RELAYS
Fuses

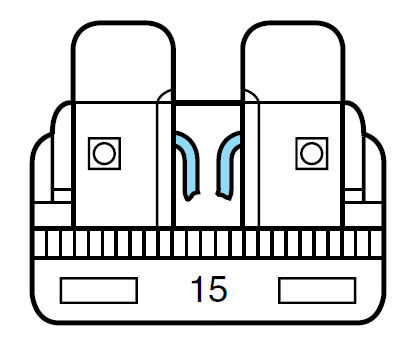

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Note: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
| COLOR | |||||
| Fuse rating | Mini fuses | Standard fuses | Maxi fuses | Cartridge maxi fuses | Fuse link cartridge |
| 2A | Grey | Grey | — | — | — |
| 3A | Violet | Violet | — | — | — |
| 4A | Pink | Pink | — | — | — |
| 5A | Tan | Tan | — | — | — |
| 7.5A | Brown | Brown | — | — | — |
| 10A | Red | Red | — | — | — |
| 15A | Blue | Blue | — | — | — |
| 20A | Yellow | Yellow | Yellow | Blue | Blue |
| 25A | Natural | Natural | — | — | — |
| 30A | Green | Green | Green | Pink | Pink |
| 40A | — | — | Orange | Green | Green |
| 50A | — | — | Red | Red | Red |
| 60A | — | — | Blue | — | Yellow |
| 70A | — | — | Tan | — | Brown |
| 80A | — | — | Natural | — | Black |
Passenger compartment fuse panel
Ford F-150 (1999 to 2003)

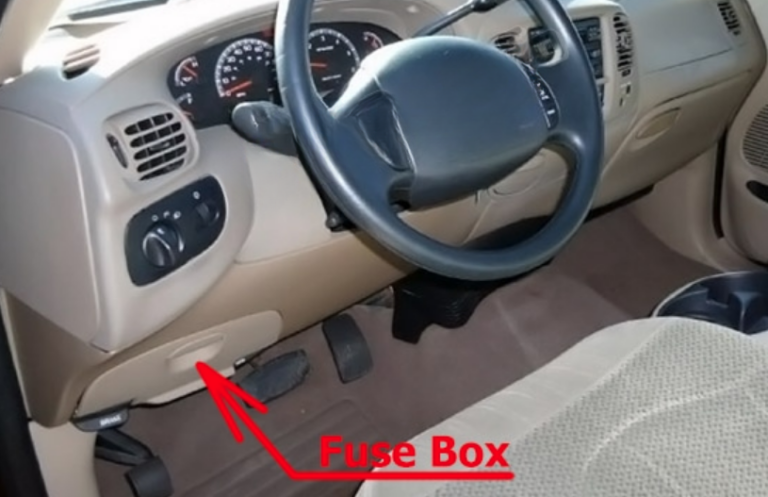

The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel cover.

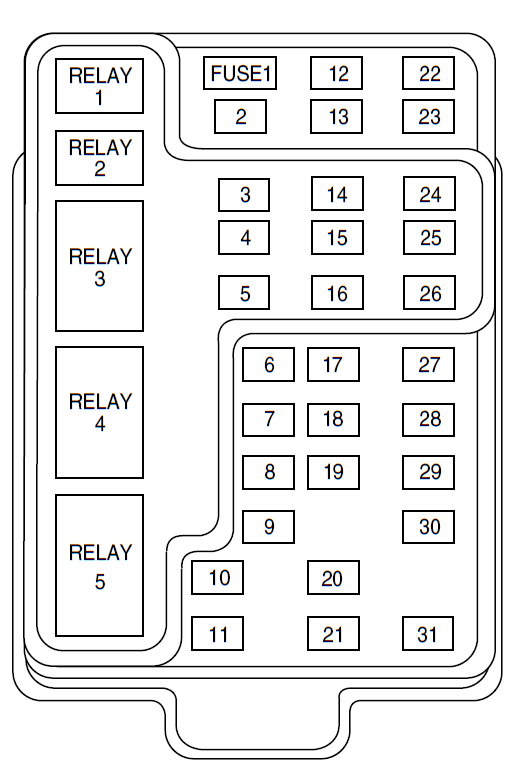

The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 15A | Audio |
| 2 | 5A | Powertrain Control Module (PCM), Cluster |
| 3 | 20A | Cigar lighter, Data link connector |
| 4 | 5A | Power mirror switch, Mirror turn signal relays |
| 5 | 15A | Speed control module, Reverse lamp, Climate mode switch, Daytime Running Lamps (DRL) relay, Digital Transmission Range (DTR) sensor |
| 6 | 5A | Cluster, Brake shift interlock solenoid, GEM |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 7 | — | Not used |
| 8 | 5A | Radio, Remote entry module, GEM, In-vehicle entertainment system (SuperCrew only) |
| 9 | — | Not used |
| 10 | — | Not used |
| 11 | 30A | Front washer pump relay, Wiper run/park relay, Wiper HI/LO relay, Windshield wiper motor |
| 12 | — | Not used |
| 13 | 20A | Stop lamp switch (Lamps), Turn/Hazard flasher |
| 14 | 15A | Battery saver relay, Interior lamp relay |
| 15 | 5A | Stop lamp switch (speed control, brake shift interlock), GEM, Rear Anti-lock Brake System (RABS) module |
| 16 | 20A | Headlamps (hi beams), Cluster (hi beam indicator) |
| 17 | — | Not used |
| 18 | 5A | Instrument illumination (dimmer switch power) |
| 19 | — | Not used |
| 20 | 5A | Audio, GEM, PCM, Transmission range sensor |
| 21 | 15A | DTR sensor, Clutch switch, Starter relay, I/P fuse 20 |
| 22 | 10A | Air bag module, Passenger air bag deactivation module |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 23 | 10A | Trailer tow battery Charge relay, Turn/Hazard flasher, 4×4 solenoids, 4×4 relays, Overhead console, 4–Wheel Anti-lock Brake System (4WABS) module, EC mirror, Heated seats |
| 24 | 10A | Function selector switch assembly |
| 25 | 10A | Heated mirrors |
| 26 | 10A | Right-hand low beam headlamp |
| 27 | 5A | Foglamp relay and foglamp indicator, Main light switch (upstream) |
| 28 | 10A | Left-hand low beam headlamp |
| 29 | 5A | Autolamp module, Transmission overdrive control switch, Central security module, Beltminder |
| 30 | 30A | Passive Anti-theft transceiver, Cluster, Ignition coils, PCM relay, Coil on plugs, Radio noise capacitor, ECC diode |
| 31 | — | Not used |
| Relay 1 | — | Interior lamp relay |
| Relay 2 | — | Battery saver relay |
| Relay 3 | — | Not used |
| Relay 4 | — | One-touch down window relay |
| Relay 5 | — | Accessory delay relay |
Engine Compartment Fuse Box

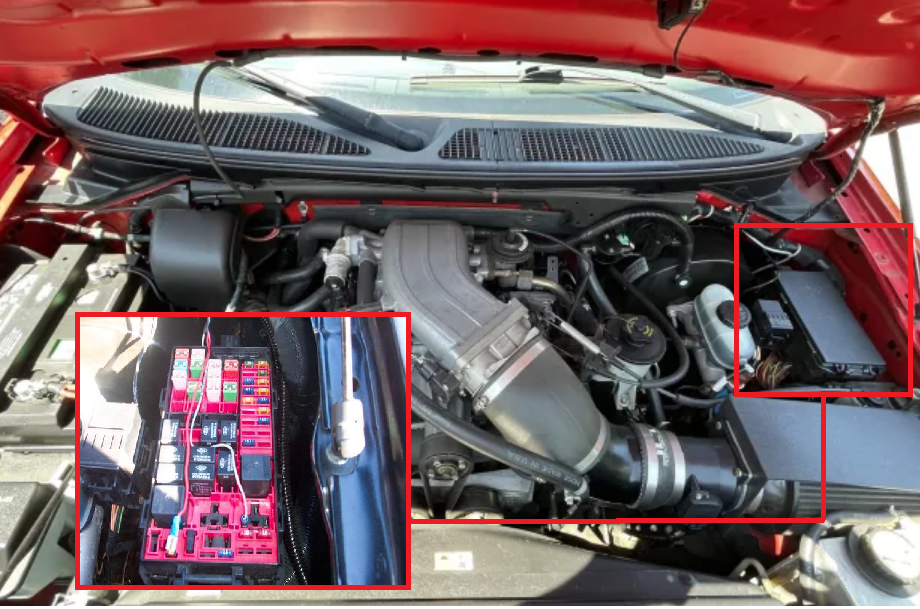

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and specifications chapter.

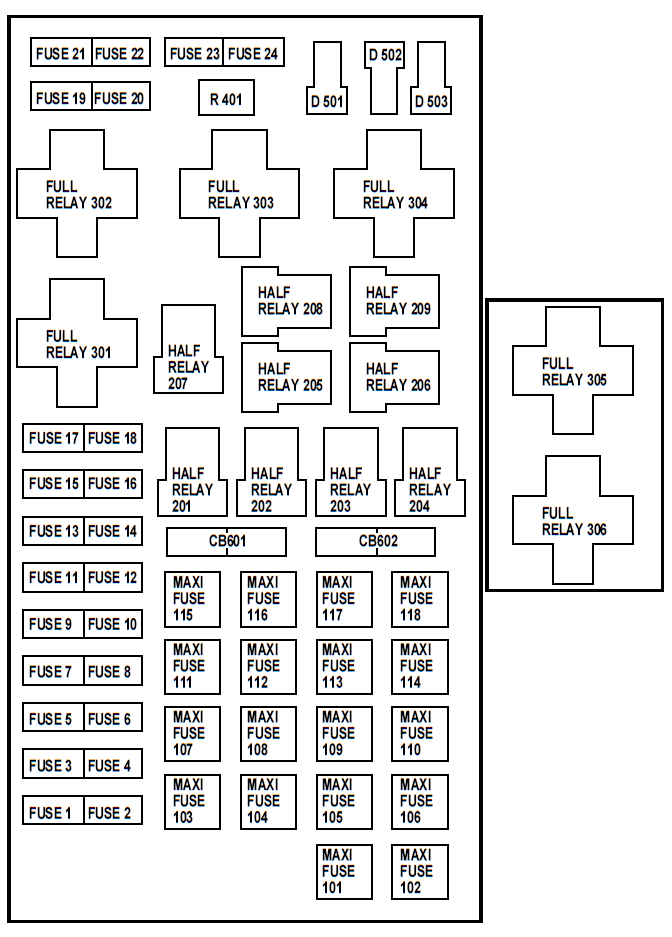

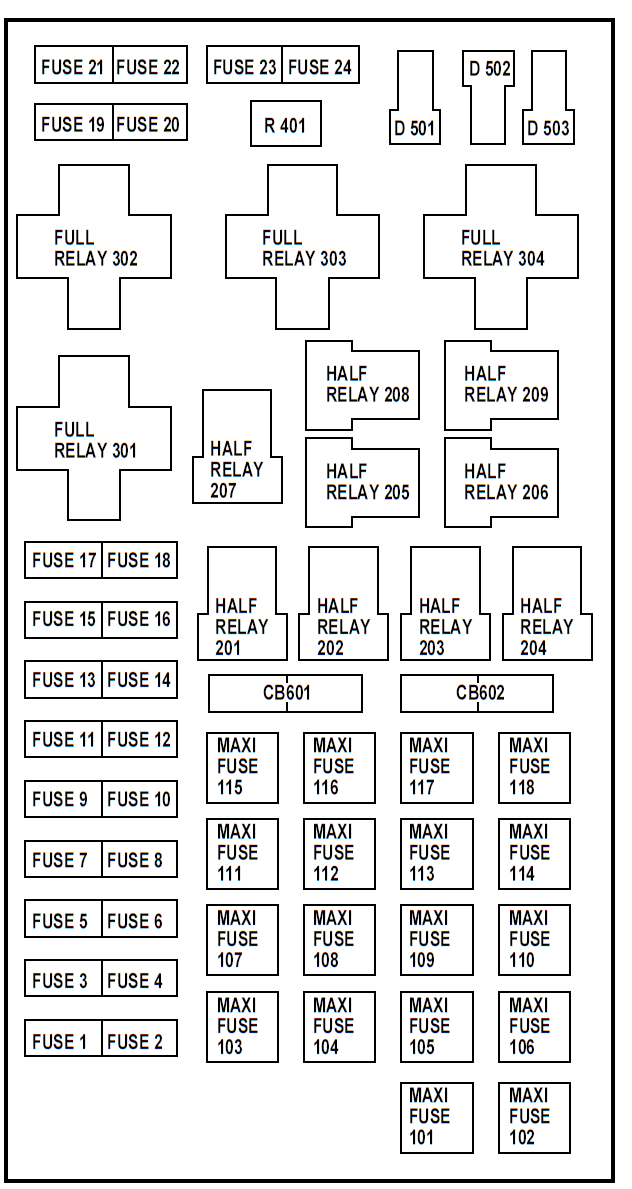

Ford F-150 (1999)
| Fuse/Relay Location | Fuse Amp Rating | Description |
| 1 | 25A * | Power Point |
| 2 | 30A* | Powertrain Control Module |
| 3 | 30A* | Headlamps/Autolamps |
| 4 | 15A* | Air Suspension |
| 5 | 20A* | Trailer Tow Backup/Park Lamps |
| 6 | 15A* | Parklamps/Autolamps |
| 7 | 20A* | Horn |
| 8 | 15A* | Power Door Locks |
| 9 | 15A* | Daytime Running Lamps (DRL), Fog Lamps |
| 10 | 20A* | Fuel Pump |
| 11 | 20A* | Alternator Field |
| 12 | — | Not Used |
| 13 | — | Not Used |
| 14 | — | Not Used |
| 15 | — | Not Used |
| 16 | — | Not Used |
| 17 | — | Not Used |
| 18 | 15A* | Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor |
| 19 | 10A* | Trailer Tow Stop and Right Turn Lamp |
| 20 | 10A* | Trailer Tow Stop and Left Turn Lamp |
| 21 | — | Not Used |
| 22 | — | Not Used |
| 23 | 15A* | Powertrain Control Module, HEGO Sensor, Canister Vent |
| 24 | 15A* | Powertrain C ontrol Module, Automatic Transmission, CMS Sensor |
| 101 | 30A** | Trailer Tow Battery Charge |
| 102 | 50/20A** | Four Wheel Antilock Brake Module/Rear Wheel Antilock Brake Module |
| Fuse/Relay Location | Fuse Amp Rating | Description |
| 103 | 50A* | Junction Block Battery Feed |
| 104 | 30A** | 4×4 Shift Motor & Clutch |
| 105 | 40A** | Climate Control Front Blower |
| 106 | — | Not Used |
| 107 | — | Not Used |
| 108 | 30A** | Trailer Tow Electric Brake |
| 109 | 50A** | Air Suspension Compressor |
| 110 | 30A** | Power Windows |
| 111 | 50A** | Ignition Switch Battery Feed (Start and Run Circuits) |
| 112 | 30A** | Drivers Power Seat |
| 113 | 50A** | Ignition Switch Battery Feed (Run and Accessory Circuits) |
| 114 | — | Not Used |
| 115 | — | Not Used |
| 116 | — | Not Used |
| 117 | — | Not Used |
| 118 | — | Not Used |
| 201 | — | Trailer Tow Park Lamp Relay |
| 202 | — | Front Wiper Run/Park Relay |
| 203 | — | Trailer Tow Backup Lamp Relay |
| 204 | — | A/C Clutch Relay |
| 205 | — | Horn Relay |
| 206 | — | Fog Lamp Relay |
| 207 | — | Front Washer Pump Relay |
| 208 | — | Not Used |
| 209 | — | Front Wiper Hi/Lo Relay |
| 301 | — | Fuel Pump Relay |
| 302 | — | Trailer Tow Battery Charge Relay |
| 303 | — | Rear Air Suspension Relay |
| 304 | — | Powertrain Control Module Relay |
| Fuse/Relay Location | Fuse Amp Rating | Description |
| 401 | — | Not Used |
| 501 | — | Powertrain Control Module Diode |
| 502 | — | A/C Clutch Diode |
| 503 | — | Not Used |
| 601 | — | Not Used |
| 602 | — | Not Used |
| *Mini fuses **Maxi fuses | ||

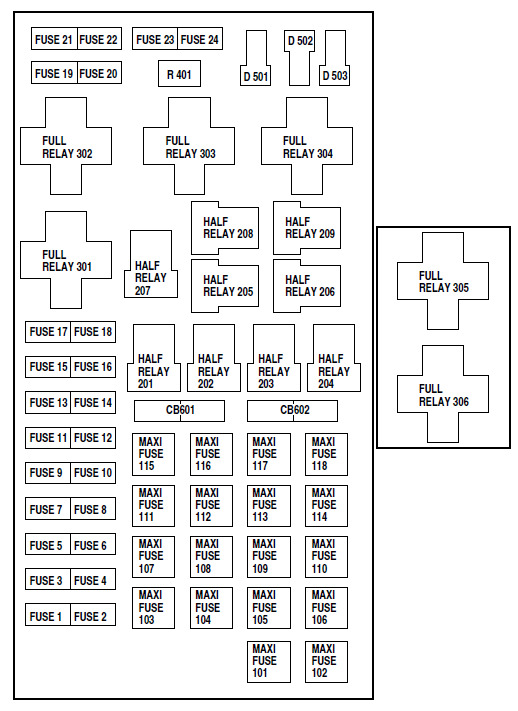

Ford F-150 (2000 to 2001, 2003)
The high-current fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 1 | 20A * | Power point |
| 2 | 30A* | Powertrain Control Module (PCM) |
| 3 | 30A* | Main light switch, Headlamp relay, Multifunction switch |
| 4 | 20A* | Console power point (Harley Davidson only) |
| 5 | 20A* | Trailer tow back-up/park lamps |
| 6 | 15A* | Main light switch, Park lamp relay |
| 7 | 20A* | Horn |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 8 | 15A* | Power door locks, Central Security Module (CSM), Lock relays (not used on SuperCrew) |
| 9 | 15A* | Daytime Running Lamps (DRL), Fog lamps |
| 10 | 20A* | Fuel pump |
| 11 | 20A* | Alternator field |
| 12 | 20A* | Rear auxiliary power point (SuperCrew only) |
| 13 | 15A* | A/C clutch |
| 14 | — | Not used |
| 15 | 10A* | Running board lamps |
| 16 | 15A* | Bi-fuel injector module, fuel selector switch and alternative fuel injectors (Bi-fuel vehicles only) |
| 17 | — | Not used |
| 18 | 15A* | PCM, Fuel injectors, Fuel pump relay, Mass air flow sensor |
| 19 | 10A* | Trailer/Camper adapter (right stop/turn lamp) |
| 20 | 10A* | Trailer/Camper adapter (left stop/turn lamp) |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | 15A* | HEGO sensor, Automatic transmission |
| 24 | — | Not used |
| 101 | 30A** | Trailer tow battery charge |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 102 | 50/20A** | Four-wheel Anti-lock Brake System (4WABS) module/Rear-wheel Anti-lock Brake System (RABS) module, Ignition switch |
| 103 | 50A** | Central junction box |
| 104 | 30A** | 4×4 shift motor & clutch |
| 105 | 40A** | Climate control front blower |
| 106 | 20A** | Intercooler pump (supercharged engine only) |
| 107 | — | Not used |
| 108 | 30A** | Trailer tow electric brake |
| 109 | — | Not used |
| 110 | 30A** | Accessory delay relay (Not used on SuperCrew) |
| 111 | 40A** | Ignition switch battery feed (start and run circuits) |
| 112 | 30A** | Drivers power seat, Adjustable pedal switch |
| 113 | 40A** | Ignition switch battery feed (run and accessory circuits) |
| 114 | — | Not used |
| 115 | 20A** | Power door locks (SuperCrew only) |
| 116 | 40A** | Heated backlight |
| 117 | – | |
| 118 | 30A** | Heated seats |
| 201 | — | Trailer tow park lamp relay |
| 202 | — | Front wiper run/park relay |
| 203 | — | Trailer tow backup lamp relay |
| 204 | — | A/C clutch relay |
| 205 | — | Horn relay |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 206 | — | Fog lamp relay |
| 207 | — | Front washer pump relay |
| 208 | — | Intercooler pump relay (supercharged engine only) |
| 209 | — | Front wiper HI/LO relay |
| 301 | — | Fuel pump relay |
| 302 | — | Trailer tow battery charge relay |
| 303 | — | Heated backlight relay (SuperCrew only) |
| 304 | — | PCM relay |
| 305 | — | Fuel pump HI/LO relay (supercharged engine only) |
| 306 | — | Inertia switch relay (supercharged engine only) |
| 401 | — | Not used |
| 501 | — | PCM diode |
| 502 | — | A/C compressor diode |
| 503 | — | Not used |
| 601 | CB | Power windows, Moonroof (SuperCrew only) |
| 602 | — | Not used |
| *Mini fuses **Maxi fusesFuse | ||
Ford F-150 (2002)
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 1 | 20A * | Power Point |
| 2 | 30A* | Powertrain Control Module |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 3 | 30A* | Main Light Switch, Headlamp Relay, Multifunction Switch |
| 4 | — | Not Used |
| 5 | 20A* | Trailer Tow Backup/Park Lamps |
| 6 | 15A* | Main Light Switch, Park Lamp Relay |
| 7 | 20A* | Horn |
| 8 | 15A* | Power Door Locks, CSM, Lock Relays |
| 9 | 15A* | Daytime Running Lamps (DRL), Fog Lamps |
| 10 | 20A* | Fuel Pump |
| 11 | 20A* | Alternator Field |
| 12 | 20A* | Rear Auxiliary Power Point |
| 13 | 15A* | A/C Clutch |
| 14 | — | Not Used |
| 15 | 10A | Running Board Lamps |
| 16 | — | Not Used |
| 17 | — | Not Used |
| 18 | 15A* | Powertrain Control Module, Fuel Injectors, Fuel Pump Relay, Mass Air Flow Sensor |
| 19 | 10A* | Trailer/Camper Adapter (Right Stop and Right Turn Lamp) |
| 20 | 10A* | Trailer/Camper Adapter (Left Stop and Left Turn Lamp) |
| 21 | — | Not Used |
| 22 | — | Not Used |
| 23 | 15A* | HEGO Sensor, Automatic Transmission |
| 24 | — | Not Used |
| 101 | 30A** | Trailer Tow Battery Charge |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 102 | 50/20A** | Four Wheel Antilock Brake Module/Rear Wheel Antilock Brake Module, Ignition Switch |
| 103 | 50A** | Central Junction Box |
| 104 | 30A** | 4×4 Shift Motor & Clutch |
| 105 | 40A** | Climate Control Front Blower |
| 106 | 20A** | Inter Cooler Pump (Supercharged engine only) |
| 107 | — | Not Used |
| 108 | 30A** | Trailer Tow Electric Brake |
| 109 | — | Not Used |
| 110 | 30A** | ACC Delay Relay |
| 111 | 40A** | Ignition Switch Battery Feed (Start and Run Circuits) |
| 112 | 30A** | Drivers Power Seat, Adjustable Pedal switch |
| 113 | 40A** | Ignition Switch Battery Feed (Run and Accessory Circuits) |
| 114 | — | Not Used |
| 115 | 20A** | Power Door Locks |
| 116 | — | Not Used |
| 117 | — | Not Used |
| 118 | 30A** | Heated Seats |
| 201 | — | Trailer Tow Park Lamp Relay |
| 202 | — | Front Wiper Run/Park Relay |
| 203 | — | Trailer Tow Backup Lamp Relay |
| 204 | — | A/C Clutch Relay |
| 205 | — | Horn Relay |
| 206 | — | Fog Lamp Relay |
| 207 | — | Front Washer Pump Relay |
| 208 | — | Inter Cooler Pump Relay (Supercharged engine only) |
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
| 209 | — | Front Wiper Hi/Lo Relay |
| 301 | — | Fuel Pump Relay |
| 302 | — | Trailer Tow Battery Charge Relay |
| 303 | — | Not Used |
| 304 | — | Powertrain Control Module Relay |
| 305 | — | Fuel Pump Hi/Lo Relay (Supercharged engine only) |
| 306 | — | Inertia Switch Relay (Supercharged engine only) |
| 401 | — | Not Used |
| 501 | — | Powertrain Control Module Diode |
| 502 | — | A/C Compressor Diode |
| 503 | — | Not Used |
| 601 | CB | Power Windows, Moonroof |
| 602 | — | Not Used |
| *Mini fuses **Maxi fuses | ||
