Ford F-150 (2004 – 2008) Fuse Box Location and Diagrams
The eleventh-generation Ford F-150 is a legend of reliability, but electrical hiccups like a dead power outlet or a flickering headlight are inevitable over time. Most of these issues can be fixed in minutes by simply swapping a blown fuse. This guide provides the exact location of the interior and engine bay fuse blocks for the 2004, 2005, 2006, 2007, and 2008 Ford F-150, along with detailed charts to help you identify the right circuit every time.
FUSES AND RELAYS
Fuses

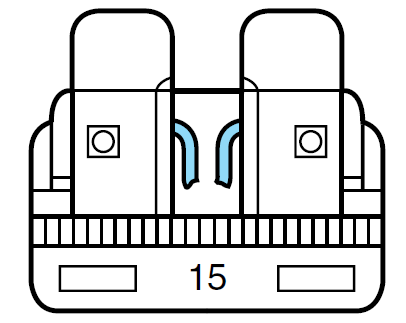

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Note: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
Standard fuse amperage rating and color
| COLOR | |||||
| Fuse rating | Mini fuses | Standard fuses | Maxi fuses | Cartridge maxi fuses | Fuse link cartridge |
| 2A | Grey | Grey | — | — | — |
| 3A | Violet | Violet | — | — | — |
| 4A | Pink | Pink | — | — | — |
| 5A | Tan | Tan | — | — | — |
| 7.5A | Brown | Brown | — | — | — |
| 10A | Red | Red | — | — | — |
| 15A | Blue | Blue | — | — | — |
| 20A | Yellow | Yellow | Yellow | Blue | Blue |
| 25A | Natural | Natural | — | — | — |
| 30A | Green | Green | Green | Pink | Pink |
| 40A | — | — | Orange | Green | Green |
| 50A | — | — | Red | Red | Red |
| 60A | — | — | Blue | — | Yellow |
| 70A | — | — | Tan | — | Brown |
| 80A | — | — | Natural | — | Black |
Passenger compartment fuse panel / power distribution box

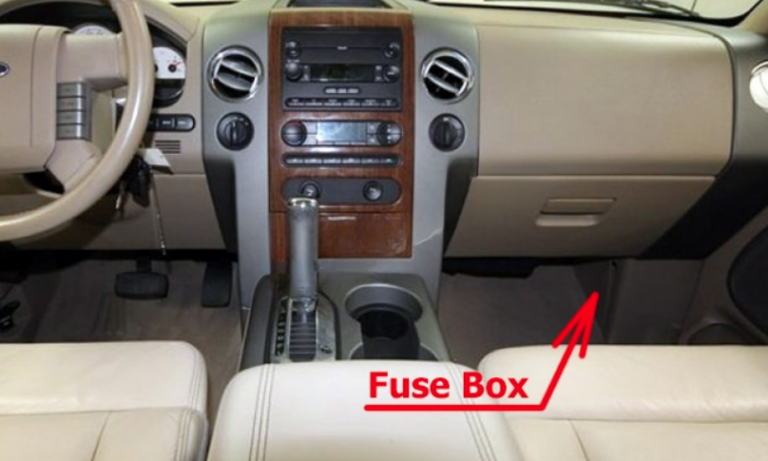

The fuse panel is located under the right-hand side of the instrument panel. Remove the trim panel and fuse box cover to access the fuses.

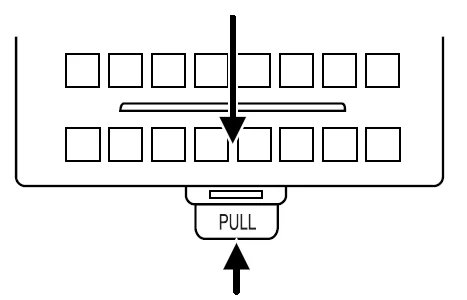

To remove the fuse box cover, place a finger behind the PULL tab and your thumb above the PULL tab as shown in the illustration, then pull the cover off.
Auxiliary relay box

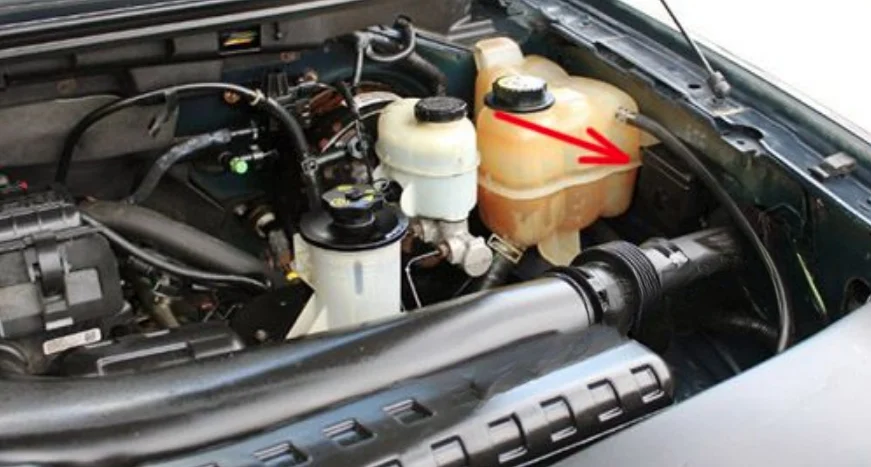

The relay box is located in the engine compartment on the left fender.

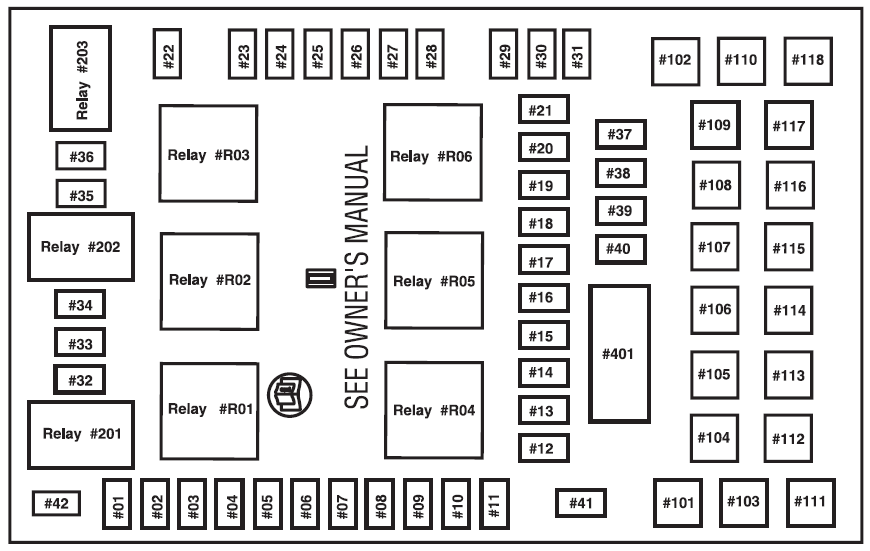

Passenger compartment Fuse Box
Ford F-150 (2004 to 2007)
The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 1 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| 2 | 20A* | Stop/Turn lamps, Brake on/off switch |
| 3 | 5A* | Power mirrors, Memory seats and pedals |
| 4 | 10A* | DVD battery power, Power fold mirror |
| 5 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and climate control module |
| 6 | 15A* | Parklamps, BSM, Instrument panel illumination |
| 7 | 5A* | Radio (start signal) |
| 8 | 10A* | Heated mirrors, Switch indicator |
| 9 | — | Not used |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 10 | 20A* | Trailer tow back-up lamps relay (PCB1), Trailer tow parklamp relay (R201) |
| 11 | 10A* | A/C clutch, 4×4 solenoid |
| 12 | — | Not used |
| 13 | 10A* | Climate control module power, Flasher relay |
| 14 | 10A* | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), Trailer tow back-up lamps relay coil, ABS, Reverse park aid, EC mirror |
| 15 | 5A* | Overdrive cancel, Cluster |
| 16 | 10A* | Brake-shift interlock solenoid |
| 17 | 15A* | Fog lamp relay (R202) |
| 18 | 10A* | Run/Start feed – Overhead power point, Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System) |
| 19 | 10A* | Restraints (Air bag module) |
| 20 | 10A* | Battery feed for overhead power point |
| 21 | 15A* | Cluster keep alive power |
| 22 | 10A* | Delayed accessory power for audio, power door lock switch and moonroof switch illumination |
| 23 | 10A* | RH low beam headlamp |
| 24 | 15A* | Battery saver power for demand lamps |
| 25 | 10A* | LH low beam headlamp |
| 26 | 20A* | Horn relay (PCB3), Horn power |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 27 | 5A* | Passenger Air bag Deactivation (PAD) warning lamp, Cluster air bag warning lamp, Cluster RUN /START power |
| 28 | 5A* | SecuriLock transceiver (PATS) |
| 29 | 15A* | PCM 4×4 power |
| 30 | 15A* | PCM 4×4 power |
| 31 | 20A* | Radio power |
| 32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, VCT, Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine) |
| 33 | 15A* | Shift solenoid, CMS #12 and #22, 4.6L/4.2L EGR |
| 34 | 20A* | Fuel injectors and PCM power, Intake Manifold Runner Control (4.2L engine) |
| 35 | 20A* | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | 20A* | Instrument panel power point |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | 20A* | Cigar lighter, Diagnostic connector power |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| 101 | 30A** | Starter solenoid |
| 102 | 20A** | Ignition switch feed |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| 103 | 20A** | ABS valves |
| 104 | — | Not used |
| 105 | 30A** | Electric trailer brakes |
| 106 | 30A** | Trailer tow battery charge |
| 107 | 30A** | Power door locks (BSM) |
| 108 | 30A** | Passenger power seat |
| 109 | 30A** | Driver power seat, Adjustable pedals |
| 110 | — | Not used |
| 111 | 30A** | 4×4 relays |
| 112 | 40A** | ABS pump power |
| 113 | 30A** | Wipers and washer pump |
| 114 | 40A** | Heated backlite, Heated mirror power |
| 115 | — | Not used |
| 116 | 30A** | Blower motor |
| 117 | — | Not used |
| 118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Power windows, Moonroof, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
| * Mini fuses ** Cartridge fuses | ||

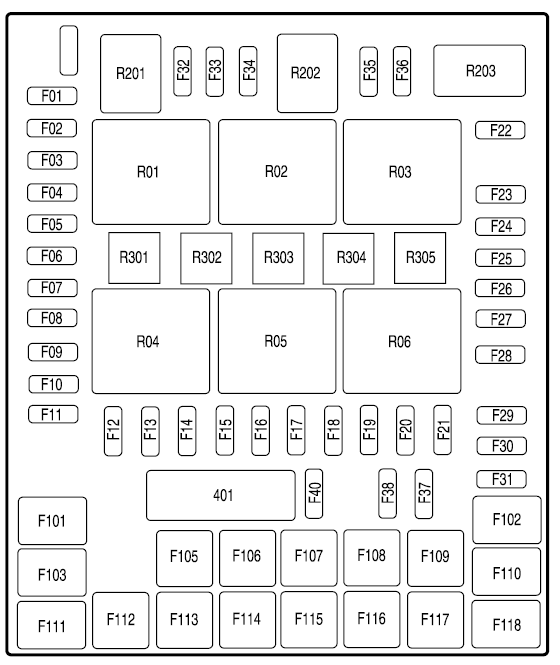

Ford F-150 (2008)
The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| F01 | 10A* | Run/Accessory – Wipers, Instrument cluster, Audio for XL/STX |
| F02 | 20A* | Stop/Turn lamps, ABS, T/T electric brake module, PCM (BOO signal), turn signal mirrors, CHMSL |
| F03 | 7.5A* | Power mirrors, Memory seats and pedals |
| F04 | 10A* | DVD battery power, Power fold mirror |
| F05 | 7.5A* | Keep alive memory for Powertrain Control Module (PCM) and Climate control module |
| F06 | 15A* | Parklamps, Body Security Module (BSM), Instrument panel illumination |
| F07 | 5A* | Radio (start signal) |
| F08 | 10A* | Heated mirrors, Switch indicator |
| F09 | 20A* | Fuel pump relay, Fuel injectors, Injector sense |
| F10 | 20A* | Trailer tow back-up lamps relay, Trailer tow parklamp relay |
| F11 | 10A* | A/C clutch, 4×4 solenoid |
| F12 | 5A* | PCM relay coil |
| F13 | 10A* | Climate control module power, Flasher relay |
| F14 | 10A* | Back-up lamp and Daytime Running Lamps (DRL) relay coil, A/C pressure switch, Redundant speed control switch, Heated PCV (5.4L), ABS |
| F15 | 5A* | Overdrive cancel, Cluster |
| F16 | 10A* | Brake-shift interlock solenoid |
| F17 | 15A* | Fog lamp relay |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| F18 | 10A* | Electrochromatic mirror, Heated seats, BSM, Compass, RSS (Reverse Sensing System), Power rail |
| F19 | 10A* | Restraints (Airbag module) |
| F20 | 10A* | Power rail |
| F21 | 15A* | Cluster keep alive power |
| F22 | 10A* | Delayed accessory power for audio, power door lock switch and moon roof switch illumination |
| F23 | 10A* | RH low beam headlamp |
| F24 | 15A* | Battery saver power for demand lamps, Flex fuel |
| F25 | 10A* | LH low beam headlamp |
| F26 | 20A* | Horn |
| F27 | 5A* | Passenger Airbag Deactivation (PAD) warning lamp, Cluster airbag warning lamp |
| F28 | 5A* | SecuriLock transceiver (PATS), PCM IGN monitor |
| F29 | 15A* | PCM 4×4 power |
| F30 | 15A* | PCM 4×4 power |
| F31 | 20A* | Radio power, Satellite radio module |
| F32 | 15A* | Vapor Management Valve (VMV), A/C clutch relay, Canister vent, Heated Exhaust Gas Oxygen (HEGO) sensors #11 and #21, CMCV, Mass Air Flow (MAF) sensor, Variable Cam Timing (VCT), Heated Positive Crankcase Ventilation (PCV) valve (4.2L engine), CID sensor (4.2L engine), 4.6L/4.2L EGR |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| F33 | 15A* | Shift solenoid, CMS #12 and #22, Ignition coils |
| F34 | 15A* | PCM power, IMRC (4.2L) |
| F35 | 20A* | Instrument cluster high beam indicator, High beam headlamps, DRL disable relay |
| F36 | 10A* | Trailer tow right turn/stop lamps |
| 37 | 20A* | Rear power point |
| 38 | 25A* | Subwoofer power |
| 39 | — | Not used |
| 40 | 20A* | Low beam headlamps, DRL |
| 41 | — | Not used |
| 42 | 10A* | Trailer tow left turn/stop lamps |
| F101 | 30A** | Starter solenoid |
| F102 | 20A** | Ignition switch feed |
| F103 | 20A** | ABS valves |
| F104 | — | Not used |
| F105 | 30A** | Electric trailer brakes |
| F106 | 30A** | Trailer tow battery charge |
| F107 | 30A** | Power door locks (BSM) |
| F108 | 30A** | Passenger power seat |
| F109 | 30A** | Driver power seat, Adjustable pedals, Memory module (pedals, seats) |
| F110 | 20A** | Cigar lighter, Diagnostic connector power |
| F111 | 30A** | 4×4 motor relays |
| F112 | 40A** | ABS pump power |
| F113 | 30A** | Wipers and washer pump |
| F114 | 40A** | Heated backlite, Heated mirror power |
| F115 | 20A** | Moonroof |
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
| F116 | 30A** | Blower motor |
| F117 | 20A** | Instrument panel power point |
| F118 | 30A** | Heated seats |
| 401 | 30A Circuit breaker | Delayed accessory power: Power windows, Power sliding backlite |
| R01 | Full ISO relay | Starter solenoid |
| R02 | Full ISO relay | Accessory delay |
| R03 | Full ISO relay | Hi-beam headlamps |
| R04 | Full ISO relay | Heated backlite |
| R05 | Full ISO relay | Trailer tow battery charge |
| R06 | Full ISO relay | Blower motor |
| R201 | Half ISO relay | Trailer tow park lamps |
| R202 | Half ISO relay | Fog lamps |
| R203 | Half ISO relay | PCM |
| R301 | Printed circuit board | Trailer tow backup lamps |
| R302 | — | Not used |
| R303 | Printed circuit board | Fuel pump |
| R304 | Printed circuit board | Battery saver |
| R305 | Printed circuit board | Horn |
| * Mini fuses ** Cartridge fuses | ||
Auxiliary relay box

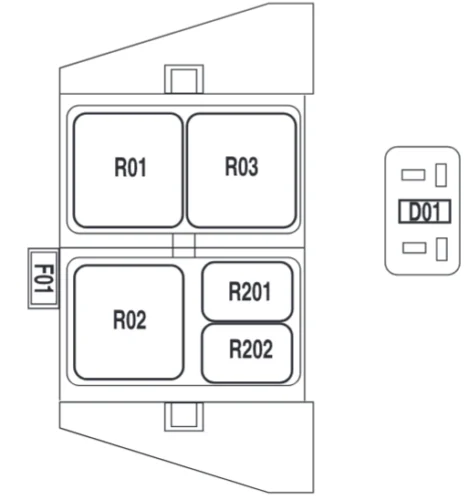

Ford F-150 (2004)
The relay box is located in the engine compartment on the left fender.
- Without Davtime Running Lamp (DRL) option

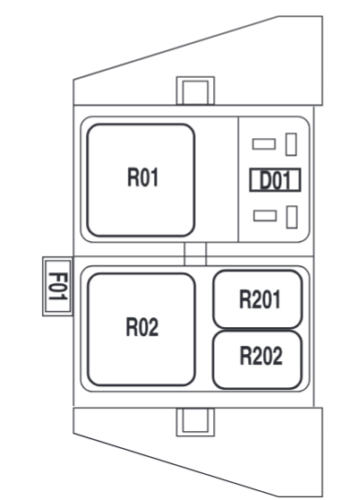

- Without Daytime Running Lamp (DRL) and 4×4 options
The relays are coded as follows:
| Fuse/Relay location | Fuse amp rating | Description |
| F01 | 5A | Clockspring illumination |
| R01 | — | 4×4 CCW |
| R02 | — | 4×4 CW |
| R03 | — | Daytime Running Lamps (DRL) (if equipped, otherwise not used) |
| R201 | — | DRL |
| R202 | — | A/C clutch |
| D01 | — | A/C clutch diode |

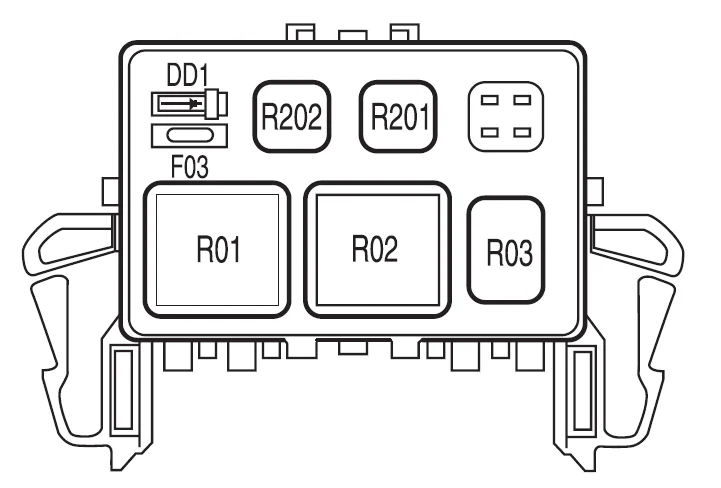

Ford F-150 (2005 – 2008)
The relay box is located in the engine compartment on the left fender.
- With Daytime Running Lamp (DRL) and 4×4 options

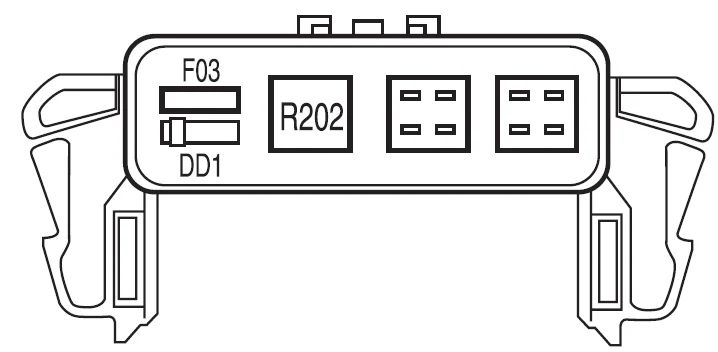

- Without Davtime Running Lamp (DRL) and 4×4 options
| Fuse/Relay Location | Fuse Amp Rating | Description |
| F03 | 5A | Clockspring illumination |
| R01 | Full ISO Relay | 4×4 CCW |
| R02 | Full ISO Relay | 4×4 CW |
| R03 | 1⁄2 ISO Relay | Daytime Running Lamps (DRL) high beam disable |
| R201 | Relay | DRL |
| R202 | Relay | A/C clutch |
| D01 | Diode | A/C clutch |
