Ford F-150 (2009 – 2014) Fuse Box Location and Diagrams
Whether you’re dealing with a dead power outlet or a malfunctioning fuel pump, knowing your fuse box layout is essential for troubleshooting your twelfth-generation Ford F-150. These trucks utilize two primary locations for fuses and relays: the Passenger Compartment Fuse Panel and the Power Distribution Box under the hood.
FUSES AND RELAYS
Fuses

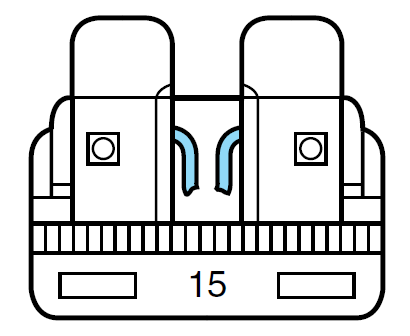

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.
Note: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
Standard fuse amperage rating and color
| COLOR | |||||
| Fuse rating | Mini fuses | Standard fuses | Maxi fuses | Cartridge maxi fuses | Fuse link cartridge |
| 2A | Grey | Grey | — | — | — |
| 3A | Violet | Violet | — | — | — |
| 4A | Pink | Pink | — | — | — |
| 5A | Tan | Tan | — | — | — |
| 7.5A | Brown | Brown | — | — | — |
| 10A | Red | Red | — | — | — |
| COLOR | |||||
| Fuse rating | Mini fuses | Standard fuses | Maxi fuses | Cartridge maxi fuses | Fuse link cartridge |
| 15A | Blue | Blue | — | — | — |
| 20A | Yellow | Yellow | Yellow | Blue | Blue |
| 25A | Natural | Natural | — | — | — |
| 30A | Green | Green | Green | Pink | Pink |
| 40A | — | — | Orange | Green | Green |
| 50A | — | — | Red | Red | Red |
| 60A | — | — | Blue | Yellow | Yellow |
| 70A | — | — | Tan | — | Brown |
| 80A | — | — | Natural | Black | Black |
Fuse box location
Passenger compartment

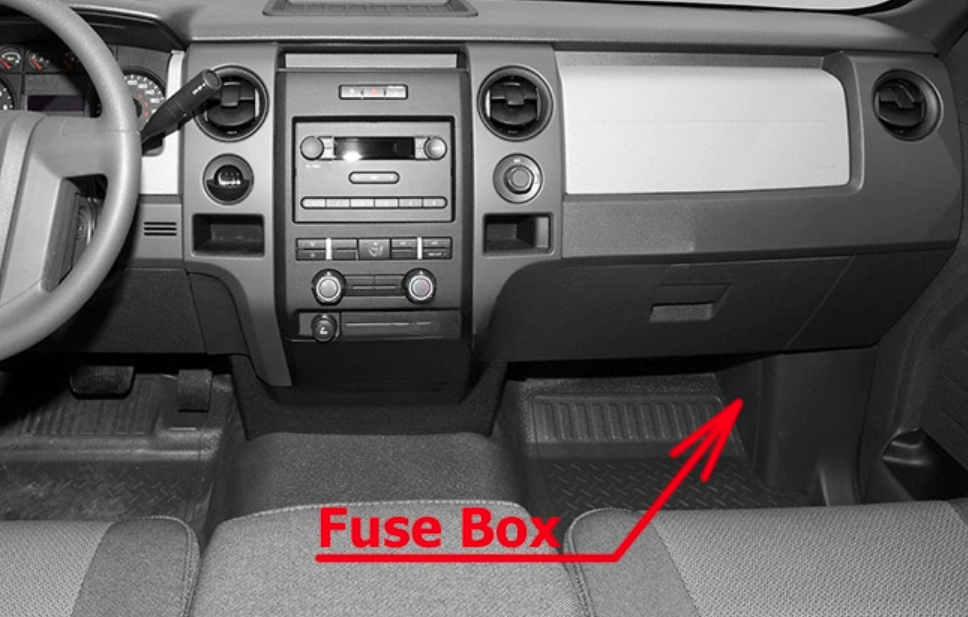

The fuse panel is located under the right-hand side of the instrument panel.

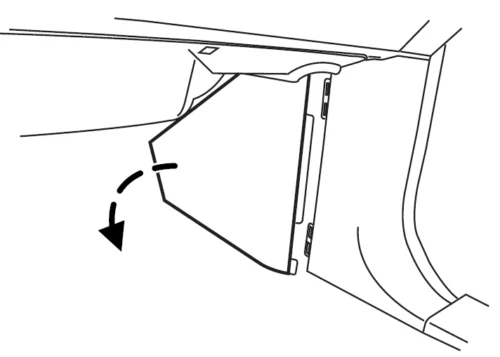

To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.
To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.
Engine compartment

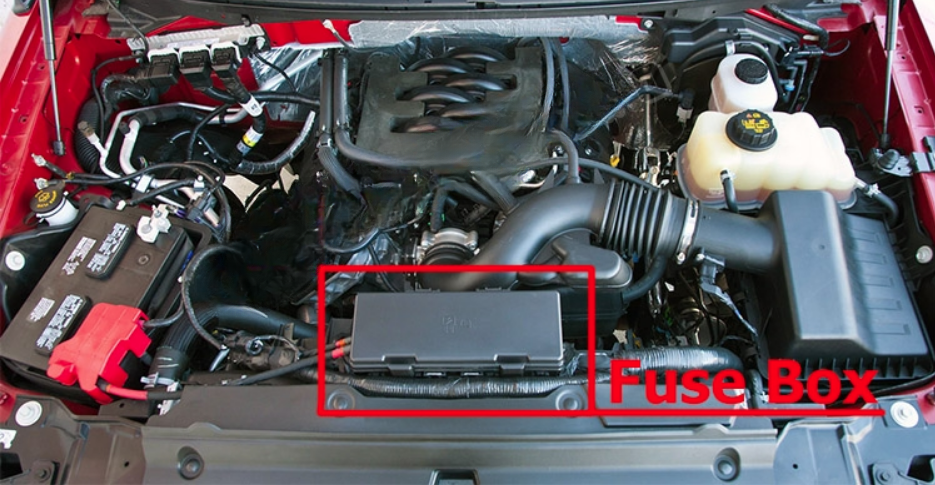

The power distribution box is located in the engine compartment.
Auxiliary relay box (SVT Raptor only)

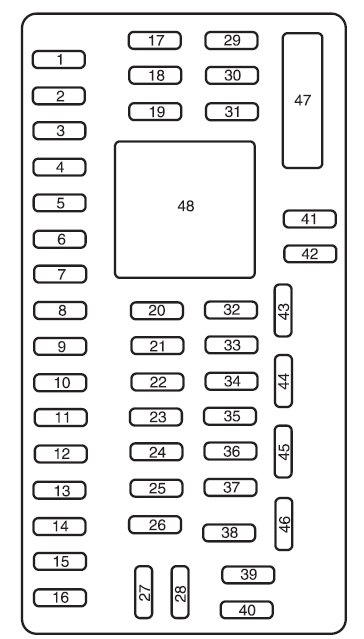

Passenger Compartment Fuse Panel
Ford F-150 (2009 – 2010)
The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | 30A | Moon roof |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Not used (spare) |
| 4 | 30A | Not used (spare) |
| 5 | 10A | Keypad illumination, Brake Shift Interlock (BSI), SJB microprocessor power |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior courtesy lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 11 | 10A | Not used (spare) |
| 12 | 7.5A | Power mirror switch, Memory seat module microprocessor power, Steering column switch |
| 13 | 5A | SYNC® |
| 14 | 10A | Not used (spare) |
| 15 | 10A | Climate control |
| 16 | 15A | Ignition switch feed |
| 17 | 20A | All lock motor feeds |
| 18 | 20A | Driver memory seat switch |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Adjustable pedals, Datalink |
| 21 | 15A | Fog lamps, Fog lamp indicator |
| 22 | 15A | Park lamps, Side marker lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Interior demand lamps, Mid box power feed |
| 26 | 10A | Instrument panel cluster, Key out inhibit solenoid, Radio info display (CID), Radio buttons, Key-in chime |
| 27 | 20A | Not used |
| 28 | 5A | Radio muting |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Passenger airbag disable indicator |
| 31 | 10A | Restraints control module |
| 32 | 10A | Non-integrated compass module, Heated-only seat module |
| 33 | 10A | Trailer brake controller |
| 34 | 5A | Electronic locking differential indicator |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 35 | 10A | Rear park assist |
| 36 | 5A | PATS transceiver |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Subwoofer |
| 39 | 20A | Radio, Navigation display |
| 40 | 20A | Not used (spare) |
| 41 | 15A | Automatic dimming mirror, Door lock switch illumination, Radio accessory delay |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Heated mirror/backlight relay, Rain sensor, Reverse camera |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, Blower motor relay |
| 46 | 7.5A | Occupant classification sensor (OCS) |
| 47 | 30A Circuit Breaker | Power windows, Moon roof, Power sliding backlight |
| 48 | — | Delayed accessory relay (Feeds fuse 41 and circuit breaker 47) |

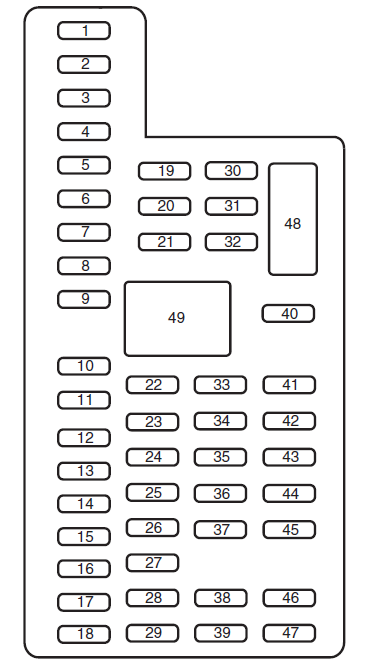

Ford F-150 (2011 – 2014)
The fuses are coded as follows.
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | 30A | Driver side front window |
| 2 | 15A | SYNC® |
| 3 | 30A | Passenger side front window |
| 4 | 10A | Interior lamps |
| 5 | 20A | Memory module |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Power mirror switch, Memory seat module |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Radio display, GPS module, Navigation display |
| 10 | 10A | Run/accessory relay |
| 11 | 10A | Instrument cluster |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 12 | 15A | Interior lighting, Puddle lamps, Backlighting, Cargo lamp |
| 13 | 15A | Right turn signals/stop lamps |
| 14 | 15A | Left turn signals/stop lamps |
| 15 | 15A | Reverse lights, High-mounted stop lamp |
| 16 | 10A | Right low-beam headlamp |
| 17 | 10A | Left low-beam headlamp |
| 18 | 10A | Brake-shift interlock, Keypad illumination, PCM wakeup, PATS |
| 19 | 20A | Audio amplifier |
| 20 | 20A | Power door locks |
| 21 | 10A | Ambient lighting |
| 22 | 20A | Horn |
| 23 | 15A | Steering wheel control module |
| 24 | 15A | Datalink connector, Steering wheel control module |
| 25 | 15A | Not used (spare) |
| 26 | 5A | Radio frequency module |
| 27 | 20A | Not used (spare) |
| 28 | 15A | Ignition switch |
| 29 | 20A | Radio/Navigation |
| 30 | 15A | Front parking lamps |
| 31 | 5A | BOO – IP, BOO – Engine |
| 32 | 15A | Delay/accessory – moon roof, power windows, locks, Automatic dimming mirror/Compass |
| 33 | 10A | Heated seats |
| 34 | 10A | Reverse sensing system, 4×4 switch, Rear video, Off road indicator (SVT Raptor) |
| 35 | 5A | Hill descent switch (SVT Raptor) |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 36 | 10A | Restraint control module, Occupant classification system module |
| 37 | 10A | Trailer brake control |
| 38 | 10A | Delayed accessory – 110V power point, Radio (AM/FM) |
| 39 | 15A | High beam headlamps |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Passenger airbag deactivation indicator, Upfitter switch (SVT Raptor) |
| 42 | 5A | Overdrive cancel switch |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate controls module |
| 47 | 15A | Fog lamps, Exterior mirror turn signals |
| 48 | 30A Circuit Breaker | Power rear windows, Power sliding back window |
| 49 | Relay | Delayed accessory |

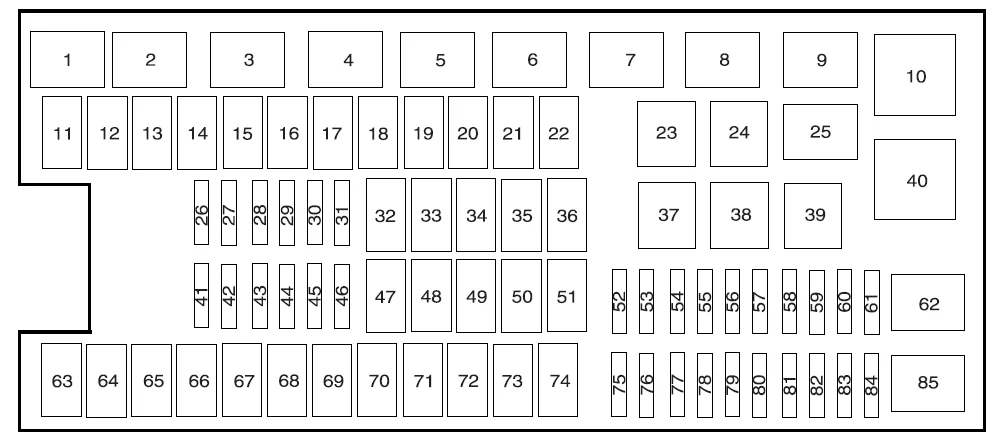

Power Distribution Box
Ford F-150 (2009 – 2012)
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter.
The high-current fuses are coded as follows:
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 1 | — | Powertrain Control Module (PCM) power relay |
| 2 | — | Starter relay |
| 3 | — | Blower motor relay |
| 4 | — | Heated backlite relay |
| 5 | — | Not used |
| 6 | — | Trailer tow park lamp relay |
| 7 | — | Not used |
| 8 | — | Fuel pump |
| 9 | — | Trailer tow battery charger |
| 10 | — | Not used |
| 11 | 30A** | Power running board motors |
| 12 | — | Not used |
| 13 | 30A ** | Starter relay |
| 14 | 30A** | Passenger power seats |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 15 | — | Not used |
| 16 | — | Not used |
| 17 | 30A** | Trailer brake |
| 18 | — | Not used |
| 19 | — | Not used |
| 20 | 20A** | 4×4 module (ESOF) |
| 21 | 30A** | Trailer tow battery charge |
| 22 | 20A** | Cigar lighter |
| 23 | — | A/C clutch relay |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | 10A* | PCM – keep alive power, Canister vent solenoid, Transmission, PCM relay |
| 27 | 20A* | Fuel pump relay |
| 28 | — | Not used |
| 29 | 10A* | 4×4 |
| 30 | 10A* | A/C clutch |
| 31 | 20A* | Trailer tow park lamp relay |
| 32 | 40A** | Heated backlite/mirror relay |
| 33 | — | Not used |
| 34 | 40A** | PCM relay |
| 35 | — | Not used |
| 36 | 30A** | Roll stability control module (RSC) |
| 37 | — | Trailer tow left hand stop/turn relay |
| 38 | — | Trailer tow right hand stop/turn relay |
| 39 | — | Back up lamps |
| 40 | — | Not used |
| 41 | — | Not used |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 42 | — | Not used |
| 43 | 20A* | Backup lamp relay |
| 44 | — | Not used |
| 45 | 20A* | Trailer tow stop turn relay feed |
| 46 | 15A* | Brake on/off (BOO) switch |
| 47 | 60A** | Roll stability control module (RSC) |
| 48 | — | Not used |
| 49 | 30A** | Wiper motor, washer pump |
| 50 | — | Not used |
| 51 | 40A** | Blower motor relay |
| 52 | — | Not used |
| 53 | 5A* | PCM, 6R80 transmission |
| 54 | 5A* | 4×4 module, Back up lamp, RSC, Trailer tow battery charge relay |
| 55 | 5A* | Electronic compass mirror (6R transmission only) |
| 56 | — | Not used |
| 57 | — | Not used |
| 58 | 15A* | Trailer tow backup lamps |
| 59 | 15A* | Heated mirrors |
| 60 | — | One-touch Start diode |
| 61 | — | Fuel pump diode |
| 62 | — | Not used |
| 63 | — | Not used |
| 64 | 30A** | Amplifier |
| 65 | 20A** | Auxiliary power point (instrument panel) |
| 66 | 20A** | Auxiliary power point (inside center console) |
| 67 | — | Not used |
| 68 | 20A** | 4×4 module |
| Fuse/Relay Location | Fuse Amp Rating | Protected Circuits |
| 69 | 30A** | Passenger heated/cooled seats |
| 70 | — | Not used |
| 71 | — | Not used |
| 72 | 20A** | Auxiliary power point (Rear) |
| 73 | — | Not used |
| 74 | 30A** | Driver power seat |
| 75 | 15A* | PCM – voltage power 1 |
| 76 | 20A* | Voltage power 2, Voltage – battery voltage, Mass air flow/Intake air temp, CMS 12 and 22 with 6R80 transmission, Brake on/off switch (BOO) |
| 77 | 10A* | Voltage power 3, Electric fan clutch, A/C clutch relay coil, Floor shifter (4–speed transmission) |
| 78 | 25A* | Ignition coils, Voltage power 4 |
| 79 | 10A* | CMS 4–speed transmission, 12 and 22 with 4–speed transmission |
| 80 | 5A* | Steering wheel illumination |
| 81 | — | Not used |
| 82 | 10A* | Trailer Brake Control Module (TBCM), After market Center High Mounted Stop Lamp (CHMSL) |
| 83 | — | Not used |
| 84 | — | Not used |
| 85 | — | Not used |
| * Mini Fuses ** Cartridge Fuses | ||

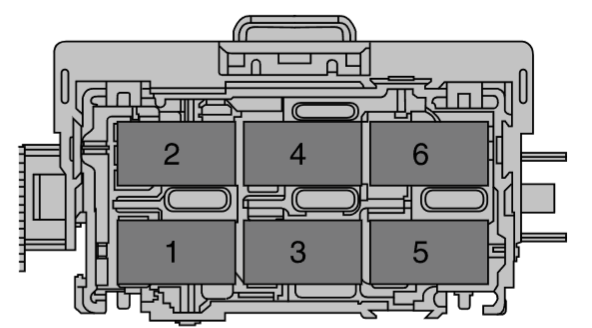

Auxiliary Relay Box
Ford F-150 (2011 – 2013)

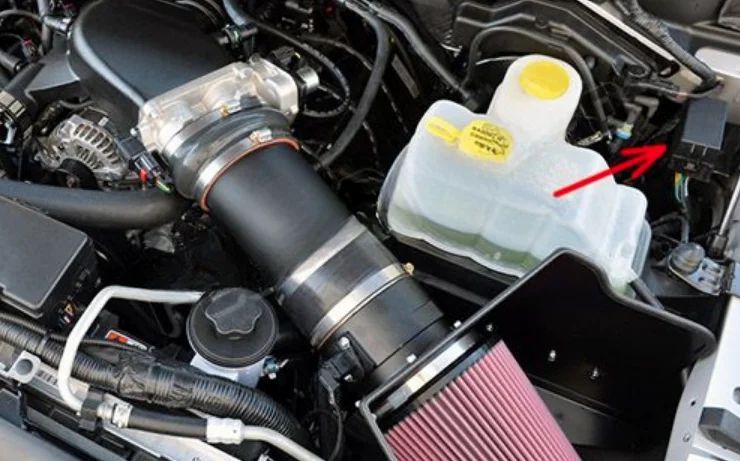

The relay box is located in the left rear corner of the engine compartment.
| Fuse/Relay location | Fuse amp rating | Description |
| 1 | — | Upfitter 1 relay |
| 2 | — | Upfitter 2 relay |
| 3 | — | Upfitter 3 relay |
| 4 | — | Upfitter 4 relay |
| 5 | — | Front camera washer relay |
| 6 | — | Not used |

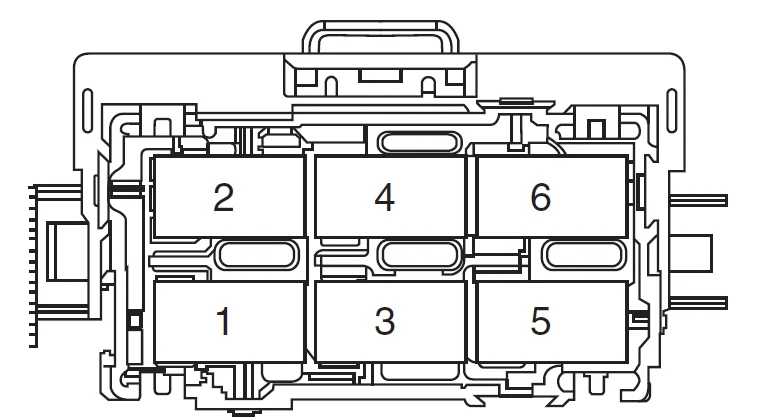

Ford F-150 (2014)
The relay box is located in the left-handcorner of the engine compartment nearthe windshield.
| Fuse/Relay location | Fuse amp rating | Description |
| 1 | Relay | Auxiliary switch 1 |
| 2 | Relay | Auxiliary switch 2 |
| 3 | Relay | Auxiliary switch 3 |
| 4 | Relay | Auxiliary switch 4 |
| 5 | Relay | Front camera washer |
| 6 | Relay | Not used |
