Ford F-150 (2015 – 2020) Fuse Box Location and Diagrams

Ford F-150 (2015 – 2020) Fuse Box Location and Diagrams

The Ford F-150 (Eleventh Generation, 2015–2020) utilizes two primary fuse boxes to protect the vehicle’s electrical circuits. Whether you are troubleshooting a dead power outlet or a malfunctioning headlight, knowing where to look is the first step.

CHANGING A FUSE

Fuses
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Ford F-150 (2015 – 2020) FIG-1

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

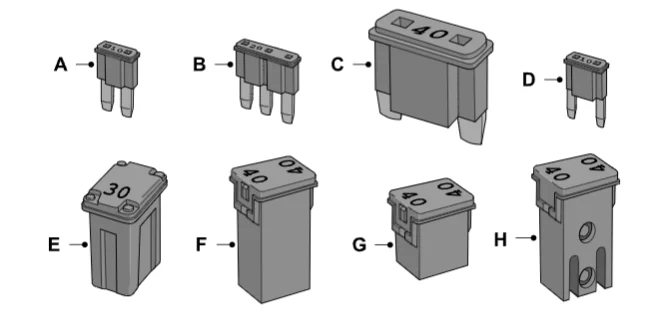

Fuse Types

Ford F-150 (2015 – 2020) FIG-2

  • A Micro 2.
  • B Micro 3.
  • C Maxi.
  • D Mini.
  • E M Case.
  • F J Case.
  • G J Case Low Profile.
  • H Slotted M Case.

Fuse Box Location

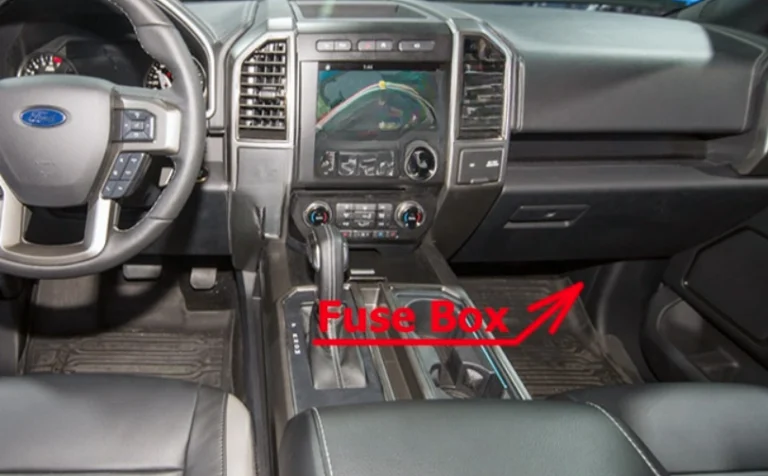

Passenger compartment

Ford F-150 (2015 – 2020) FIG-3

The fuse panel is in the right-hand side of the passenger footwell behind a trim panel. To remove the trim panel, pull it toward you and swing it away from the side. To reinstall it, line up the tabs with the grooves on the panel, and then push it shut.

To remove the fuse panel cover, press in the tabs on both sides of the cover, and then pull it off.
To reinstall the fuse panel cover, place the top part of the cover on the fuse panel and push the bottom part until it latches. Gently pull on the cover to make sure it has latched properly.

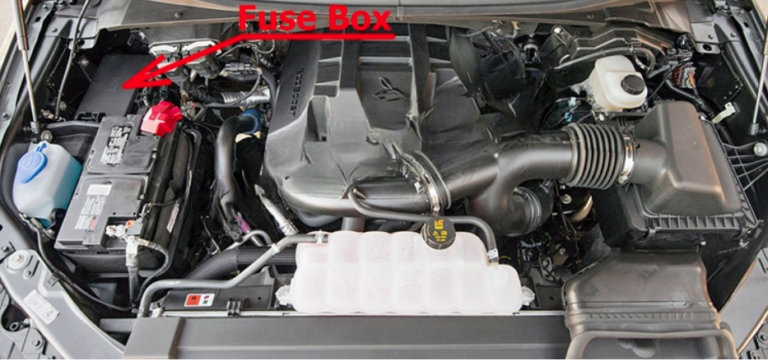

Power Distribution Box

Ford F-150 (2015 – 2020) FIG-4

Ford F-150 (2015 – 2020) FIG-5

WARNINGS
Always disconnect the battery before servicing high current fuses.
To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

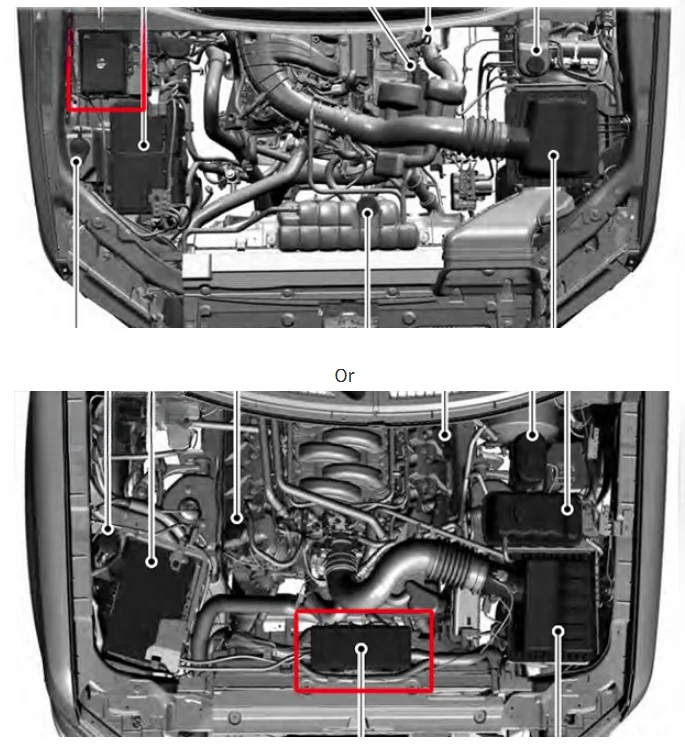

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads. If you disconnect and reconnect the battery, you will need to reset some features.

Passenger Compartment

Ford F-150 (2015)

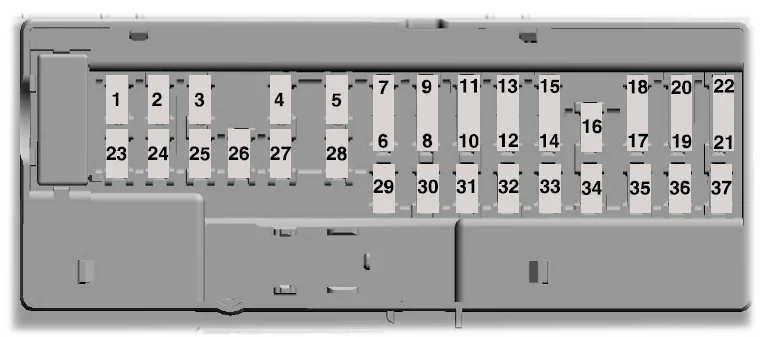

Passenger Compartment Fuse Assignment (2015)

Ford F-150 (2015 – 2020) FIG-6

Fuse or relay numberFuse amp ratingProtected components
110ADemand lamp relay. Power seats relay. Glove box.

Vanity lamps. Overhead console. Dome.

Courtesy. Map lamps.

27.5AMemory module logic. Memory seat switches. Lumbar motor.
320ADriver door lock motor.
45ATrailer brake control.
520ANot used.
610ANot used.
710ANot used.
810ANot used.
910ANot used.
Fuse or relay numberFuse amp ratingProtected components
105ANot used (spare).
115ACombined sensor module.
127.5AClimate head module. Smart datalink converter.
137.5ACluster. SCCM.
1410ABrake.
1510ASmart datalink converter.
1615ATailgate release.
175AHUD.
185AIgnition switch and passive-entry passive- start start stop switch.

Key inhibit solenoid.

197.5ATow haul (O/D) cancel for floor or column shifter.
207.5ANot used.
215AHUD.

In car temperature with humidity sensor.

225AEPB.

Power seat.

2310APDRG switch. Inverter.

Driver side window. Moonroof.

2420ACentral lock/unlock.
2530ADriver door control module.
2630APassenger door control module.
2730AVista roof. Moonroof.
2820ANot used.
2930ANot used.
Fuse or relay numberFuse amp ratingProtected components
3030ANot used.
3115AAdjustable pedal switch and motor.
3210AMulti-function display. Global position system. Sync 1.

Sync 2.

Radio frequency receiver.

3320ARadio.
3430ARun-start relay.
355ARestraints module.
3615A360 camera module.

Heated steering wheel module. Rear-view mirror.

Rear heated seats.

3715APower distribution box run-start relay.
3830A Circuit breaker.Rear window switches and motors.
Ford F-150 (2016 – 2017)

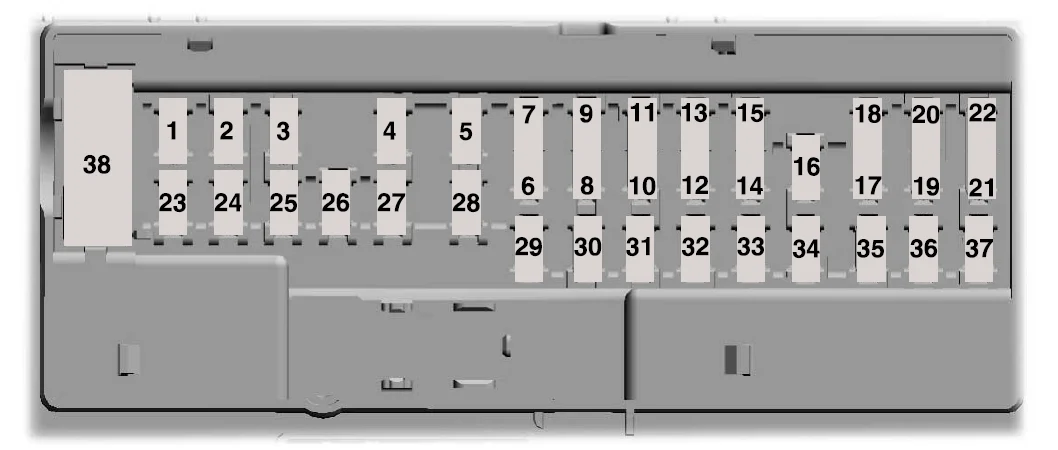

Passenger Compartment Fuse Assignment (2016 – 2017)

Ford F-150 (2015 – 2020) FIG-7

Fuse or relay numberFuse amp ratingProtected components
110ADemand lamp relay. Power seats relay. Glove box.

Vanity lamps. Overhead console. Dome.

Courtesy. Map lamps.

27.5AMemory module logic. Memory seat switches. Lumbar motor.
320ADriver door lock motor.
45ATrailer brake control.
520ANot used.
610ANot used.
710ANot used.
810ANot used.
910ANot used (spare).
Fuse or relay numberFuse amp ratingProtected components
105AEmbedded modem module.
115ACombined sensor module.
127.5AClimate head module. Smart datalink converter.
137.5ACluster. SCCM.
1410ABrake.
1510ASmart datalink converter.
1615ATailgate release.
175AHUD.

Terrain switch.

185AIgnition switch and passive-entry passive- start start stop switch.

Key inhibit solenoid.

197.5ATow haul (O/D) cancel for floor or column shifter.
20—Not used.
215AHUD.

In car temperature with humidity sensor.

225AEPB.

Power seat.

2310APDRG switch. Inverter.

Driver side window. Moonroof.

Vista roof.

2420ACentral lock/unlock.
2530ADriver door control module.
2630APassenger door control module.
2730AVista roof. Moonroof.
2820ANot used.
Fuse or relay numberFuse amp ratingProtected components
2930ANot used.
3030ANot used.
3115AAdjustable pedal switch and motor.
3210AMulti-function display. Global position system. SYNC.

Radio frequency receiver.

3320ARadio.
3430ARun-start relay.
355ARestraints module.
3615A360 camera module.

Heated steering wheel module. Rear-view mirror.

Rear heated seats.

3720APower distribution box run-start fuses.
3830A Circuit breaker.Rear window switches and motors.
Ford F-150 (2018 – 2020)

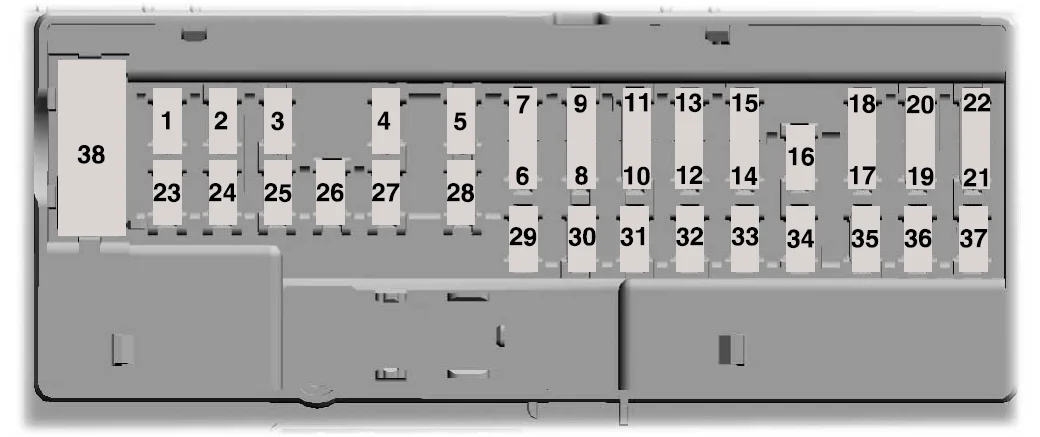

Passenger Compartment Fuse Assignment (2018 – 2020)

Ford F-150 (2015 – 2020) FIG-8

Fuse NumberFuse RatingProtected Components
1—Not used.
27.5AMemory module logic. Memory seat switches. Lumbar motor.
320ADriver door lock motor.
45ATrailer brake control.
520ANot used (spare).
610ANot used (spare).
710ANot used (spare).
810ANot used (spare).
Fuse NumberFuse RatingProtected Components
910AExtended power module (Base only).
105AEmbedded modem module.
115ACombined sensor module.
127.5AClimate head module. Smart datalink connector.
137.5ACluster.

Steering column control module.

1410ABrake on/off switch.
1510ASmart datalink connector.
1615ATailgate release.
175AHeads up display. Terrain switch.
185AIgnition switch and passive-entry passive- start start stop switch.

Key inhibit solenoid.

197.5AExtended power module (except Raptor).
7.5ARestraint control module (Raptor only).
20—Not used.
215AHeads up display.

In car temperature with humidity sensor.

225APassenger occupant detection. (Raptor only)
2310APower driven rear glass switch. Inverter.

Driver side window. Moonroof.

Vista roof.

2420ACentral lock/unlock.
2530ADriver door control module.
2630APassenger door control module.
2730AVista roof. Moonroof.
Fuse NumberFuse RatingProtected Components
2820ANot used (spare).
2930ANot used (spare).
3030ANot used (spare).
3115AAdjustable pedal switch and motor.
3210AMulti-function display. SYNC.

Radio frequency receiver.

3320ARadio.
3430ARun-start relay.
355ASelectable drive mode switch. Upfitter switches (Raptor only).
3615A360 camera module.

Heated steering wheel module. Rear-view mirror.

Rear heated seats.

Lane departure warning module. Automatic high beam module. Image processing module A.

3720ANot used (spare).
3830A Circuit breakerRear window switches and motors.

Engine Compartment

Ford F-150 (2015 – 2016)

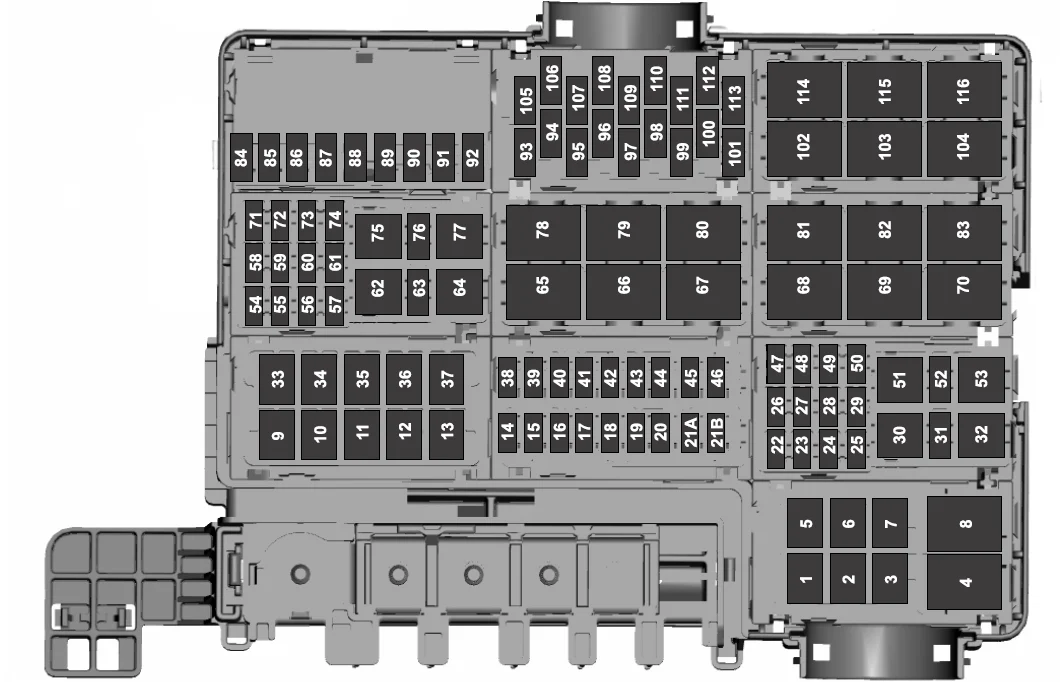

Power distribution box fuse assignment (2015 – 2016)

Ford F-150 (2015 – 2020) FIG-9

Fuse or relay numberFuse amp ratingProtected components
1—Not used.
2—Not used.
3—Not used.
Fuse or relay numberFuse amp ratingProtected components
4—Telescoping side-view mirror.
540A*Rear window defroster.
6—Not used.
7—Not used.
8—Telescoping side-view mirror.
9—Not used.
10—Not used.
1160A*Automatic brake system motor.
1250A*Body control module 1.
1360A*Body control module 2.
1420A**Amplifier.
1525A**4×4.
1610A**Spot light module.
1715A**Heated seat.
1810A**Steering-column lock.
1910A**Power seats.
2015A**Snow plow.

Rear heated seats.

21A—Not used.
21B—Not used.
2230A*Windshield wiper motor.
2315A*Rain sensor.
2425A*Series fan feed.
25—Not used.
2630A*Driver seat motors.
2730A*Passenger power seat.
2830A*Climate controlled seat.
Fuse or relay numberFuse amp ratingProtected components
29—Not used.
30—Air conditioner clutch relay.
31—Not used.
32—Not used.
3350A*Electric fan 3.
3425A*Trailer tow park lamps.
3520A*Trailer tow stop-turn relay fuse.
3625A*Trailer tow lamps module.
3750A*Electric fan 1.
3810A**Alt A sensor.
3910A**Integrated wheel end solenoid.
4015A**E-locker.
4110A**Telescoping mirror.
4230A**Transmission fluid pump.
4325A**Horn.
4410A**Air conditioner clutch.
4510A**Powertrain control module relay coil.
4610A**Wiper relay coil.
47—Not used.
48—Not used.
4930A*Trailer brake control module.
5030A*Power running boards.
51—Fuel pump relay.
52—Not used.
53—Not used.
5430A*Voltage quality module.

Body-control-module voltage-quality- module feed.

Fuse or relay numberFuse amp ratingProtected components
5540A*Body control module RP2 feed.
5620A*Fuel pump.
5730A*Right-hand EPB actuator.
5830A*Left-hand EPB actuator.
5930A*Starter.
6040A*Blower motor.
6130A*Brake control module. Automatic brake system valves.
62—Power seat relay.
6315A**Heated mirrors.
64—Not used.
65—Starter relay.
66—Powertrain control module relay.
67—Windshield wiper relay.
68—Blower motor relay.
69—Power sliding back window relay.
70—Electric fan 1 relay.
71—Not used.
7225A*4×4.
73—Not used.
7430A*PDRG motor.
75—Horn relay.
76—Not used.
77—Steering column lock relay.
78—Not used.
79—Trailer tow parking lamp relay.
80—Rear window defroster relay.
Fuse or relay numberFuse amp ratingProtected components
81—Not used.
82—PDRG close relay.
83—Not used.
84—Not used.
85—Not used.
86—Not used.
8710A*Trailer tow backup lamps.
88—Not used.
8920A**Cigar lighter power point 1.
9020A**Power point 2.
9120A**Power point 3.
9220A**Power point 4.
9325A**GTDI vehicle power 1.
10A**PFI vehicle power 1.
94—Not used.
9525A**Vehicle power 2.
96—Not used.
9710A**Vehicle power 3.
98—Not used.
9920A**Vehicle power 4 (PFI).
15A**Vehicle power 4 (GTDI).
100—Not used.
101—Not used.
102—Snow plow relay.
103—Not used.
104—Electic fan 3 relay.
10510A**Power steering.
Fuse or relay numberFuse amp ratingProtected components
106—Not used.
10710A**Anti-lock brakes.
108—Not used.
10910A**Powertrain control module.
11010A**4×4 run/start.

Adaptive cruise control.

11110A**Transmission pump run-start.
112—Not used.
1137.5A**Blind spot information system. Rear view camera.

Front view camera. Voltage quality module.

114—Electric fan 2 relay.
115—Not used.
116—Not used.
Ford F-150 (2017)

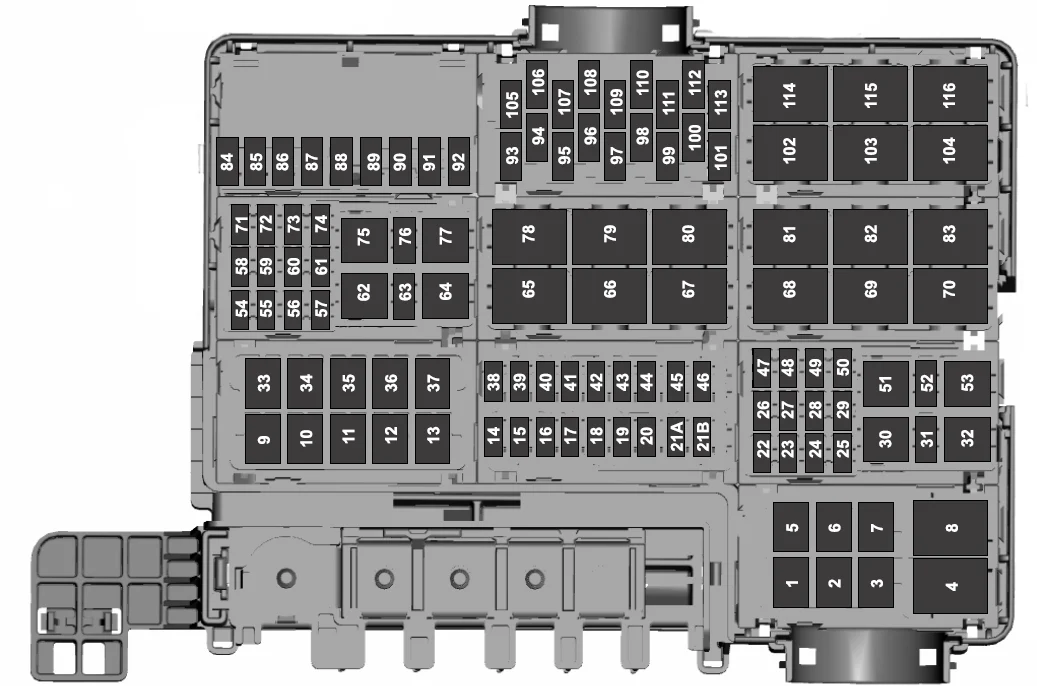

Power distribution box fuse assignment (2017)

Ford F-150 (2015 – 2020) FIG-10

Fuse or relay numberFuse amp ratingProtected components
1—Not used.
2—Not used.
3—Not used.
Fuse or relay numberFuse amp ratingProtected components
4—Telescoping side-view mirror.
540A*Rear window defroster.
6—Not used.
7—Not used.
8—Telescoping side-view mirror.
930A*Fuel pump.
1040A*Charge air cooler fans (Raptor only).
1160A*Automatic brake system motor.
1250A*Body control module 1.
1360A*Body control module 2.
1420A**Amplifier.
1525A**4×4.
1610A**Spot light module.
1715A**Heated seat.
1810A**Steering-column lock.
1910A**Power seats.
2015A**Snow plow.

Rear heated seats.

21A15A**Transmission control module.
21B—Not used.
2230A*Windshield wiper motor.
2315A*Rain sensor.
2425A*Series fan feed.
25—Not used.
2630A*Driver seat motors.
2730A*Passenger power seat.
2830A*Climate controlled seat.
Fuse or relay numberFuse amp ratingProtected components
2925A*Upfitter fuses 94, 96, 98 and 100 (Raptor only).
30—Air conditioner clutch relay.
31—Not used.
32—Not used.
3350A*Electric fan 3.
3425A*Trailer tow park lamps.
3520A*Trailer tow stop-turn relay fuse.
3625A*Trailer tow lamps module.
3750A*Electric fan 1.
3810A**Alt A sensor.
3910A**Integrated wheel end solenoid.
4015A**E-locker.
4110A**Telescoping mirror.
4230A**Transmission fluid pump.
4325A**Horn.
4410A**Air conditioner clutch.
4510A**Powertrain control module relay coil.
4610A**Wiper relay coil.
4715A*Upfitter 1 (Raptor only).
4815A*Upfitter 2 (Raptor only).
4930A*Trailer brake control module.
5030A*Power running boards.
51—Fuel pump relay.
52—Not used.
53—Upfitter 5 relay (Raptor only).
5430A*Voltage quality module.
Fuse or relay numberFuse amp ratingProtected components
Body-control-module voltage-quality- module feed.
5540A*Body control module RP2 feed.
5620A*Fuel pump.
5730A*Right-hand electric parking brake actuator.
5830A*Left-hand electric parking brake actuator.
5930A*Starter.
6040A*Blower motor.
6130A*Brake control module. Automatic brake system valves.
62—Power seat relay.
6315A**Heated mirrors.
64—Upfitter 6 relay (Raptor only).
65—Starter relay.
66—Powertrain control module relay.
67—Windshield wiper relay.
68—Blower motor relay.
69—Power sliding back window relay.
70—Electric fan 1 relay.
71—Not used.
7225A*4×4.
73—Not used.
7430A*PDRG motor.
75—Horn relay.
76—Not used.
77—Steering column lock relay.
78—Not used.
79—Trailer tow parking lamp relay.
Fuse or relay numberFuse amp ratingProtected components
80—Rear window defroster relay.
81—Upfitter 1 relay (Raptor only).
82—PDRG close relay.
83—Upfitter 2 relay (Raptor only).
84—Not used.
85—Not used.
86—Not used.
8710A**Trailer tow backup lamps.
88—Not used.
8920A*Cigar lighter power point 1.
9020A*Power point 2.
9120A*Power point 3.
9220A*Power point 4.
9325A**GTDI vehicle power 1.
10A**PFI vehicle power 1.
9410A**Upfitter 3 (Raptor only).
9525A**Vehicle power 2.
9610A**Upfitter 4 (Raptor only).
9710A**Vehicle power 3.
985A**Upfitter 5 (Raptor only).
9920A**Vehicle power 4 (PFI).
15A**Vehicle power 4 (GTDI).
1005A**Upfitter 6 (Raptor only).
101—Not used.
102—Snow plow relay.
103—Charge air cooler fan (Raptor only).
104—Electronic fan 3 relay.
Fuse or relay numberFuse amp ratingProtected components
10510A**Power steering.
106—Not used.
10710A**Anti-lock brakes.
108—Not used.
10910A**Powertrain control module. Transmission control module run-start power.
11010A**4×4 run/start.

Adaptive cruise control.

11115A**Transmission pump run-start.
11210A**Charge air cooler relay coil run-start (Raptor only).
1137.5A**Blind spot information system. Rear view camera.

Front view camera. Voltage quality module.

114—Electric fan 2 relay.
115—Upfitter 3 relay (Raptor only).
116—Upfitter 4 relay (Raptor only).
Ford F-150 (2018 – 2020)

Power distribution box fuse assignment (2018 – 2020)

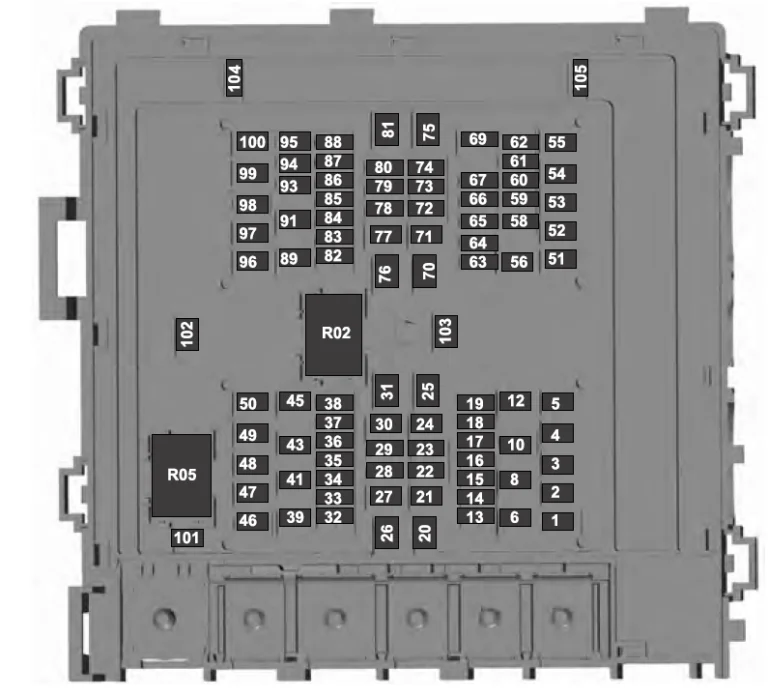

Ford F-150 (2015 – 2020) FIG-11

Fuse NumberFuse RatingProtected Components
125A1Horn.
250A2Electric fan 1.
330A2Windshield wiper motor.
460A2Body control module.
530A2Starter relay.
620A2Power point 1.
820A2Power point 2.
105A1Rain sensor.
1215A2Upfitter 1 relay (Raptor).
1310A14×4 run/start.

Adaptive cruise control run/start module.

1415A1Not used (spare).
157.5A1Front view camera. Voltage quality module.
15A 1Not used (spare)(Raptor).
1610A1Powertrain control module. Transmission control module run/start.
1710A1Anti-lock brakes run/start.
1810A1Electric power steering run/start.
195A1Upfitter 5 relay (Raptor).
2040A2Blower motor.
2130A2Passenger seat motors.
2220A1Radio amplifier.
Fuse NumberFuse RatingProtected Components
2310A1Alt A sensor.
2430A2Trailer brake control module.
2550A2Body control module 1.
2650A2Electric fan (Gas).
2730A2Driver seat motors/memory module.
2815A1Heated seat.
2910A14×4 solenoid.
3025A2Trailer tow battery charge.
31—Not used.
3210A1A/C clutch.
33—Not used.
3410A1Vehicle power 5 (Diesel).
3520A1Vehicle power 4 (Gas).
15A1Vehicle power 4 (Diesel).
3610A1Vehicle power 3.
3725A1Vehicle power 2 (Gas).
15A1Vehicle power 2 (Diesel).
3825A1Vehicle power 1 (Gas).
20A1Vehicle power 1 (Diesel).
39—Not used.
4130A2Body-control-module voltage-quality- module feed.
Fuse NumberFuse RatingProtected Components
4320A2Trailer tow lamps module.
45—Not used.
4610A1Steering-column lock.
4750A2Powertrain control heater 3 (Diesel).
4830A2Fuel filter heater (Diesel).
49—Not used.
5030A2Fuel pump.
5120A2Power point 3.
5250A2Powertrain control heater 2 (Diesel).
5325A2Trailer tow park lamps.
54—Not used.
5515A2Upfitter 2 relay (Raptor).
56—Not used.
585A1USB smart charger.
59—Not used.
60—Not used.
6115A1Not used (spare).
625A1Upfitter 6 relay (Raptor).
6325A14×4.
6415A1E-locker.
65—Not used.
66—Not used.
67—Not used.
Fuse NumberFuse RatingProtected Components
69—Not used.
7040A2Anti-lock brake system (ABS) valves. Electric parking brake.
7125A24×4.
72—Not used.
73—Not used.
7410A1Trailer tow backup lamps.
75—Not used.
7640A2Body control module 2.
7730A2Climate controlled seat.
7810A1Spot light module.
79—Not used.
8010A1Heated windshield wiper.
Upfitter 4 relay (Raptor).
81—Not used.
8230A1Transmission fluid pump.
5A1Powertrain control module (Diesel).
8315A1Transmission control module.
84—Not used.
85—Not used.
86—Not used.
87—Not used.
8810A1Multi-Contour Seats Relay.
Upfitter 3 relay (Raptor).
8930A2Power running boards.
Fuse NumberFuse RatingProtected Components
91—Not used.
9315A1Heated mirrors.
9415A1Rear heated seat module (Raptor, Diesel).
9515A1Not used (spare).
96—Not used.
9740A2Electric fan (Raptor).
50A2Powertrain control heater 1 (Diesel).
9815A210R transmission module r/s. 3.3L transmission fluid pump.
9940A2Heated rear window.
10025A2Diesel exhaust fluid (DEF) heater relay (Diesel).
10125A2Electric fan (Base only).
10230A2Power sliding back window.
10320A2Trailer tow stop-turn relay fuse.
10415A1Snowplow switch.

Rear heated seats (Base).

10510A1Telescoping mirror.

Micro fuse.
Slotted M case fuse.

Relay NumberFuse RatingProtected Components
R02—Powertrain control module relay.
R05—Electric fan relay.

Related Posts

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
