Ford F-150 (2021 – 2022) Fuse Box Location and Diagrams
This guide provides information on the locations and diagrams of the fuse boxes for the Ford F-150 models from 2021 to 2022. Understand the methods for locating, identifying, and comprehending each fuse to facilitate effective maintenance and address common electrical problems efficiently.=

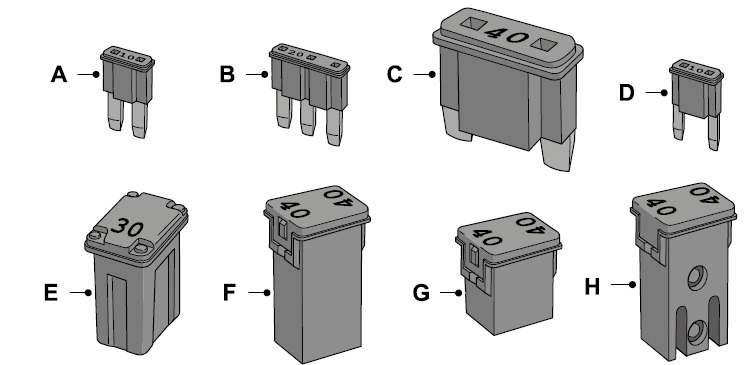

IDENTIFYING FUSE TYPES
- A Micro 2.
- B Micro 3.
- C Maxi.
- D Mini.
- E M Case.
- F J Case.
- G J Case Low Profile.
- H Slotted M Case.
FUSE PRECAUTIONS
- Always disconnect the battery before servicing high current fuses.
- To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.
- Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
Fuse Box Location
Passenger compartment

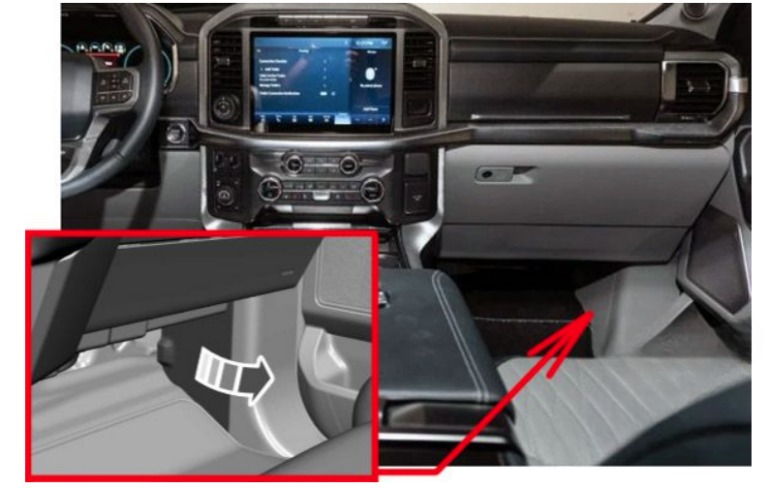

- Accessing and Locating the Body Control Module Fuse Box

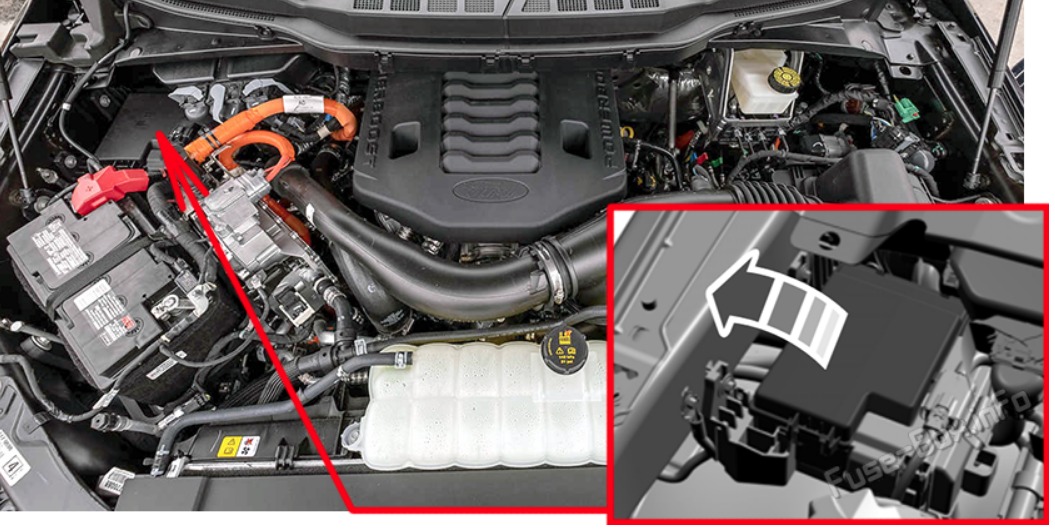

Engine compartment:
- Identifying the Fuses in the Under Hood Fuse Box
Passenger Compartment
Ford F-150 (2021 to 2022)

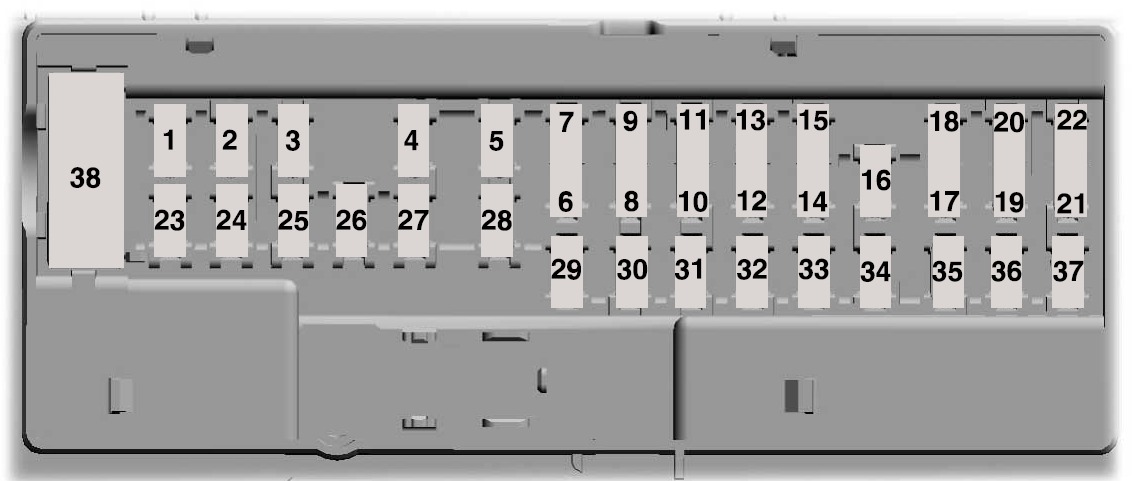

- Identifying the Fuses in the Body Control Module Fuse Box
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 1 | — | Not used. |
| 2 | 10 A | Delayed accessory feed. |
| 3 | 7.5 A | Wireless charger. |
| 4 | 20 A | Not used. |
| 5 | — | Not used. |
| 6 | 10 A | Driver power window switch. |
| 7 | 10 A | Gear shift module. |
| 8 | 5 A | Cell phone passport module. |
| 9 | 5 A | Combined sensor module. |
| 10 | — | Not used. |
| 11 | — | Not used. |
| 12 | 7.5 A | Enhanced central gateway. Climate control. |
| 13 | 7.5 A | Instrument cluster. Steering column control module. |
| 14 | 15 A | Not used (spare). |
| 15 | 15 A | Integrated control panel. SYNC. |
| 16 | — | Not used. |
| 17 | 7.5 A | Headlamp control module. |
| 18 | 7.5 A | Not used. |
| 19 | 5 A | Headlamp switch. |
| 20 | 5 A | Passive start. Ignition switch. Key inhibit solenoid. |
| 21 | 5 A | Trailer brake switch. |
| 22 | 5 A | Not used. |
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 23 | 30 A | Driver door control module. |
| 24 | 30 A | Moonroof. |
| 25 | 20 A | Not used. |
| 26 | 30 A | Passenger door control module. |
| 27 | 30 A | Not used. |
| 28 | 30 A | Amplifier. |
| 29 | 15 A | 12 inch display. Adjustable pedals. |
| 30 | 5 A | Not used. |
| 31 | 10 A | RF receiver. Driver monitor. Terrain management switch. |
| 32 | 20 A | Audio control module. |
| 33 | — | Not used. |
| 34 | 30 A | Run/start relay. |
| 35 | 5 A | 400 watt inverter run/start. |
| 36 | 15 A | Auto-dimming interior mirror. Rear heat seat run/start. Adaptive front steering run/start. Heated wheel (vehicles without adaptive front steering). |
| 37 | 20 A | Advanced driver-assistance systems. |
| 38 | 30 A circuit breaker. | Rear power windows. |
Engine Compartment
Ford F-150 (2021)

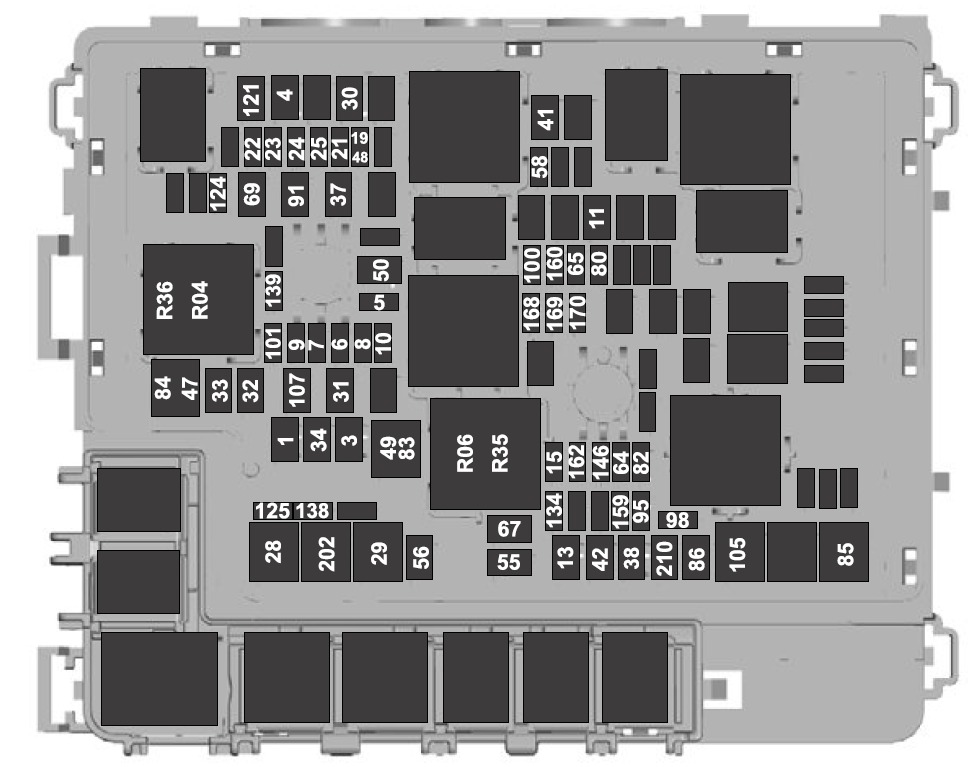

Identifying the Fuses in the Under Hood Fuse Box
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 1 | 40 A | Body control module – battery power in feed 1. |
| 3 | 40 A | Body control module – battery power in feed 2. |
| 4 | 30 A | Fuel pump. |
| 5 | 5 A | Keep-alive power. Powertrain control module (hybrid). |
| 6 | 25 A | Powertrain control module power. |
| 7 | 20 A | Powertrain control module power. |
| 8 | 20 A | Powertrain control module power (hybrid). |
| 10 A | Powertrain control module power (gas, diesel). |
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 9 | 20 A | Powertrain control module power. |
| 10 | 20 A | Powertrain control module power (diesel). |
| 11 | 30 A | Starter motor. |
| 13 | 40 A | Blower motor. |
| 15 | 25 A | Horn. |
| 19 | 20 A | Snow plow switch. Rear heated seats (gas). |
| 21 | 10 A | Headlamp run/start feed. |
| 22 | 10 A | Electronic power assist steering. |
| 23 | 10 A | Electric brake boost. |
| 24 | 10 A | Powertrain control module (gas, hybrid). Transmission control module (diesel). Glow plug control module (diesel). |
| 25 | 10 A | Center high-mounted stop lamp camera. Trailer camera. 2 kW inverter. 24 V alternator – run/start feed. Analog rear video camera. |
| 28 | 50 A | Electric brake boost. |
| 29 | 50 A | Electric brake boost. |
| 30 | 40 A | Driver power seat. |
| 31 | 30 A | Passenger power seat. |
| 32 | 20 A | Auxiliary power point. |
| 33 | 20 A | Auxiliary power point. USB smart charger. |
| 34 | 20 A | Auxiliary power point. |
| 37 | 30 A | Tailgate module. |
| 38 | 40 A | Climate controlled seat module. Power running boards. |
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 41 | 25 A | Power sliding back window. |
| 42 | 30 A | Trailer brake control module. |
| 47 | 50 A | Cooling fan. |
| 48 | 20 A | Rear heated seats (diesel, hybrid) |
| 49 | 50 A | Cooling fan. |
| 50 | 40 A | Heated backlight (gas, hybrid). |
| 55 | 30 A | Trailer tow park lamps. |
| 56 | 20 A | Trailer tow stop and turn lamps. |
| 58 | 10 A | Trailer tow backup lamps. |
| 64 | 25 A | Four-wheel drive. |
| 65 | 15 A | Transmission control module (diesel). |
| 67 | 20 A | Transmission run/start. |
| 69 | 30 A | Left-hand windshield wiper. |
| 80 | 15 A | Not used (spare). |
| 82 | 25 A | Four-wheel drive. |
| 83 | 50 A | Supplemental heater (diesel). |
| 84 | 50 A | Supplemental heater (diesel). |
| 85 | 50 A | Supplemental heater (diesel). |
| 86 | 25 A | Selective catalytic reduction system. |
| 91 | 20 A | Trailer tow light module. |
| 95 | 15 A | Powertrain control module power (hybrid). |
| 98 | 10 A | Powertrain control module power (hybrid). Coolant pumps (hybrid). |
| 100 | 15 A | Left-hand headlamps. |
| 101 | 15 A | Right-hand headlamps. |
| 105 | 50 A | Active front steering. |
| Fuse Loca- tion | Fuse Rating | Protected Component |
| 107 | 30 A | Trailer tow battery charge. |
| 121 | 30 A | Fuel filter heater (diesel). |
| 124 | 5 A | Rain sensor module. |
| 125 | 10 A | USB smart charger. |
| 134 | 25 A | Multi-contour seats relay. |
| 138 | 10 A | Tailgate release. |
| 139 | 5 A | USB smart charger. |
| 146 | 15 A | Traction battery control module. |
| 159 | 5 A | DC/DC power (hybrid). |
| 160 | 10 A | Smart data link control. |
| 162 | 7.5 A | Not used (spare). |
| 168 | 20 A | Traction battery control module (hybrid). |
| 169 | 10 A | Motor electric cool pump (hybrid). |
| 170 | 10 A | Pedestrian alert control module (hybrid). Traction battery control module (hybrid). Electric motor cool pump (hybrid). |
| 202 | 60 A | Body control module B+. |
| 210 | 30 A | Body control module start stop. |
| Relay Number | Protected Component |
| R04 | Electronic fan relay 1. |
| R06 | Electronic fan relay 3. |
| R35 | Supplemental heater. |
| R36 | Supplemental heater. |
Ford F-150 (2022)

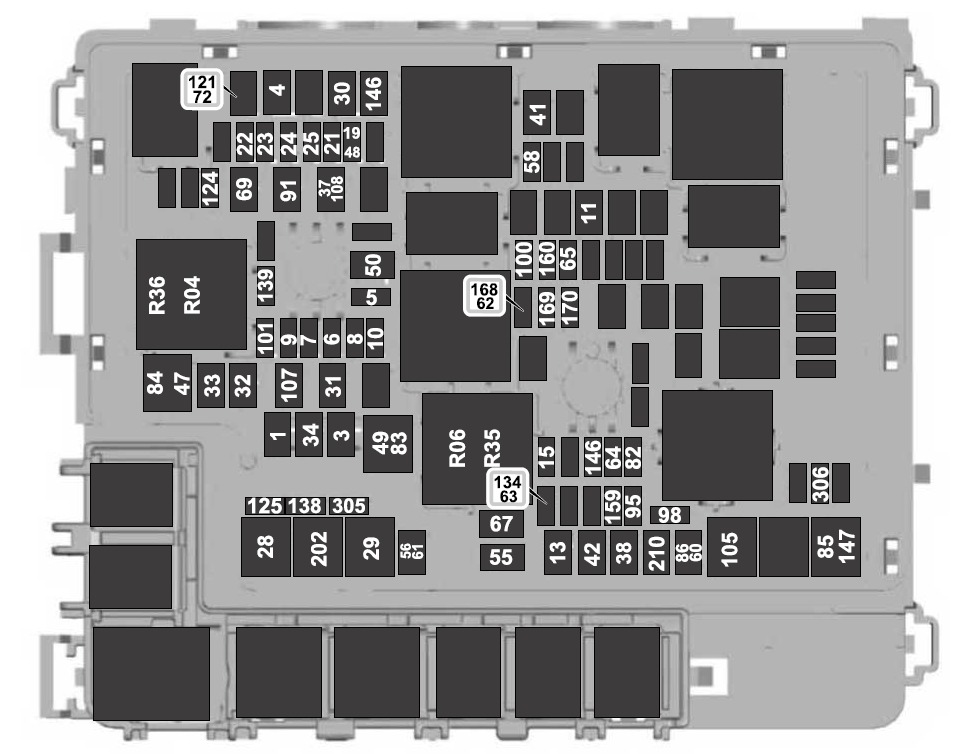

Identifying the Fuses in the Under Hood Fuse Box
| Item | Rating | Protected Component |
| 1 | 40 A | Body control module – battery power in feed 1. |
| 3 | 40 A | Body control module – battery power in feed 2. |
| 4 | 30 A | Fuel pump. |
| 5 | 5 A | Powertrain control module coil. |
| 6 | 25 A | Powertrain control module power (gas, hybrid). |
| 7 | 20 A | Powertrain control module power. |
| Item | Rating | Protected Component |
| 8 | 20 A | Powertrain control module power (hybrid). |
| 10 A | Powertrain control module power (gas, Raptor, Tremor). | |
| 9 | 20 A | Powertrain control module power (gas, hybrid). |
| 10 | — | Not used. |
| 11 | 30 A | Starter motor. |
| 13 | 40 A | Blower motor. |
| 15 | 25 A | Horn. |
| 19 | 20 A | Snowplow switch (gas). Rear heated seats (gas, hybrid). |
| 21 | 10 A | Headlamp run/start feed. |
| 22 | 10 A | Electronic power assist steering. |
| 23 | 10 A | Electric brake boost. |
| 24 | 10 A | Powertrain control module (gas, hybrid). |
| 25 | 10 A | Center high-mounted stop lamp camera. Trailer camera. 2 kW inverter. 24 V alternator – run/start feed. Analog rear video camera. |
| 28 | 50 A | Electric brake boost. |
| 29 | 50 A | Electric brake boost. |
| 30 | 40 A | Driver power seat. |
| 31 | 30 A | Passenger power seat. |
| 32 | 20 A | Auxiliary power point. |
| 33 | 20 A | Auxiliary power point. |
| Item | Rating | Protected Component |
| USB smart charger. | ||
| 34 | 20 A | Auxiliary power point. |
| 37 | 30 A | Tailgate module. |
| 38 | 40 A | Climate controlled seat module. Power running boards. |
| 41 | 25 A | Power sliding back window. |
| 42 | 30 A | Trailer brake control module. |
| 47 | 50 A | Cooling fan (gas, hybrid, Raptor, Tremor). |
| 48 | 20 A | Rear heated seats (Raptor, Tremor) |
| 49 | 50 A | Cooling fan (gas, hybrid, Raptor, Tremor). |
| 50 | 40 A | Heated backlight (gas, hybrid). |
| 55 | 30 A | Trailer tow park lamps. |
| 56 | 20 A | Trailer tow stop and turn lamps (4-pin connector). |
| 58 | 10 A | Trailer tow backup lamps. |
| 60 | 15 A | Upfitter 1 relay (Raptor, Tremor). |
| 61 | 15 A | Upfitter 2 relay (Raptor, Tremor). |
| 62 | 10 A | Upfitter 3 relay (Raptor, Tremor). |
| 63 | 10 A | Upfitter 4 relay (Raptor, Tremor). |
| 64 | 25 A | Four-wheel drive. |
| 65 | — | Not used. |
| 67 | 20 A | Transmission run/start. |
| Item | Rating | Protected Component |
| 69 | 30 A | Left-hand windshield wiper. |
| 72 | 30 A | Not used (spare). |
| 82 | 25 A | Four-wheel drive. |
| 83 | — | Not used. |
| 84 | — | Not used. |
| 85 | — | Not used. |
| 86 | — | Not used. |
| 91 | 20 A | Trailer tow light module. |
| 95 | 15 A | Powertrain control module power (hybrid). |
| 98 | 10 A | Powertrain control module power (hybrid). Coolant pumps (hybrid). |
| 100 | 15 A | Left-hand headlamps. |
| 101 | 15 A | Right-hand headlamps. |
| 105 | 50 A | Active front steering. |
| 107 | 30 A | Trailer tow battery charge. |
| 108 | 15 A | Spot lamps (police). |
| 121 | — | Not used. |
| 124 | 5 A | Rain sensor module. |
| 125 | 10 A | USB smart charger. |
| 134 | 25 A | Multi-contour seats relay (gas, hybrid). |
| 138 | 10 A | Tailgate release. |
| 139 | 5 A | USB smart charger. |
| 146 | 15 A | Traction battery control module (hybrid). |
| 147 | 40 A | Change air cooler fan relay (Raptor, Tremor). |
| Item | Rating | Protected Component |
| 159 | 5 A | DC/DC power (hybrid). |
| 160 | 10 A | Smart data link control. |
| 168 | 15 A | Traction battery control module (hybrid). |
| 169 | 10 A | Motor electric cool pump (hybrid). |
| 170 | 10 A | Pedestrian alert control module (hybrid). Traction battery control module (hybrid). Electric motor cool pump (hybrid). |
| 202 | 60 A | Body control module B+. |
| 210 | 30 A | Body control module start/ stop. |
| 305 | 5 A | Upfitter 5 relay (Raptor, Tremor). |
| 306 | 5 A | Upfitter 6 relay (Raptor, Tremor). |
