Ford Focus (1999 – 2007) Fuse Box Location and Diagrams
Ford Focus (1999–2007) fuse box locations and schematics are covered in this guide, which makes it simple to locate and use the appropriate fuses for electrical troubleshooting and repair.
Fuses and Relays

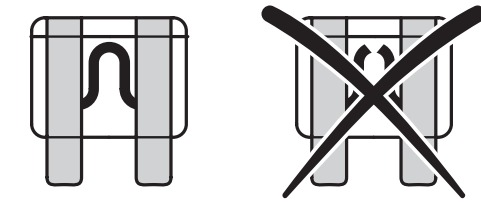

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components
Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
Changing a fuse

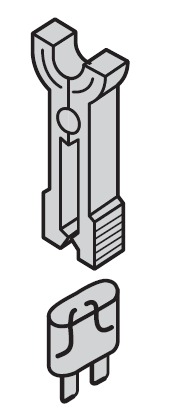

A fuse puller is located in the lid of the auxiliary fuse box.
Fuse Box Locations

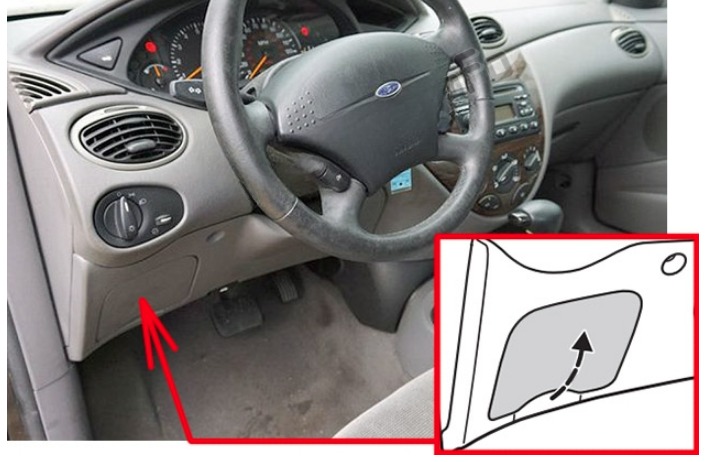

Passenger Compartment
This is located on the left-hand side underneath the instrument panel.
Open the glove compartment. Push in both sides of the glove compartment and swivel it down completely.

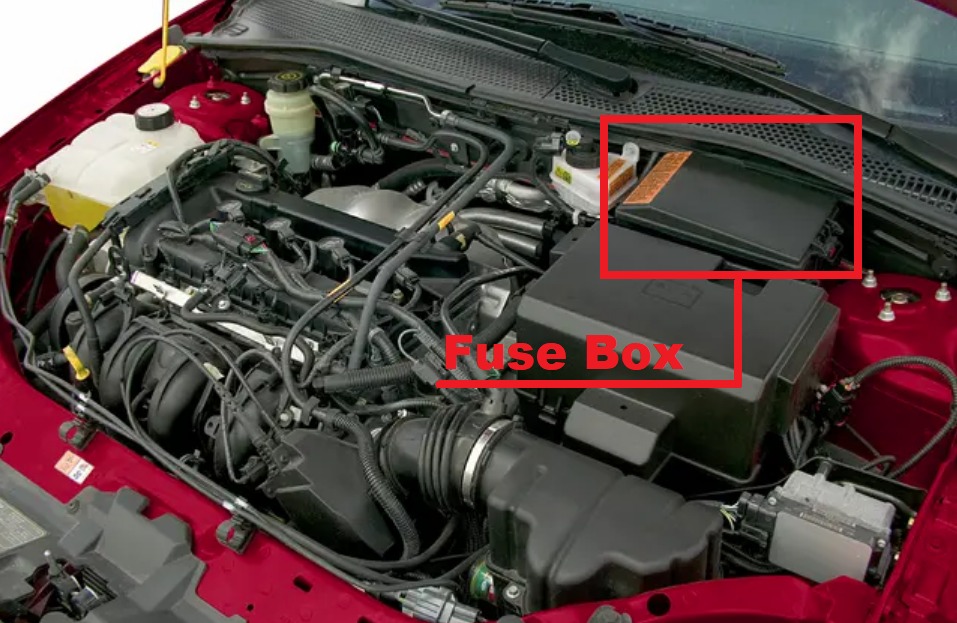

Engine Compartment
This is located on the left-hand side of the engine compartment.
To check or replace a fuse, remove the cover of the fuse box by releasing the catch and lifting up.
Fuse Box Diagram

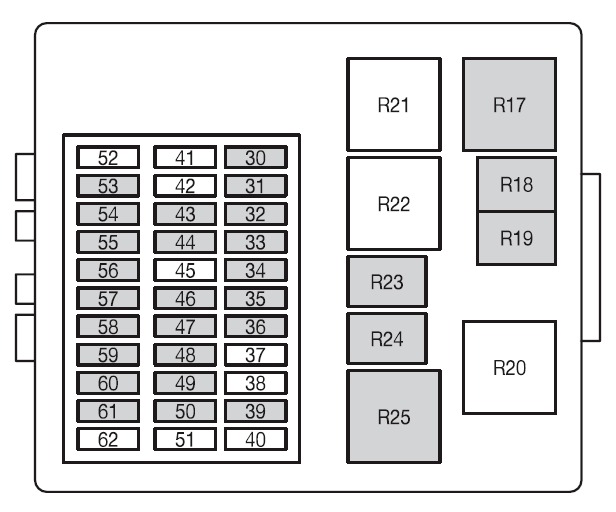

Passenger Compartment Fuse Box Diagram
Ford Focus (1999)
| Fuse | Ampere Rating | Circuits Protected |
| 30 | 10A | Light switch |
| 31 | 15A | Radio |
| 32 | 15A | Direction indicator (GEM) |
| 33 | 20A | Horn, power seat |
| 34 | 20A | Power sunroof |
| 35 | 7.5A | Interior lights, power mirrors |
| 36 | 7.5A | Electronic modules, instrument cluster |
| 37 | 25A | Power windows, central global closing (left-hand side) |
| 38 | 25A | Power windows, central global closing (right-hand side) |
| 39 | – | Not used |
| 40 | 10A | Reversing light |
| 41 | 7.5A | Radio (accessory) |
| 42 | 15A | Brake lights |
| 43 | 15A | Power windows, rear screen wiper |
| 44 | 20A | Front and rear fog lights |
| 45 | 7.5A | Air conditioning, recirculated air |
| 46 | 7.5A | ABS module |
| 47 | 15A | Cigar lighter, centre power point |
| 48 | 10A | Data link connector |
| 49 | 25A | Heated rear screen |
| 50 | 7.5A | Heated mirrors |
| 51 | – | Not used |
| 52 | 15A | Heated front seats |
| 53 | 10A | Reversing light, heated washer jets |
| 54 | – | Not used |
| 55 | 25A | Front power windows |
| 56 | 20A | Front screen wiper |
| 57 | 7.5A | Side lights right-hand side |
| 58 | 7.5A | Side lights left-hand side |
| 59 | 10A | Light switch |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | Electronic modules, instrument cluster |
| 62 | 7.5A | Number plate lights |
| 63 | 20A | Central locking (on the rear side of the fuse box) |
Ford Focus (2000 to 2001)
| Passenger compartment fuse panel |
| Fuse | Fuse amp rating | Description |
| 30 | 7 5 | ABS |
| 31 | 15 | Radio |
| 32 | 10 | Light switch |
| 33 | 15 | Hazard flasher |
| 34 | 20 | Horn |
| 35 | 7 5 | Interior lamps, power mirrors |
| 36 | 7 5 | Central timer, electronic modules |
| 37 | | Not used |
| 38 | | Not used |
| 39 | 10 | Back-up lamps |
| 40 | | Not used |
| 41 | | Not used |
| 42 | | Not used |
| 43 | 15 | Rear wiper |
| 44 | 20 | Fog lamps |
| 45 | | Not used |
| 46 | 15 | Cigar lighter |
| 47 | 7 5 | Side lights (left) |
| 48 | 7 5 | Side lights (right) |
| 49 | 25 | Rear defrost |
| 50 | 7 5 | Radio, central timer |
Ford Focus (2002)
| Type | No. | Amp. Rating | Description |
|---|
| Fuse | 30 | 10A | Light switch |
| Fuse | 31 | 15A | Radio |
| Fuse | 32 | 15A | Turn signal |
| Fuse | 33 | 20A | Horn |
| Fuse | 34 | 20A | Power sunroof |
| Fuse | 35 | 7.5A | Interior lamps, power mirrors |
| Fuse | 36 | 7.5A | A/C switch, hazard flasher, instrument cluster |
| Fuse | 37 | – | Not used |
| Fuse | 38 | – | Not used |
| Fuse | 39 | – | Not used |
| Fuse | 40 | 10A | Back-up lamps (automatic transmission) |
| Fuse | 41 | 7.5A | Radio and cluster (accessory) |
| Fuse | 42 | 15A | Stop lamps |
| Fuse | 43 | 15A | Rear wiper |
| Fuse | 44 | 20A | Fog lamps |
| Fuse | 45 | 7.5A | Recirculated air, air conditioning |
| Fuse | 46 | 7.5A | ABS |
| Fuse | 47 | 20A | Cigar lighter |
| Fuse | 48 | 10A | Data link connector |
| Fuse | 49 | 25A | Rear defrost |
| Fuse | 50 | – | Not used |
| Fuse | 51 | – | Not used |
| Fuse | 52 | – | Not used |
| Fuse | 53 | 10A | Back-up lamps (manual transmission), speed control |
| Fuse | 54 | 25A | Rear power windows |
| Fuse | 55 | 25A | Front power windows |
| Fuse | 56 | 20A | Front wipers |
| Fuse | 57 | 7.5A | Position and side lights (right) |
| Fuse | 58 | 7.5A | Position and side lights (left) |
| Fuse | 59 | 7.5A | Light switch (headlamps) |
| Fuse | 60 | 7.5A | Air bag module |
| Fuse | 61 | 7.5A | PATS modules, instrument cluster |
| Fuse | 62 | 7.5A | License plate lamp |
| Fuse | 63 | 20A | Power locks (GEM) (on back side of fuse panel) |
| Relay | 17 | – | Starter |
| Relay | 18 | – | Rear intermittent wiper |
| Relay | 19 | – | Front intermittent wiper |
| Relay | 20 | – | Not used |
| Relay | 21 | – | Not used |
| Relay | 22 | – | Not used |
| Relay | 23 | – | Horn |
| Relay | 24 | – | Battery saver |
| Relay | 25 | – | Rear defrost |
Ford Focus (2003 to 2005)
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
|---|
| R17 | — | Starter relay |
| R18 | — | Rear intermittent relay |
| R19 | — | Front wiper intermittent relay |
| R20 | — | Not used |
| R21 | — | Not used |
| R22 | — | Not used |
| R23 | — | Horn relay |
| R24 | — | Battery saver relay |
| R25 | — | Rear defrost relay |
| 30 | 10A | Light switch |
| 31 | 15A | Radio |
| 32 | 15A | Turn signal |
| 33 | 20A | Horn, power seats (SVT only) |
| 34 | 20A | Power sunroof |
| 35 | 7.5A | Interior lamps, power mirrors |
| 36 | 7.5A | A/C switch, hazard flasher, instrument cluster |
| 37 | — / 25A | Not used (2003); Decklid/Liftgate release (2004) |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | 10A | Backup lamps (automatic transaxle) |
| 41 | 7.5A | Radio and cluster (accessory) |
| 42 | 15A | Stop lamps |
| 43 | 15A | Rear wiper |
| 44 | 20A | Fog lamps |
| 45 | 7.5A | Recirculated air, air conditioning |
| 46 | 7.5A | Anti-lock Brake System (ABS) |
| 47 | 20A | Cigar lighter, rear power point (SVT only) |
| 48 | 10A | Data link connector |
| 49 | 25A | Rear defroster |
| 50 | 7.5A | Heated mirror, heated backlite indicator |
| 51 | — / 7.5A | Not used (2003–2004); Front passenger sensing system (2005) |
| 52 | 15A | Heated seats |
| 53 | 10A | Backup lamps (manual transaxle) |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Position and side lights (right) |
| 58 | 7.5A | Position and side lights (left) |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, instrument cluster |
| 62 | 7.5A | License plate lamp |
| 63 | 20A | Power locks (GEM) |
Ford Focus (2006 to 2007)
| Fuse/Relay Location | Fuse Amp Rating | Passenger Compartment Fuse Panel Description |
|---|
| R17 | — | Starter relay |
| R18 | — | Not used |
| R19 | — | Not used |
| R20 | — | Not used |
| R21 | — | Daytime running lamps |
| R22 | — | Not used |
| R23 | — | Not used |
| R24 | — | Not used |
| R25 | — | Rear defrost/Heated mirror relay |
| 30 | 10A | Parking lamps |
| 31 | 20A | Radio |
| 32 | 15A | Turn signal (GEM) |
| 33 | 20A | Sunroof |
| 34 | 20A | Horn |
| 35 | 7.5A | A/C switch, instrument cluster |
| 36 | 7.5A | Interior lamps, power mirrors |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | 2A | PCM relay coil |
| 40 | 25A | Rear defroster |
| 41 | — | Not used |
| 42 | 10A | Stop lamps, shift interlock |
| 43 | 15A | Rear wiper, sunroof (ignition) |
| 44 | — / 15A | Not used (2006); Daytime Running Lamps (DRL) (2007) |
| 45 | 7.5A | Recirculated air, air conditioning |
| 46 | — | Not used |
| 47 | 20A | Cigar lighter/Power point |
| 48 | 10A | Data link connector |
| 49 | 7.5A | Heated mirror, heated backlite indicator |
| 50 | 10A | Back-up lamps (automatic transaxle only) |
| 51 | 7.5A | Front passenger sensing system |
| 52 | 15A | Heated seats |
| 53 | 10A | Back-up lamps (manual transaxle only), speed control |
| 54 | 25A | Rear power windows |
| 55 | 25A | Front power windows |
| 56 | 20A | Front wipers |
| 57 | 7.5A | Radio and cluster (accessory) |
| 58 | — | Not used |
| 59 | 7.5A | Light switch (headlamps) |
| 60 | 7.5A | Air bag module |
| 61 | 7.5A | PATS modules, instrument cluster |
| 62 | 7.5A | Radio (Start) |
| 63 | 20A | Power locks (GEM) |

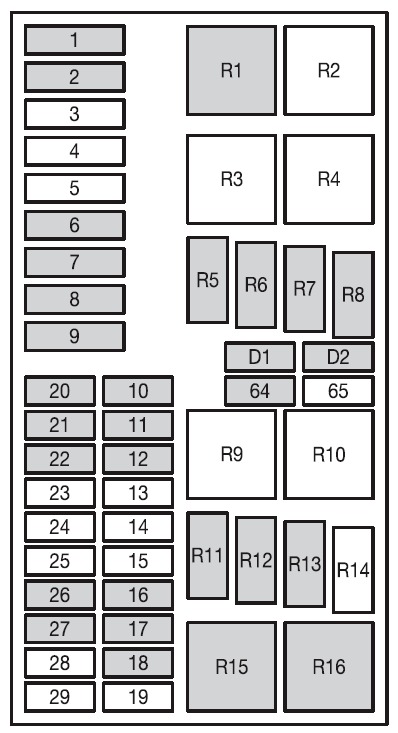

Engine Compartment Fuse Box Diagram
Ford Focus (1999)
| Fuse | Ampere Rating | Circuits Protected |
| 1¹ | 40A | Main power supply to electrical system |
| 2 | – | Not used |
| 3 | 40A | Glow plug heater 2 |
| 4¹ | 50A | Heated front screen |
| 5¹ | 60A | Diesel glow plug |
| 6¹ | 30A | Engine cooling fan (air conditioning) |
| 7¹ | 40A | Main power supply to electrical system |
| 8¹ | 30A | Ignition |
| 9¹ | 20A | Engine management |
| 10 | 1A | Battery voltage sensor |
| 11 | 30A | ABS pump |
| 12 | 15A | Fuel pump, diesel injection pump |
| 13 | 30A | Headlight washer system |
| 14 | 10A | Daytime running lights (parking lights) |
| 15 | 10A | A/C clutch solenoid |
| 16 | 15A | Dipped beam left-hand side |
| 17 | 15A | Dipped beam right-hand side |
| 18 | 10A | HO2S sensor transmitter (catalytic converter) |
| 19 | – | Not used |
| 20 | 10A | Engine management |
| 21 | 20A | ABS valves |
| 22 | 20A | Daytime running lights (Xenon headlights only) |
| 23 | 20A | Auxiliary heater (diesel engine), power supply for battery backup sounder (ST170 only) |
| 24 | 30A | Glow plug heater 1, subwoofer (ST170 only) |
| 25 | 15A | Daytime running lights (conventional headlights only) |
| 26 | 10A | Main beam left-hand side |
| 27 | 10A | Main beam right-hand side |
| 28 | 10A | Heated front screen, diesel fuel fired heater, diesel engine |
| 29 | 30A | Engine cooling fan (air conditioning) |
| 64 | 30A | Heater blower motor |
| 65 | 30A | Engine cooling fan |
Ford Focus (2000 to 2001)
| Fuse/Relay | Amp Rating | Description |
|---|
| Fuse 1 | 40A | Main power supply to electrical system |
| Fuse 2 | 30A | Engine cooling fan (A/C) 2nd fuse |
| Fuse 3 | — | Not used |
| Fuse 4 | — | Not used |
| Fuse 5 | — | Not used |
| Fuse 6 | 50A | Engine cooling fan (A/C) 1st fuse |
| Fuse 7 | 40A | Main power supply to electrical system |
| Fuse 8 | 30A | Ignition |
| Fuse 9 | 20A | Engine management |
| Fuse 10 | 10A | Battery voltage sensor, diagnostic plug |
| Fuse 11 | 30A | ABS |
| Fuse 12 | 15A | Fuel pump |
| Fuse 13 | — | Not used |
| Fuse 14 | — | Not used |
| Fuse 15 | — | Not used |
| Fuse 16 | 10A | Low beam (left side) |
| Fuse 17 | 10A | Low beam (right side) |
| Fuse 18 | 10A | Heated oxygen sensors |
| Fuse 19 | — | Not used |
| Fuse 20 | 10A | Engine management |
| Fuse 21 | 20A | ABS |
| Fuse 22 | 20A | DRL (low beams) |
| Fuse 23 | — | Not used |
| Fuse 24 | — | Not used |
| Fuse 25 | — | Not used |
| Fuse 26 | 10A | High beam (left side) |
| Fuse 27 | 10A | High beam (right side) |
| Fuse 28 | — | Not used |
| Fuse 29 | — | Not used |
| Fuse 64 | 30A | Heater blower motor |
| Fuse 65 | — | Not used |
| Relay 1 | — | Ignition |
| Relay 2 | — | Not used |
| Relay 3 | — | Not used |
| Relay 4 | — | Not used |
| Relay 5 | — | High beams |
| Relay 6 | — | Low beams |
| Relay 7 | — | Fuel pump |
| Relay 8 | — | Engine management |
| Relay 9 | — | Not used |
| Relay 10 | — | Not used |
| Relay 11 | — | Air conditioning |
| Relay 12 | — | Daytime running lights |
| Relay 13 | — | Fog lamps |
| Relay 14 | — | Not used |
| Relay 15 | — | Engine cooling fan level 2 (A/C) |
| Relay 16 | — | Engine cooling fan level 1 |
Ford Focus (2002 )
| Fuse/Relay | Amp Rating | Description |
|---|
| Fuse 1 | 40A | Main power supply to electrical system |
| Fuse 2 | 30A | Engine cooling fan (A/C) 2nd fuse |
| Fuse 3 | — | Not used |
| Fuse 4 | — | Not used |
| Fuse 5 | — | Not used |
| Fuse 6 | 50A | Engine cooling fan (A/C) 1st fuse |
| Fuse 7 | 40A | Main power supply to electrical system |
| Fuse 8 | 30A | Ignition switch, starter |
| Fuse 9 | 20A | Engine management |
| Fuse 10 | 10A | Battery voltage sensor |
| Fuse 11 | 30A | ABS |
| Fuse 12 | 15A | Fuel pump |
| Fuse 13 | — | Not used |
| Fuse 14 | — | Not used |
| Fuse 15 | 10A | A/C clutch solenoid |
| Fuse 16 | 10A / 15A | Low beam (left side): 10A conventional headlamps / 15A HID headlamps |
| Fuse 17 | 10A / 15A | Low beam (right side): 10A conventional headlamps / 15A HID headlamps |
| Fuse 18 | 10A | Heated oxygen sensors |
| Fuse 19 | — | Not used |
| Fuse 20 | 10A | Engine module |
| Fuse 21 | 20A | ABS |
| Fuse 22 | 20A | Low beam (DRL) |
| Fuse 23 | — | Not used |
| Fuse 24 | 30A | MACH 500 subwoofer |
| Fuse 25 | 30A | MACH 500 subwoofer |
| Fuse 26 | 10A | High beam (left side) |
| Fuse 27 | 10A | High beam (right side) |
| Fuse 28 | — | Not used |
| Fuse 29 | — | Not used |
| Fuse 64 | 40A | Heater blower motor |
| Relay 1 | — | Ignition |
| Relay 2 | — | Not used |
| Relay 3 | — | Not used |
| Relay 4 | — | Not used |
| Relay 5 | — | High beams |
| Relay 6 | — | Low beams |
| Relay 7 | — | Fuel pump |
| Relay 8 | — | Engine management |
| Relay 9 | — | Not used |
| Relay 10 | — | Not used |
| Relay 11 | — | Air conditioning |
| Relay 12 | — | Daytime running lights |
| Relay 13 | — | Fog lamps |
| Relay 14 | — | Stop lamp inhibit relay (AdvanceTrac® only) |
| Relay 15 | — | Engine cooling fan level 2 (A/C) |
| Relay 16 | — | Engine cooling fan level 1 |
Ford Focus (2003 to 2004)
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
|---|
| 1 | 40A | Main power supply to electrical system |
| 2 | 30A | Engine cooling fan (A/C) 2nd fuse |
| 3 | 30A | Cooling fan (2.0L engine only) |
| 4 | 30A | Air pump motor |
| 5 | 30A | Cooling fan 2 (2.0L engine only) |
| 6 | 50A | Engine cooling fan (A/C) 1st fuse |
| 7 | 40A | Main power supply to electrical system |
| 8 | 30A | Ignition switch, starter |
| 9 | 20A | Engine management |
| 10 | 10A / 1A | Battery voltage sensor — 10A (2.0L engine only), 1A (2.3L engine only) |
| 11 | 30A | Anti-lock Brake System (ABS) |
| 12 | 15A | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10A | A/C clutch solenoid |
| 16 | 10A / 15A | Low beam (left side) — 10A conventional headlamps, 15A HID headlamps |
| 17 | 10A / 15A | Low beam (right side) — 10A conventional headlamps, 15A HID headlamps |
| 18 | 10A / 15A | Heated oxygen sensors — 10A (2.0L engine only), 15A (2.3L engine only) |
| 19 | — | Not used |
| 20 | 10A | Engine module |
| 21 | 20A | ABS |
| 22 | 20A | Low beam (DRL) |
| 23 | — | Not used |
| 24 | 30A | Subwoofer |
| 25 | — | Not used |
| 26 | 10A / — | High beam (left) (2003); Not used (2004) |
| 27 | 10A | High beam (right) |
| 28 | — | Not used |
| 29 | — | Not used |
| 64 | 40A | Heater blower motor |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay |
| R3 | — | Cooling fan (Run-on fan) relay (2.3L engine only) |
| R4 | — | Not used |
| R5 | — | High beams relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay (2.0L engine only) |
| R10 | — | Cooling fan 2 relay (2.0L engine only) |
| R11 | — | Air conditioning relay |
| R12 | — | Daytime Running Lamps (DRL) relay |
| R13 | — | Fog lamps relay |
| R14 | — | HID lamps (SVT only) |
| R15 | — | Cooling fan high speed (A/C only) relay (2.0L engine only) |
| R16 | — | Cooling fan low speed relay |
| D1 | — | PCM diode |
| D2 | — | Cooling fan diode |
| D3 | — | A/C clutch diode |
Ford Focus (2005)
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
|---|
| 1 | 40A | Main power supply (to passenger compartment fuse panel) |
| 2 | 30A | Engine cooling fan (Secondary fuse) |
| 3 | 40A | Heater blower motor |
| 4 | 30A | Air pump motor (PZEV engine only) |
| 5 | — | Not used |
| 6 | 50A | Engine cooling fan (Primary fuse) |
| 7 | 40A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30A | Ignition switch, starter solenoid |
| 9 | 20A | Engine management |
| 10 | 1A | Battery voltage sense |
| 11 | 30A | Anti-lock Brake System (ABS) (pumps) |
| 12 | 15A | Fuel pump |
| 13 | — | Not used |
| 14 | — | Not used |
| 15 | 10A | A/C clutch solenoid |
| 16 | 10A | Low beam (left-hand side) |
| 17 | 10A | Low beam (right-hand side) |
| 18 | 15A | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 19 | — | Not used |
| 20 | 10A | Engine module (KAP) |
| 21 | 20A | ABS (valves) |
| 22 | 20A | Daytime Running Lights (DRL) |
| 23 | — | Not used |
| 24 | 30A | Subwoofer |
| 25 | — | Not used |
| 26 | 10A | Left high beam |
| 27 | 10A | Right high beam |
| 28 | — | Not used |
| 29 | — | Not used |
| R1 | — | Ignition relay |
| R2 | — | Air pump motor relay (PZEV engine only) |
| R3 | — | Cooling fan (high-speed) |
| R4 | — | Cooling fan (medium-speed) |
| R5 | — | High beams relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay |
| R10 | — | Cooling fan relay |
| R11 | — | A/C clutch solenoid relay |
| R12 | — | DRL relay |
| R13 | — | Fog lamps relay |
| R14 | — | Not used |
| R15 | — | Not used |
| R16 | — | Not used |
| D1 | — | PCM diode |
| D2 | — | Cooling fan diode |
| D3 | — | A/C clutch diode |
| D4 | — | Cooling fan diode |
Ford Focus (2006 to 2007)
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
|---|
| 1 | 40A | Main power supply (to passenger compartment fuse panel) |
| 2 | — | Not used |
| 3 | — | Not used |
| 4 | 30A | Air pump motor (PZEV engine only) |
| 5 | 30A | Anti-lock Brake System (ABS) (pumps) |
| 6 | 50A | Engine cooling fan (Primary fuse) |
| 7 | 40A | Main power supply (to passenger compartment fuse panel) |
| 8 | 30A | Ignition switch, starter solenoid |
| 9 | 20A | Engine management |
| 10 | 1A | Battery voltage sense |
| 11 | 30A | Subwoofer |
| 12 | 15A | Fuel pump motor |
| 13 | 20A | Anti-lock Brake System (ABS) (valves) |
| 14 | — | Not used |
| 15 | — | Not used |
| 16 | 10A | Low beam (left-hand side) |
| 17 | 10A | Low beam (right-hand side) |
| 18 | 15A | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 19 | 40A | Heater blower motor |
| 20 | 10A | Engine module (KAP) |
| 21 | 10A | A/C |
| 22 | 20A | Low beams |
| 23 | 15A | High beams, fog lamps |
| 24 | — | Not used |
| 25 | — | Not used |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | — | Not used |
| 29 | 10A | ABS module, speed control |
| R1 | — | Ignition relay |
| R2 | — | High beam relay, fog lamps relay |
| R3 | — | Cooling fan (high-speed) |
| R4 | — | Cooling fan (low-speed) |
| R5 | — | A/C relay |
| R6 | — | Low beams relay |
| R7 | — | Fuel pump relay |
| R8 | — | Engine management relay |
| R9 | — | Cooling fan relay |
| R10 | — | Cooling fan relay |
| R11 | — | Not used |
| R12 | — | Not used |
| R13 | — | Not used |
| R14 | — | Not used |
| R15 | — | Air pump motor relay |
| R16 | — | Not used |
| D1 | — | Not used |
| D2 | — | Not used |
| D3 | — | A/C clutch diode |
| D4 | — | Not used |
