Nissan Murano (2009 – 2014) Fuse Box Location & Diagrams
Maintaining your second-generation Nissan Murano starts with knowing how to handle its electrical vitals. Whether you’re dealing with a dead power outlet or a flickering headlight, locating the right fuse can save you a costly trip to the mechanic. This comprehensive guide covers all fuse box locations and provides detailed diagrams for the 2009–2014 Nissan Murano to help you troubleshoot with confidence.
Instrument Panel Fuse Box
Nissan Murano (2009 To 2014)

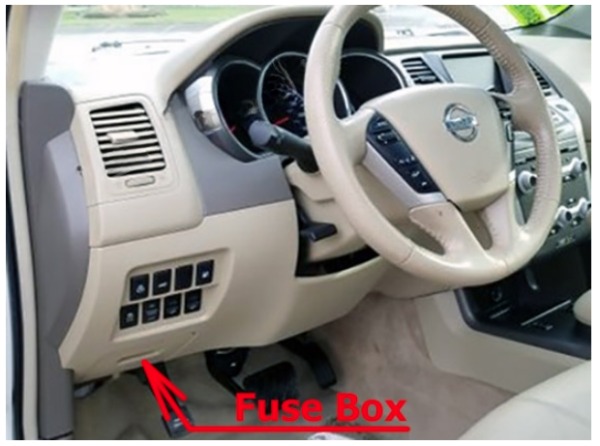

Fuse box location
Fuse box diagram

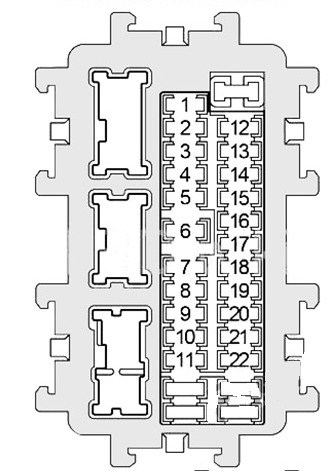

Left-hand drive vehicles

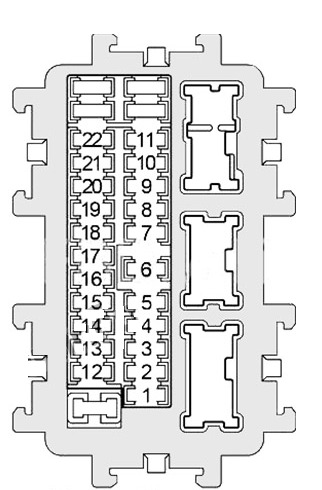

Right-hand drive vehicles
| № | Amp | Description |
|---|---|---|
| 1 | 15 | Front Heated Seat |
| 2 | 10 | AirBag Diagnosis Sensor Unit |
| 3 | 10 | Automatic Back Door Control Unit, ASCD Brake Switch, Stop Lamp Switch, Headlamp Aiming Motor, Electronic Controlled Engine Mount Control Solenoid Valve, Data Link Connector, Steering Angle Sensor, Air Conditioner Amplifier, Heated Seat Relay, Power Steering Control Unit, BCM (Body Control Module), Navi Control Unit, Option Connector, Video Distributor, Auto Anti-Dazzling Inside Mirror, Auto Levelizer Control Unit |
| 4 | 10 | Combination Meter, Back-Up Lamp Relay |
| 5 | 10 | Fuel Lid Opener Relay |
| 6 | 10 | Intelligent Key Warning Buzzer, Data Link Connector, Air Conditioner Amplifier, Automatic Back Door Control Unit, Automatic Back Door Warning Buzzer, Vehicle Tilt Sensor, Siren Control Unit, Rear Seatback Power Return Control Unit, Light & Rain Sensor |
| 7 | 10 | Stop Lamp Switch, BCM (Body Control Module) |
| 8 | – | Not Used |
| 9 | 10 | Key Slot, Security Indicator Lamp, Push-Button Ignition Switch |
| 10 | 10 | Seat Memory Switch, BCM (Body Control Module) |
| 11 | 10 | Combination Meter, Transmission Control Module (TCM) |
| 12 | – | Not Used |
| 13 | 10 | Door Mirror Defogger, Air Conditioner Amplifier |
| 14 | 20 | Rear Window Defogger |
| 15 | 20 | Rear Window Defogger |
| 16 | – | Not Used |
| 17 | – | Not Used |
| 18 | 15 | Cigarette Lighter Socket |
| 19 | 10 | Audio, Front Display, Air Conditioner Amplifier, Rear Display, Navi Control Unit, DVD Player, Video Distributor, Camera Control Unit, Power Socket Relay, BCM (Body Control Module), Multifunction Switch, Door Mirror Remote Control Switch |
| 20 | 15 | Front Power Socket |
| 21 | 15 | Blower Motor |
| 22 | 15 | Blower Motor |

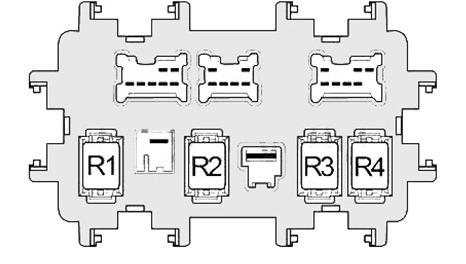

| Relays | ||
| R1 | Ignition | |
| R2 | Rear Window Defogger | |
| R3 | Accessory | |
| R4 | Front Blower |
Engine Compartment Fuse box
Nissan Murano (2009 To 2014)

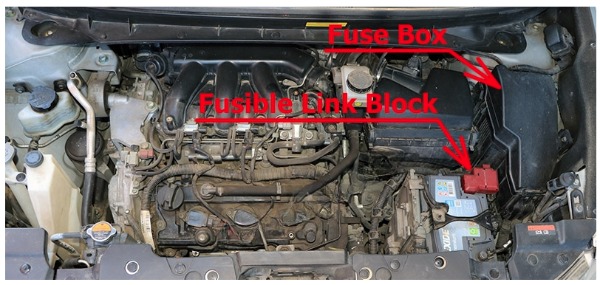

Fuse box location

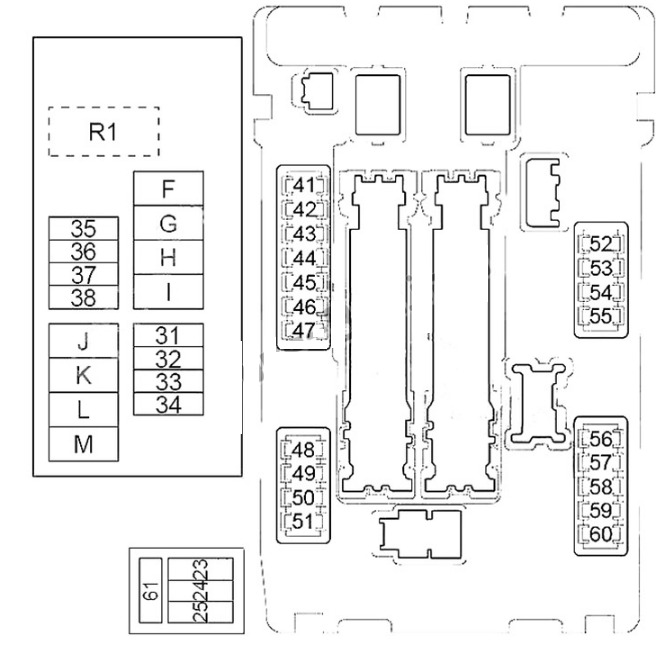

Fuse box diagram
| № | Amp | Description |
|---|---|---|
| 23 | 15 | BOSE Amplifier |
| 24 | 15 | BOSE Amplifier |
| 25 | 15 | Woofer |
| 31 | 20 | Option Connector |
| 32 | 15 | Rear Seatback Power Return Control Unit |
| 33 | 20 | Power Socket Relay |
| 34 | 20 | Heated Seat Relay |
| 35 | 20 | Audio, Front Display, Rear Display, Navi Control Unit, DVD Player, Video Distributor, Camera Control Unit |
| 36 | 15 | 4WD Control Unit |
| 37 | 10 | Horn Relay |
| 38 | 15 | Generator, Vehicle Security Horn Relay |
| F | 40 | ABS |
| G | 40 | ABS |
| H | – | Not Used |
| I | 50 | Ignition Relay (Fuses 1, 2, 3, 4), IPDM E/R |
| J | 40 | Circuit Breaker (Automatic Back Door Control Module) |
| K | 40 | Cooling Fan Relay 2, Cooling Fan Relay 3 |
| L | 40 | BCM (Body Control Module), Circuit Breaker (Automatic Drive Positioner Control Unit, Driver Seat Control, Lumbar Support Switch) |
| M | 40 | Cooling Fan Motor 1 |
| 41 | 15 | Fuel Pump Relay |
| 42 | 10 | Cooling Fan Relay 2, Cooling Fan Relay 3 |
| 43 | 10 | Secondary Speed Sensor, Transmission Control Module (TCM) |
| 44 | 10 | Injectors, Engine Control Module (ECM) |
| 45 | 10 | ABS, 4WD Control Unit |
| 46 | 15 | Air Fuel Ratio Sensor, Heated Oxygen Sensor |
| 47 | 10 | Combination Switch |
| 48 | 10 | Steering Lock Relay |
| 49 | 10 | Air Conditioner Relay |
| 50 | 15 | Engine Control Module Relay (VIAS Control Solenoid, Intake Valve Timing Control Solenoid Valve, Condenser, Ignition Coils, Engine Control Module, Mass Air Flow Sensor, EVAP Canister Purge Volume Control Solenoid Valve) |
| 51 | 15 | Throttle Control Motor Relay |
| 52 | 10 | Parking Lamp |
| 53 | 10 | Rear Combination Lamp, License Plate Lamp, Mood Lamp Center, Map Lamp, Front Heated Seat Switch, Rear Heated Seat Switch, Option Connector, ESP Off Switch, 4WD Lock Switch, Ashtray Illumination, Cluster Illumination, Glove Box Lamp, Combination Switch (Spiral Cable), Hazard Switch, Control Device Illumination, Automatic Back Door Main Switch, Automatic 8ack Door Switch, Front Power Return Switch, Multifunction Switch, Navi Control Unit, DVD Player, Door Mirror Remote Control Switch, Front Door Insioe Handle Illumination, Auto Levelizer Control Unit |
| 54 | 10 | Headlamp High (left) |
| 55 | 10 | Headlamp High (right) |
| 56 | 15 | Headlamp Low (left) |
| 57 | 15 | Headlamp Low (right) |
| 58 | 15 | Front Fog Lamp Relay |
| 59 | 10 | Daytime Running Light Relay |
| 60 | 30 | Front Wiper Relay |
| 61 | 40 | Headlamp Washer Relay |
| R1 | – | Horn Relay |

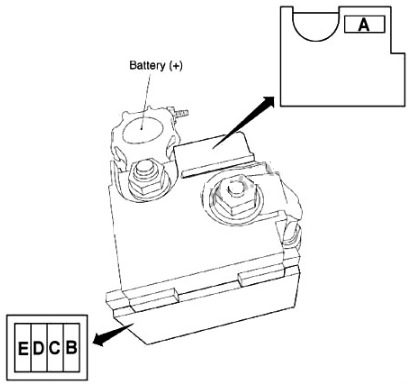

Fusible Link Block (Main Fuses)
It is located on the positive terminal of the battery
| № | Amp | Description |
|---|---|---|
| A | 250 | Generator, Starter, Fuses B, C |
| B | 100 | Fuses F, G, I, J, K, L, M, 31, 32, 33, 34, 35, 36, 37, 38 |
| C | 60 | Headlamp High Relay (Fuses 54, 55), Headlamp Low Relay (Fuses 56, 57), Tail Lamp Relay (Fuses 52, 53), Fuses 58, 59, 60 |
| D | 100 | Accessory Relay (Fuses 18, 19, 20), Rear Window Defogger Relay (Fuses 13, 14, 15), Blower Relay (Fuses 21, 22), Fuses 5, 6, 7, 9, 10, 11, 23, 24, 25, 61 |
| E | 80 | Ignition Relay (Fuses 41, 42, 43, 44, 45, 46, 47), Fuses 48, 49, 50, 51 |
