Geely E5 2026 Fuse Box Location & Diagrams
The Geely E5 (2026) uses fuses to protect important electrical circuits and components. Knowing the correct fuse locations and assignments helps with troubleshooting electrical problems. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Geely E5.
Fuse Box Location

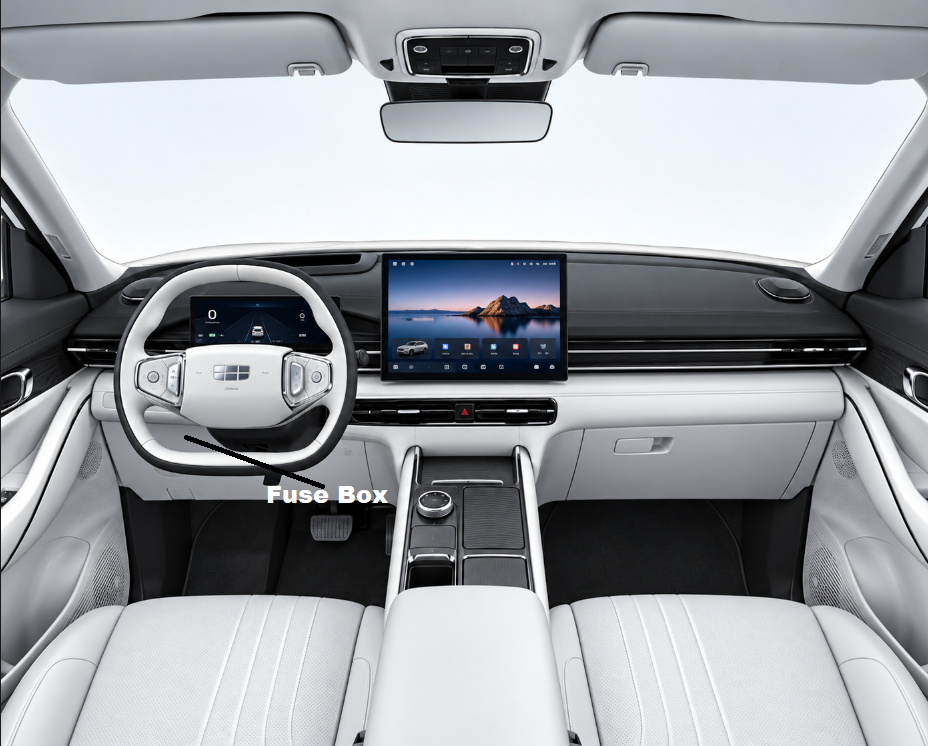

Passenger Compartment Fuse Box

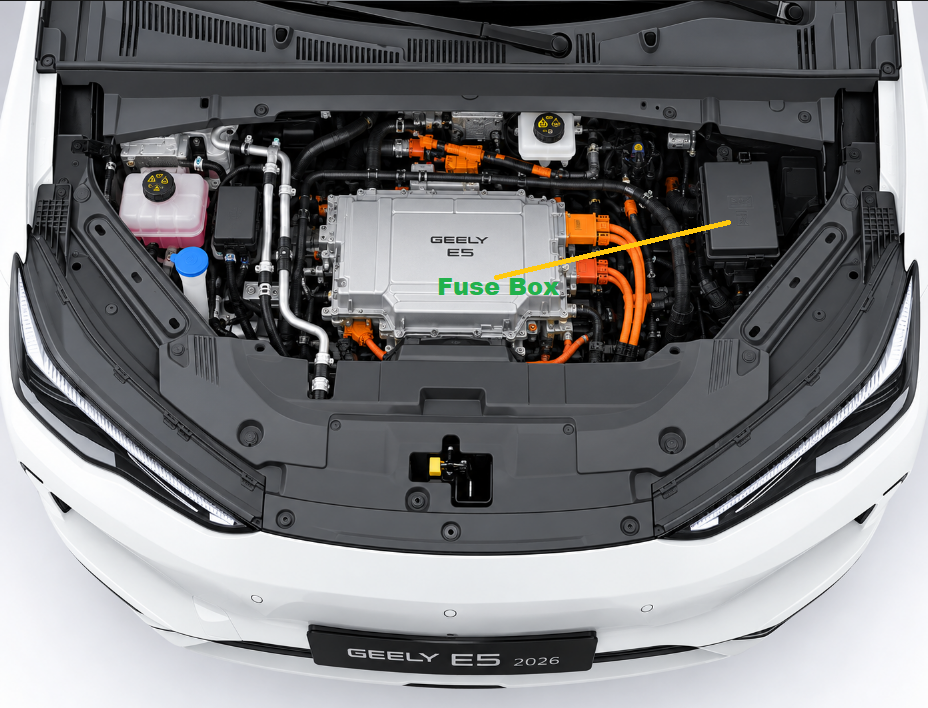

Engine Compartment Fuse Box
Fuse Box Diagrams

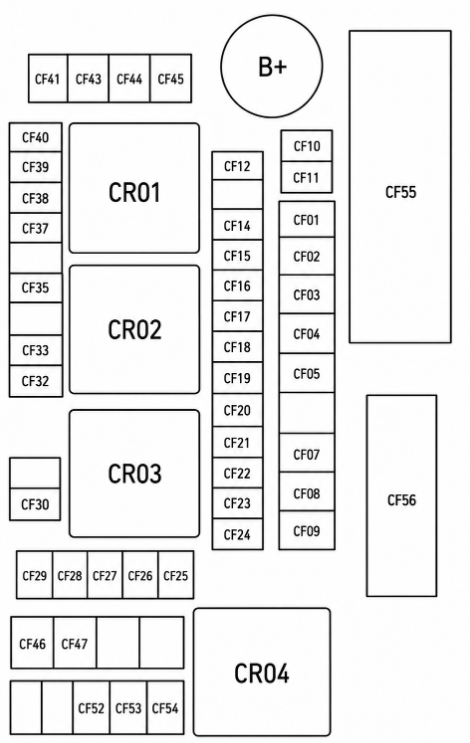

Passenger Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| CF01 | ZCUD_KL30_B | 30A | – |
| CF02 | ZCUP_KL30_A | 30A | – |
| CF03 | COMFORT_POWER* | 30A | – |
| CF04 | AUD* | 30A | – |
| CF05 | PASSENGER_SEAT* | 30A | – |
| CF07 | POT* | 30A | – |
| CF08 | DRIVER_SEAT* | 30A | – |
| CF09 | ZCUD_KL30_E* | 30A | – |
| CF10 | ZCUD_KL30_D | 30A | – |
| CF11 | SODL*/SODR* | 5A | – |
| CF12 | RLY_COIL | 7.5A | – |
| CF14 | ETC | 10A | – |
| CF15 | DHU | 20A | – |
| CF16 | ZCUP_KL30_B | 30A | – |
| CF17 | ZCUP_KL30_C | 30A | – |
| CF18 | OBD | 10A | – |
| CF19 | RLSM/ALCOHOL-DM | 5A | – |
| CF20 | TCAM* | 5A | – |
| CF21 | SWM | 5A | – |
| CF22 | CSD/DIS | 10A | – |
| CF23 | ZCUP_KL30D* | 30A | – |
| CF24 | ASDM* | 5A | – |
| CF25 | HDLP_ADJUST/SEAT_MASSAGE* | 7.5A | – |
| CF26 | HUD* | 5A | – |
| CF27 | DMC*/IRMM* | 5A | – |
| CF28 | SRM* | 30A | – |
| CF29 | WPC_15W | 5A | – |
| CF30 | SUS*/OHC* | 7.5A | – |
| CF32 | POWER_OUTLET | 15A | – |
| CF33 | FRONT/REAR_USB | 15A | – |
| CF35 | ETC_IG/ETCM | 5A | – |
| CF37 | IGN | 5A | – |
| CF38 | SRS | 5A | – |
| CF39 | SWM/PDCM | 5A | – |
| CF40 | APS | 5A | – |
| CF41 | IP_SW*/DDS/IRRM* | 5A | – |
| CF43 | DAB* | 5A | – |
| CF44 | FSRL*/FSRR* | 5A | – |
| CF45 | ETCM | 5A | – |
| CF46 | TRM_1* | 40A | – |
| CF47 | TRM_2* | 25A | – |
| CF52 | SMB_SW* | 5A | – |
| CF53 | SW_HEAT* | 15A | – |
| CF54 | SMB* | 25A | – |
| CF55 | BATTERY | 250A | – |
| CF56 | EPAS | 100A | – |

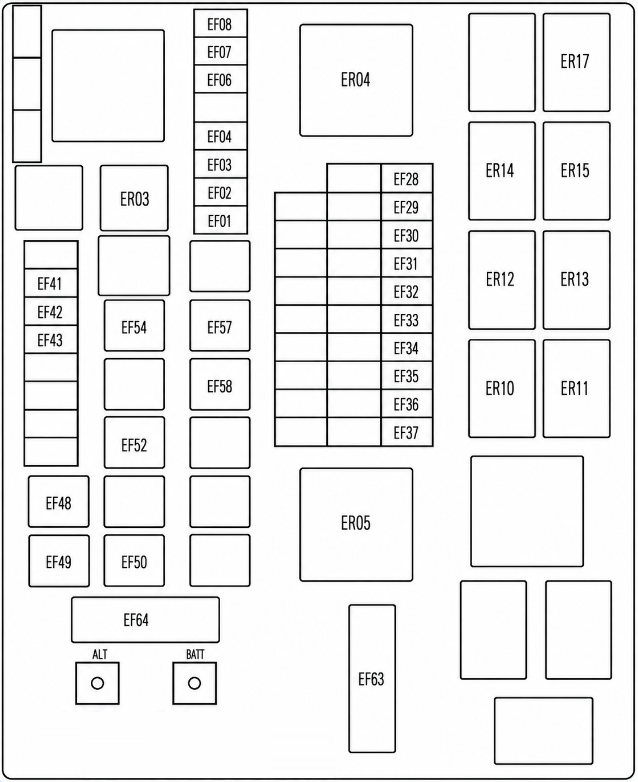

Engine Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| EF01 | BRAKE_SW | 5A | – |
| EF02 | BECM | 10A | – |
| EF03 | REAR_WIPER | 15A | – |
| EF04 | WASHER | 20A | – |
| EF06 | RLY_COIL | 7.5A | – |
| EF07 | HORN | 15A | – |
| EF08 | Windscreen_Heat* | 15A | – |
| EF28 | BCPF* | 25A | – |
| EF29 | HCWP* | 25A | – |
| EF30 | EDCP* | 25A | – |
| EF31 | CPSR_RLY_FB | 5A | – |
| EF32 | EXV*/EEXV*/BEXV* | 10A | – |
| EF33 | PTC* | 10A | – |
| EF34 | TMCU_CPSR* | 5A | – |
| EF35 | ACCM/VALVE_Component* | 7.5A | – |
| EF36 | AGS | 7.5A | – |
| EF37 | PWM_FAN | 5A | – |
| EF41 | ZCUD_KL30_C | 30A | – |
| EF42 | EOP | 20A | – |
| EF43 | XCU | 7.5A | – |
| EF48 | BCM_UB_MR | 60A | – |
| EF49 | TMCU* | 60A | – |
| EF50 | BLOWER | 40A | – |
| EF52 | WWM | 30A | – |
| EF54 | REAR_DEFROST | 40A | – |
| EF57 | BCM_UB_VR | 40A | – |
| EF58 | ZCUD_KL30_A | 30A | – |
| EF63 | PWM_FAN | 60A | – |
