Geely STARRAY EM-i 2026 Fuse Box Location & Diagrams
The Geely STARRAY EM-i (2026) uses fuses to protect important electrical circuits and components. Knowing the correct fuse locations and assignments helps with troubleshooting electrical problems. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Geely STARRAY EM-i.
Fuse Box Location

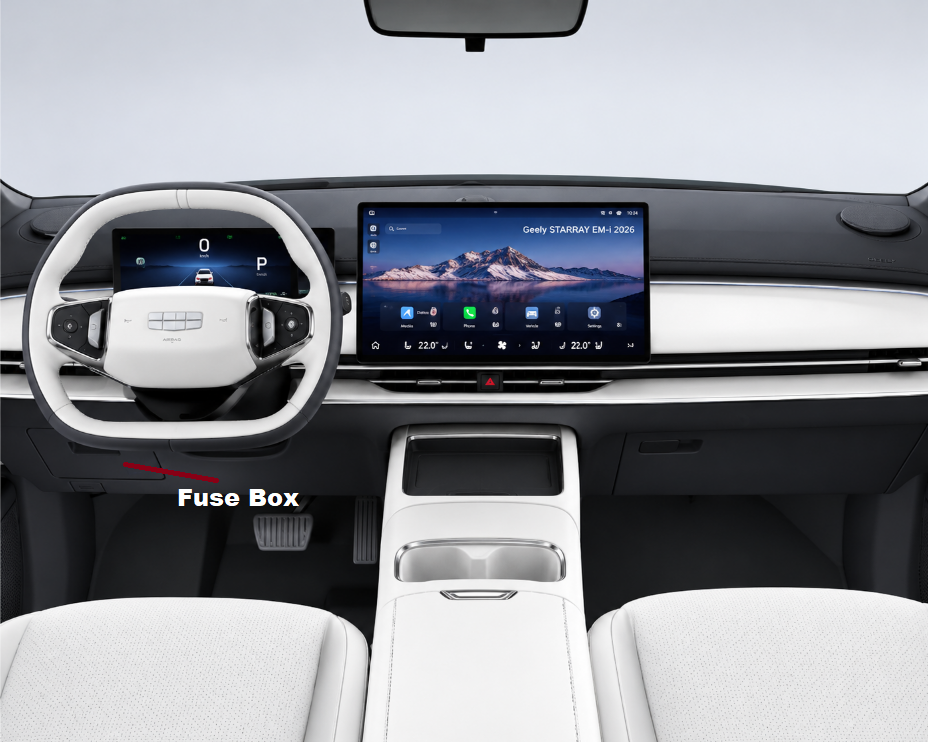

Passenger Compartment Fuse Box
Located inside the cabin on the driver’s side. You can find it behind a removable panel near the lower part of the dashboard, typically close to the driver’s left knee or small item storage compartment.

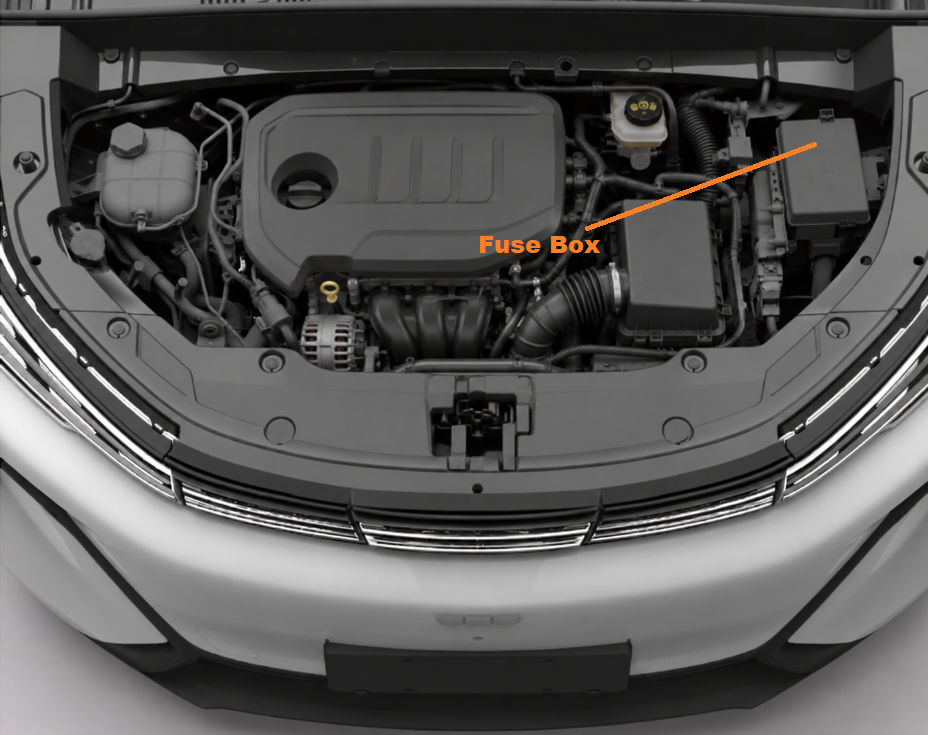

Engine Compartment Fuse Box
Located under the hood in the engine bay. It is positioned under a protective cover on the side of the compartment and houses high-voltage and main engine-system fuses.
Fuse Box Diagrams

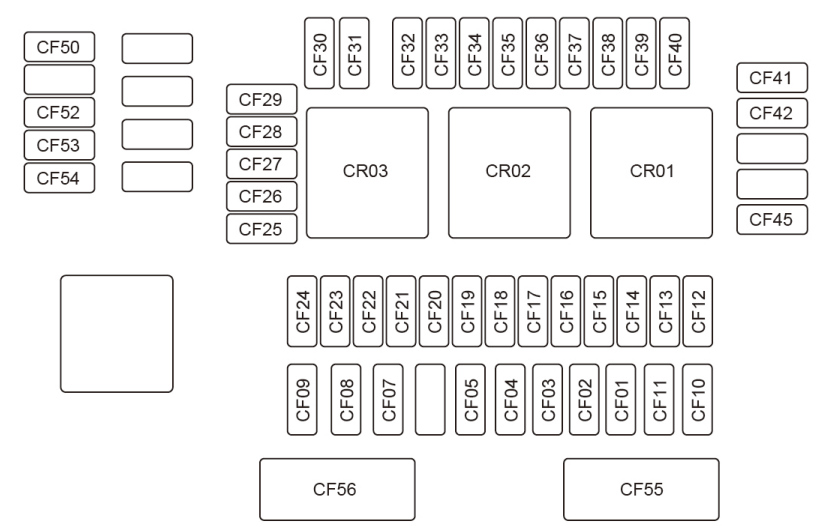

Passenger Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| CF01 | Zone Controller Unit Driver ZCUD | 30A | – |
| CF02 | Zone Controller Unit Passenger ZCUP | 30A | – |
| CF03 | Comfort RLY* | 30A | – |
| CF04 | Audio Module AUD* | 30A | – |
| CF05 | Passenger Seat Connection* | 30A | – |
| CF07 | Power Operated Tailgate POT* | 30A | – |
| CF08 | Driver Seat Connection* | 30A | – |
| CF09 | Zone Controller Unit Driver ZCUD | 30A | – |
| CF10 | Zone Controller Unit Driver ZCUD | 30A | – |
| CF11 | Side Obstacle Detection Left SODL* & Side Obstacle Detection Right SODR* | 5A | – |
| CF12 | Comfort RLY* & Power Outlet Relay & IGN Relay & Battery Saver Relay | 5A | – |
| CF13 | Telematics and Connectivity Antenna Module TCAM & TCAM Antenna Inline* | 5A | – |
| CF14 | Diagnostic Socket OBD & Docking Station Alcohol Lock Sensor* | 10A | – |
| CF15 | Display Head Unit Module DHU | 25A | – |
| CF16 | Zone Controller Unit Passenger ZCUP | 30A | – |
| CF17 | Zone Controller Unit Passenger ZCUP | 30A | – |
| CF18 | Charger and DC/DC Module CDD | 10A | – |
| CF19 | Rain and Light Sensor Module RLSM & DAB FM Radio Receiver* | 5A | – |
| CF20 | Radio Frequency Antenna RFA* | 5A | – |
| CF21 | Steering Wheel Module SWM | 5A | – |
| CF22 | Center Stack Display CSD | 10A | – |
| CF23 | Zone Controller Unit Passenger ZCUP | 30A | – |
| CF24 | Active Safety Domain Master ASDM* | 5A | – |
| CF25 | LH Headlamp Unit & RH Headlamp Unit | 10A | – |
| CF26 | Head Up Display HUD* & Docking Station Alcohol Lock Sensor* & Interior Rear View Mirror Module IRMM* | 5A | – |
| CF27 | Digital Video Recorder DVR | 5A | – |
| CF28 | Sunroof Control Module SRM* | 30A | – |
| CF29 | Wireless Phone Charger WPC* | 5A | – |
| CF30 | Overhead Console OHC & Glovebox Lid Switch* & Vanity Mirror Illumination Lamp Sunvisor* | 5A | – |
| CF31 | Ambient Light* | 5A | – |
| CF32 | Power Outlet Tunnel Console | 15A | – |
| CF33 | USB Charging Port Front Right & USB Charging Port Tunnel Rear | 15A | – |
| CF34 | Steering Wheel Module SWM & TCAM Antenna Inline* | 5A | – |
| CF35 | Electronic Toll Collect Module ETCM | 5A | – |
| CF36 | Power Steering Control Module PSCM | 5A | – |
| CF37 | Zone Controller Unit Driver ZCUD & Zone Controller Unit Passenger ZCUP | 5A | – |
| CF38 | Supplementary Restraint System SRS | 5A | – |
| CF39 | Parking Assistance Sensor* | 5A | – |
| CF40 | Inline Floor 2nd Row Seat* | 5A | – |
| CF41 | Center Console Switch Module CCSM & Driver Door Switches DDS & Interior Radar Module Rear IRRM* | 5A | – |
| CF42 | Driver Information Display | 5A | – |
| CF45 | Digital Video Recorder DVR & Electronic Toll Collect Module ETCM | 5A | – |
| CF50 | Powertrain Control Module PCM & Engine Control Module ECM & Brake Control Module BCM & Accelerator Pedal Sensor | 20A | – |
| CF52 | Right Rear Seat Heating Switch* & Left Rear Seat Heating Switch* | 5A | – |
| CF53 | HSW Power* | 15A | – |
| CF54 | Inline Floor 2nd Row Seat* | 15A | – |
| CF55 | Hybrid Distribution Box | 350A | – |
| CF56 | Power Steering Control Module PSCM | 100A |

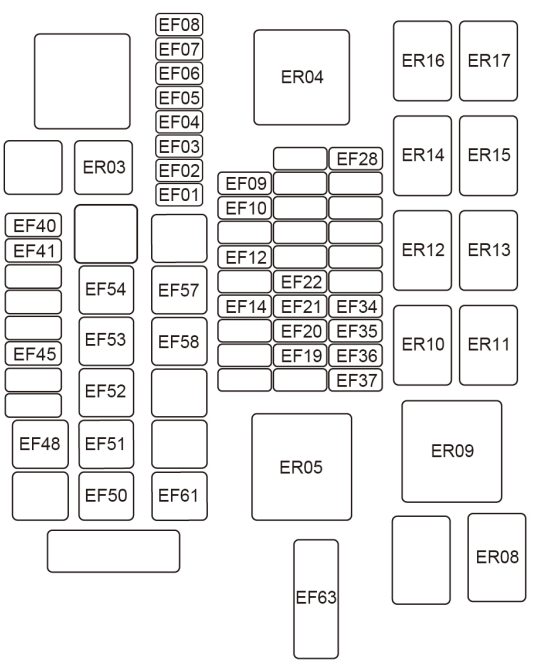

Engine Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| EF01 | Brake Pedal Sensor | 5A | – |
| EF02 | High Voltage Battery | 10A | – |
| EF03 | Rear Wiper Motor | 15A | – |
| EF04 | Front/Rear Washer Pump | 15A | – |
| EF05 | Engine Control Module ECM | 10A | – |
| EF06 | Front Wiper High Relay & Front Wiper Low Relay & Defrost Relay & Front Washer Relay & Rear Washer Relay & Rear Wiper Relay & Windscreen Heat Relay* | 5A | – |
| EF07 | Horn 1 & Horn 2 | 20A | – |
| EF08 | Heated Windscreen* | 15A | – |
| EF09 | HVAC Cooling Shut Off Valve & Battery Electric Expansion Valve Module BEXV | 10A | – |
| EF10 | Powertrain Control Module PCM & Electric AC Compressor & Inline HVAC Main Connector & Electric Vehicle Communication Controller EVCC | 10A | – |
| EF12 | Electric Drivetrain Coolant Pump EDCP | 20A | – |
| EF14 | High Voltage Battery | 10A | – |
| EF19 | Powertrain Control Module PCM & Engine Control Module ECM | 5A | – |
| EF20 | Brake Control Module BCM | 5A | – |
| EF21 | Accelerator Pedal Sensor | 5A | – |
| EF22 | Fuel Pump | 20A | – |
| EF28 | Injector 1 & Injector 2 & Injector 3 & Injector 4 | 15A | – |
| EF34 | Spark Plug 4 + Ignition Coil 1 & Spark Plug 2 + Ignition Coil 2 & Spark Plug 3 + Ignition Coil 3 & Spark Plug 4 + Ignition Coil 4 | 15A | – |
| EF35 | Oxygen Sensor 1 (LH Front) & Oxygen Sensor Rear | 15A | – |
| EF36 | Engine Control Module ECM | 20A | – |
| EF37 | Solenoid Variable Valve Time VVT Inlet & EVAP Purge Valve & Engine Oil Pump Solenoid & Fuel Tank Isolation Valve & Pump Fuel Leakage Control DMTL* | 10A | – |
| EF40 | Powertrain Control Module PCM | 15A | – |
| EF41 | Zone Controller Unit Driver ZCUD | 30A | – |
| EF45 | Electric Vehicle Communication Controller EVCC | 5A | – |
| EF48 | Brake Control Module BCM | 60A | – |
| EF50 | Inline HVAC Main Connector | 40A | – |
| EF51 | CPSR Relay | 40A | – |
| EF52 | Windscreen Wiper Motor WWM | 30A | – |
| EF53 | Heated Windscreen R* | 40A | – |
| EF54 | Heated Rear Window | 40A | – |
| EF57 | Brake Control Module BCM | 60A | – |
| EF58 | Zone Controller Unit Driver ZCUD | 30A | – |
| EF61 | Heated Windscreen L* | 40A | – |
| EF63 | Radiator Cooling Fan Motor* | 80A / 125A | – |
