Geely STARRAY EM-i 2025 Fuse Box Location & Diagrams
The Geely STARRAY EM-i (2025) uses fuses to protect important electrical circuits and components. Knowing the correct fuse locations and assignments helps with troubleshooting electrical problems. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Geely STARRAY EM-i.
Fuse Box Location

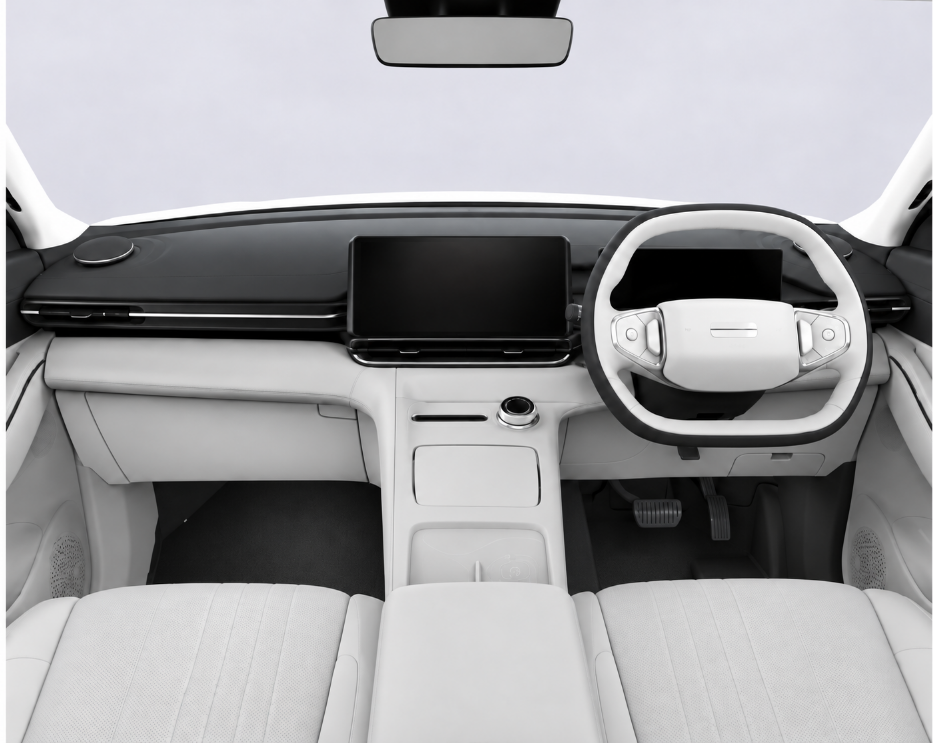

Passenger Compartment Fuse Box
Cabin (Driver’s Area): Located at the bottom of the driver’s side instrument panel near the left knee, hidden behind a removable protective trim panel.

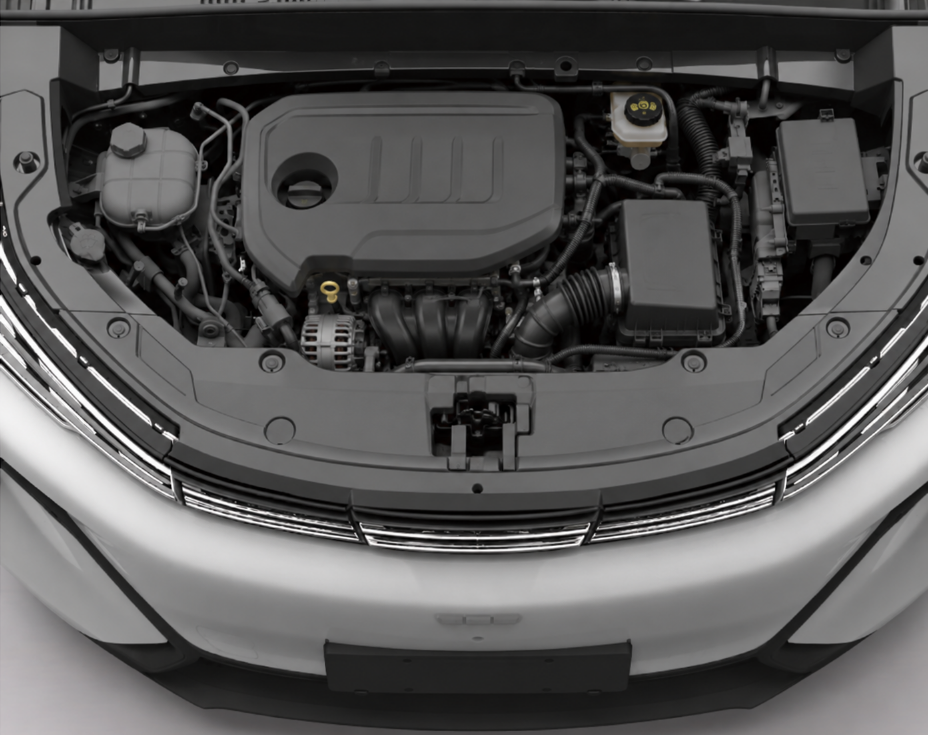

Engine Compartment Fuse Box
Under the Hood: Located on the left side of the engine compartment near the 12V/low-voltage battery, positioned beneath a protective plastic cover.
Fuse Box Diagrams

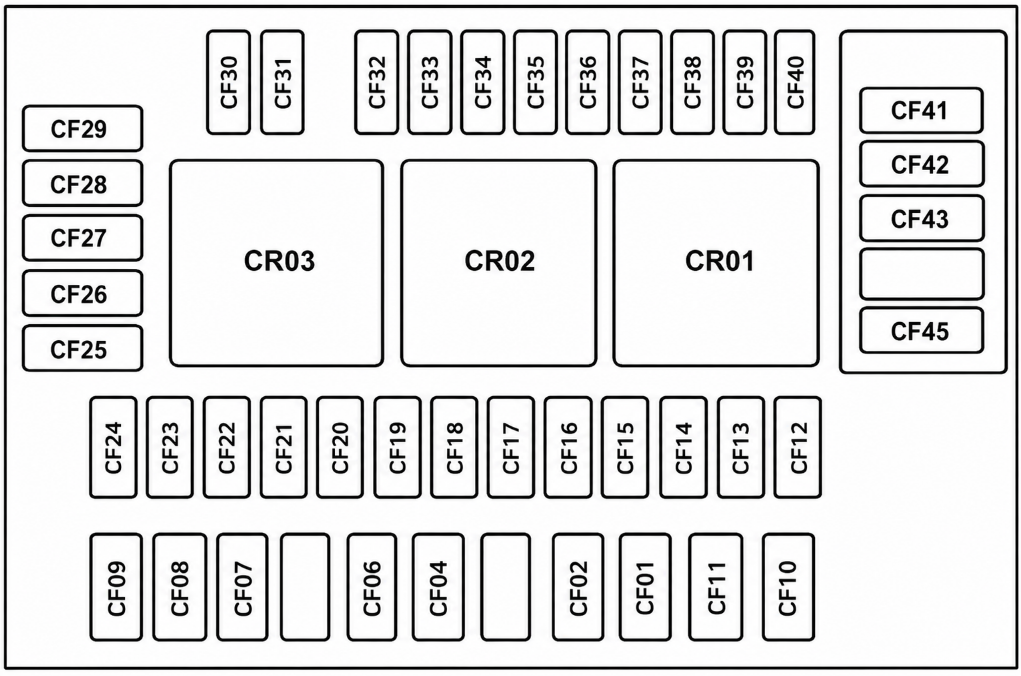

Passenger Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| CF01 | ZONE CONTROLLER UNIT DRIVER ZCUD | 30A | – |
| CF02 | ZONE CONTROLLER UNIT PASSENGER ZCUP | 30A | – |
| CF04 | AUDIO MOUDULE AUD* | 30A | – |
| CF05 | PASSENGER SEAT CONNECTION* | 30A | – |
| CF07 | POWER OPERATED TAILGATE POT* | 30A | – |
| CF08 | DRIVER SEAT CONNECTION* | 30A | – |
| CF09 | ZONE CONTROLLER UNIT DRIVER ZCUD | 30A | – |
| CF10 | ZONE CONTROLLER UNIT DRIVER ZCUD | 30A | – |
| CF11 | SIDE OBSTACLE DETECTION LEFT SODL* & SIDE OBSTACLE DETECTION RIGHT SODR* | 5A | – |
| CF12 | POWER OUTLET RELAY & IGN RELAY & BATTERY SAVER RELAY | 5A | – |
| CF13 | TELEMATICS AND CONNECTIVITY ANTENNA MODULE TCAM* | 5A | – |
| CF14 | DIAGNOSTIC SOCKET OBD & DOCKING STATION ALCOHOL LOCK SENSOR* | 10A | – |
| CF15 | DISPLAY HEAD UNIT MODULE DHU | 25A | – |
| CF16 | ZONE CONTROLLER UNIT PASSENGER ZCUP | 30A | – |
| CF17 | ZONE CONTROLLER UNIT PASSENGER ZCUP | 30A | – |
| CF18 | CHARGER AND DC/DC MODULE CDD | 10A | – |
| CF19 | RAIN AND LIGHT SENSOR MODULE RLSM & DAB FM RADIO RECEIVER* | 5A | – |
| CF20 | RADIO FREQUENCY ANTENNA RFA* | 5A | – |
| CF21 | STEERING WHEEL MODULE SWM | 5A | – |
| CF22 | CENTER STACK DISPLAY CSD | 10A | – |
| CF23 | ZONE CONTROLLER UNIT PASSENGER ZCUP | 30A | – |
| CF24 | ACTIVE SAFETY DOMAIN MASTER ASDM* | 5A | – |
| CF25 | LH HEADLAMP UNIT & RH HEADLAMP UNIT | 10A | – |
| CF26 | HEAD UP DISPLAY HUD* & DOCKING STATION ALCOHOL LOCK SENSOR* & INTERIOR REAR VIEW MIRROR MODULE IRMM* | 5A | – |
| CF27 | DIGITAL VIDEO RECORDER DVR | 5A | – |
| CF28 | SUNROOF CONTROL MODULE SRM* | 30A | – |
| CF29 | WIRELESS PHONE CHARGER WPC* | 5A | – |
| CF30 | OVERHEAD CONSOLE OHC & VANITY MIRROR ILLUMINATION LAMP SUNVISOR* | 5A | – |
| CF31 | AMBIENT LIGHT* | 5A | – |
| CF32 | POWER OUTLET TUNNEL CONSOLE | 15A | – |
| CF33 | USB CHARGING PORT FRONT RIGHT & USB CHARGING PORT TUNNEL REAR | 15A | – |
| CF34 | STEERING WHEEL MODULE SWM | 5A | – |
| CF35 | ELECTRONIC TOLL COLLECT MODULE ETCM | 5A | – |
| CF36 | POWER STEERING CONTROL MODULE PSCM | 5A | – |
| CF37 | ZONE CONTROLLER UNIT DRIVER ZCUD & ZONE CONTROLLER UNIT PASSENGER ZCUP | 5A | – |
| CF38 | SUPPLEMENTARY RESTRAINT SYSTEM SRS | 5A | – |
| CF39 | PARKING ASSISTANCE SENSOR* | 5A | – |
| CF40 | POWERTRAIN CONTROL MODULE PCM & ENGINE CONTROL MODULE ECM & BRAKE CONTROL MODULE BCM & ACCELERATOR PEDAL SENSOR | 20A | – |
| CF41 | CENTER CONSOLE SWITCH MODULE CCSM & DRIVER DOOR SWITCHES DDS & INTERIOR RADAR MODULE REAR IRRM* & INTERIOR MOTION SENSOR IMS* | 5A | – |
| CF42 | DRIVER INFORMATION DISPLAY | 5A | – |
| CF43 | ZONE CONTROLLER UNIT PASSENGER ZCUP | 30A | – |
| CF45 | DIGITAL VIDEO RECORDER DVR & ELECTRONIC TOLL COLLECT MODULE ETCM | 5A | – |

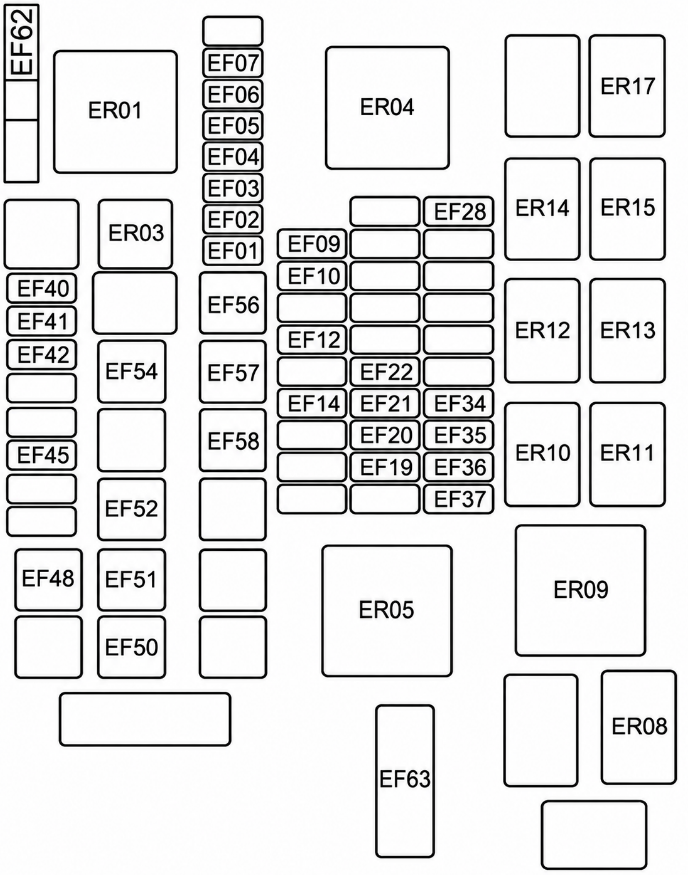

Engine Compartment Fuse Box
| Fuse No. | Name | Ampere Value | Description |
|---|---|---|---|
| EF01 | BRAKE PEDAL SENSOR | 5A | – |
| EF02 | HIGH VOLTAGE BATTERY | 10A | – |
| EF03 | REAR WIPER MOTOR | 15A | – |
| EF04 | FRONT/REAR WASHER PUMP | 15A | – |
| EF05 | ENGINE CONTROL MODULE ECM | 10A | – |
| EF06 | FRONT WIPER HIGH RELAY & FRONT WIPER LOW RELAY & DEFROST RELAY & FRONT WASHER RELAY & REAR WASHER RELAY & REAR WIPER RELAY & WINDSCREEN HEAT RELAY* | 5A | – |
| EF07 | HORN 1 & HORN 2 | 20A | – |
| EF09 | HVAC COOLING SHUT OFF VALVE & BATTERY ELECTRIC EXPANSION VALVE MODULE BEXV | 10A | – |
| EF10 | POWERTRAIN CONTROL MODULE PCM & ELECTRIC AC COMPRESSOR & INLINE HVAC MAIN CONNECTOR & ELECTRIC VEHICLE COMMUNICATION CONTROLLER EVCC | 10A | – |
| EF12 | ELECTRIC DRIVETRAIN COOLANT PUMP EDCP | 20A | – |
| EF14 | HIGH VOLTAGE BATTERY | 10A | – |
| EF19 | POWERTRAIN CONTROL MODULE PCM & ENGINE CONTROL MODULE ECM | 5A | – |
| EF20 | BRAKE CONTROL MODULE BCM | 5A | – |
| EF21 | ACCELERATOR PEDAL SENSOR | 5A | – |
| EF22 | FUEL PUMP | 20A | – |
| EF28 | INJECTOR1 & INJECTOR2 & INJECTOR3 & INJECTOR4 | 15A | – |
| EF34 | SPARK PLUG 4 + IGNITION COIL 1 & SPARK PLUG 2 + IGNITION COIL 2 & SPARK PLUG 3 + IGNITION COIL 3 & SPARK PLUG 4 + IGNITION COIL 4 | 15A | – |
| EF35 | OXYGEN SENSOR 1 (LH FRONT) & OXYGEN SENSOR REAR | 15A | – |
| EF36 | ENGINE CONTROL MODULE ECM | 20A | – |
| EF37 | SOLENOID VARIABLE VALVE TIME VVT INLET & EVAP PURGE VALVE & ENGINE OIL PUMP SOLENOID & FUELTANK ISOLATION VALVE & PUMP FUEL LEAKAGE CONTROL DMTL* | 10A | – |
| EF40 | POWERTRAIN CONTROL MODULE PCM | 15A | – |
| EF41 | ZONE CONTROLLER UNIT DRIVER ZCUD | 30A | – |
| EF42 | BATTERY BACKED UP SOUNDER BBS* | 5A | – |
| EF45 | ELECTRIC VEHICLE COMMUNICATION CONTROLLER EVCC | 5A | – |
| EF48 | BRAKE CONTROL MODULE BCM | 60A | – |
| EF50 | INLINE HVAC MAIN CONNECTOR | 40A | – |
| EF51 | CPSR RELAY | 40A | – |
| EF52 | WINDSCREEN WIPER MOTOR WWM | 30A | – |
| EF54 | HEATED REAR WINDOW | 40A | – |
| EF56 | COMFORT RLY POWER* | 30A | – |
| EF57 | BRAKE CONTROL MODULE BCM | 60A | – |
| EF58 | ZONE CONTROLLER UNIT DRIVER ZCUD | 30A | – |
| EF62 | HSW POWER* | 15A | – |
| EF63 | RADIATOR COOLING FAN MOTOR* | 80A | – |
