Honda Accord (1998 – 2002) Fuse Box Location & Diagrams
For Honda Accord owners of 1998-2002 models, understanding the fuse box layout is essential for maintaining your vehicle’s electrical system. This user guide offers clear diagrams and step-by-step instructions to help you locate, identify, and replace fuses quickly. Whether you’re troubleshooting electrical problems or performing routine checks, this guide simplifies fuse management for your Honda Accord, ensuring smooth vehicle operation.
Fuse Box Locations
Passenger Compartment Fuse Box

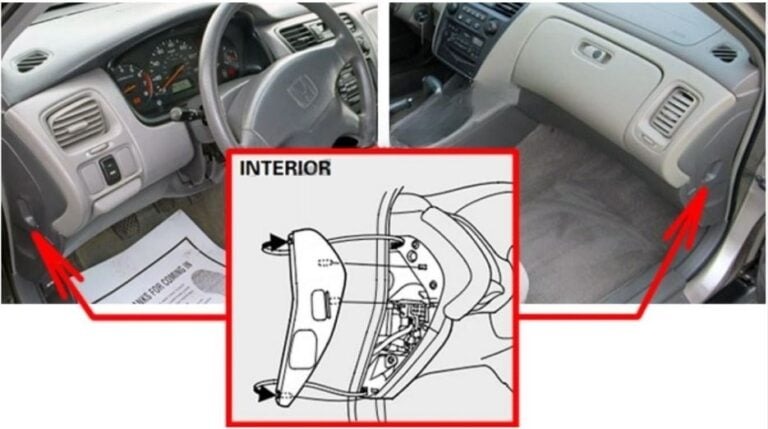

- The interior fuse boxes are located on each side of the dashboard.
- To open an interior fusebox, open the car door, pull the cover open, then take it out of its hinges by pulling it toward you.
Engine Compartment Fuse Box

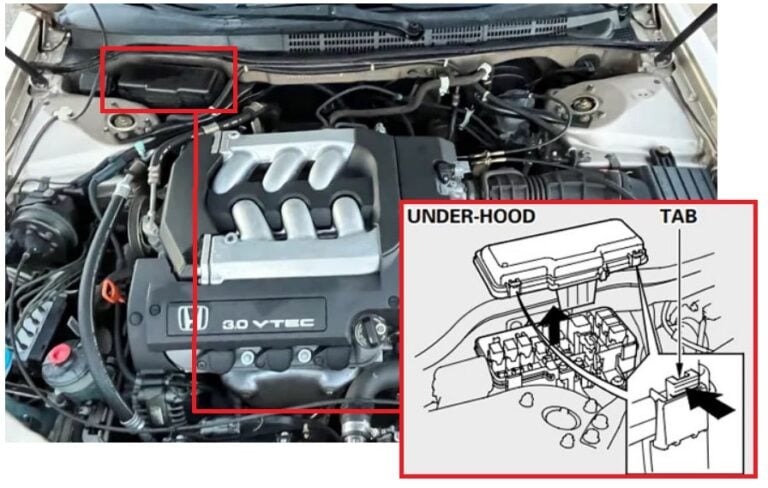

The under-hood fuse box is located in the back of the engine compartment on the passenger’s side.
Passenger Compartment Fuse Box
Honda Accord (1998 to 2002)

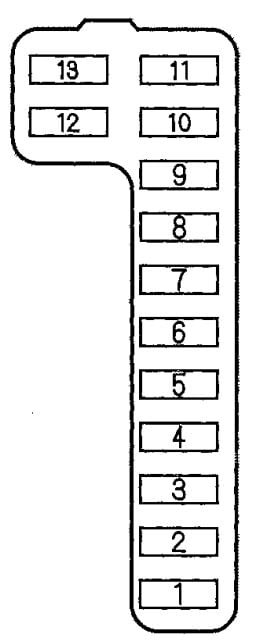

Passenger compartment, driver’s side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 15 A | IG1 Fuel Pump |
| 2 | 10 A | IG1 SRS |
| 3 | 7.5 A | IG2 HAC |
| 4 | 7.5 A | R/C Mirror |
| 5 | 7.5 A | IG2 Day Light (On Canadian models) |
| 6 | 15 A | ECU (ECM/PCM), Cruise Control |
| 7 | 7.5 A | IG1 Moonroof, Washer |
| 8 | 7.5 A | ACC |
| 9 | 7.5 A | Instrument Panel, Back-up Lights |
| 10 | 7.5 A | IG1 Turn Signals |
| 11 | 15 A | IG1 Coil |
| 12 | 30 A | IG1 Wiper |
| 13 | 7.5 A | STS |

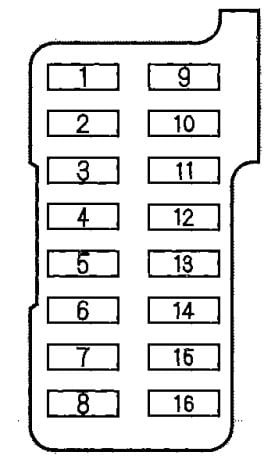

Passenger compartment, passenger’s side
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 30 A | Moonroof |
| 2 | 20 A | Driver Power Seat Recline |
| 3 | 20 A | Assistant Power Seat Recline |
| 4 | 20 A | Driver Power Seat Slide |
| 5 | 20 A | Assistant Power Seat Slide |
| 6 | 10 A | Daytime Running Light (On Canadian models) |
| 7 | 20 A | Rear Left Power Window |
| 8 | 20 A | Front Right Power Window |
| 9 | 20 A | Radio, Cigarette Lighter |
| 10 | 10 A | Small Lights |
| 11 | 7.5 A | Interior Light, Courtesy Lights |
| 12 | 20 A | Power Door Locks |
| 13 | 7.5 A | Clock |
| 14 | 7.5 A | ABS Motor Check |
| 15 | 20 A | Front Left Power Window |
| 16 | 20 A | Rear Right Power Window |

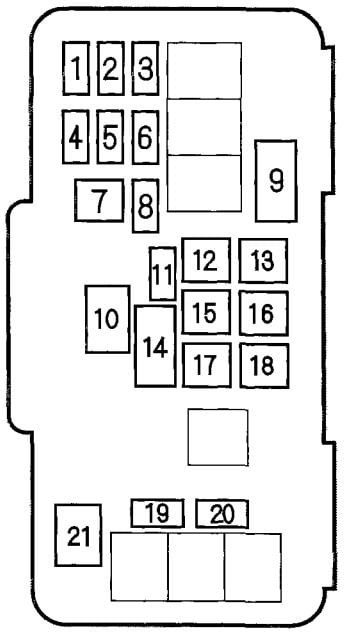

Engine Compartment Fuse Box
Honda Accord (1998 to 2002)
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 20 A | Left Headlight |
| 2 | (7.5A) | (DIMMER RELAY) |
| 3 | 20 A | Right Headlight |
| 4 | 20 A | ABS F/S |
| 5 | 20 A | Stop |
| 6 | 15 A | ACG |
| 7 | 30 A | ABS Motor |
| 8 | 15 A | Hazard |
| 9 | — | Spare Fuse |
| 10 | 100 A | Battery |
| 11 | 20 A | Cooling Fan |
| 12 | 40 A | Back Up, ACC |
| 13 | 40 A | Power Window Motor |
| 14 | — | Spare Fuse |
| 15 | 40 A | Power Seat |
| 16 | 20 A | BSC |
| 17 | 40 A | Heater Motor |
| 18 | 40 A | Rear Defroster |
| 19 | 20 A | Heated Seat |
| 20 | 20 A | Condenser Fan |
| 21 | 50 A | IG1 Main |
