Honda CR-V (2017 – 2022) Fuse Box Location & Diagrams

Honda CR-V (2017 – 2022) Fuse Box Location & Diagrams

For Honda CR-V owners of 2017-2022 models, knowing your fuse box layout is essential for proper vehicle maintenance. This user guide provides detailed diagrams and clear instructions to help you easily locate, identify, and replace fuses. Whether you’re dealing with electrical issues or conducting regular maintenance, this guide ensures a seamless experience with fuse management for your Honda CR-V.

Fuse Box Locations

Passenger Compartment Fuse Box
Located under the dashboard.

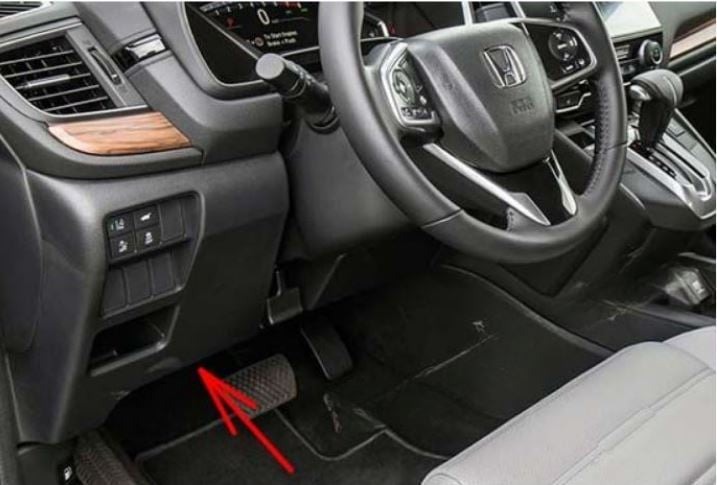

Honda CR-V (2017 – 2022) FIG-1

Fuse locations are shown on the label on the steering column lower cover.

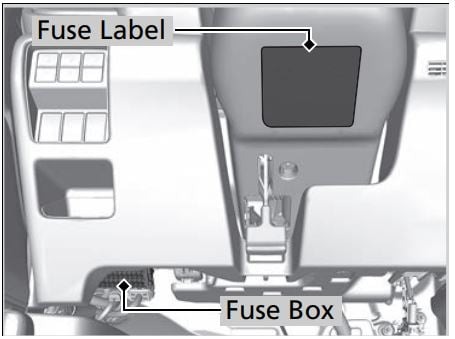

Honda CR-V (2017 – 2022) FIG-2

Engine Compartment Fuse Box
Located near the brake fluid reservoir.

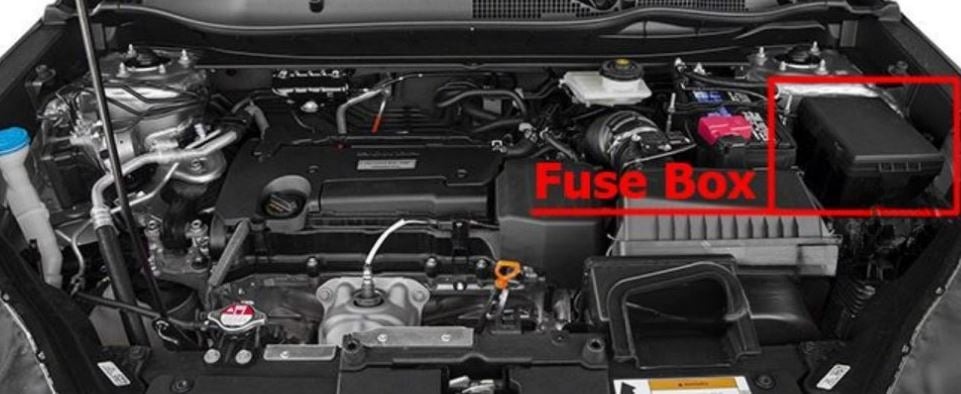

Honda CR-V (2017 – 2022) FIG-3

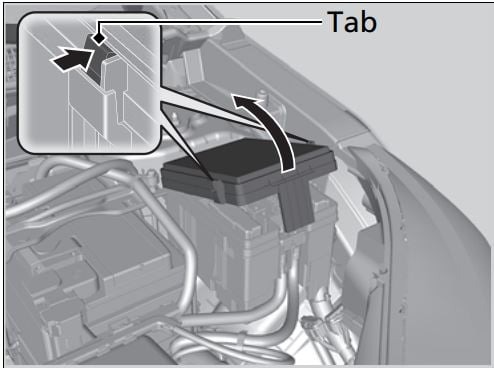

Fuse locations are shown on the fuse box cover.

Honda CR-V (2017 – 2022) FIG-4

Passenger Compartment Fuse Box

Honda CR-V (2017)

Honda CR-V (2017 – 2022) FIG-5

Assignment of the fuses in the passenger compartment (2017)

NoCircuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option10 A
4Option (with smart entry system)5 A
4Transmission (without smart entry system) (1.5L)(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket (Center Console)(20 A)
11Engine Control’ 35 A
12Passenger’s Side Door Lock10 A
13Driver’s Side Door Unlock10 A
14Rear Driver’s Side Power Window20 A
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission (with smart entry system) (1.5L)(10 A)
17Option (without smart entry system)5 A
18Front Driver’s Lumber support (option)(10 A)
19Moonroof (option)(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater (Canadian models with steering heater) ; Handsfree Power Tailgate Sensor (option)(10 A)
24Option5 A
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side Power Window20 A
28Driver’s Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry (Canadian models with steering heater)10 A
30STS (without smart entry system)5 A
31Driver’s Power Seat Reclining (option)(20 A)
32Front Seat Heater (option)(20 A)
33Driver’s Power Seat Sliding (option)(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option (option)20 A
37Trailer (option)15 A
38Driver’s Side Door Lock10 A
39Driver’s Door Unlock(10 A)
aPower Tailgate Closer (option)(20 A)
bPassenger’s Power Seat Sliding (option)(20 A)
cPassenger’s Power Seat Reclining (option)(20 A)
dPanorama Shade Motor (Canadian models with panoramic roof)(20 A)
eRear Blower(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area) (Canadian models)(20 A)
Honda CR-V (2018 and 2019)

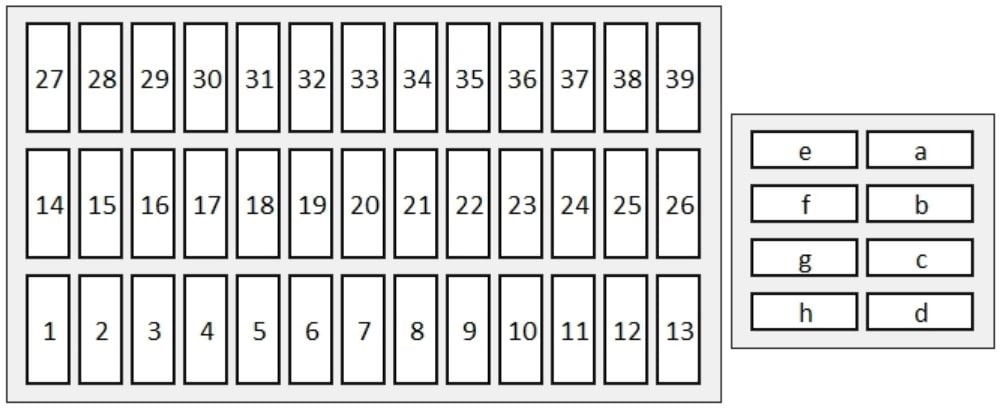

Honda CR-V (2017 – 2022) FIG-6

Assignment of the fuses in the passenger compartment (2018, 2019)

NoCircuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 2 (with smart entry system)5 A
4Transmission (without smart entry system)(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket (Center Console)(20 A)
11Engine Control5 A
12Passenger’s Side Door Lock10 A
13Driver’s Side Door Unlock10 A
14Rear Driver’s Side Power Window20 A
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission (with smart entry system)(10 A)
17Option 2 (without smart entry system)5 A
18Front Driver’s Lumber support (option)(10 A)
19Moonroof (option)(20 A)
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater (option)(10 A)
24Option5 A
25Driver’s Door Lock(10 A)
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side Power Window20 A
28Driver’s Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry (with smart entry system)10 A
30STS (without smart entry system)5 A
31Driver’s Power Seat Reclining (option)(20 A)
32Front Seat Heater (option)(20 A)
33Driver’s Power Seat Sliding (option)(20 A)
34ABS/VSA10 A
35SRS10 A
36HAC Option (option)20 A
37Trailer (option)15 A
38Driver’s Side Door Lock10 A
39Driver’s Door Unlock(10 A)
aPower Tailgate Closer (option)(20 A)
bPassenger’s Power Seat Sliding (option)(20 A)
cPassenger’s Power Seat Reclining (option)(20 A)
dPanorama Shade Motor(20 A)
eRear Blower(20 A)
fEPT L(20 A)
gEPT R(20 A)
hAccessory Power Socket (Cargo Area)(20 A)
Honda CR-V (2020, 2021 and 2022)

Fuse Box A

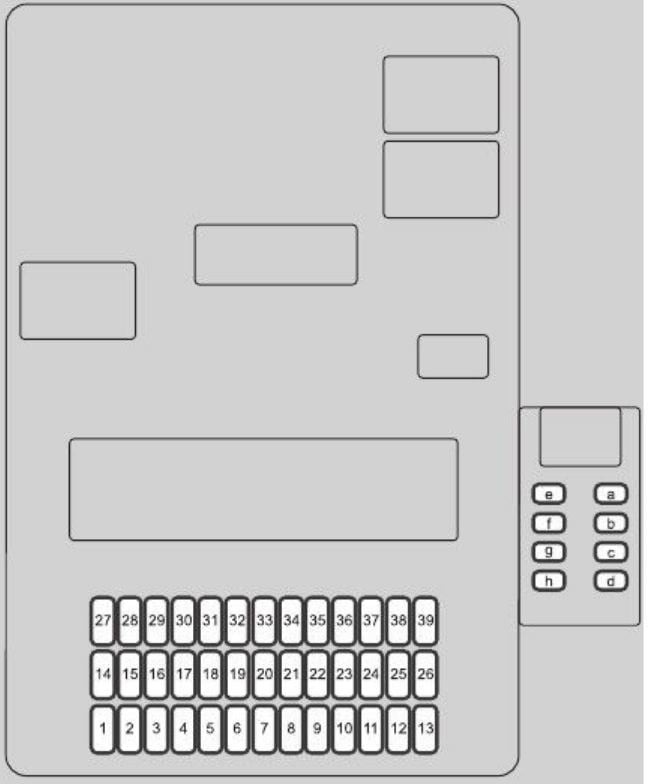

Honda CR-V (2017 – 2022) FIG-7

No.Circuit ProtectedAmps
1Accessory10 A
2Key Lock5 A
3Option 310 A
4Option 21 / Transmission25 A / 10 A
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
9A/C10 A
10Accessory Power Socket (Center Console)20 A
11Engine Control5 A
12Passenger’s Side Door Lock10 A
13Driver’s Side Door Unlock10 A
14Rear Driver’s Side Power Window20 A
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission1 / Option 2210 A / 5 A
18Front Driver’s Lumber Support*10 A
19Moonroof*20 A
20Starter10 A
21ACG10 A
22Daytime Running Light10 A
23Steering Wheel Heater*10 A
24Option5 A
25Driver’s Door Lock10 A
26Passenger’s Side Door Unlock10 A
27Rear Passenger’s Side Power Window20 A
28Driver’s Power Window20 A
29Front Accessory Power Socket20 A
30Smart Entry1 / STS210 A / 5 A
31Driver’s Power Seat Reclining*20 A
32Front Seat Heater*20 A
33Driver’s Power Seat Sliding*20 A
34ABS/VSA10 A
35SRS10 A
36HAC Option*20 A
37Trailer15 A
38Driver’s Side Door Lock10 A
39Driver’s Door Unlock10 A
aPower Tailgate Closer*20 A
bPassenger’s Power Seat Sliding*20 A
cPassenger’s Power Seat Reclining*20 A
dPanorama Shade Motor20 A
eAudio Amp20 A
fEPT L20 A
gEPT R20 A
hAccessory Power Socket (Cargo Area)20 A

Fuse Box B

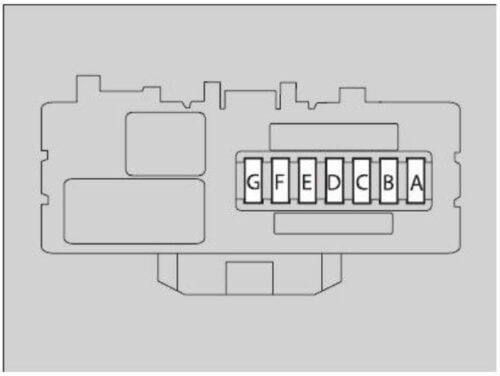

Honda CR-V (2017 – 2022) FIG-8

No.Circuit ProtectedAmps
AVST ACC15 A
B+B BACKUP2 MAIN15 A
C+B EOP7.5 A
D+B VSA5 A
EIG1 VSA17.5 A
FIG1 METER VST5 A
GIG1 VSA27.5 A

Engine Compartment Fuse Box

Honda CR-V (2017)

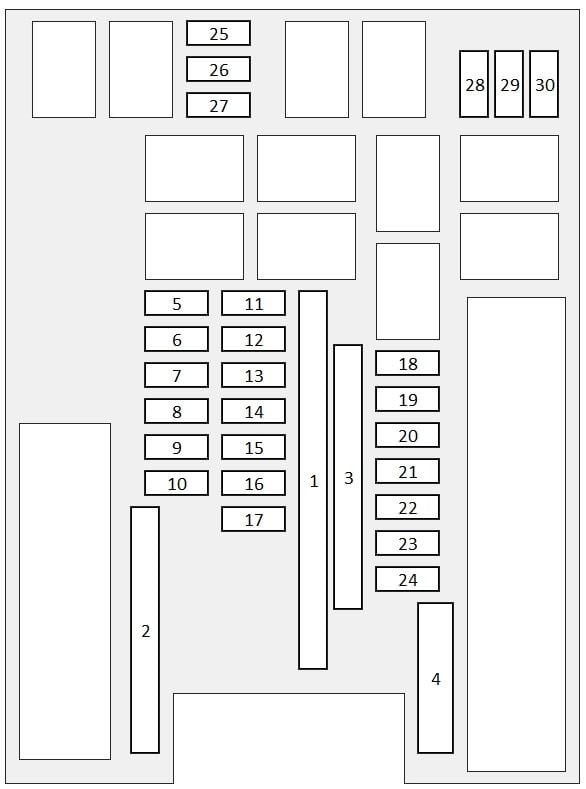

Honda CR-V (2017 – 2022) FIG-9

Assignment of the fuses in the engine compartment (2017)

NoCircuit ProtectedAmps
1Audio AMP (optoin)(30 A)
1Electric Brake Booster40 A
1Main Fan Motor30 A
1Relay Module 130 A
1IG Main 2 (with smart entry system)30 A
1Relay Module 230 A
1Battery125 A
2EPS70 A
2IG Main 1
(30 A (with smart entry system) / 50 A (without smart entry system))		30 A / 50 A
2Fuse Box Option(40 A)
2Fuse Box60 A
2Front Wiper Motor30 A
2Sub Fan Motor30 A
3Rear Defroster40 A
3Starter Motor30 A
3Fuse Box40 A
3ABS/VSA Motor40 A
3ABS/VSA FSR40 A
3Blower Motor40 A
4Option Block 1 (optoin)(40 A)
4Option Block 2 (optoin)(40 A)
4––
4Power Tail Gate (optoin)(40 A)
5VB ACT (1.5L)(7.5 A)
6Washer15 A
7FI Main15 A
8FI Sub (1.5L) / DBW (2.4L)15 A
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
12FI ECU (1.5L)10 A
12– (2.4L)–
13Front Wiper Deicer (optoin)(15 A)
14Hazard10 A
15IG Coil15 A
16Transmission (1.5L)(15 A)
16– (2.4L)–
17——
18Back Up10 A
19Audio15 A
20AWD (optoin)(20 A)
21Rear Seat Heater (Canadian models with rear seat heater)(20 A)
21– (without rear seat heater)–
22Front Fog Lights (Models with fog lights) / Lower Shutter Grille(15 A)
23A/C Compressor / Upper Shutter Grille10 A
24Horn10 A
25Cooling Fan7.5 A
26–—
27–—
28ST Magnetic Switch (without smart entry system)(7.5 A)
29–—
30–—
Honda CR-V (2018 and 2019)

Honda CR-V (2017 – 2022) FIG-10

Assignment of the fuses in the engine compartment (2018, 2019)

NoCircuit ProtectedAmps
1Audio AMP (option)(30 A)
1Not Used (Canadian models without power seat). (without smart entry system)–
1Electric Brake Booster40 A
1Main Fan Motor30 A
1Relay Module 130 A
1IG Main 2 (with smart entry system)30 A
1Not Used (without smart entry system)–
1Relay Module 230 A
1Battery125 A
2EPS70 A
2IG Main 1
(30 A (with smart entry system) / 50 A (without smart entry system))		30 A / 50 A
2Fuse Box Option40 A
2Fuse Box 160 A
2Front Wiper Motor30 A
2Sub Fan Motor30 A
3Rear Defroster40 A
3Starter Motor30 A
3Fuse Box 240 A
3ABS/VSA Motor40 A
3ABS/VSA FSR40 A
3Blower Motor40 A
4Option Block 1 (option)(40 A)
4Not Used (Canadian models without power seat). (without smart entry system)–
4Option Block 2 (option)(40 A)
4Not Used (without smart entry system)–
4Power Tail Gate (option)(40 A)
4Not Used (Canadian models without power seat). (without smart entry system)–
5VB ACT (with smart entry system)7.5 A
5Not Used (without smart entry system)–
6Washer15 A
7FI Main15 A
8FI Sub (with smart entry system) / DBW (without smart entry system)15 A
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
12FI ECU (with smart entry system)10 A
12Not Used (without smart entry system)–
13Front Wiper Deicer (Canadian models)15 A
13Not Used (U.S. models)–
14Hazard10 A
15IG Coil15 A
16Transmission (with smart entry system)15 A
16Not Used (without smart entry system)
17Not Used–
18Back Up10 A
19Audio15 A
20E-DPS (option)(20 A)
21Rear Seat Heater (Canadian models with rear seat heater)(20 A)
21Not Used (Models without rear seat heater)–
22Front Fog Lights (option) (U.S. models and Canadian models with power seat)(15 A)
22Lower Shutter Grille (Canadian models without power seat)15 A
23A/C Compressor / Upper Shutter Grille10 A
24Horn10 A
25Cooling Fan7.5 A
26Not Used–
27Not Used–
28Not Used (with smart entry system)–
28ST Magnetic Switch (without smart entry system)(7.5 A)
29Not Used–
30Not Used–
Honda CR-V (2020, 2021 and 2022)

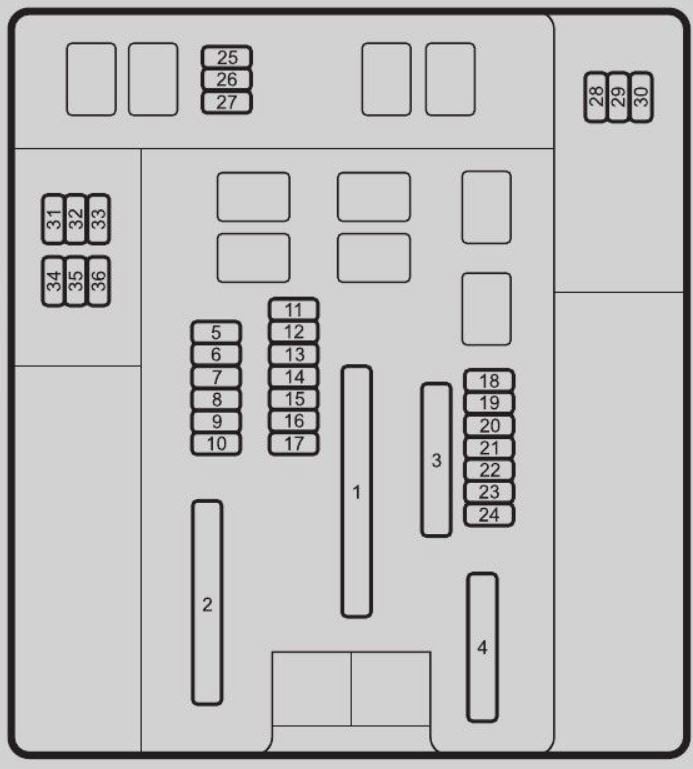

Honda CR-V (2017 – 2022) FIG-11

No.Circuit ProtectedAmps
1VST 130 A
Electric Brake Booster40 A
Main Fan Motor30 A
Relay Module 130 A
IG Main 2*230 A
−*3–
Relay Module 230 A
Battery125 A
2EPS70 A
IG Main 1 30 A*230 A
50 A*350 A
Fuse Box Option40 A
Fuse Box 160 A
Front Wiper Motor30 A
Sub Fan Motor30 A
3Rear Defroster40 A
Starter Motor30 A
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
Option Block 1*240 A
−*3–
Option Block 2*240 A
−*3–
VST 230 A
Power Tail Gate*240 A
−*3–
5VB ACT7.5 A
6Washer15 A
7FI Main15 A
8FI Sub15 A
9Stop Lights10 A
10Injector20 A
11LAF7.5 A
12FI ECU10 A
13Front Wiper Deicer*115 A
−*2–
14Hazard10 A
15IG Coil15 A
16Transmission15 A
17−–
18Back Up10 A
19−–
20E-DPS*20 A
21Rear Seat Heater*120 A
−*2–
22Front Fog Lights*/Lower Shutter Grille10 A
23Magnetic Clutch/Upper Shutter Grille*1,*210 A
VMP MAIN*320 A
24Horn10 A
25Cooling Fan7.5 A
26−–
27Back Up 230 A
28ST Magnetic Switch7.5 A
29−–
30−–
31VMP*310 A
32−*3–
33−*3–
34USB Charger*37.5 A
35−*3–
36−*3–
