Honda CR-V (2012 – 2016) Fuse Box Location & Diagrams

For Honda CR-V owners of 2012-2016 models, understanding your fuse box layout is crucial for efficient vehicle maintenance. This user guide provides detailed diagrams and clear instructions to help you quickly locate and identify fuses. Whether you’re troubleshooting electrical issues or performing regular checks, this guide simplifies fuse management for your Honda CR-V, ensuring smooth operation and easy maintenance.

Fuse Box Locations

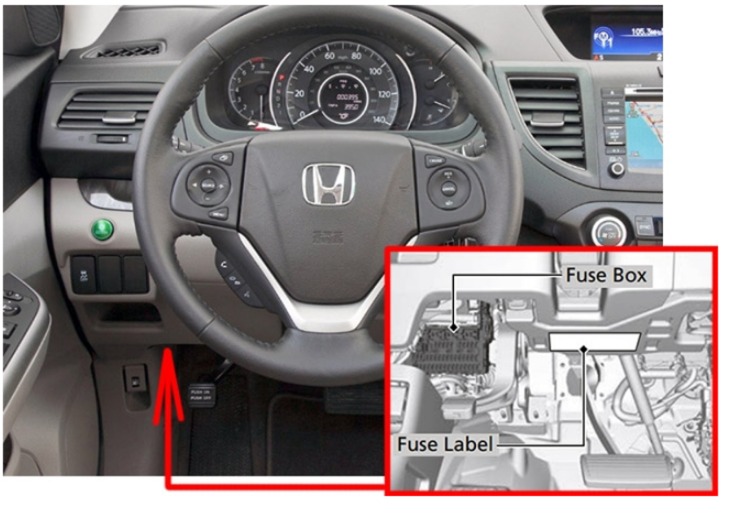

Passenger Compartment Fuse Box

Located under the dashboard.
Fuse locations are shown on the label on the cover.

Honda CR-V (2012 – 2016) fig-1

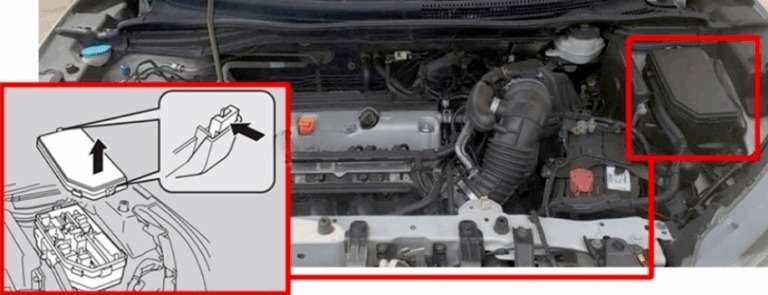

Engine Compartment Fuse Box
Located near the brake fluid reservoir.

Passenger Compartment Fuse Box Diagram

Honda CR-V (2012, 2013 and 2014)

Honda CR-V (2012 – 2016) fig-3

№	Circuit Protected	Amps
1	–	–
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	10 A
6	Power Window	7.5 A
7	VB SOL	7.5 A
8	Door Lock Motor 2 (Unlock)	15 A
9	Door Lock Motor 1 (Unlock)	10 A
10	Trailer (option)	(7.5 A)
11	Moonroof (option)	(20 A)
12	Accessory Power Socket (Center Console) (option)	(15 A)
13	–	–
14	Seat Heaters (option)	(20 A)
15	Driver’s Door Lock Motor (Unlock)	10 A
16	Driver’s Power Seat Sliding (option)	(20 A)
17	Driver’s Power Seat Reclining (option)	(20 A)
18	–	–
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	A/C	7.5 A
23	Rear Wiper	10 A
24	ABS/VSA	7.5 A
25	Audio	10 A
26	–	–
27	Accessory Power Socket (Front)	15 A
28	Washer	15 A
29	ODS	7.5 A
30	Driver’s Door Lock Motor (Lock) (option)	10 A
31	—	—
32	Door Lock Motor 2 (Lock)	15 A
33	Door Lock Motor 1 (Lock)	15 A
34	Small Lights	10 A
35	Illumination	7.5 A
36	–	–
37	–	–
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	TPMS	7.5 A
41	Door Lock	20 A
42	Driver’s Power Window	20 A
43	Rear Passenger’s Side Power Window	20 A
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	20 A
46	–	–

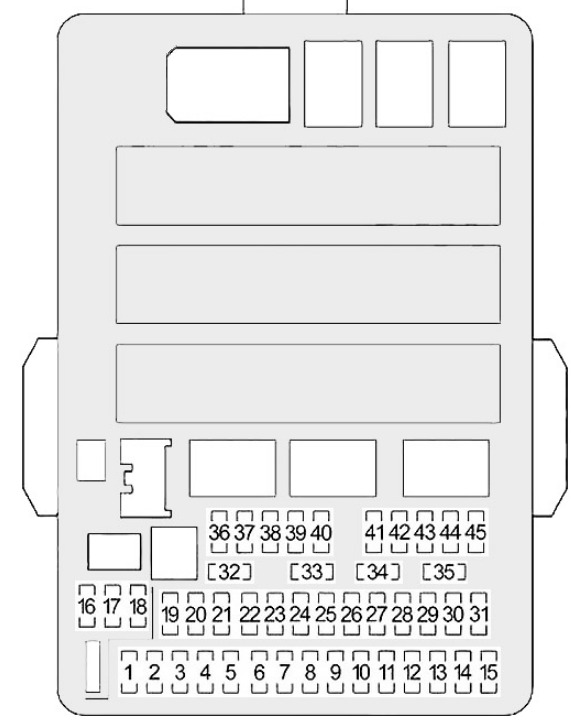

Honda CR-V (2015 and 2016)

Honda CR-V (2012 – 2016) fig-5

No	Circuit Protected	Amps
1	—	—
2	ACG	10 A
3	SRS	10 A
4	Fuel Pump	15 A
5	Meter	10 A
6	Power Window	7.5 A
7	VB SOL	7.5 A
8	Passenger’s Side Door Lock, Motor 2 (Unlock)	15 A
9	Driver’s Side Door Lock, Motor 1 (Unlock)	15 A
10	Trailer (option)	(7.5 A)
11	Moonroof (option)	(20 A)
12	Accessory Power Socket (Center Console)	20 A
13	Washer Main (option)	(15 A)
14	Seat Heaters (option)	(20 A)
15	Driver’s Door Lock Motor (Unlock)	10 A
16	Driver’s Power Seat Sliding (option)	(20 A)
17	Driver’s Power Seat Reclining (option)	(20 A)
18	–	–
19	ACC	7.5 A
20	ACC Key Lock	7.5 A
21	Daytime Running Lights	7.5 A
22	A/C	7.5 A
23	Wiper	10 A
24	ABS/VSA	7.5 A
25	Audio	10 A
26	Power Tailgate (option)	(20 A)
27	Accessory Power Socket (Front)	20 A
28	Washer (option)	15 A
29	OPDS	7.5 A
30	Driver’s Door Lock Motor (Lock)	10 A
31	Smart (option)	(10 A)
32	Passenger’s Side Door Lock Motor 2 (Lock)	15 A
33	Driver’s Side Door Lock, Motor 1 (Lock)	15 A
34	Small Lights	10 A
35	Illumination	7.5 A
36	Rear Wiper Main (option)	(10 A)
37	Front Fog Lights (option)	(20 A)
38	Left Headlight High Beam	10 A
39	Right Headlight High Beam	10 A
40	–	–
41	Door Lock	20 A
42	Driver’s Side Power Window	20 A
43	Rear Passenger’s Side Power Window	20 A
44	Front Passenger’s Side Power Window	20 A
45	Rear Driver’s Side Power Window	20 A
46	–	–

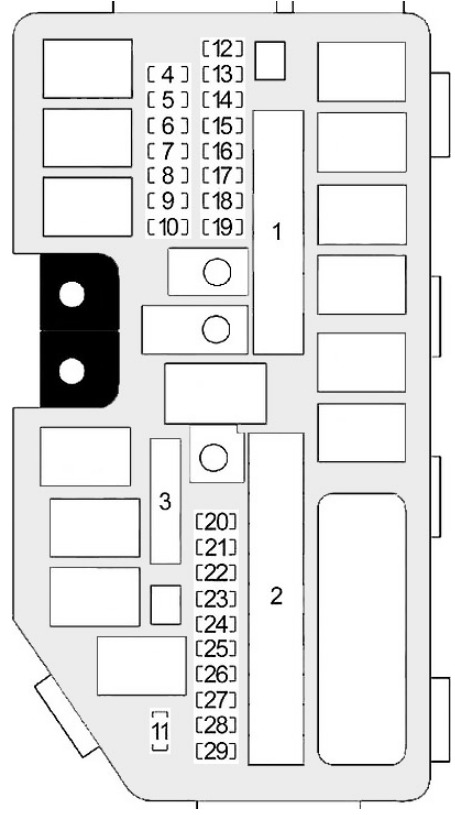

Engine Compartment Fuse Box Diagram

Honda CR-V (2012, 2013 and 2014)

Honda CR-V (2012 – 2016) fig-5

No	Circuit Protected	Amps
1	EPS	70 A
1	–	–
1	ABS/VSA Motor	40 A
1	ABS/VSA FSR	20 A
1	E-DPS (option)	(30 A)
1	Main Fuse	100 A
2	IG Main	50 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight Main	30 A
2	–	–
2	Rear Defogger	30 A
2	–	–
2	Blower	40 A
2	Front Wiper Main	30 A
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	–	–
4	–	–
5	–	–
6	–	–
7	–	–
8	Sub Fan Rly CL	7.5 A
9	–	–
10	Heated Door Mirror (option)	(7.5 A)
11	STRLD	7.5 A
12	Fog Lights (option)	(20 A)
13	Premium Amp (option)	(20 A)
14	Horn	10 A
15	Hazard	10 A
16	Stop	10 A
17	IG Coil	15 A
18	IGP2	15 A
19	–	–
20	–	–
21	–	–
22	DBW	15 A
23	IGP	15 A
24	Left Headlight Low Beam	10 A
25	Right Headlight Low Beam	10 A
26	SMALL	20 A
27	MG Clutch	7.5 A
28	Interior Lights	7.5 A
29	Backup	10 A

Honda CR-V (2015 and 2016)

Honda CR-V (2012 – 2016) fig-6

No	Circuit Protected	Amps
1	EPS	70 A
1	Power Tailgate	(40 A)
1	ABS/VSA FSR	20 A
1	ABS/VSA Motor	40 A
1	E-DPS (option)	(30 A)
1	Main Fuse	120 A
2	Main	50 A
2	Fuse Box Main	60 A
2	Fuse Box Main 2	60 A
2	Headlight High Beam Main	30 A
2	ST Magnetic Switch	(30 A)
2	Rear Defogger	30 A
2	Heater Motor	40 A
2	Front Wiper Main	30 A
2	Sub Fan Motor	20 A
2	Main Fan Motor	20 A
3	DC/DC1	(30 A)
3	DC/DC2	(30 A)
3	IG MAIN	(30 A)
3	IG MAIN2	(30 A)
4	–	–
5	—	—
6	–	–
7	—	—
8	Sub Fan Rly CL	7.5 A
9	VSA ECU	7.5 A
10	Heated Door Mirror (option)	(7.5 A)
11	STRLD	7.5 A
12	Injector	20 A
13	Premium Amp (option)	(20 A)
14	Horn	10 A
15	Hazard	10 A
16	Stop	10 A
17	IG Coil	15 A
18	IGP2	15 A
19	Daytime Running Lights	(10 A)
20	Passenger’s Power Seat Reclining	(20 A)
21	Deicer	(15 A)
22	DBW	15 A
23	IGP	15 A
24	Left Headlight Low Beam	10 A
25	Right Headlight Low Beam	10 A
26	SMALL	20 A
27	MG Clutch	7.5 A
28	Interior Lights	7.5 A
29	Backup	10 A
