Honda Accord (2013 – 2017) Fuse Box Location & Diagrams
For Honda Accord owners of 2013-2017 models, understanding the fuse box layout is essential for maintaining your vehicle’s electrical system. This user guide provides detailed diagrams and clear instructions to help you easily locate, identify, and replace fuses. Whether you’re troubleshooting electrical issues or performing routine maintenance, this guide ensures seamless fuse management, keeping your Honda Accord in top condition.
Fuse Box Locations

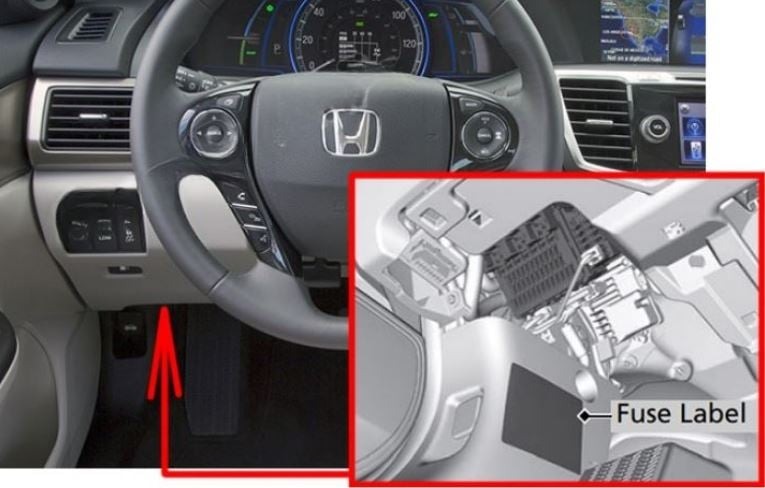

Passenger Compartment
- Located under the dashboard.
- Fuse locations are shown on the label on the side panel.

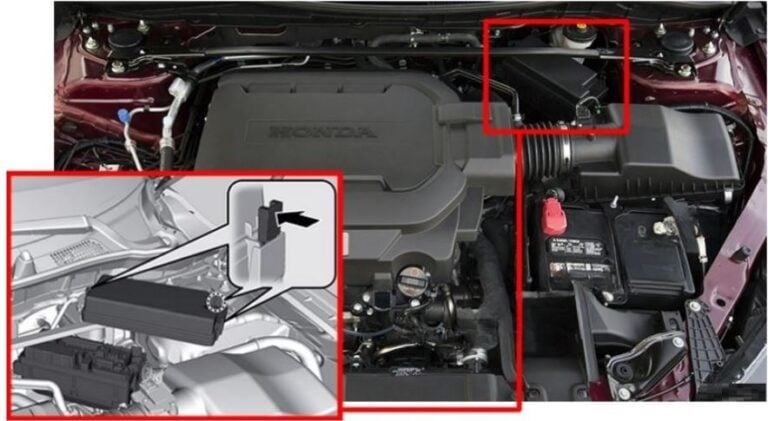

Engine Compartment
- Located near the brake fluid reservoir.
- Fuse locations are shown on the fuse box cover.

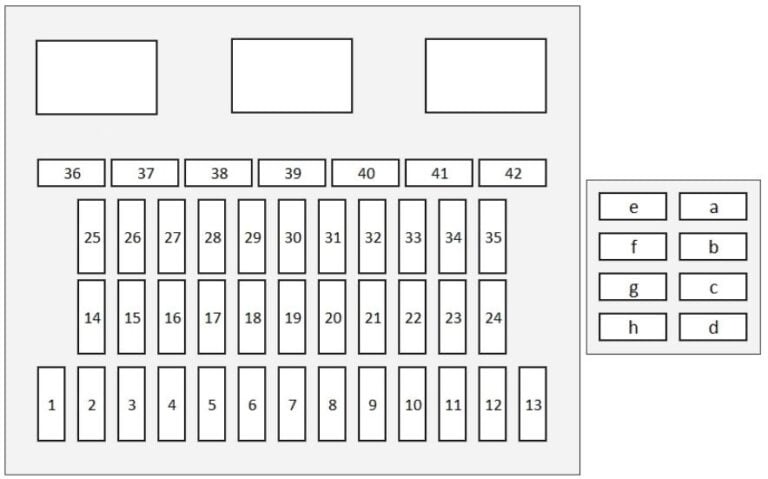

Passenger Compartment Fuse Box Diagram
Honda Accord (2013, 2014 and 2015)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | A/C | 7.5 A |
| 2 | DRL | 7.5 A |
| 3 | — | — |
| 4 | – | – |
| 5 | Meter | 7.5 A |
| 6 | SRS | 7.5 A |
| 7 | Option | (7.5 A) |
| 8 | MISS SOL | 10 A |
| 9 | Fuel Pump | 20 A |
| 10 | ABS/VSA | 7.5 A |
| 11 | — | — |
| 12 | Front Wiper | 7.5 A |
| 13 | ACG | 15 A |
| 14 | Rear Accessory Power Socket (Console Compartment) | (20 A) |
| 15 | Driver’s Power Seat Reclining (option) | (20 A) |
| 16 | Moonroof (option) | (20 A) |
| 17 | Front Seat Heaters (option) | (20 A) |
| 18 | – | – |
| 19 | Passenger Side Door Unlock | 10 A |
| 20 | Driver Side Rear Door Unlock | 10 A |
| 21 | Driver’s Door Lock | 10 A |
| 22 | Passenger Side Door Lock | 10 A |
| 23 | Driver’s Door Unlock | 10 A |
| 24 | SRS | 10 A |
| 25 | Illumination | 10 A |
| 26 | Key Lock | 7.5 A |
| 27 | Parking Lights | 10 A |
| 28 | Lumbar Support (option) | (10 A) |
| 29 | Right Headlight High Beam | 10 A |
| 30 | Washer | 15 A |
| 31 | SMART (option) | (10 A) |
| 32 | Driver’s Power Window | 20 A |
| 33 | Front Passenger’s Power Window | 20 A |
| 34 | Rear Driver Side Power Window | 20 A |
| 35 | Rear Passenger Side Power Window | 20 A |
| 36 | Driver’s Power Seat Sliding (option) | (20 A) |
| 37 | ACCESSORY | 7.5 A |
| 38 | — | — |
| 39 | Left Headlight High Beam | 10 A |
| 40 | Accessory Power Socket (Console Panel) | 20 A |
| 41 | Driver Side Rear Door Lock | 10 A |
| 42 | Door Lock | 20 A |
| a | Audio (option) | (7.5 A) |
| b | ACM (option) | (20 A) |
| c | Rear Seat Heaters (option) | (15 A) |
| d | Premium Amp (option) | (20 A) |
| e | — | — |
| f | — | — |
| g | Passenger’s Power Seat Reclining (option) | (20 A) |
| h | Passenger’s Power Seat Sliding (option) | (20 A) |
Honda Accord (2016 and 2017)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | A/C | 7.5 A |
| 2 | DRL | 7.5 A |
| 3 | – | — |
| 4 | – | — |
| 5 | Meter | 7.5 A |
| 6 | SRS | 7.5 A |
| 7 | Option | (7.5 A) |
| 8 | MISS SOL | 10 A |
| 9 | Fuel Pump | 20 A |
| 10 | ABS/VSA | 7.5 A |
| 11 | – | – |
| 12 | Front Wiper | 7.5 A |
| 13 | ACG | 15 A |
| 14 | Rear Accessory Power Socket (Console Compartment) | (20 A) |
| 15 | Driver’s Power Seat Reclining (option) | (20 A) |
| 16 | Moonroof (option) | (20 A) |
| 17 | Front Seat Heaters (option) | (20 A) |
| 18 | – | – |
| 19 | Passenger Side Door Unlock | 10 A |
| 20 | Driver Side Rear Door Unlock | 10 A |
| 21 | Driver’s Door Lock | 10 A |
| 22 | Passenger Side Door Lock | 10 A |
| 23 | Driver’s Door Unlock | 10 A |
| 24 | SRS | 10 A |
| 25 | Illumination | 10 A |
| 26 | Key Lock | 7.5 A |
| 27 | Parking Lights | 10 A |
| 28 | Lumbar Support (option) | (10 A) |
| 29 | Right Headlight High Beam | 10 A |
| 30 | Washer | 15 A |
| 31 | SMART (option) | (10 A) |
| 32 | Driver’s Power Window | 20 A |
| 33 | Front Passenger’s Power Window | 20 A |
| 34 | Rear Driver Side Power Window | 20 A |
| 35 | Rear Passenger Side Power Window | 20 A |
| 36 | Driver’s Power Seat Sliding (option) | (20 A) |
| 37 | ACCESSORY | 7.5 A |
| 38 | – | – |
| 39 | Left Headlight High Beam | 10 A |
| 40 | Front Accessory Power Socket (Console Panel) | 20 A |
| 41 | Driver Side Rear Door Lock | 10 A |
| 42 | Door Lock | 20 A |
| a | Audio (option) | (7.5 A) |
| b | ACM (option) | (20 A) |
| c | Rear Seat Heaters (option) | (15 A) |
| d | Premium Amp (option) | (20 A) |
| e | — | – |
| f | – | |
| g | Passenger’s Power Seat Reclining (option) | (20 A) |
| h | Passenger’s Power Seat Sliding (option) | (20 A) |

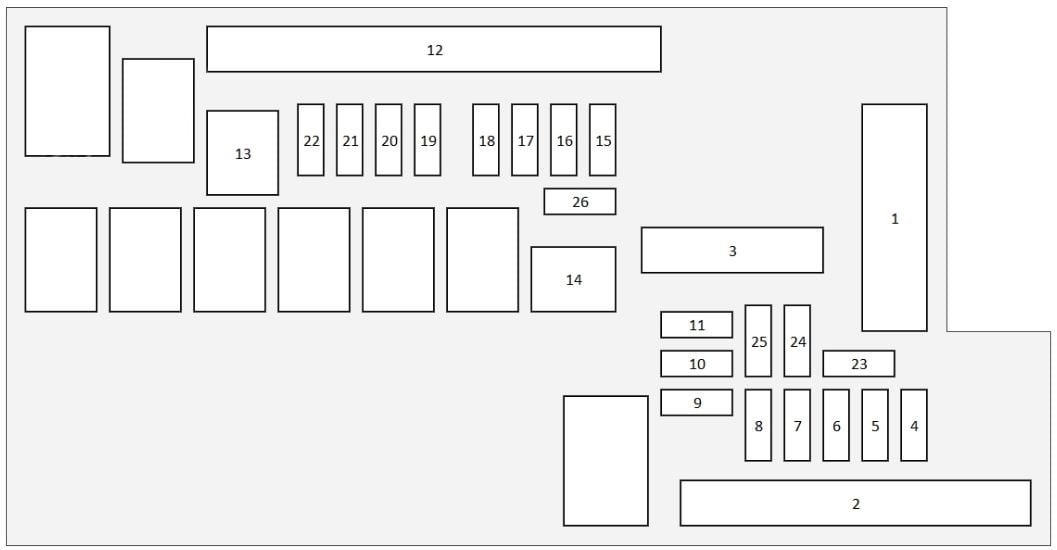

Engine Compartment Fuse Box Diagram
Honda Accord (2013, 2014 and 2015)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | Battery | 125 A |
| 2 | EPS | 70 A |
| 2 | Fuse Box Main 1 | (60 A) |
| 2 | Fuse Box Option 1 | (40 A) |
| 2 | – | – |
| 2 | – | – |
| 2 | ABS/VSA FSR | 40 A |
| 2 | ABS/VSA Motor | 30 A |
| 3 | – | – |
| 3 | – | – |
| 3 | – | – |
| 3 | – | – |
| 4 | Front Fog Light (Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch) | (15 A) |
| 5 | Horn | 10 A |
| 6 | Stop Light | 10 A |
| 7 | FI Sub | 15 A |
| 8 | DRL | (7.5 A) |
| 9 | IG Coil | 15 A |
| 10 | Injector (4-cyl) | 20 A |
| 11 | Hazard | 15 A |
| 12 | Fuse Box Main 2 | 60 A |
| 12 | Fuse Box Option 2 | (40 A) |
| 12 | IG Main 1 | 50 A / 30 A (Models with smart entry system) |
| 12 | IG Main 2 (Models with smart entry system) | 30 A |
| 12 | Sub Fan Motor | 20 A (4-cyl) / 30 A (6-cyl) |
| 12 | Headlight Low Beam Main | 30 A |
| 12 | Fuse Box | 30 A |
| 12 | Wiper Motor | 30 A |
| 12 | Main Fan Motor | 30 A |
| 12 | Starter Motor (Models with smart entry system) | 30 A |
| 13 | Rear Defogger | 40 A |
| 14 | Heater Motor | 40 A |
| 15 | FI Main | 15 A |
| 16 | Heated Door Mirror (Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch) | (10 A) |
| 17 | MG Clutch | 7.5 A |
| 18 | DBW | 15 A |
| 19 | Small Light | 20 A |
| 20 | Interior Light | 7.5 A |
| 21 | Back Up | 10 A |
| 22 | Audio | 10 A |
| 23 | Fan Timer | 7.5 A |
| 24 | Right Headlight Low Beam | 10 A |
| 25 | Left Headlight Low Beam | 10 A |
| 26 | – | – |
