Honda Accord (2018 – 2022) Fuse Box Location & Diagrams

For Honda Accord owners of 2018-2022 models, understanding the fuse box layout is essential for maintaining your vehicle’s electrical system. This user guide provides clear diagrams and detailed instructions to help you locate, identify, and replace fuses quickly and easily. Whether you’re troubleshooting electrical problems or conducting routine maintenance, this guide ensures effective fuse management for your Honda Accord.

Fuse Box Locations

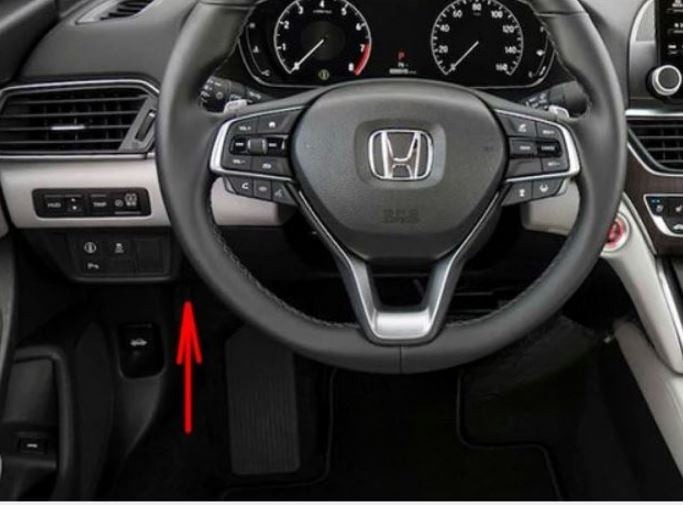

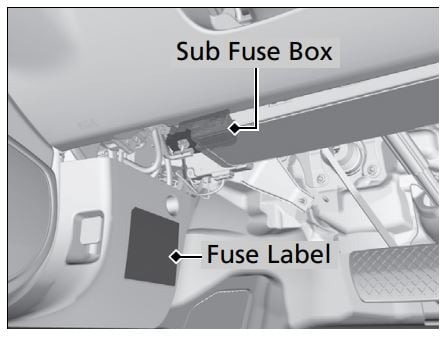

Passenger Compartment
Located under the dashboard.

Fuse locations are shown on the label on the side panel.

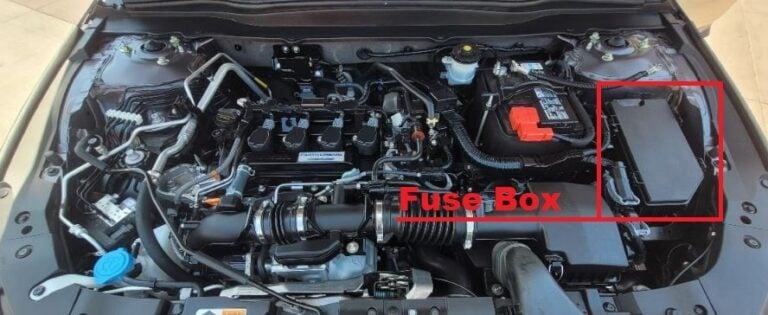

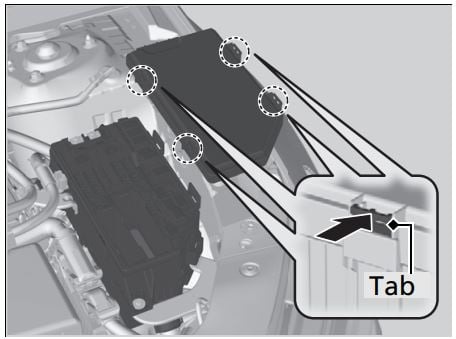

Engine Compartment
Located near the battery.

Fuse locations are shown on the fuse box cover.

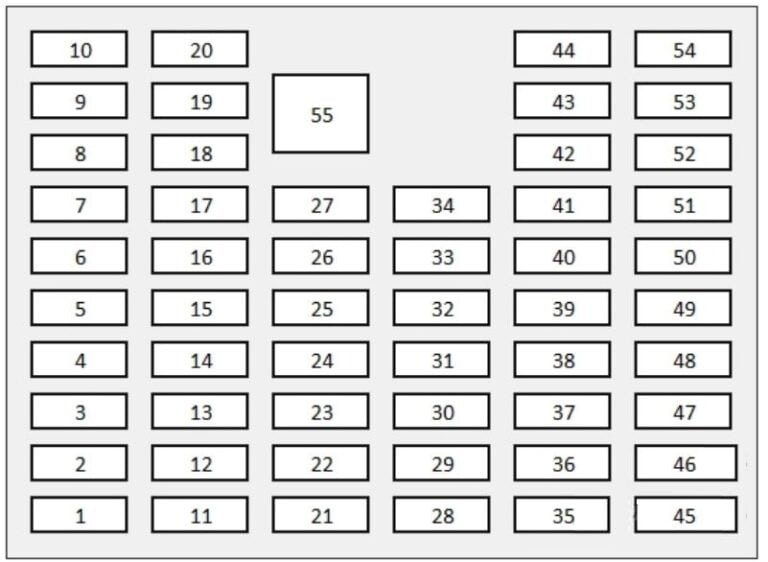

Passenger Compartment Fuse Box Diagram

Honda Accord (2018, 2019 and 2020)

No.	Circuit Protected	Amps
1	−	−
2	L SIDE DOOR UNLOCK	10 A
3	R SIDE DOOR UNLOCK	10 A
4	ACC	10 A
5	ACC KEY LOCK	7.5 A
6	SRS	10 A
7	−	−
8	IG HOLD2*	10 A
9	SMART	10 A
10	−	−
11	L SIDE DOOR LOCK	10 A
12	DR DOOR LOCK	10 A
13	R SIDE DOOR LOCK	10 A
14	OPTION	10 A
15	DRL	10 A
16	CTR ACC SOCKET	20 A
17	MOON ROOF *	20 A
18	−	−
19	−	−
20	SBW ECU*	10 A
21	DR DOOR UNLOCK	10 A
22	−	−
23	−	−
24	PREMIUM AMP*	20 A
25	−	−
26	−	−
27	−	−
28	−	−
29	−	−
30	−	−
31	−	−
32	IG HOLD3*	15 A
33	DR P/SEAT SLI*	20 A
34	AS P/SEAT SLI*	20 A
35	OPTION2	10 A
36	METER	10 A
37	OPTION1	10 A
38	DR P/SEAT REC*	20 A
39	AS P/SEAT REC*	20 A
40	DR P/LUMBAR*	10 A
41	−	−
42	AVS*	20 A
43	OPTION	10 A
44	ADS*	20 A
45	−	−
46	SRS	10 A
47	−	−
48	HUD*	10 A
49	DOOR LOCK	20 A
50	FR ACC SOCKET	20 A
51	RR R P/W	20 A
52	RR L P/W	20 A
53	AS P/W	20 A
54	DR P/W	20 A
55	−	−

Honda Accord (2021 and 2022)

Interior Main Fuse Box

No.	Circuit Protected	Amps
1	−	−
2	L SIDE DOOR UNLOCK	10 A
3	R SIDE DOOR UNLOCK	10 A
4	ACC	10 A
5	ACC KEY LOCK	7.5 A
6	SRS	10 A
7	−	−
8	IG HOLD2*	10 A
9	SMART	10 A
10	−	−
11	L SIDE DOOR LOCK	10 A
12	DR DOOR LOCK	10 A
13	R SIDE DOOR LOCK	10 A
14	OPTION	10 A
15	DRL	10 A
16	CTR ACC SOCKET	20 A
17	MOON ROOF*	20 A
18	−	−
19	−	−
20	SBW ECU*	10 A
21	DR DOOR UNLOCK	10 A
22	−	−
23	−	−
24	PREMIUM AMP*	20 A
25	−	−
26	−	−
27	−	−
28	−	−
29	−	−
30	−	−
31	−	−
32	IG HOLD3*	15 A
33	DR P/SEAT SLI*	20 A
34	AS P/SEAT SLI*	20 A
35	OPTION2	10 A
36	METER	10 A
37	OPTION1	10 A
38	DR P/SEAT REC*	20 A
39	AS P/SEAT REC*	20 A
40	DR P/LUMBAR*	10 A
41	−	−
42	AVS*	20 A
43	OPTION	10 A
44	ADS*	20 A
45	−	−
46	SRS	10 A
47	−	−
48	HUD*	10 A
49	DOOR LOCK	20 A
50	FR ACC SOCKET	20 A
51	RR R P/W	20 A
52	RR L P/W	20 A
53	AS P/W	20 A
54	DR P/W	20 A
55	−	−

Interior Sub Fuse Box

No.	Circuit Protected	Amps
1	VST ACC 1	7.5 A
2	BACKUP2 MAIN	15 A
3	EOP	7.5 A
4	BACKUP3	7.5 A
5	EBB	7.5 A
6	METER VST	7.5 A
7	VSA/ABS	7.5 A

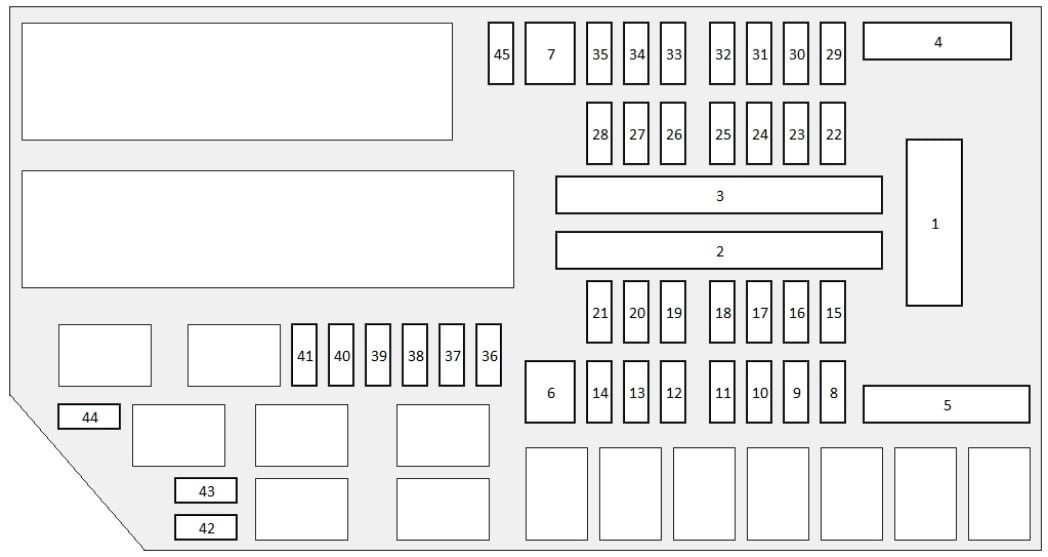

Engine Compartment Fuse Box Diagram

Honda Accord (2018, 2019 and 2020)

No.	Circuit Protected	Amps
1	BATTERY	125 A
2	−	70 A
	EPS	70 A
	−	30 A
	FUSE BOX MAIN 2	60 A
	EBB	40 A
	ABS/VSA FSR	40 A
	−	30 A
	IG MAIN1	30 A
3	REAR DEFROSTER	40 A
	FUSE BOX MAIN 1	60 A
	−	30 A
	HEATER MOTOR	40 A
	−	40 A
	ST MG	30 A
	SUB FAN MOTOR	30 A
	−	30 A
4	−	30 A
	FUSE BOX OP 2*	70 A
	−	40 A
	FUSE BOX OP 1	60 A
5	−	40 A
	MAIN FAN MOTOR	30 A
	SPM2	30 A
	ABS/VSA MOTOR	40 A
	IG MAIN2	30 A
	WIPER MOTOR	30 A
6	SRM1	30 A
7	−	−
8	−	−
9	STOP LIGHT	10 A
10	TCU*	15 A
11	INJ	20 A
12	TCU2*	10 A
13	IGP	15 A
14	TCU3*	10 A
15	FI ECU	10 A
16	BATT SNSR	7.5 A
17	DBW	15 A
18	IG COIL	15 A
19	HAZARD	15 A
20	−	−
21	−	−
22	H/STRG*	10 A
23	−	−
24	AUDIO	15 A
25	REAR H/SEAT*	20 A
26	FR WIPER DEICER*	15 A
27	BACK UP	10 A
28	HORN	10 A
29	FR FOG LIGHT*	10 A
30	SHUTTER GRILLE*	7.5 A
31	MG CLUTCH	10 A
32	WASHER MOTOR	15 A
33	−	−
34	−	10 A
35	AUDIO SUB*	7.5 A
36	IGPS	7.5 A
37	IGPS (LAF)	7.5 A
38	VB ACT	7.5 A
39	IG1 TCU*	10 A
40	IG1 FUEL PUMP	20 A
41	IG1 ABS/VSA	7.5 A
42	IG1 ACG	10 A
43	IG1 ST MOTOR	10 A
44	IG1 MONITOR	7.5 A
45	−	−

Honda Accord (2021 and 2022)

No.	Circuit Protected	Amps
1	BATTERY	125 A
2	−	70 A
	EPS	70 A
	−	30 A
	FUSE BOX MAIN 2	60 A
	EBB	40 A
	ABS/VSA FSR	40 A
	−	30 A
	IG MAIN1	30 A
3	REAR DEFROSTER	40 A
	FUSE BOX MAIN 1	60 A
	−	30 A
	HEATER MOTOR	40 A
	−	40 A
	ST MG	30 A
	SUB FAN MOTOR	30 A
	VST1*	30 A
4	VST2*	30 A
	FUSE BOX OP 2*	70 A
	−	40 A
	FUSE BOX OP 1	60 A
5	−	40 A
	MAIN FAN MOTOR	30 A
	SPM2	30 A
	ABS/VSA MOTOR	40 A
	IG MAIN2	30 A
	WIPER MOTOR	30 A
6	SRM1	30 A
7	−	−
8	−	−
9	STOP LIGHT	10 A
10	TCU	15 A
11	INJ	20 A
12	TCU2*	10 A
13	IGP	15 A
14	TCU3*	10 A
15	FI ECU	10 A
16	BATT SNSR	7.5 A
17	DBW	15 A
18	IG COIL	15 A
19	HAZARD	15 A
20	−	−
21	−	−
22	H/STRG*	10 A
23	−	−
24	AUDIO	15 A
25	REAR H/SEAT*	20 A
26	FR WIPER DEICER*	15 A
27	BACK UP	10 A
28	HORN	10 A
29	FR FOG LIGHT*	10 A
30	SHUTTER GRILLE*	7.5 A
31	MG CLUTCH	10 A
32	WASHER MOTOR	15 A
33	−	−
34	ACL	10 A
35	AUDIO SUB*	7.5 A
36	IGPS	7.5 A
37	IGPS (LAF)	7.5 A
38	VB ACT	7.5 A
39	IG1 TCU	10 A
40	IG1 FUEL PUMP	20 A
41	IG1 ABS/VSA	7.5 A
42	IG1 ACG	10 A
43	IG1 ST MOTOR	10 A
44	IG1 MONITOR	7.5 A
45	BACK UP2	30 A
