Honda CR-V (1995 – 2001) Fuse Box Location & Diagrams
For Honda CR-V owners of 1995-2001 models, understanding the fuse box layout is crucial for maintaining your vehicle’s electrical system. This user guide offers clear diagrams and step-by-step instructions to help you easily locate, identify, and replace fuses. Whether you’re facing electrical issues or performing routine checks, this guide ensures smooth fuse management for your Honda CR-V.
Passenger Compartment Fuse Box
Honda CR-V (1995 to 2001)

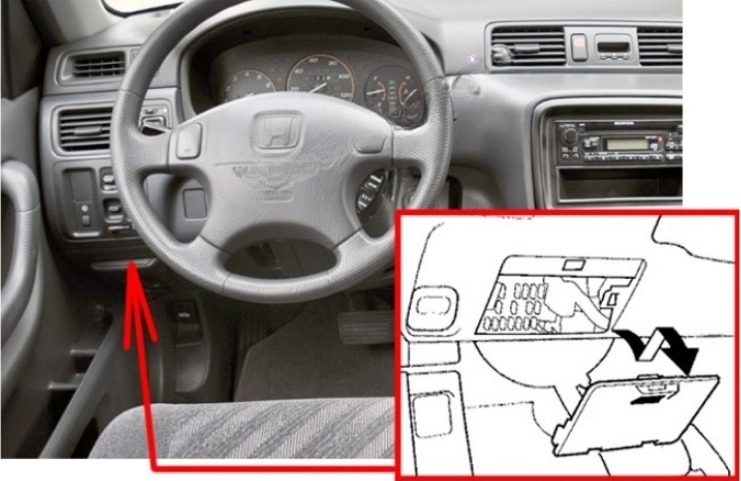

Fuse Box Location
The interior fuse box is underneath the dashboard on the driver’s side. Remove the lid by swinging the lid down and pulling it straight out of its hinges.

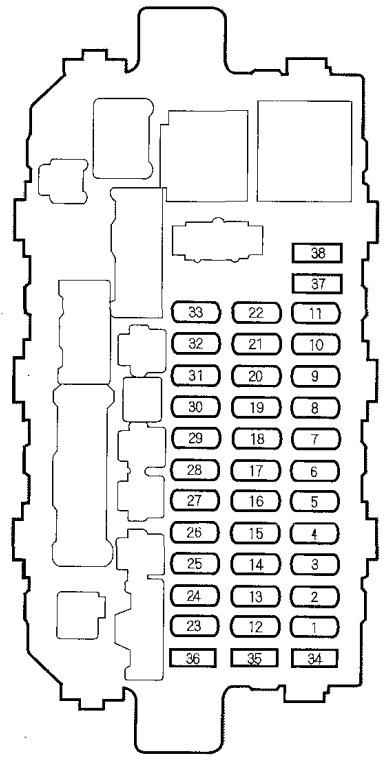

Fuse Box Diagram
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | — | Not used |
| 2 | — | Not used |
| 3 | 10 A | Rear Wiper, Washer |
| 4 | 10 A | Right Headlight High Beam |
| 5 | 10 A | Left Headlight High Beam |
| 6 | 10 A | Rear Accessory Power Socket |
| 7 | 20 A | Power Window Rear Left |
| 8 | 20 A | Power Window Rear Right |
| 9 | 15 A | IGN Coil |
| 10 | 20 A | Power Window Front Assistant |
| 11 | 20 A | Power Window Front Driver |
| 12 | 7.5 A | Turn Lights |
| 13 | 15 A | Fuel Pump (SRS Unit) |
| 14 | 7.5 A | Cruise Control |
| 15 | 7.5 A | ACG (IG), SP Sensor |
| 16 | 7.5 A | ABS |
| 17 | 7.5 A | Heater A/C Relay |
| 18 | 7.5 A | Running Light Relay (canadian model) |
| 19 | 7.5 A | Back-up Light |
| 20 | 7.5 A | Running Light (canadian model) |
| 21 | 10 A | Right Headlight Low Beam |
| 22 | 10 A | Left Headlight Low Beam |
| 23 | 10 A | SRS |
| 24 | 7.5 A | Power Window Relay |
| 25 | 7.5 A | Meter |
| 26 | 20 A | Front Wiper, Front Washer |
| 27 | 10 A | Front Accessory Power Socket |
| 28 | 10 A | Radio |
| 29 | — | Not used |
| 30 | 7.5 A | Meter Light |
| 31 | 7.5 A | Starter Signal |
| 32 | 7.5 A | License Light, Taillight |
| 33 | 7.5 A | Inter Lock Unit |
| 34 | 7.5 A | Spare Fuse |
| 35 | 10 A | Spare Fuse |
| 36 | 15 A | Spare Fuse |
| 37 | 20 A | Spare Fuse |
| 38 | — | Not used |
Engine Compartment Fuse Box
Honda CR-V (1995 to 2001)

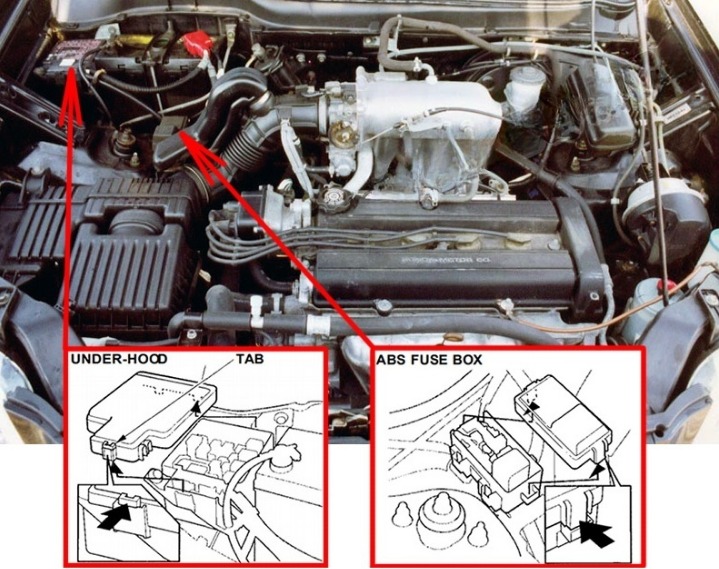

Fuse Box Location
The under-hood fuse box is located in the engine compartment.
Vehicles equipped with ABS have a third fuse box for the ABS. It is in the engine compartment on the passenger’s side.

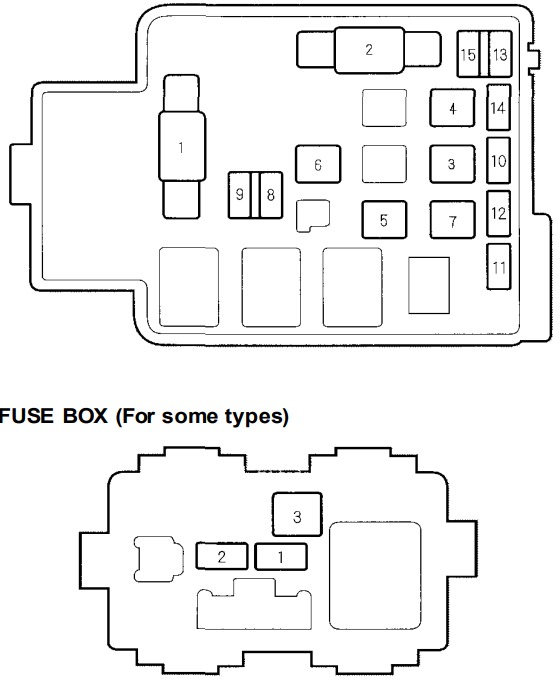

Fuse Box Diagram
| No. | Amps. | Circuits Protected |
|---|---|---|
| 1 | 100 A | Main Fuse Battery |
| 2 | 40 A | Main Fuse Ignition Starter |
| 3 | 20 A | Rear Defogger |
| 4 | 40 A | Power Window |
| 5 | 40 A | Option |
| 6 | 30 A | Headlight |
| 7 | 40 A | Healer Motor |
| 8 | 10 A | Hazard |
| 9 | 15 A | Horn, Stop Light |
| 10 | 20 A | Door Lock Unit |
| 11 | 20 A | Cooling Fan |
| 12 | 20 A | Condenser Fan |
| 13 | 15 A | FI E/M (ECM/PCM) |
| 14 | 7.5 A | Back-up (Radio) |
| 15 | 7.5 A | Interior Light |
| ABS FUSE BOX: | ||
| 1 | 7.5 A | Motor Check |
| 2 | 20 A | ABS + B |
| 3 | 40 A | ABS Pump Motor |
