Honda Fit (2015 – 2019) Fuse Box Location & Diagrams
For Honda Fit owners of 2015-2019 models, understanding the fuse box layout is essential for proper vehicle maintenance. This user guide provides detailed diagrams and step-by-step instructions on fuse box locations, making it easier to identify and replace fuses. Whether you’re troubleshooting electrical issues or performing routine maintenance, this guide simplifies fuse management for your Honda Fit.
Fuse Box Locations

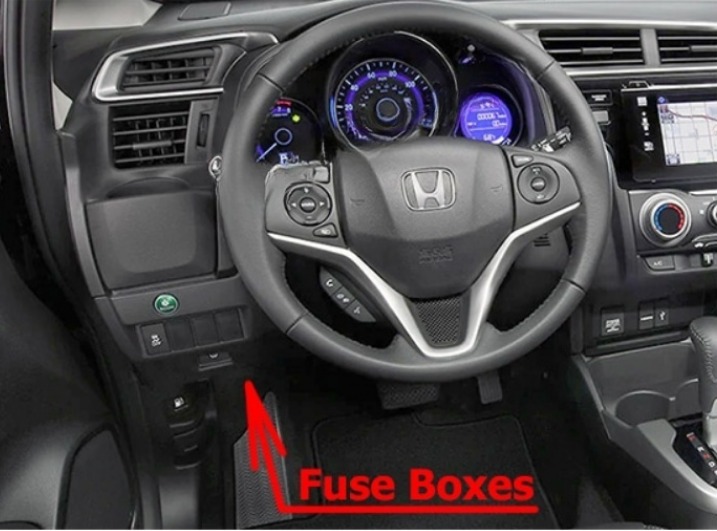

Passenger Compartment Fuse Box
Located under the dashboard.

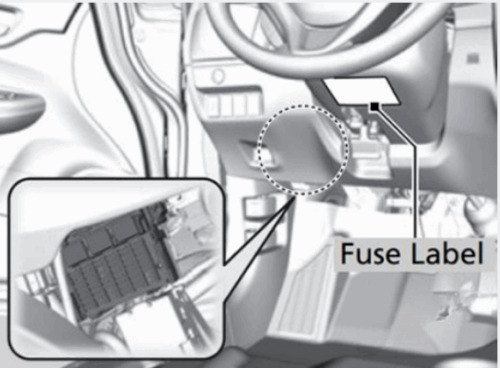

Fuse box A:
Fuse locations are shown on the label under the steering column.

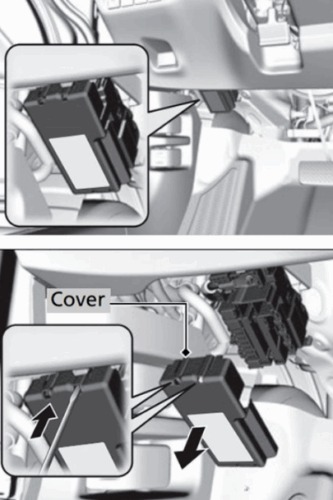

Fuse box B:
Remove the cover by putting the flat-tip screwdriver into the side slot as shown.

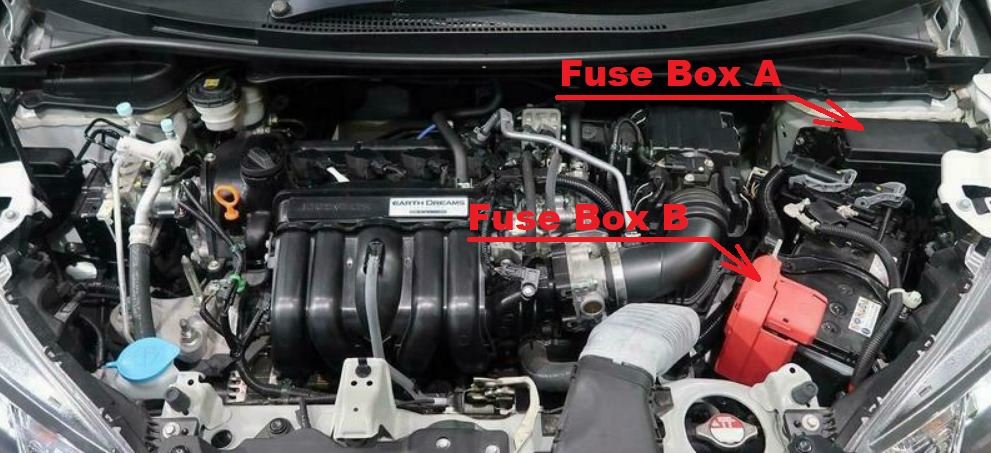

Engine Compartment Fuse Box

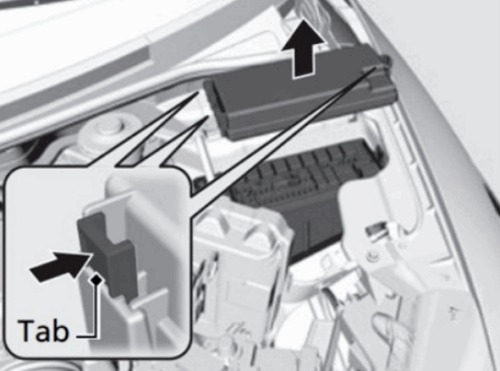

Fuse box A:
Located near the brake fluid reservoir.
Push the tabs to open the box. Fuse locations are shown on the fuse box cover.
Fuse box B:

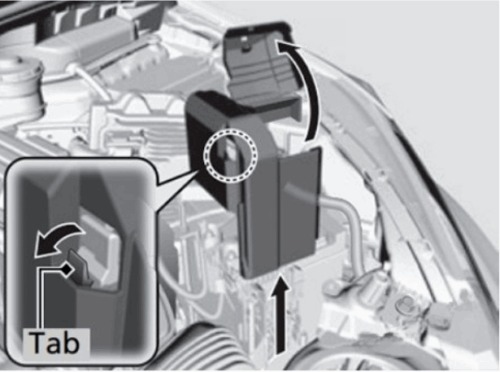

Pull up the cover on the + terminal, then remove it while pulling out the tab as shown
Passenger Compartment Fuse Box Diagram
Honda Fit (2015 and 2016)

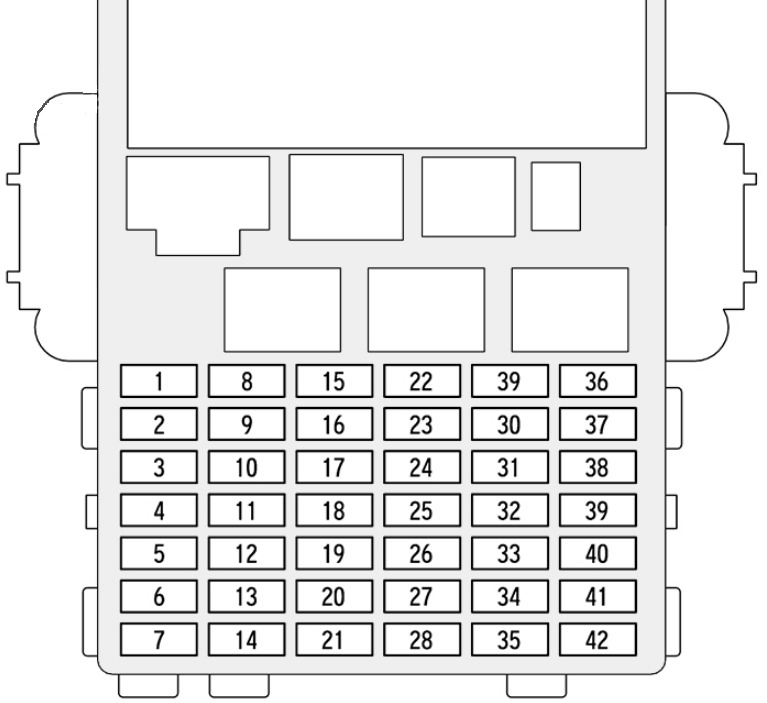

Passenger compartment (Fuse box A)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | Door Lock | (20 A) |
| 2 | – | – |
| 3 | Smart (optional) | (10 A) |
| 4 | Driver Side Door Unlock | 15 A |
| 5 | Passenger Side Door Unlock | 15 A |
| 6 | Driver Door Unlock | (10 A) |
| 7 | Driver Door Lock | (10 A) |
| 8 | Driver’s Power Window | 20 A |
| 9 | Passenger’s Power Window | 20 A |
| 10 | Rear Left Power Window | 20 A |
| 11 | Rear Right Power Window | 20 A |
| 12 | Driver Side Door Lock | 15 A |
| 13 | Passenger Side Door Lock | 15 A |
| 14 | – | – |
| 15 | Right Headlight High Beam | 10 A |
| 16 | STS (optional) | (7.5 A) |
| 17 | ACC Socket (Console) (optional) | (20 A) |
| 18 | Moonroof (optional) | (20 A) |
| 19 | Front Seat Heater (optional) | (20 A) |
| 20 | – | – |
| 21 | – | – |
| 22 | Washer | 15 A |
| 23 | Rear Wiper | (10 A) |
| 24 | A/C | 7.5 A |
| 25 | Daytime Running Lights | 7.5 A |
| 26 | Starter Cut | 7.5 A |
| 27 | ABS/VSA | 7.5 A |
| 28 | SRS | 10 A |
| 29 | Left Headlight High Beam | 10 A |
| 30 | ACG | 10 A |
| 31 | Power Window | 10 A |
| 32 | Fuel Pump | 15 A |
| 33 | SRS | 7.5 A |
| 34 | Meter | 7.5 A |
| 35 | Mission SOL | 7.5 A |
| 36 | Front ACC Socket | 20 A |
| 37 | ACC | 7.5 A |
| 38 | ACC Key Lock | 7.5 A |
| 39 | Option | (10 A) |
| 40 | Rear Wiper | 10 A |
| 41 | — | — |
| 42 | — | — |

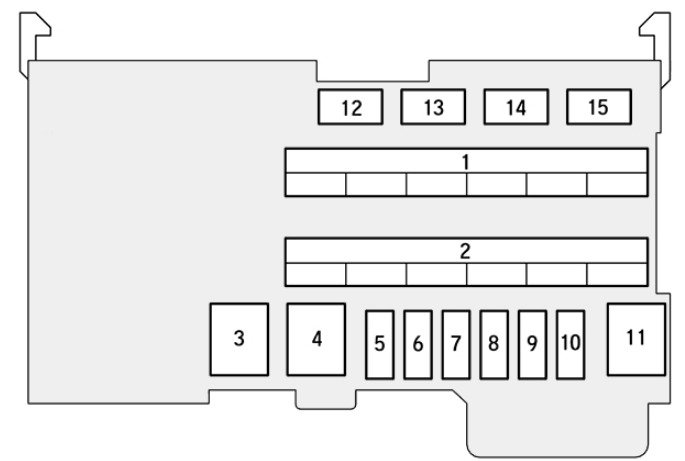

Passenger compartment (Fuse box B)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | EPS | 70 A |
| 1 | IG Main 30 A (with smart entry system), 50 A (without smart entry system) | 30 A / 50 A |
| 1 | Fuse Box Main 2 | 50 A |
| 1 | ABS/VSA Motor | 40 A |
| 1 | Fuse Box Main 1 | 30 A |
| 1 | Fuse Box Main 3 | 40 A |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 3 | Heater | 30 A |
| 4 | IG Main 2 (with smart entry system) Not Used (without smart entry system) | 30 A – |
| 5 | ABS/VSA FSR | 30 A |
| 6 | Deicer | (10 A) |
| 7 | – | – |
| 8 | – | |
| 9 | Small Light | 10 A |
| 10 | ACC Socket (Console) (optional) | (20 A) |
| 11 | Rear Defogger | 30 A |
| 12 | Not Used (with smart entry system) ACC Key Lock (without smart entry system) | – (7.5 A) |
| 13 | Heated Door Mirror (optional) | (10 A) |
| 14 | A/C Blower SW | (7.5 A) |
| 15 | Not Used (with smart entry system) Wiper (without smart entry system) | – 30 A |
Honda Fit (2017, 2018 to 2019)
Passenger compartment (Fuse box A)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | Door Lock | (20 A) |
| 2 | – | – |
| 3 | Smart (optional) | (10 A) |
| 4 | Driver Side Door Unlock | 15 A |
| 5 | Passenger Side Door Unlock | 15 A |
| 6 | Driver Door Unlock | (10 A) |
| 7 | Driver Door Lock | (10 A) |
| 8 | Driver’s Power Window | 20 A |
| 9 | Passenger’s Power Window | 20 A |
| 10 | Rear Left Power Window | 20 A |
| 11 | Rear Right Power Window | 20 A |
| 12 | Driver Side Door Lock | 15 A |
| 13 | Passenger Side Door Lock | 15 A |
| 14 | – | – |
| 15 | Right Headlight High Beam | 10 A |
| 16 | STS (optional) | (7.5 A) |
| 17 | ACC Socket (Console) (optional) | (20 A) |
| 18 | Moonroof (optional) | (20 A) |
| 19 | Front Seat Heater (optional) | (20 A) |
| 20 | – | – |
| 21 | – | – |
| 22 | Washer | 15 A |
| 23 | Rear Wiper | (10 A) |
| 24 | A/C | 7.5 A |
| 25 | Daytime Running Lights | 7.5 A |
| 26 | Starter Cut | 7.5 A |
| 27 | ABS/VSA | 7.5 A |
| 28 | SRS | 10 A |
| 29 | Left Headlight High Beam | 10 A |
| 30 | ACG | 10 A |
| 31 | Power Window | 10 A |
| 32 | Fuel Pump | 15 A |
| 33 | SRS | 7.5 A |
| 34 | Meter | 7.5 A |
| 35 | Mission SOL | 7.5 A |
| 36 | Front ACC Socket | 20 A |
| 37 | ACC | 7.5 A |
| 38 | ACC Key Lock | 7.5 A |
| 39 | Option | (10 A) |
| 40 | Rear Wiper | 10 A |
| 41 | — | — |
| 42 | — | — |
Passenger compartment (Fuse box B)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | EPS | 70 A |
| 1 | IG Main (30 A (with smart entry system), 50 A (without smart entry system)) | 30 A / 50 A |
| 1 | Fuse Box Main 2 | 50 A |
| 1 | ABS/VSA Motor | 40 A |
| 1 | Fuse Box Main 1 | 30 A |
| 1 | Fuse Box Main 3 | 40 A |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 2 | – | – |
| 3 | Healer | 30 A |
| 4 | IG Main 2 (with smart entry system) Not Used (without smart entry system) | 30 A – |
| 5 | ABS/VSA FSR | 30 A |
| 6 | FCW (optional) / LDW (optional) | (15 A) |
| 7 | – | – |
| 8 | Front Sensor Camera (optional) | (7.5 A) |
| 9 | Small Light | 10 A |
| 10 | ACC Socket (Console) (optional) | (20 A) |
| 11 | Rear Defogger | 30 A |
| 12 | Not Used (with smart entry system) ACC Key Lock (without smart entry system) | – (7.5 A) |
| 13 | Heated Door Mirror (optional) | (10 A) |
| 14 | A/C Blower SW | (7.5 A) |
| 15 | Not Used (with smart entry system) Wiper (without smart entry system) | – 30 A |
Engine Compartment Fuse Box Diagram
Honda Fit (2015 and 2016)

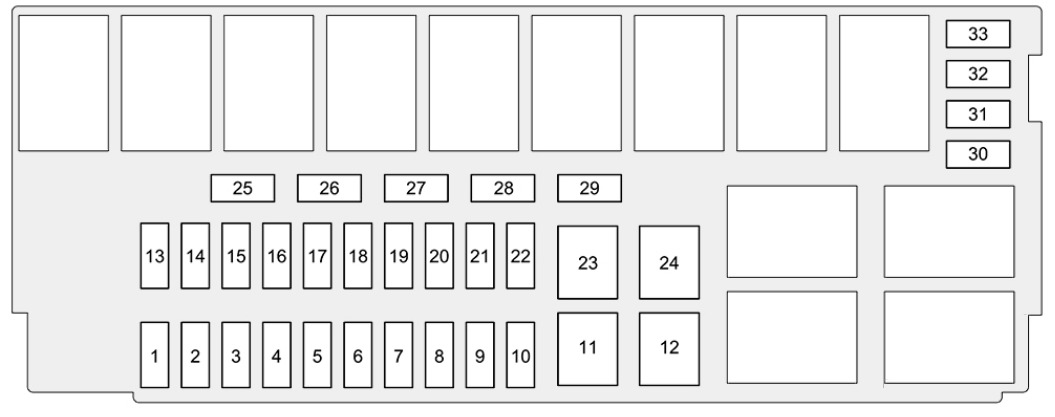

Engine compartment (Fuse box A)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | Headlight Low Beam Main | 20 A |
| 2 | CDC (optional) | (30 A) |
| 3 | Hazard | 10 A |
| 4 | DBW | 15 A |
| 5 | Wiper | (30 A) |
| 6 | Stop | 10 A |
| 7 | IGP | 15 A |
| 8 | IG Coil | 15 A |
| 9 | ECP (optional) | (10 A) |
| 10 | INJ | (20 A) |
| 11 | – | – |
| 12 | Main Fan | 30 A |
| 13 | Starter SW | (30 A) |
| 14 | MG Clutch | 7.5 A |
| 15 | Battery Sensor | (7.5 A) |
| 16 | – | – |
| 17 | Daytime Running Lights | (7.5 A) |
| 18 | Horn | 10 A |
| 19 | Fog Light (optional) | (15 A) |
| 21 | Back Up Main | 15 A |
| 22 | Interior Lights | 7.5 A |
| 23 | Sub Fan | (30 A) |
| 24 | – | – |
| 25 | Smart Entry Auto Start (optional) | (7.5 A) |
| 26 | ST MG | (7.5 A) |
| 27 | – | – |
| 28 | – | – |
| 29 | Back Up | (10 A) |
| 30 | IGPLAF | (10 A) |
| 31 | IGPS | (7.5 A) |
| 32 | Right Headlight Low Beam | 10 A |
| 33 | Left Headlight Low Beam | 10 A |

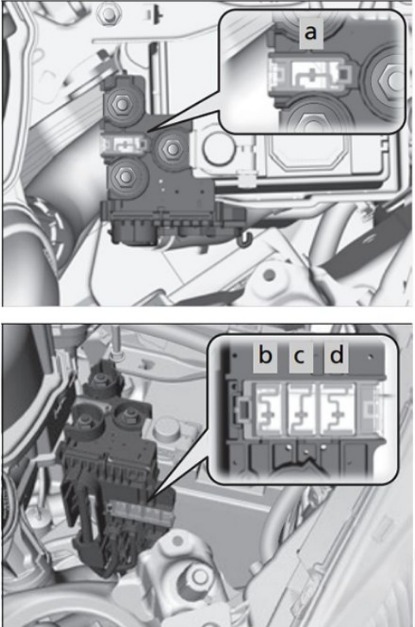

Engine compartment (Fuse box B)
Assignment of the fuses in the engine compartment (Fuse box B) (2015-2019)
| No | Circuit Protected | Amps |
|---|---|---|
| a | Battery Main | 100 A |
| b | RB Main 1 | 70 A |
| c | RB Main 2 | 80 A |
| d | CAP Main | 70 A |
Honda Fit (2017, 2018 to 2019)
Engine compartment (Fuse box A)
| No | Circuit Protected | Amps |
|---|---|---|
| 1 | Headlight Low Beam Main | 20 A |
| 2 | CDC (optional) | (30 A) |
| 3 | Hazard | 10 A |
| 4 | DBW | 15 A |
| 5 | Wiper | (30 A) |
| 6 | Stop | 10 A |
| 7 | IGP | 15 A |
| 8 | IG Coil | 15 A |
| 9 | EOP (optional) | (10 A) |
| 10 | INJ | (20 A) |
| 11 | – | – |
| 12 | Main Fan | 30 A |
| 13 | Starter SW | (30 A) |
| 14 | MG Clutch | (7.5 A) |
| 15 | Battery Sensor | (7.5 A) |
| 16 | – | – |
| 17 | Daytime Running Lights | (7.5 A) |
| 18 | Horn | 10 A |
| 19 | Fog Light (optional) | (15 A) |
| 20 | UB ECU (optional) | (7.5 A) |
| 21 | Back Up Main | 15 A |
| 22 | Interior Lights | 7.5 A |
| 23 | Sub Fan | (30 A) |
| 24 | – | – |
| 25 | Smart Entry Auto Start (with smart entry system) | (7.5 A) |
| 26 | ST MG (without smart entry system) | (7.5 A) |
| 27 | – | – |
| 28 | – | – |
| 29 | Back Up | (10 A) |
| 30 | IGP LAF | (10 A) |
| 31 | IGPS | (7.5 A) |
| 32 | Right Headlight Low Beam | 10 A |
| 33 | Left Headlight Low Beam | 10 A |
Engine compartment (Fuse box B)
Assignment of the fuses in the engine compartment (Fuse box B) (2015-2019)
| No | Circuit Protected | Amps |
|---|---|---|
| a | Battery Main | 100 A |
| b | RB Main 1 | 70 A |
| c | RB Main 2 | 80 A |
| d | CAP Main | 70 A |
