Hyundai Elantra (1990 – 1995) Fuse Box Location & Diagrams
If you’re looking for the fuse box location and fuse diagram for the Hyundai Elantra (1990–1995), this guide has you covered. Learn where the interior and engine compartment fuse boxes are located, understand each fuse’s function, and find the correct fuse for troubleshooting electrical issues such as headlights, power windows, radio, wipers, or the ignition system.
Fuse Box Location

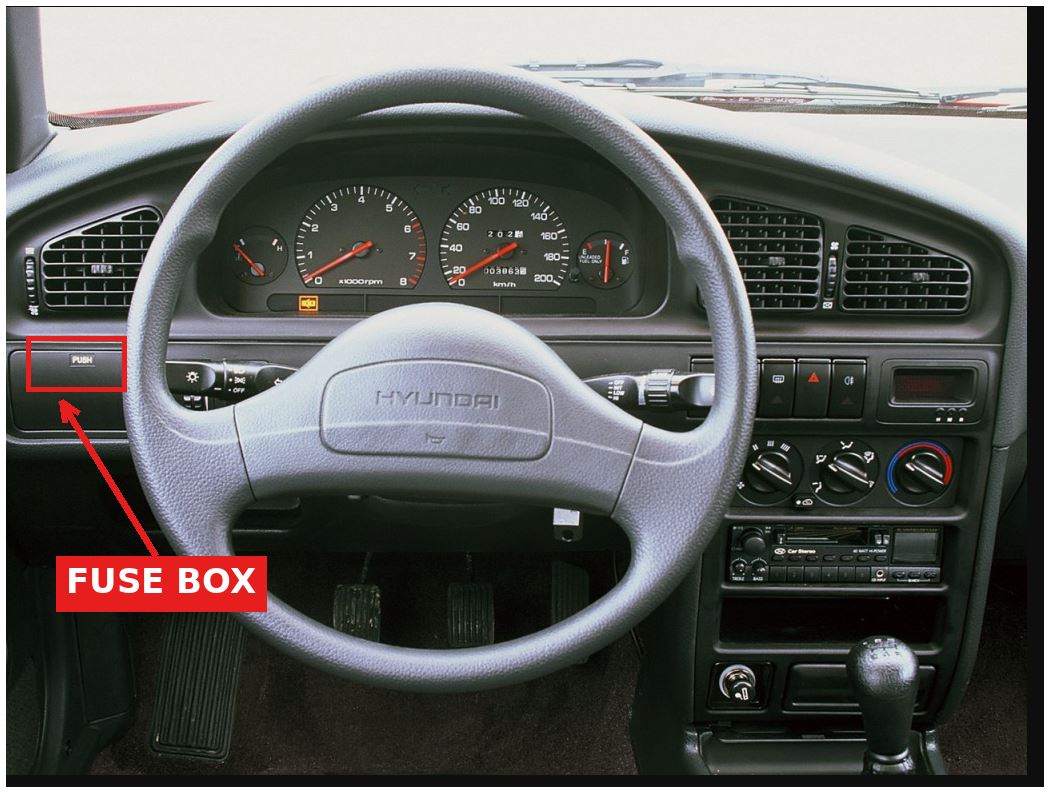

Passenger Compartment Fuse Box

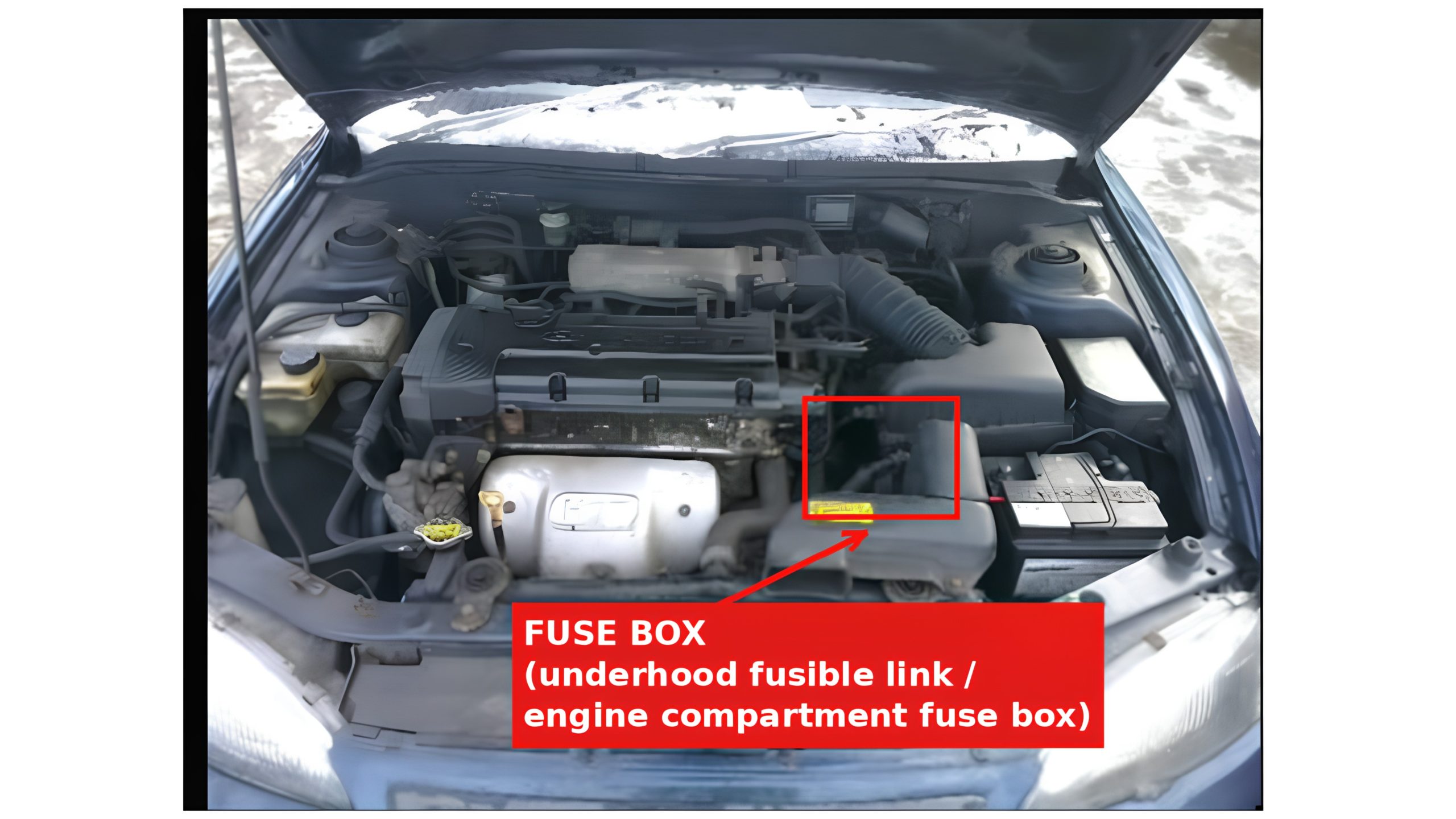

Engine Compartment Fuse Box
Fuse Box Diagram

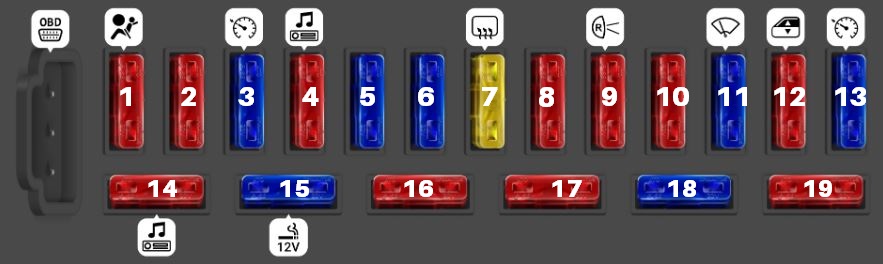

Passenger Compartment Fuse Box
Interior Fuse Box (1991 & 1992)
| Fuse (Type & No.) | Rating | Description |
|---|---|---|
| ATO Fuse 1 | 10A | A/C Relay |
| ATO Fuse 2 | 10A | Hazard Lights |
| ATO Fuse 3 | 15A | Stoplights, Cruise Control |
| ATO Fuse 4 | 10A | Radio, Transmission Control Unit, Power Antenna |
| ATO Fuse 5 | 15A | Power Locks, Trunk Lid Opener |
| ATO Fuse 6 | 15A | Interior Light, Map Light Cluster |
| ATO Fuse 7 | 20A | Timer & Alarm Control Unit (T.A.C.U.) |
| ATO Fuse 8 | 10A | Ignition Key Warning, Clock |
| ATO Fuse 9 | 10A | Back-Up Lights, Turn/Hazard Relay |
| ATO Fuse 10 | 10A | Clock, Cluster T.A.C.U., A/T Key Lock Unit |
| ATO Fuse 11 | 15A | T.A.C.U., Wiper Motor, Washer Motor |
| ATO Fuse 12 | 10A | Sunroof, Relay (Headlight/Blower/Power Window), Dash Cluster |
| ATO Fuse 13 | 15A | Blower Actuator, T.C.U. Inhibitor Switch, Cruise Control |
| ATO Fuse 14 | 10A | Radio, Power Mirror, Taillight Relay, A/T Key Lock Unit |
| ATO Fuse 15 | 15A | Cigarette Lighter |
| ATO Fuse 16 | 10A | Power Window, Cluster, A/C Switch, Taillights (Left) |
| ATO Fuse 17 | 10A | Taillights (Right) |
| ATO Fuse 18 | 10A | A/C Switch |
| ATO Fuse 19 | 10A | Seatbelt Release System, Power Steering |
Interior Fuse Box (1993 – 1995)
| Fuse (Type & No.) | Rating | Description |
|---|---|---|
| ATO Fuse 1 | 10A | SRS Warning Lamp |
| ATO Fuse 2 | 10A | Hazard Warning |
| ATO Fuse 3 | 15A | Cruise Controls, Brake Lights |
| ATO Fuse 4 | 10A | Transmission Control Module, Audio, Power Antenna, Clock |
| ATO Fuse 5 | 15A | Power Door Lock, Trunk Lid Opener |
| ATO Fuse 6 | 15A | Sunroof, Courtesy Lamps |
| ATO Fuse 7 | 20A | Rear Defogger |
| ATO Fuse 8 | 10A | Chime, Door Warning |
| ATO Fuse 9 | 10A | Reverse Lights, Turn Signal Lights |
| ATO Fuse 10 | 10A | Cluster, Seat Belt |
| ATO Fuse 11 | 15A | Wiper and Washer Controls |
| ATO Fuse 12 | 10A | Power Windows, Fan, Headlights, Sunroof |
| ATO Fuse 13 | 15A | Cruise, Transmission Control Module, ABS |
| ATO Fuse 14 | 10A | Audio, Power Rearview Mirror |
| ATO Fuse 15 | 15A | Cigarette Lighter |
| ATO Fuse 16 | 10A | Left Rear Lights |
| ATO Fuse 17 | 10A | Right Rear Lights |
| ATO Fuse 18 | 15A | SRS Controls (Airbag) |
| ATO Fuse 19 | 10A | Passive Restraint Belt |

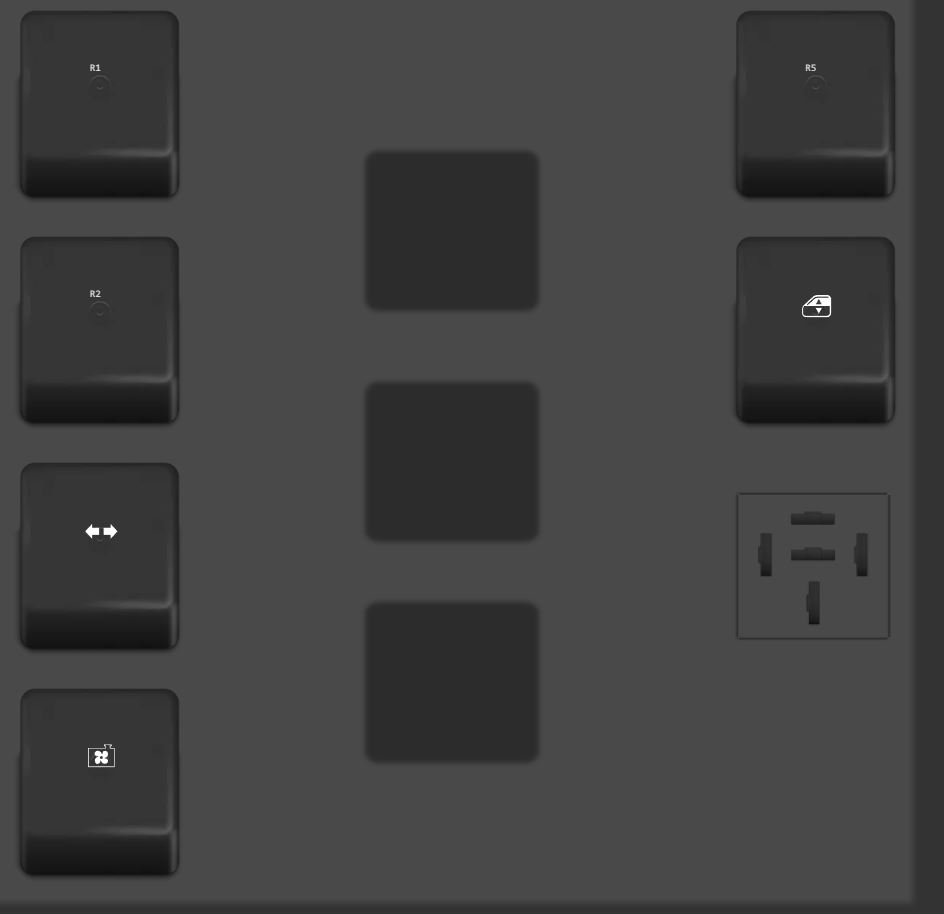

Relay Box (1993 – 1995)
| Relay (Type & No.) | Description |
|---|---|
| Relay R1 | Rear Relay |
| Relay R2 | M/T Starter Relay |
| Relay R3 | Turn Signal Relay |
| Relay R4 | Blower Relay |
| Relay R5 | Rear Light Relay |
| Relay R6 | Power Window Relay |
| Relay R7 | Not Used |
Engine Compartment Fuse Box

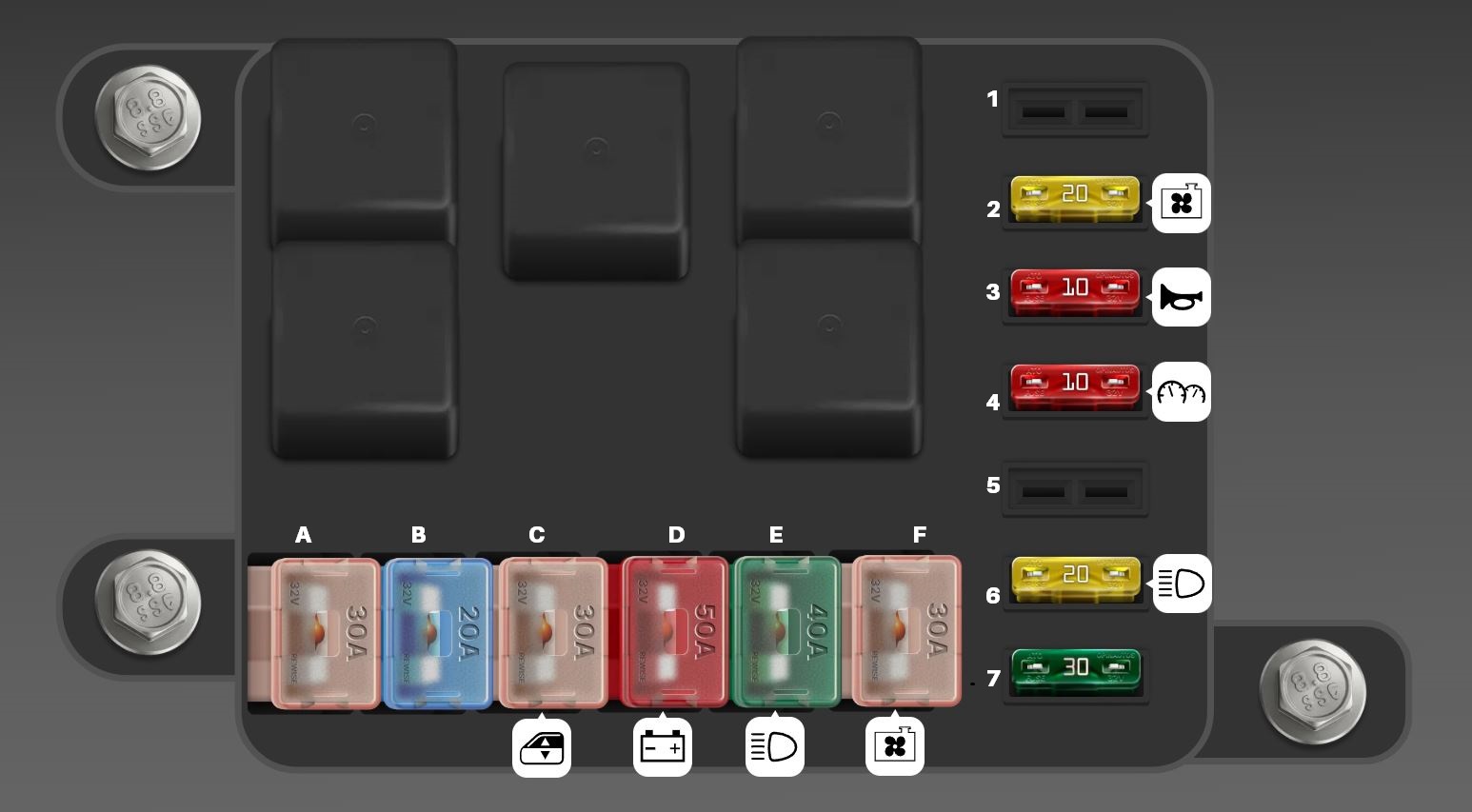

Underhood fusible link (1991 & 1992)
| Fuse (Type & No.) | Rating | Description |
|---|---|---|
| FLM Fuse A | 30A | Ignition Power Source |
| FLM Fuse B | 20A | MPI |
| FLM Fuse C | 30A | Power Window |
| FLM Fuse D | 50A | Battery Power Source |
| FLM Fuse E | 40A | Headlamps |
| FLM Fuse F | 30A | Radiator Fan Controls |
| ATO Fuse 1 | – | Not Used |
| ATO Fuse 2 | 20A | Condenser Fan Controls |
| ATO Fuse 3 | 10A | Horns |
| ATO Fuse 4 | 10A | Headlamp Indicator |
| ATO Fuse 5 | – | Not Used |
| ATO Fuse 6 | 20A | Headlamps |
| ATO Fuse 7 | 30A | Blower Controls |

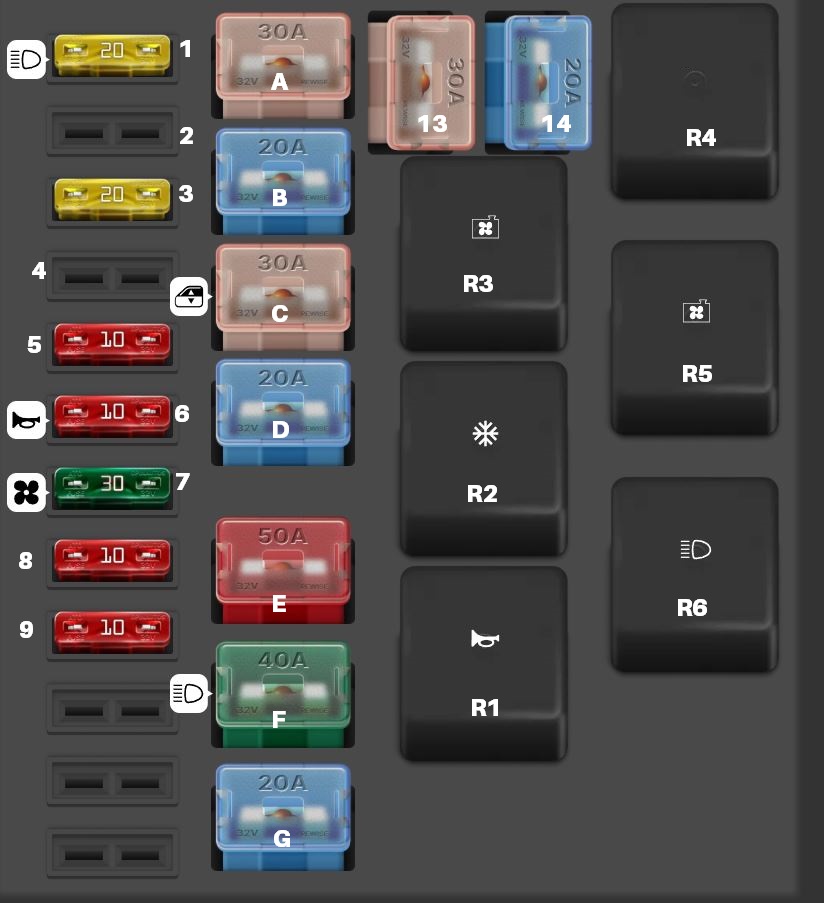

Engine compartment (1993 – 1995)
| Component (Type & No.) | Rating | Description |
|---|---|---|
| ATO Fuse 1 | 20A | Headlights |
| ATO Fuse 5 | 10A | Headlight Indicator |
| ATO Fuse 6 | 10A | Horn |
| ATO Fuse 7 | 30A | Fan |
| ATO Fuse 8 | 10A | Air Conditioning Controls |
| ATO Fuse 9 | 10A | Air Conditioning Controls |
| FLF/PAL 293 Fuse A | 30A | Ignition Power Supply |
| FLF/PAL 293 Fuse B | 20A | MFI System Controls |
| FLF/PAL 293 Fuse C | 30A | Power Windows |
| FLF/PAL 293 Fuse D | 20A | Condenser Fan Controls |
| FLF/PAL 293 Fuse E | 50A | Battery Power Supply |
| FLF/PAL 293 Fuse F | 40A | Headlights |
| FLF/PAL 293 Fuse G | 20A | Radiator Fan Controls |
| Relay R1 | — | Horn Relay |
| Relay R2 | — | Air Conditioning Relay |
| Relay R3 | — | Radiator Fan Relay |
| Relay R4 | — | Radiator Fan Control Relay |
| Relay R5 | — | Condenser Fan Relay |
| Relay R6 | — | Headlight Relay |
