Hyundai Accent (2000 – 2005) Fuse Box Location & Diagrams
Hunting down a dead fuse in your 2000-2005 Hyundai Accent can feel like a guessing game. Whether your radio quit or a headlight went dark, we have you covered. Here is the exact location of every interior and engine bay fuse box, complete with clear diagrams and amperage ratings to get you back on the road safely.
Fuse Box Location

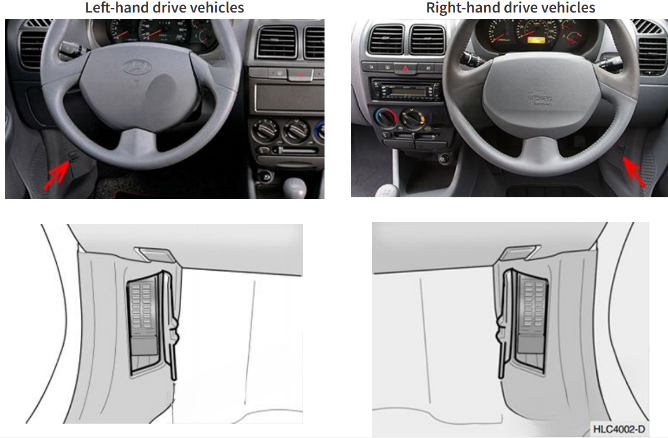

Passenger Compartment Fuse Box
The fuse box is located under the dashboard, on the driver’s side (kick panel).

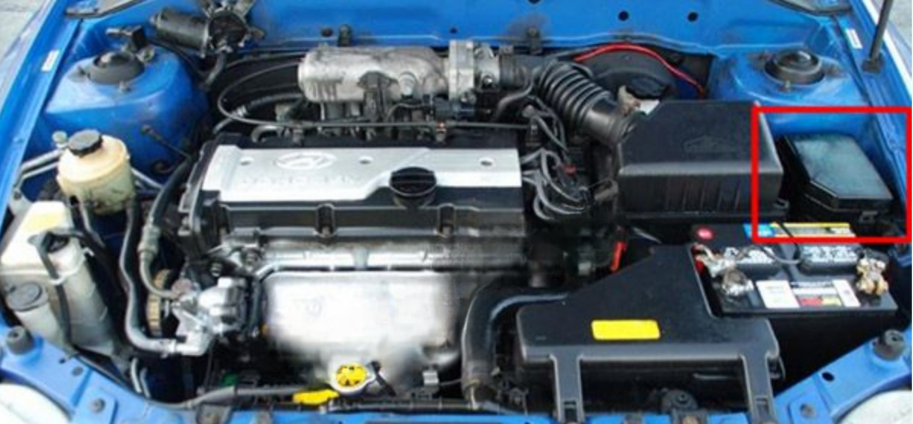

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left-side).
Fuse Box Diagrams

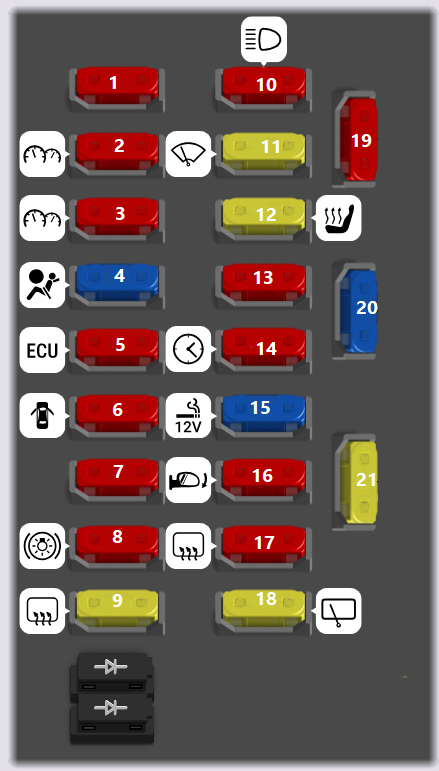

Passenger Compartment Fuse Box
Hyundai Accent (2000 & 2001)
| Type | No. | Description |
|---|---|---|
| Fuse MINI10A | 1 | Hazard Warning, Back-up Lamp Switch, A/T Shift & Key Lock Control Module |
| Fuse MINI10A | 2 | ETACM, Generator Resistor, Instrument Cluster |
| Fuse MINI10A | 3 | Instrument Cluster |
| Fuse MINI15A | 4 | Air Bag |
| Fuse MINI10A | 5 | ECM, TCM, A/T Shift Lever |
| Fuse MINI10A | 6 | Power Door Lock |
| Fuse MINI10A | 7 | Hazard Warning, ETACM |
| Fuse MINI10A | 8 | Stop Lamp, A/T Shift Lever, A/T Key Interlock Solenoid |
| Fuse MINI20A | 9 | Rear Window Defogger |
| Fuse MINI10A | 10 | Head Lamp, Power Window, ETACM, Front Fog Lamp, Blower Control, Wiper |
| Fuse MINI20A | 11 | Front Wiper & Washer |
| Fuse MINI10A | 13 | ABS Control, ABS Bleeding |
| Fuse MINI10A | 14 | Clock, Audio |
| Fuse MINI15A | 15 | Cigarette Lighter |
| Fuse MINI10A | 16 | Power Door Mirror Switch |
| Fuse MINI10A | 17 | Power Door Mirror Motor & Defogger |
| Fuse MINI20A | 18 | Rear Wiper |
| Fuse MINI10A | 19 | SPARE |
| Fuse MINI15A | 20 | SPARE |
| Fuse MINI20A | 21 | SPARE |
Hyundai Accent (2002 & 2003)
| Type | No. | Description |
|---|---|---|
| Fuse MINI10A | 1 | Hazard warning lights, reverse light switch, transmission speed switch, A/T shift control module and key lock |
| Fuse MINI10A | 2 | ETACM, pre-excitation resistor, instrument cluster, seat belt timer |
| Fuse MINI10A | 3 | Instrument cluster |
| Fuse MINI15A | 4 | Airbag |
| Fuse MINI10A | 5 | ECM, A/T shift lever, transmission speed switch, air flow sensor, vehicle speed sensor, water sensor |
| Fuse MINI10A | 6 | Central locking |
| Fuse MINI10A | 7 | Hazard warning lights, ETACM |
| Fuse MINI10A | 8 | Brake light, A/T shift lever, A/T key lock solenoid |
| Fuse MINI20A | 9 | Rear window defogger |
| Fuse MINI10A | 10 | Headlight, power window, headlight leveling, headlight washer, ETACM, front fog light, air diffuser control, rear intermittent wash, fuel filter relay |
| Fuse MINI20A | 11 | Front windshield wiper and washer |
| Fuse MINI20A | 12 | Seat heater |
| Fuse MINI10A | 13 | ABS control, ABS unit |
| Fuse MINI10A | 14 | Digital clock, audio, A/T shift control module and key lock |
| Fuse MINI15A | 15 | Cigarette lighter |
| Fuse MINI10A | 16 | Power exterior mirrors |
| Fuse MINI10A | 17 | Rear window and exterior mirror defogger |
| Fuse MINI20A | 18 | Rear window wiper |
| Fuse MINI10A | 19 | Spare |
| Fuse MINI15A | 20 | Spare |
| Fuse MINI20A | 21 | Spare |

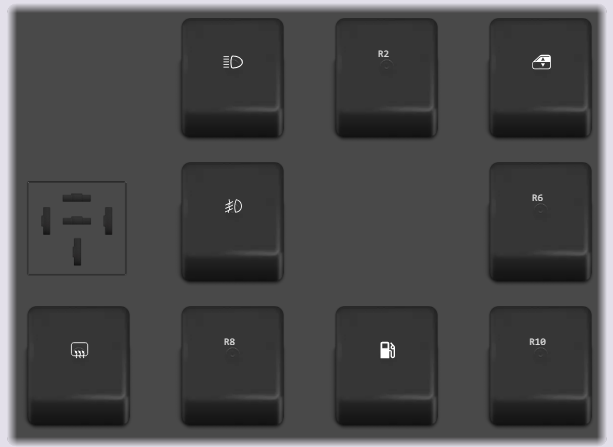

Relay box (2000 & 2001)
| Type | No. | Description |
|---|---|---|
| Relay | R1 | HEAD LAMP RELAY |
| Relay | R2 | POWER DOOR LOCK RELAY #1 |
| Relay | R3 | POWER WINDOW RELAY |
| Relay | R5 | REAR FOG LAMP RELAY |
| Relay | R6 | BURGLAR ALARM RELAY |
| Relay | R7 | REAR WINDOW DEFOGGER RELAY |
| Relay | R8 | POWER DOOR LOCK RELAY #2 |
| Relay | R9 | FUEL PUMP RELAY |
| Relay | R10 | FLASHER UNIT |

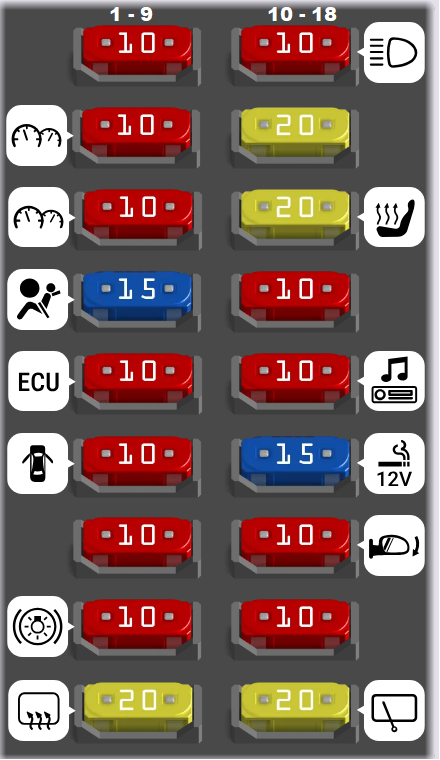

Hyundai Accent (2004 & 2005)
| Type | No. | Description |
|---|---|---|
| Fuse MINI10A | 1 | Hazard warning, Back-up lamp switch, Transaxle range switch, A/T shift & key lock control module |
| Fuse MINI10A | 2 | ETACM, Pre-Excitation resistor, Instrument cluster, Seat belt timer |
| Fuse MINI10A | 3 | Instrument cluster |
| Fuse MINI15A | 4 | Air bag |
| Fuse MINI10A | 5 | ECM, A/T shift lever, Transaxle range switch, Mass air flow sensor, Vehicle speed sensor, Water sensor |
| Fuse MINI10A | 6 | Power door lock |
| Fuse MINI10A | 7 | Hazard warning, ETACM |
| Fuse MINI10A | 8 | Stop lamp, A/T shift lever, A/T key interlock solenoid |
| Fuse MINI20A | 9 | Rear window defogger |
| Fuse MINI10A | 10 | Head lamp, Power window, Head lamp leveling, Head lamp washer, ETACM, Front fog lamp, Blower control, Rear intermittent washer, Fuel filter relay |
| Fuse MINI20A | 11 | Front wiper & washer |
| Fuse MINI20A | 12 | Seat warmer |
| Fuse MINI10A | 13 | ABS control, ABS bleeding |
| Fuse MINI10A | 14 | Digital clock, Audio, A/T shift & key lock control module |
| Fuse MINI15A | 15 | Cigarette lighter |
| Fuse MINI10A | 16 | Power outside mirror |
| Fuse MINI10A | 17 | Rear window & outside mirror defogger |
| Fuse MINI20A | 18 | Rear wiper |
Engine Compartment Fuse Box

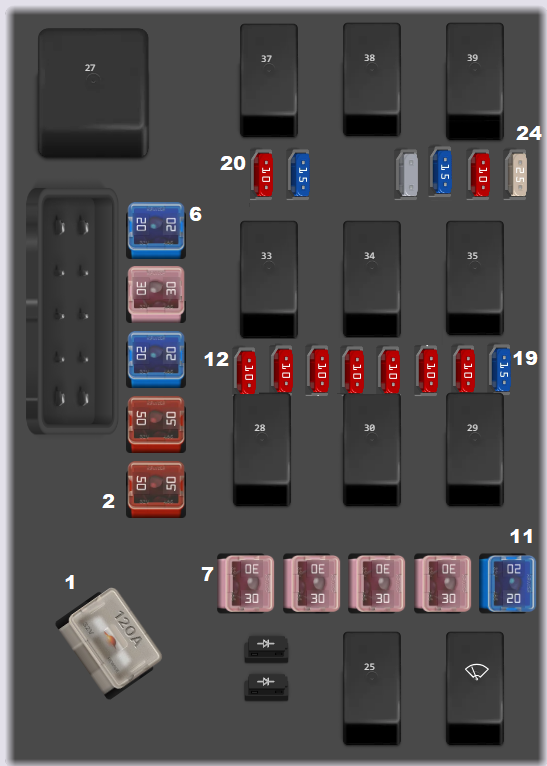

Hyundai Accent (2000 & 2001)
| Type | No. | Description |
|---|---|---|
| Fuse FLF/PAL 293120A | 1 | Charging (Generator) |
| Fuse FMX/JCase50A | 2 | Fuse 6, 7, 8, 9, Horn Fuse, Room Lamp Fuse |
| Fuse FMX/JCase50A | 3 | Head Lamp Fuse, Front Fog Lamp Fuse, Tail Lamp Fuse |
| Fuse FMX/JCase20A | 4 | Engine Control Relay, Generator, Fuel Pump Relay, ECU.3 Fuse |
| Fuse FMX/JCase30A | 5 | Ignition Power Source, Start Relay |
| Fuse FMX/JCase20A | 6 | Radiator Fan Control |
| Fuse FMX/JCase30A | 7 | Blower Fan Control |
| Fuse FMX/JCase30A | 8 | ABS Control, ABS Bleeding Connector |
| Fuse FMX/JCase30A | 9 | ABS Control, ABS Bleeding Connector |
| Fuse FMX/JCase30A | 10 | Power Window Relay |
| Fuse FMX/JCase20A | 11 | Condenser Fan Control |
| Fuse MINI10A | 12 | Radiator Fan, Condenser Fan, ECM, Heated Oxygen Sensor, DMTL |
| Fuse MINI10A | 13 | A/C Relay |
| Fuse MINI10A | 14 | Horn Relay |
| Fuse MINI10A | 15 | Left Rear Combination Lamp, License Lamps, Illumination Lamps |
| Fuse MINI10A | 16 | Right Rear Combination Lamp, License Lamp, Illumination Lamps |
| Fuse MINI10A | 17 | Left Head Lamp |
| Fuse MINI10A | 18 | Right Head Lamp |
| Fuse MINI15A | 19 | Front Fog Lamp Relay |
| Fuse MINI10A | 20 | Trunk Room Lamp, Instrument Cluster, Courtesy Lamp, ETACM, DLC |
| Fuse MINI15A | 21 | Audio, Digital Clock, Power Antenna |
| Fuse MINI15A | 22 | Idle Speed Actuator, ECM |
| Fuse MINI10A | 23 | ECM |
| Relay | 25 | Fuel Pump Relay |
| Relay | 26 | Wiper Relay |
| Relay | 27 | Blower Relay |
| Relay | 28 | Start Relay |
| Relay | 29 | Tail Lamp Relay |
| Relay | 30 | Pre-Excitation Resistor |
| Relay | 33 | Horn Relay |
| Relay | 34 | A/CON Relay |
| Relay | 35 | Condenser Fan 1 Relay |
| Fuse MINI | 36 | Fuel Pump Relay, Fuel Pump Motor |
| Relay | 37 | Condenser Fan 2 Relay (White) |
| Relay | 38 | Front Fog Lamp Relay (Black) |
| Relay | 39 | Radiator Fan Relay (Black) |
Hyundai Accent (2002 & 2003)
| Type | No. | Description |
|---|---|---|
| Fuse FLF/PAL 293120A | 1 | ALT Charge (Generator) |
| Fuse FMX/JCase50A | 2 | BATTERY Fuse 6, 7, 8, 9, Horn Fuse, Interior Light Fuse |
| Fuse FMX/JCase50A | 3 | LAMP Headlight Fuse, Front Fog Light Fuse, Tail Light Relay, Headlight Washer Fuse |
| Fuse FMX/JCase20A | 4 | ECU Engine Control Relay, Generator, Fuel Pump Relay, ECU #3 Fuse |
| Fuse FMX/JCase30A | 5 | IGN Power Supply for Starting, Ignition Relay |
| Fuse FMX/JCase20A | 6 | RAD FAN Engine Fan Control |
| Fuse FMX/JCase30A | 7 | BLOWER Air Diffuser Control |
| Fuse FMX/JCase30A | 8 | ABS Control, ABS Bleed Connector |
| Fuse FMX/JCase30A | 9 | ABS Control, ABS Bleed Connector |
| Fuse FMX/JCase30A | 10 | P/WDW Power Window |
| Fuse FMX/JCase20A | 11 | COND FAN Condenser Fan Control |
| Fuse MINI10A | 12 | ECU #1 Radiator Fan, Condenser Fan, ECM, Oxygen Sensor, Purge Control Valve, SMATRA, Glow Plug Relay, Heater Relay, Stop Light Switch |
| Fuse MINI10A | 13 | A/CON COMP A/C Relay |
| Fuse MINI10A | 14 | HORN Horn Relay |
| Fuse MINI10A | 15 | TAIL LH Headlights, Left Combination Light, License Plate Light, DRL Control, Position Light, Headlight Washer Relay |
| Fuse MINI10A | 16 | TAIL RH Right Combination Light, License Plate Light, Position Light |
| Fuse MINI10A | 17 | H/LP LH Left Headlight, DRL Control, Instrument Panel |
| Fuse MINI10A | 18 | H/LP RH Right Headlight |
| Fuse MINI15A | 19 | FRONT FOG Front Fog Light Relay |
| Fuse MINI10A | 20 | ROOM LP Instrument Panel, Courtesy Light, Trunk Light, ETACM, DLC, Door Open Warning, Multi-Check Connector |
| Fuse MINI15A | 21 | AUDIO Audio, Digital Clock, Power Antenna, Air Conditioning Switch, Rear Fog Light Switch |
| Fuse MINI15A | 22 | ECU #2 Idle Speed Actuator, ECM, Camshaft Position Sensor, EGR Actuator, Throttle Plate Actuator |
| Fuse MINI10A | 23 | ECU #3 ECM |
| Fuse MINI25A | 24 | H/L WASHER Headlight Washer Motor |
| Relay | 25 | F/PUMP CHK Fuel Pump Relay, Fuel Pump Motor |
| Relay | 26 | WIPER Windshield Wiper Relay |
| Relay | 27 | BLOWER Air Diffuser Control Relay |
| Relay | 28 | START Starter |
| Relay | 29 | TAIL LAMP Brake Light |
| Relay | 30 | R/W Diode |
| Diode MINI | 31 | DIODE 1 |
| Diode MINI | 32 | DIODE 2 |
| Relay | 33 | HORN Horn |
| Relay | 34 | A/CON Air Conditioning |
| Relay | 35 | COND FAN #1 Condenser Fan |
| Fuse MINI | 36 | F/P CHK |
| Relay | 37 | COND FAN #2 Condenser Fan |
| Relay | 38 | FRONT FOG Front Fog Light |
| Relay | 39 | RAD FAN Radiator Fan |

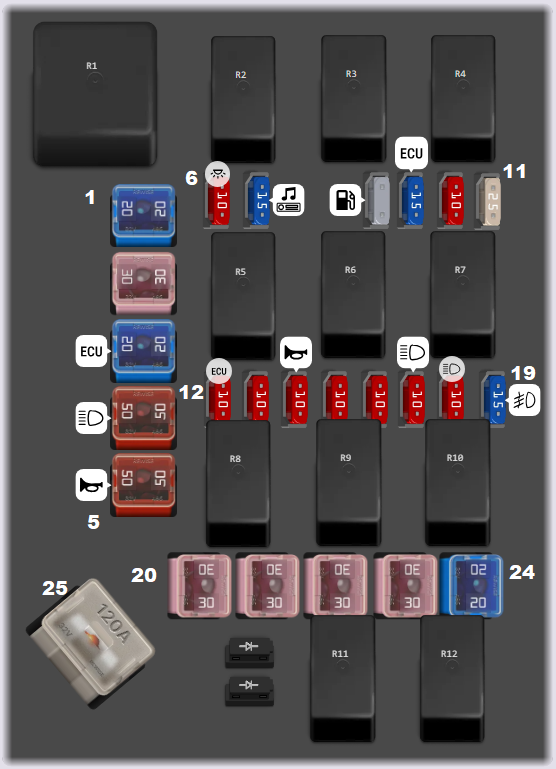

Hyundai Accent (2004 & 2005)
| Type | No. | Description |
|---|---|---|
| Fuse FMX/JCase20A | 1 | (RAD FAN) Radiator fan control |
| Fuse FMX/JCase30A | 2 | (IGN) Ignition power source, Start relay |
| Fuse FMX/JCase20A | 3 | (ECU) Engine control relay, Generator, Fuel pump relay, ECU #3 fuse |
| Fuse FMX/JCase50A | 4 | (LAMP) Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse |
| Fuse FMX/JCase50A | 5 | (BATTERY) Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse |
| Fuse MINI10A | 6 | (ROOM LP) Instrument cluster, Courtesy lamp, Trunk room lamp, ETACM, DLC, Door warning, Multipurpose check connector |
| Fuse MINI15A | 7 | (AUDIO) Audio, Digital clock, Power antenna, A/C switch, Rear fog lamp switch |
| Fuse MINI | 8 | (F/PUMP CHK) Fuel pump relay, Fuel pump motor |
| Fuse MINI15A | 9 | (ECU #2) Idle speed actuator, ECM, Camshaft position sensor, EGR actuator, Throttle plate actuator |
| Fuse MINI10A | 10 | (ECU#3) ECM |
| Fuse MINI25A | 11 | (H/L WASHER) Head lamp washer motor |
| Fuse MINI10A | 12 | (ECU #1) Radiator fan, Condenser fan, ECM, Oxygen sensor, Purge control, SMATRA, Glow plug relay, Heater relay, Stop lamp switch |
| Fuse MINI10A | 13 | (A/CON COMP) A/C relay |
| Fuse MINI10A | 14 | (HORN) Horn relay |
| Fuse MINI10A | 15 | (TAIL LH) Illumination lamps, Left rear combination lamp, License lamp, DRL position lamp, H/LP washer relay |
| Fuse MINI10A | 16 | (TAIL RH) Right rear combination lamp, License lamp, Position lamp |
| Fuse MINI10A | 17 | (H/LP LH) Left head lamp, DRL control, Instrument cluster |
| Fuse MINI10A | 18 | (H/LP RH) Right head lamp |
| Fuse MINI15A | 19 | (FRONT FOG) Front fog lamp relay |
| Fuse FMX/JCase30A | 20 | (BLOWER) Blower control |
| Fuse FMX/JCase30A | 21 | (ABS1) ABS control, ABS bleeding connector |
| Fuse FMX/JCase30A | 22 | (ABS2) ABS control, ABS bleeding connector |
| Fuse FMX/JCase30A | 23 | (P/WDW) Power window |
| Fuse FMX/JCase20A | 24 | (COND FAN) Condenser fan control |
| Fuse FLM120A | 25 | (ALT) Charging (Generator) |
| Diode MINI | DIODE1 | (DIODE1) Diode |
| Diode MINI | DIODE2 | (DIODE2) Diode |
| Relay | R1 | (BLOWER_R) Relay |
| Relay | R2 | (COND FAN2_R) Relay |
| Relay | R3 | (FRONT FOG_R) Relay |
| Relay | R4 | (RAD FAN_R) Relay |
| Relay | R5 | (HORN_R) Relay |
| Relay | R6 | (A/CON_R) Relay |
| Relay | R7 | (COND FAN1_R) Relay |
| Relay | R8 | (START_R) Relay |
| Relay | R9 | (R/W DIODE) Diode |
| Relay | R10 | (TAIL LAMP_R) Relay |
| Relay | R11 | (FUEL PUMP_R) Relay |
| Relay | R12 | (WIPER_R) Relay |
