BMW 7-Series G70 (2023 – 2024) Fuse Box Location & Diagrams
The 7th-generation BMW 7 Series (G70) represents a massive leap in automotive electronics. From its theater screen to advanced driver assistance, every complex system relies on stable power delivery. When a high-tech component fails, checking the circuit protection is your vital first step. Explore our comprehensive diagrams to quickly find every critical fuse box location on your 2023–2024 luxury flagship.
Fuse Box Location
Passenger Compartment Fuse Box
Luggage Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

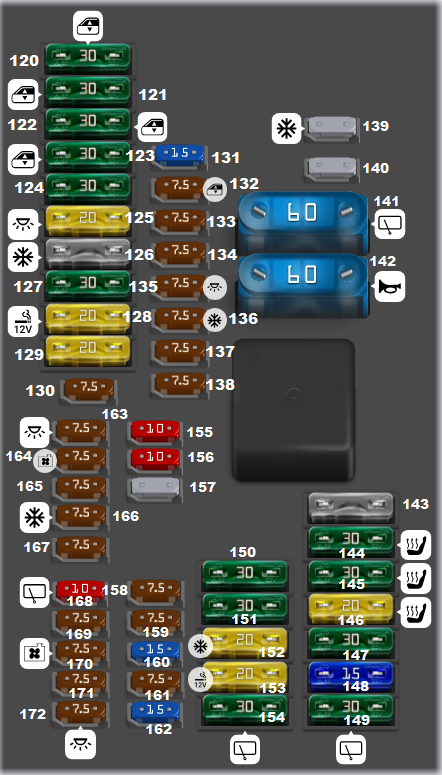

Passenger side fuse box (front right)
| Type | No. | Description | |
|---|---|---|---|
Fuse ATO 30A | 120 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 121 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 122 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 123 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 124 | Seat belts | |
Fuse ATO 20A | 125 | Replacement top module; Alternating relay, Interior lights, Electrochromic rear-view mirror | |
Fuse ATO | 126 | Air conditioning system, Rear wiper relay View problems with the air conditioning fuse… | |
Fuse ATO 30A | 127 | Driving assistance | |
Fuse ATO 20A | 128 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) View problems with the cigarette lighter fuse… | |
Fuse ATO 20A | 129 | Door module; Automatic soft closing | |
Fuse MINI 7.5A | 130 | Instrument cluster; Meter. | |
Fuse MINI 7.5A | 132 | Electric windows, Interior lights | |
Fuse MINI 7.5A | 133 | Hybrid system | |
Fuse MINI 7.5A | 134 | Hybrid system | |
Fuse MINI 7.5A | 135 | Alarm, Replacement top module; Alternating relay, Interior lights | |
Fuse MINI 7.5A | 136 | Air conditioning system View problems with the air conditioning fuse… | |
Fuse MINI 7.5A | 137 | 48V | |
Fuse MINI 7.5A | 138 | Instrument cluster; Meter. | |
Fuse MINI | 139 | Air conditioning system View problems with the air conditioning fuse… | |
Fuse MINI | 140 | ABS (anti-lock braking system); DSC (Dynamic Stability Control), Parking brake | |
Fuse MAXI 60A | 141 | Rear wiper relay, Headlights; Rain sensor; Light sensor; Electronic ride height control, Interior lights | |
Fuse MAXI 60A | 142 | Horn, Rear wiper relay, Trunk lid (tailgate) lock; Automatic tailgate closing, Headlights; Rain sensor; Light sensor; Electronic ride height control, Interior lights View problems with the horn fuse… | |
Fuse ATO | 143 | Driving assistance | |
Fuse ATO 30A | 144 | Heated seats, Seat adjustment | |
Fuse ATO 30A | 145 | Heated seats, Seat adjustment | |
Fuse ATO 20A | 146 | Heating; Independent parking heater, Heated windscreen, Heated seats | |
Fuse ATO 30A | 147 | Hybrid system | |
Fuse ATO 30A | 149 | Rear wiper relay | |
Fuse ATO 30A | 150 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system | |
Fuse ATO 30A | 151 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system | |
Fuse ATO 20A | 152 | Air conditioning system, Seat adjustment View problems with the air conditioning fuse… | |
Fuse ATO 20A | 153 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) View problems with the cigarette lighter fuse… | |
Fuse ATO 30A | 154 | Rear wiper relay | |
Fuse MINI 10A | 155 | Seat belts | |
Fuse MINI 10A | 156 | Steering column function control module | |
Fuse MINI | 157 | Seat belts | |
Fuse MINI 7.5A | 158 | Media (HiFi amplifier; TV tuner; Video module; Radio), Electrochromic rear-view mirror | |
Fuse MINI 15A | 160 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 161 | Driving assistance, Parking sensors / Home link (garage door opener) | |
Fuse MINI 15A | 162 | Seat adjustment, Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 163 | Seat adjustment, Interior lights | |
Fuse MINI 7.5A | 164 | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM View problems with the cooling fan fuse… | |
Fuse MINI 7.5A | 165 | Driving assistance, Hybrid system | |
Fuse MINI 7.5A | 166 | Air conditioning system, Interior lights, Electrochromic rear-view mirror View problems with the air conditioning fuse… | |
Fuse MINI 7.5A | 167 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 10A | 168 | Instrument cluster; Meter, Rear wiper relay | |
Fuse MINI 7.5A | 169 | Hybrid system, 48V | |
Fuse MINI 7.5A | 170 | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM View problems with the cooling fan fuse… | |
Fuse MINI 7.5A | 171 | Hybrid system | |
Fuse MINI 7.5A | 172 | Interior lights |

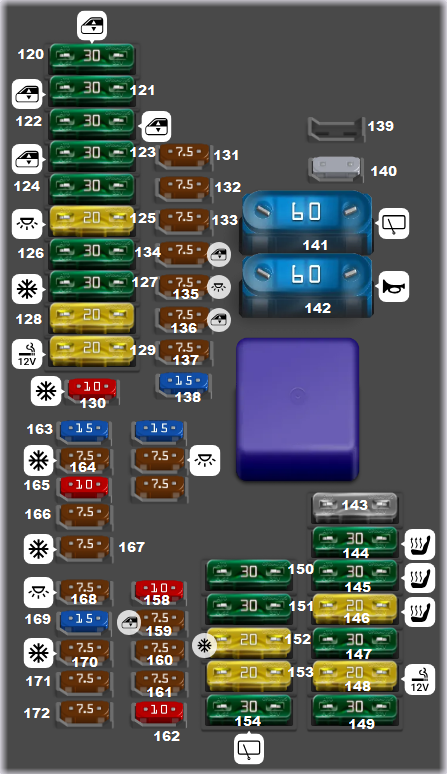

Passenger side fuse box (front left)
| Type | No. | Description | |
|---|---|---|---|
Fuse ATO 30A | 120 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 121 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 122 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 123 | Electric windows, Door module; Automatic soft closing, Electric mirrors | |
Fuse ATO 30A | 124 | Seat belts | |
Fuse ATO 20A | 125 | Replacement top module; Alternating relay, Interior lights, Electrochromic rear-view mirror | |
Fuse ATO 30A | 127 | Air conditioning system, Rear wiper relay View problems with the air conditioning fuse… | |
Fuse ATO 20A | 128 | Driving assistance | |
Fuse ATO 20A | 129 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) View problems with the cigarette lighter fuse… | |
Fuse MINI 10A | 130 | Air conditioning system View problems with the air conditioning fuse… | |
Fuse MINI 7.5A | 132 | Parking brake, Steering column function control module, Parking sensors / Home link (garage door opener), 4 wheel drive | |
Fuse MINI 7.5A | 133 | Hybrid system | |
Fuse MINI 7.5A | 134 | Electric windows, Interior lights | |
Fuse MINI 7.5A | 135 | Alarm, Replacement top module; Alternating relay, Interior lights | |
Fuse MINI 7.5A | 136 | Electric windows, Door module; Automatic soft closing | |
Fuse MINI 7.5A | 137 | 48V | |
Fuse MINI 15A | 138 | Instrument cluster; Meter. | |
Fuse MINI | 140 | ABS (anti-lock braking system); DSC (Dynamic Stability Control), Parking brake | |
Fuse MAXI 60A | 141 | Rear wiper relay, Headlights; Rain sensor; Light sensor; Electronic ride height control, Interior lights | |
Fuse MAXI 60A | 142 | Horn, Trunk lid (tailgate) lock; Automatic tailgate closing, Headlights; Rain sensor; Light sensor; Electronic ride height control, Interior lights View problems with the horn fuse… | |
Fuse ATO | 143 | Driving assistance | |
Fuse ATO 30A | 144 | Heated seats, Seat adjustment | |
Fuse ATO 30A | 145 | Heated seats, Seat adjustment | |
Fuse ATO 20A | 146 | Heating; Independent parking heater, Heated windscreen, Heated seats | |
Fuse ATO 30A | 147 | Hybrid system | |
Fuse ATO 20A | 148 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) View problems with the cigarette lighter fuse… | |
Fuse ATO 30A | 149 | 4 wheel drive | |
Fuse ATO 30A | 150 | Hybrid system | |
Fuse ATO 30A | 151 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system | |
Fuse ATO 20A | 152 | Air conditioning system, Seat adjustment View problems with the air conditioning fuse… | |
Fuse ATO 20A | 153 | Heating; Independent parking heater, Heated windscreen | |
Fuse ATO 30A | 154 | Rear wiper relay | |
Fuse MINI 15A | 155 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 156 | Interior lights | |
Fuse MINI 7.5A | 157 | Driving assistance, Parking sensors / Home link (garage door opener) | |
Fuse MINI 10A | 158 | Seat belts | |
Fuse MINI 7.5A | 159 | Electric windows, Driving assistance, Parking sensors / Home link (garage door opener) | |
Fuse MINI 7.5A | 160 | 48V | |
Fuse MINI 7.5A | 161 | Hybrid system | |
Fuse MINI 10A | 162 | Instrument cluster; Meter | |
Fuse MINI 15A | 163 | Seat adjustment, Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 164 | Air conditioning system, Heated seats, Seat belts, Hybrid system View problems with the air conditioning fuse… | |
Fuse MINI 10A | 165 | Driving assistance | |
Fuse MINI 7.5A | 166 | Driving assistance | |
Fuse MINI 7.5A | 167 | Air conditioning system, Hybrid system View problems with the air conditioning fuse… | |
Fuse MINI 7.5A | 168 | Seat adjustment, Interior lights | |
Fuse MINI 15A | 169 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 170 | Air conditioning system, Heating; Independent parking heater, Heated windscreen View problems with the air conditioning fuse… |

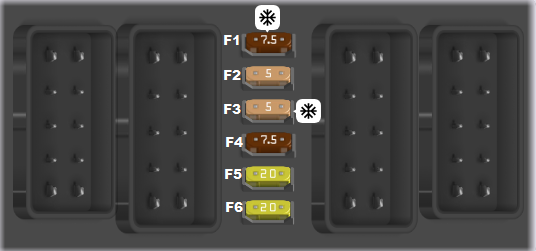

Body Domain Controller
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | F1 | Air conditioning system, Steering column function control module, Level control system (air suspension compressor relay), Headlights; Rain sensor; Light sensor; Electronic ride height control View problems with the air conditioning fuse… | |
Fuse MINI 5A | F2 | On-Board Diagnostics, Level control system (air suspension compressor relay), | |
Fuse MINI 5A | F3 | Air conditioning system, Rear wiper relay, Trunk lid (tailgate) lock; Automatic tailgate closing, Headlights; Rain sensor; Light sensor; Electronic ride height control View problems with the air conditioning fuse… | |
Fuse MINI 7.5A | F4 | Media (HiFi amplifier; TV tuner; Video module; Radio), Door module; Automatic soft closing | |
Fuse MINI 20A | F5 | Door module; Automatic soft closing | |
Fuse MINI 20A | F6 | Door module; Automatic soft closing |

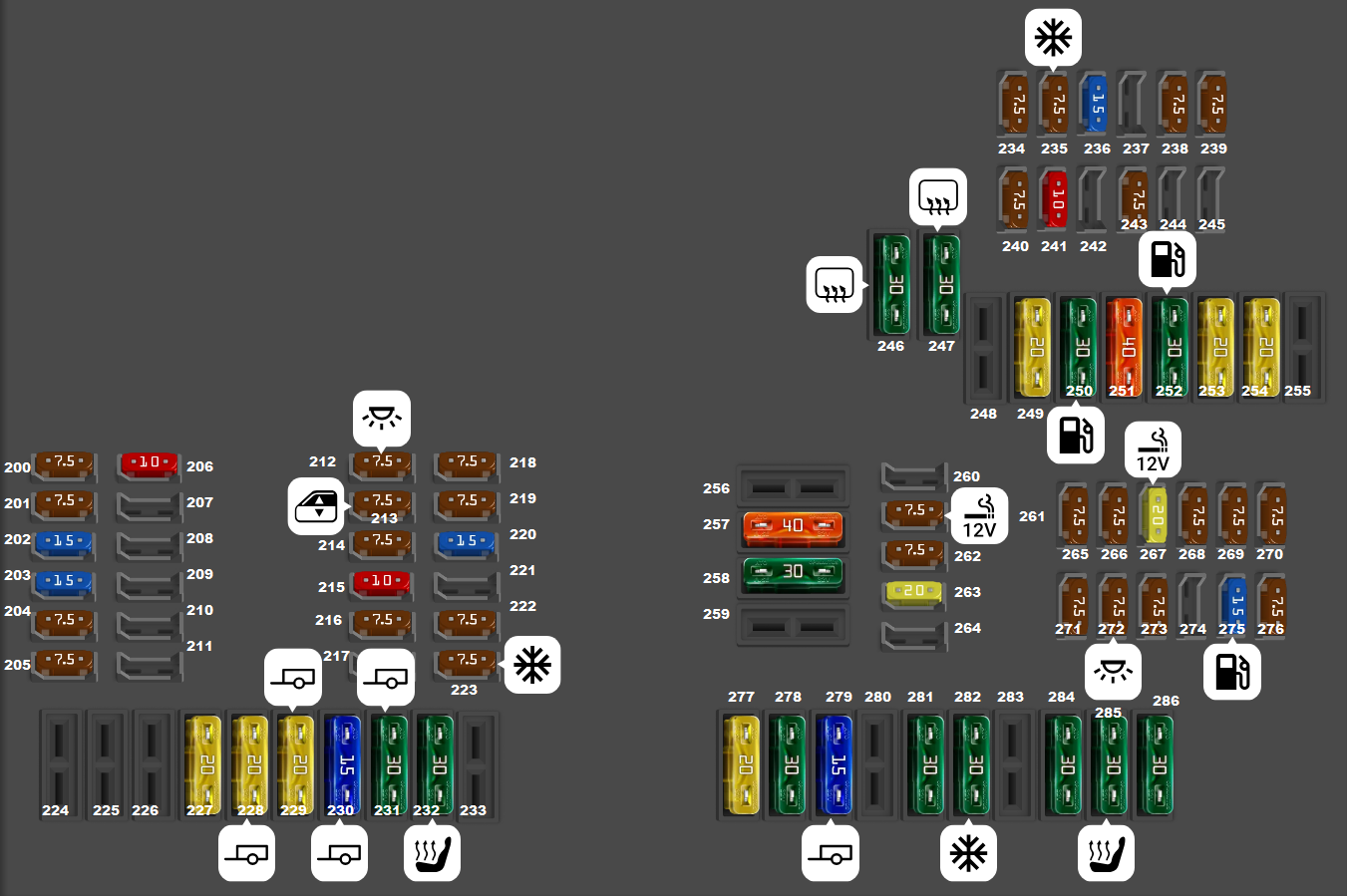

Luggage Compartment Fuse Box
| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | 200 | Driving assistance | |
Fuse MINI 7.5A | 201 | Driving assistance | |
Fuse MINI 15A | 202 | Driving assistance | |
Fuse MINI 15A | 203 | Driving assistance | |
Fuse MINI 7.5A | 204 | Driving assistance | |
Fuse MINI 10A | 206 | Driving assistance | |
Fuse MINI 7.5A | 212 | Trunk lid (tailgate) lock; Automatic tailgate closing, Interior lights | |
Fuse MINI 7.5A | 213 | Electric windows | |
Fuse MINI 7.5A | 214 | 48V | |
Fuse MINI 10A | 215 | Hybrid system | |
Fuse MINI 7.5A | 216 | Hybrid system | |
Fuse MINI 7.5A | 218 | Seat adjustment | |
Fuse MINI 7.5A | 219 | Seat adjustment | |
Fuse MINI 7.5A | 223 | Air conditioning system, Electric rear sunshade View problems with the air conditioning fuse… | |
Fuse ATO 20A | 228 | Trailer module, towbar | |
Fuse ATO 20A | 229 | Trailer module, towbar | |
Fuse ATO 15A | 230 | Trailer module, towbar | |
Fuse ATO 30A | 231 | Trailer module, towbar | |
Fuse ATO 30A | 232 | Heated seats, Seat adjustment | |
Fuse MINI 7.5A | 234 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM | |
Fuse MINI 7.5A | 235 | Air conditioning system View problems with the air conditioning fuse… | |
Fuse MINI 15A | 236 | Driving assistance | |
Fuse MINI 7.5A | 238 | Load level | |
Fuse MINI 7.5A | 239 | Steering column function control module | |
Fuse MINI 7.5A | 240 | Dynamic drive system | |
Fuse MINI 10A | 241 | Driving assistance | |
Fuse MINI 7.5A | 243 | 4 wheel drive | |
Fuse ATO 30A | 246 | Rear window defogger (heated rear window) | |
Fuse ATO 30A | 247 | Rear window defogger (heated rear window) | |
Fuse ATO 20A | 249 | Level control system (air suspension compressor relay), Load level, Headlights; Rain sensor; Light sensor; Electronic ride height control | |
Fuse ATO 30A | 250 | Fuel pump relay / Fuel pump control View problems with the fuel pump fuse… | |
Fuse ATO 40A | 251 | Trunk lid (tailgate) lock; Automatic tailgate closing | |
Fuse ATO 30A | 252 | Fuel pump relay / Fuel pump control, DME – Digital Motor Electronics / Integrated Voltage Module – IVM View problems with the fuel pump fuse… | |
Fuse ATO 40A | 257 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse ATO 30A | 258 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 261 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V), Interior lights View problems with the cigarette lighter fuse… | |
Fuse MINI 7.5A | 262 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 20A | 263 | Media (HiFi amplifier; TV tuner; Video module; Radio) | |
Fuse MINI 7.5A | 265 | Driving assistance, Parking sensors / Home link (garage door opener) | |
Fuse MINI 7.5A | 266 | Driving assistance, Parking sensors / Home link (garage door opener) | |
Fuse MINI 20A | 267 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) View problems with the cigarette lighter fuse… | |
Fuse MINI 7.5A | 268 | Hybrid system | |
Fuse MINI 7.5A | 269 | Sound system | |
Fuse MINI 7.5A | 270 | Door module; Automatic soft closing | |
Fuse MINI 7.5A | 271 | Driving assistance | |
Fuse MINI 7.5A | 272 | Trunk lid (tailgate) lock; Automatic tailgate closing, Interior lights, 48V | |
Fuse MINI 7.5A | 273 | Driving assistance | |
Fuse MINI 15A | 275 | Fuel pump relay / Fuel pump control, DME – Digital Motor Electronics / Integrated Voltage Module – IVM View problems with the fuel pump fuse… | |
Fuse ATO 30A | 278 | Seat adjustment | |
Fuse ATO 15A | 279 | Trailer module, towbar | |
Fuse ATO 30A | 281 | Heating; Independent parking heater, Heated windscreen | |
Fuse ATO 30A | 282 | Air conditioning system, Seat adjustment View problems with the air conditioning fuse… | |
Fuse ATO 30A | 284 | 4 wheel drive | |
Fuse ATO 30A | 285 | Heated seats, Seat adjustment | |
Fuse ATO 30A | 286 | Heating; Independent parking heater, Heated windscreen |
