Hyundai Accent (1994 – 1999) Fuse Box Location & Diagrams
Locate the fuse boxes and explore detailed fuse diagrams for the Hyundai Accent (1994–1999) with this easy-to-follow blog. Find fuse assignments, relay locations, and panel layouts to quickly identify electrical components, troubleshoot common issues, and replace blown fuses with greater confidence and accuracy.
Fuse Box Location

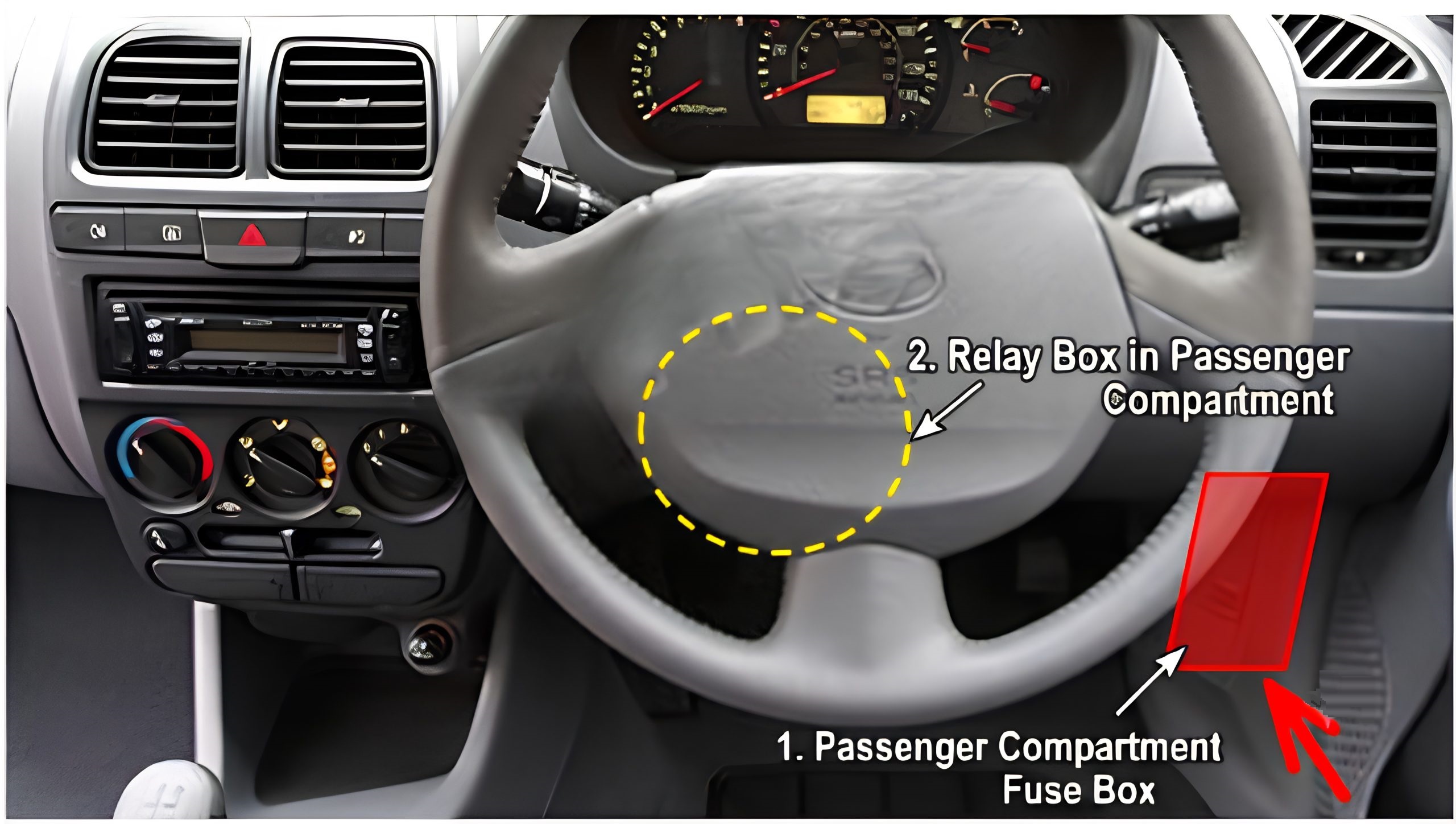

Passenger Compartment Fuse Box
The fuse box is located under the dashboard, on the driver’s side.

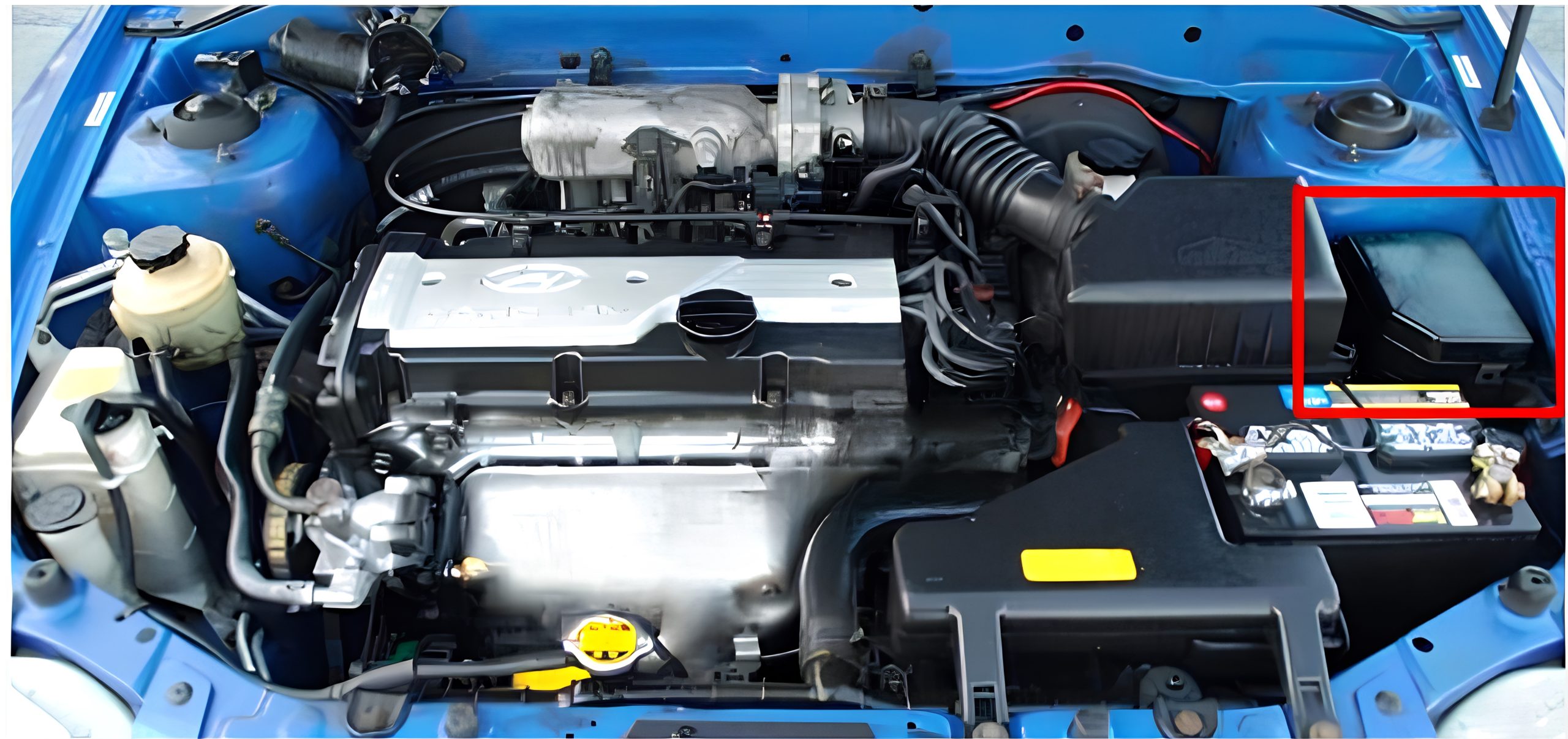

Engine Compartment Fuse Box
The fuse box is located in the engine compartment.
Fuse Box Diagrams
Passenger Compartment Fuse Box

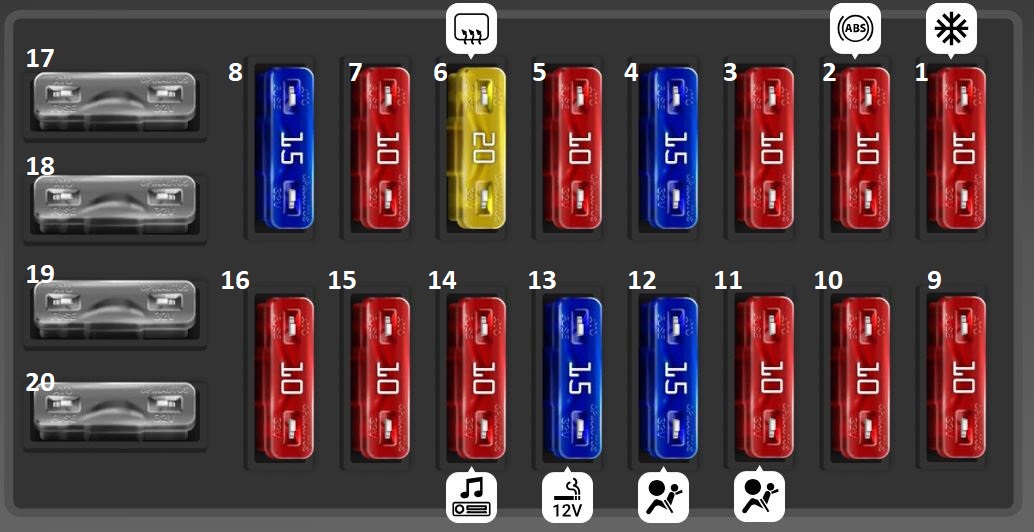

Interior Fuse Panel
| Type | No. | Description |
| Fuse ATO 10A | 1 | (AIR CON) Air conditioning |
| Fuse ATO 10A | 2 | (ABS) Anti-lock braking system |
| Fuse ATO 10A | 3 | (HAZARD) Hazard light |
| Fuse ATO 15A | 4 | STOP LP / IMMOBILIZER |
| Fuse ATO 10A | 5 | (CLUSTER / CLOCK / ROOM LP / AUDIO / ECU) Instrument cluster; Instrument cluster; Interior lights; Audio system; Engine control unit |
| Fuse ATO 20A | 6 | (RR HTD) Rear window defogger |
| Fuse ATO 10A | 7 | RR WIPER & WASHER / SIREN / LP RELAY |
| Fuse ATO 15A | 8 | (WIPER & WASHER) Wipers; Windshield washer |
| Fuse ATO 10A | 9 | (B/UP LP, TCU, T/SIG LP) Backup lights; Transmission control unit; Turn signal |
| Fuse ATO 10A | 10 | (CLUSTER / IMMO / S BELT) Instrument cluster; Anti-theft system; Seat belts |
| Fuse ATO 10A | 11 | (AIR BAG) Airbag |
| Fuse ATO 15A | 12 | (AIR BAG) Airbag |
| Fuse ATO 15A | 13 | (C/LIGHTER / O/S MIRROR) Cigar lighter / power outlet; Power control mirror |
| Fuse ATO 10A | 14 | AUDIO / ATM INTER CLOCK |
| Fuse ATO 10A | 15 | TCU / ECT |
| Fuse ATO 10A | 16 | (HTD SEAT RELAY ) Seat heater |
| Fuse ATO | 17 | (SPARE ) Spare fuse |
| Fuse ATO | 18 | (SPARE) Spare fuse |
| Fuse ATO | 19 | (SPARE) Spare fuse |
| Fuse ATO | 20 | (SPARE) Spare fuse |

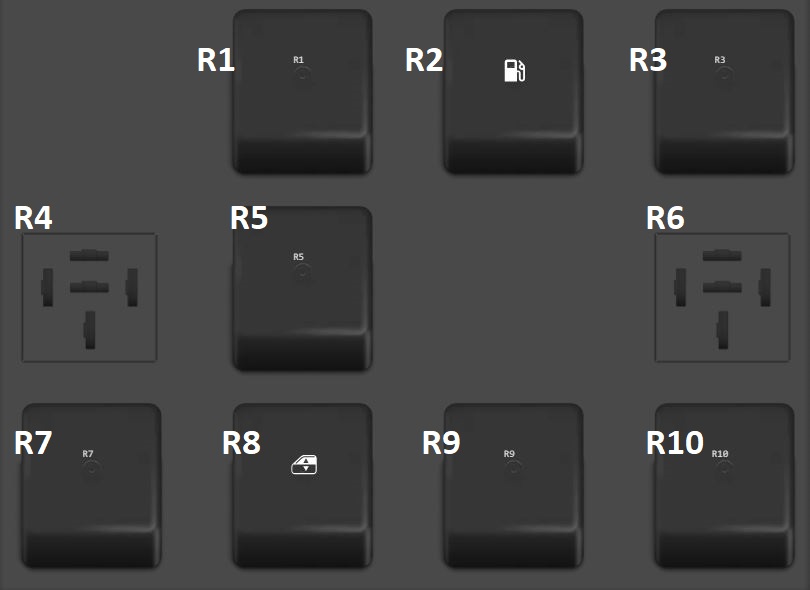

Relay Box
| Type | No. | Description |
| Relay | R1 | Rear fog light(s) 1994-1997: Fuel pump relay II |
| Relay | R2 | Fuel pump relay, auxiliary relay, fuel pump |
| Relay | R3 | Starter relay (manual transmission) 1994-1997: Starter motor relay |
| Relay | R4 | Not used |
| Relay | R5 | Junction connector |
| Relay | R6 | Not used |
| Relay | R7 | Fan control relay 1994-1997: Power window motor relay |
| Relay | R8 | Power window relay 1994-1997: Heater fan relay |
| Relay | R9 | Flasher unit 1994-1997: Turn signal relay |
| Relay | R10 | Fuel pump control relay 1994-1997: Rear fog light relay |

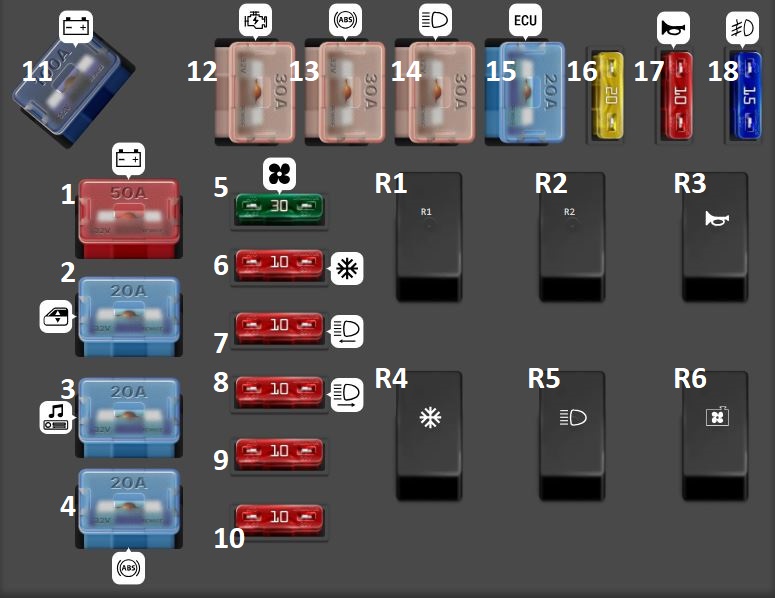

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse FLF/PAL 293 50A | 1 | (BATT) Battery and charging system |
| Fuse FLF/PAL 293 20A | 2 | (PW WDW) Power windows |
| Fuse FLF/PAL 293 20A | 3 | (RAD) Audio system |
| Fuse FLF/PAL 293 20A | 4 | (ABS2) Anti-lock braking system |
| Fuse ATO 30A | 5 | (BLOWER) AC blower motor |
| Fuse ATO 10A | 6 | (A/CON) Air conditioning |
| Fuse ATO 10A | 7 | (H/LAMP (LH)) Left-hand headlight |
| Fuse ATO 10A | 8 | (H/LAMP (RH)) Right-hand headlight |
| Fuse ATO 10A | 9 | (T/LAMP (LH)) Tail light left-hand |
| Fuse ATO 10A | 10 | (T/LAMP (RH)) Tail light right-hand |
| Fuse FLF/PAL 293 100A | 11 | (ALT) Battery and charging system |
| Fuse FLF/PAL 293 30A | 12 | (IGN) Ignition |
| Fuse FLF/PAL 293 30A | 13 | (ABS) Anti-lock braking system |
| Fuse FLF/PAL 293 30A | 14 | (LAMP) Headlamps |
| Fuse FLF/PAL 293 20A | 15 | (ECU) Engine control unit |
| Fuse ATO 20A | 16 | (CON FAN) AC condenser fan |
| Fuse ATO 10A | 17 | (HORN) Horn |
| Fuse ATO 15A | 18 | (RFT FOG) Front fog lights |
| Relay | R1 | (CON FAN RLY) AC condenser fan |
| Relay | R2 | (T/LAMP RLY) Tail lights |
| Relay | R3 | (HORN RLY) Horn |
| Relay | R4 | (A/CON RLY) Air conditioning |
| Relay | R5 | (H/LAMP RLY) Headlamps |
| Relay | R6 | (RAD FAN RLY) Radiator fan |
