Hyundai Azera TG (2006 – 2011) Fuse Box Location & Diagrams
The Hyundai Azera TG (2006–2011) fuse box location and diagrams help quickly identify fuse and relay positions for electrical troubleshooting. This blog includes interior and engine compartment fuse box layouts, fuse functions, and diagram details to simplify maintenance and resolve common electrical issues with confidence.
Fuse Box Location

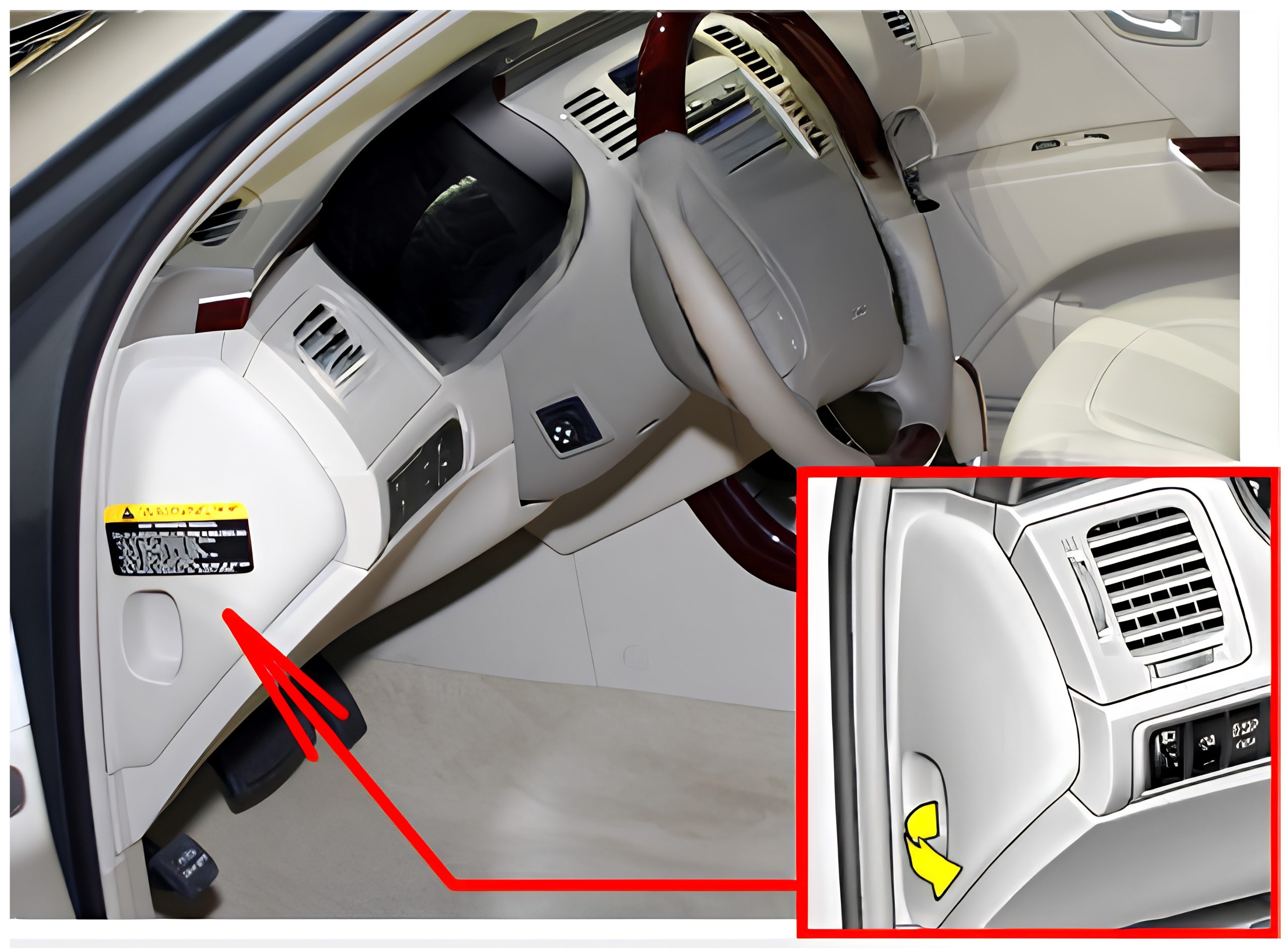

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

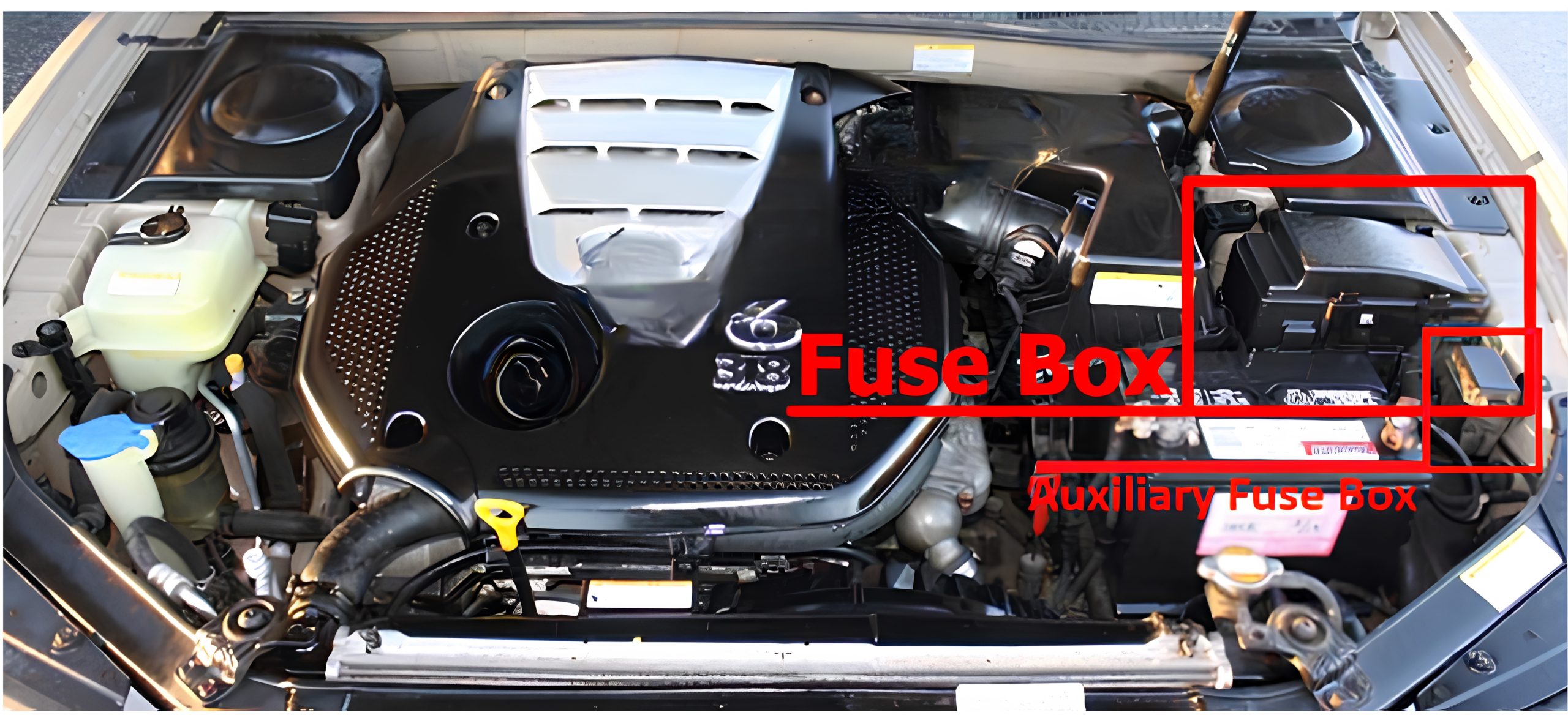

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams

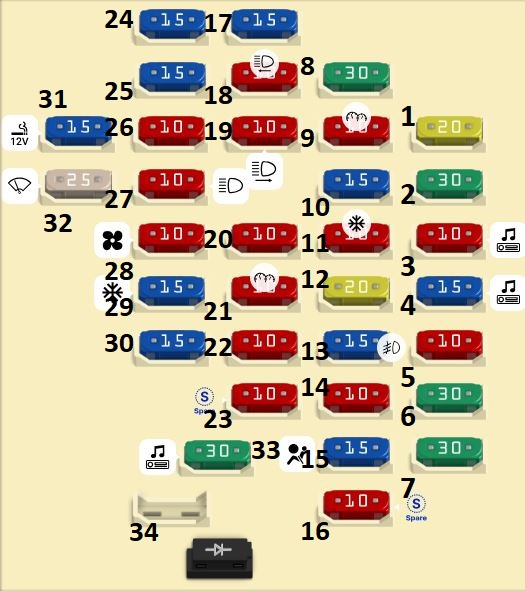

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 20A | 1 | (T/LID) Fuel lid opener & trunk lid switch |
| Fuse MINI 30A | 2 | (FR P/SEAT) Front lumbar support switch, IMS control module, driver/passenger seat manual switch |
| Fuse MINI 10A | 3 | (AUDIO-2) ATM key lock control module, audio, IMS switch, accessory relay, seat/power outlet relay, digital clock & passenger seat belt IND. |
| Fuse MINI 15A | 4 | (AUDIO-1) Audio |
| Fuse MINI 10A | 5 | (START) Transaxle range switch, burglar alarm relay |
| Fuse MINI 30A | 6 | (P/WDW LH) Left front safety window module, left rear power window switch |
| Fuse MINI 30A | 7 | (P/WDW RH) Right front safety window module, right rear power window switch |
| Fuse MINI 30A | 8 | (RR P/SEAT) Right rear ICM relay box |
| Fuse MINI 10A | 9 | (MODULE-1) Instrument cluster, BCM, rear curtain module, rain sensor, IMS control module, power window main switch |
| Fuse MINI 15A | 10 | (PEDAL ADJ) Back warning buzzer |
| Fuse MINI 10A | 11 | (MIRR HTD) Left/right outside mirror & mirror folding motor, A/C control module |
| Fuse MINI 20A | 12 | (KEY SOL) Key solenoid, power window main switch |
| Fuse MINI 15A | 13 | (RR FOG) Rear fog light relay |
| Fuse MINI 10A | 14 | (A/BAG IND) Instrument cluster |
| Fuse MINI 15A | 15 | (A/BAG) Air bag cut off switch, SRS control module |
| Fuse MINI 15A | 17 | (TILT) Tilt & telescopic module, sport mode switch |
| Fuse MINI 10A | 18 | (TAIL LH) Front fog light relay, left rear combination light, license plate light, left headlight |
| Fuse MINI 10A | 19 | (TAIL RH) Right rear combination light, license plate light, right headlight |
| Fuse MINI 10A | 20 | (S/HTR) Driver seat warmer switch |
| Fuse MINI 10A | 21 | (MODULE-2) Instrument cluster, ESC switch, BCM, ATM key lock control module, YAW rate sensor, multi-function switch |
| Fuse MINI 10A | 22 | (A/CON) A/C control module, tilt & telescopic module, rheostat, electric chromic mirror, overhead console lamp |
| Fuse MINI 10A | 23 | (DIESEL) Spare |
| Fuse MINI 15A | 24 | (C/LIGHTER) Cigarette lighter |
| Fuse MINI 15A | 25 | (T/SIG) BCM |
| Fuse MINI 10A | 26 | (RR CURTAIN) Rear curtain module |
| Fuse MINI 10A | 27 | (H/LP) Headlight relay, AQS & ambient sensor, HID relay, headlight leveling actuator |
| Fuse MINI 10A | 28 | (A/CON SW) A/C control module, blower relay, A/C control module (AUTO) |
| Fuse MINI 15A | 29 | (MEMORY) Data link connector, A/C control module, instrument cluster, multi-function switch, tilt & telescopic module, BCM, door warning switch, room lamp, left/right foot lamp, door lamp |
| Fuse MINI 15A | 30 | (PIC) Spare |
| Fuse MINI 25A | 32 | (WIPER) Washer relay, wiper relay (High), wiper relay |
| Fuse MINI 30A | 33 | (POWER CONN) Fuse (MEMORY, AUDIO-1) |
| Fuse MINI 10A | 16 | (SPARE-2) Spare |
| Fuse MINI 15A | 31 | (ACC SOCKET) Rear power outlet |
Engine Compartment Fuse Box

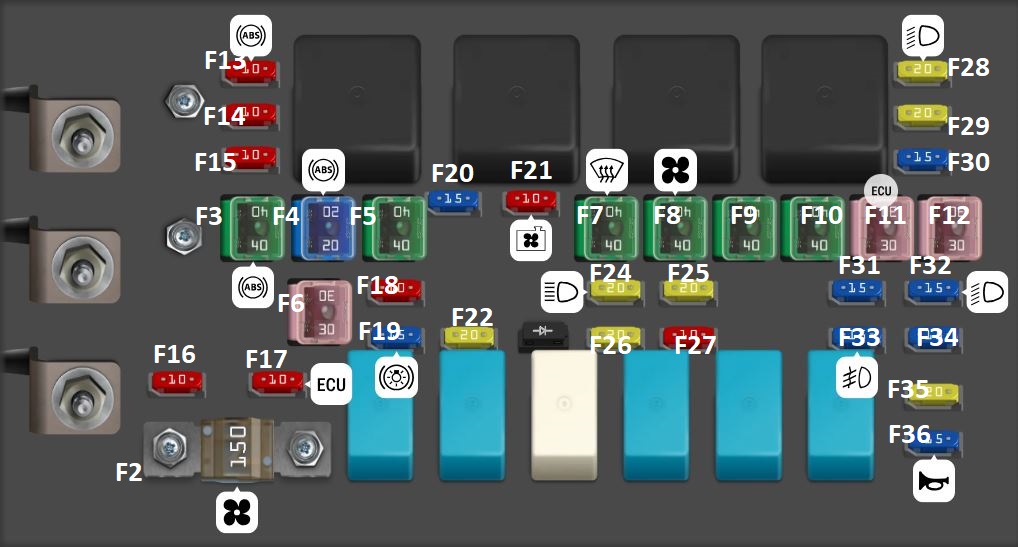

Main Fuse Box
| Type | No. | Description |
| Fuse MIDI 150A | F2 | Fusible link(ABS1, ABS2, RR HTD, BLOWER) |
| Fuse FMX/JCase 40A | F3 | ABS/ESC Control module, Multipurpose check connector |
| Fuse FMX/JCase 20A | F4 | ABS/ESC Control module, Multipurpose check connector |
| Fuse FMX/JCase 40A | F5 | Fuse(FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN) |
| Fuse FMX/JCase 30A | F6 | Ignition switch(ACC, IG1) |
| Fuse FMX/JCase 40A | F7 | Defogger relay |
| Fuse FMX/JCase 40A | F8 | Blower relay |
| Fuse FMX/JCase 40A | F9 | Fuse(P/WDW LH, P/WDW RH) |
| Fuse FMX/JCase 40A | F10 | Start relay, Ignition switch(IG2, START) |
| Fuse FMX/JCase 30A | F11 | Engine control unit relay |
| Fuse FMX/JCase 30A | F12 | Fuse(KEY SOL, ECS/RR FOG), Power connector |
| Fuse MINI 10A | F13 | (ABS) ABS/ESC Control module, Multipurpose check connector |
| Fuse MINI 10A | F14 | (ECU (IG1)) PCM |
| Fuse MINI 10A | F15 | (B/UP) Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor |
| Fuse MINI 10A | F16 | (IG1) (Spare) |
| Fuse MINI 10A | F17 | (ECU) PCM |
| Fuse MINI 10A | F18 | (ECU (B+)) PCM |
| Fuse MINI 15A | F19 | (STOP) Stop light switch |
| Fuse MINI 15A | F20 | (SNSR1) Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2 Variable intake manifold valve |
| Fuse MINI 10A | F21 | (SNSR3) Injector#1-#6 A/C Relay, Cooling fan relay |
| Fuse MINI 20A | F22 | (ATM) ATM Control relay |
| Fuse MINI 20A | F24 | (H/LP HI) Headlight relay (HIGH) |
| Fuse MINI 20A | F25 | (H/LP WASHER) Headlight washer motor |
| Fuse MINI 20A | F26 | (F/PUMP) Fuel pump relay |
| Fuse MINI 10A | F27 | (A/CON) A/C Relay |
| Fuse MINI 20A | F28 | (H/LP LO) Headlight relay(LOW) |
| Fuse MINI 20A | F29 | (IGN COIL) Ignition coil#1-#6. Condenser |
| Fuse MINI 15A | F30 | (SNSR2) Oxygen Sensor#1-# |
| Fuse MINI 15A | F31 | (S/ROOF) Overhead console lamp |
| Fuse MINI 15A | F32 | (H/LP LO RH) HID Relay |
| Fuse MINI 15A | F33 | (FR FOG) Front fog light relay |
| Fuse MINI 15A | F34 | (DRL) Burglar alarm horn relay |
| Fuse MINI 20A | F35 | (TAIL) Tail light relay |
| Fuse MINI 15A | F36 | (HORN) Horn relay |

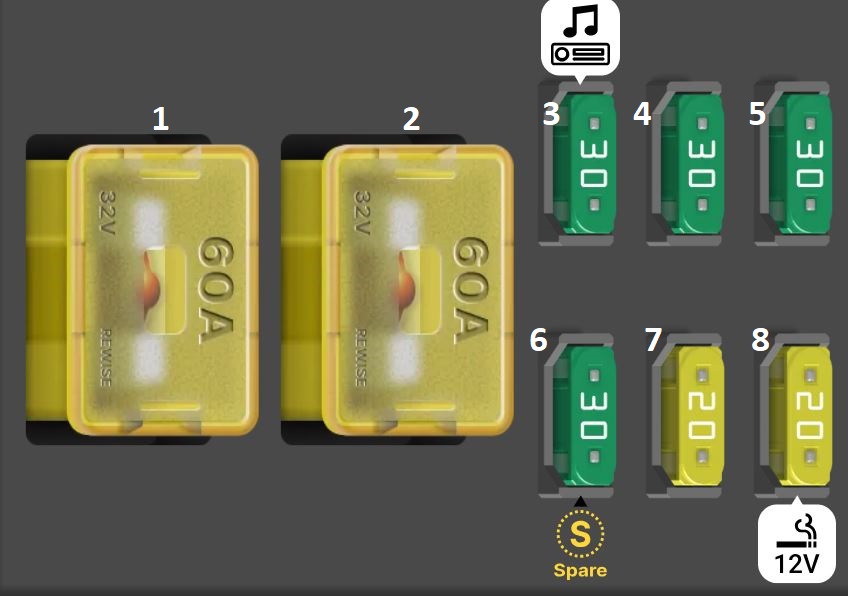

Auxiliary Fuse Box
| Type | No. | Description |
| Fuse FLF/PAL 293 60A | 1 | AGCS |
| Fuse FLF/PAL 293 60A | 2 | COOLING |
| Fuse MINI 30A | 3 | P/AMP |
| Fuse MINI 30A | 4 | FR S/HTR |
| Fuse MINI 30A | 5 | RR S/HTR |
| Fuse MINI 30A | 6 | SPARE |
| Fuse MINI 20A | 7 | SEAT P/OUTLET |
| Fuse MINI 20A | 8 | P/OUTLET |
