Hyundai Azera HG (2011 – 2016) Fuse Box Location & Diagrams
Find the complete Hyundai Azera HG (2011–2016) fuse box location and diagrams with detailed information about fuse panels, fuse assignments, and electrical components. This blog helps you identify fuse locations, understand their functions, and easily troubleshoot common electrical issues for a safer, more efficient driving experience.
Fuse Box Location

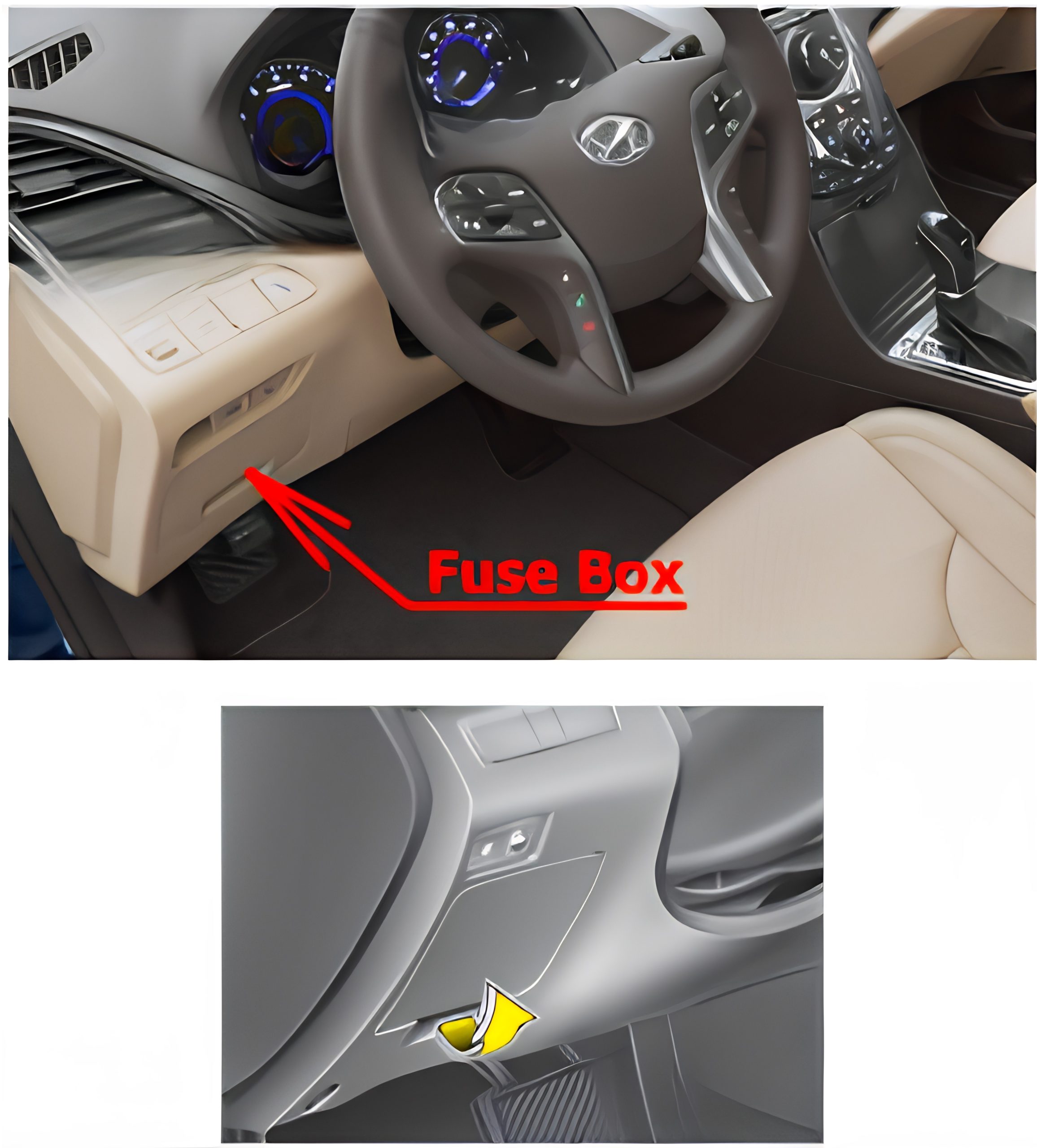

Passenger Compartment Fuse Box
Instrument Panel
The fuse box is located in the instrument panel (on the driver’s side), behind the cover.

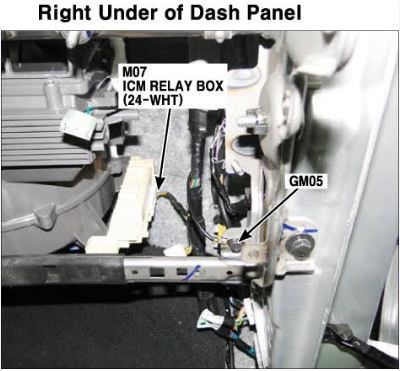

ICM Relay Box (2011-2013)
Tucked deeply inside the cabin behind or underneath the dashboard trim.

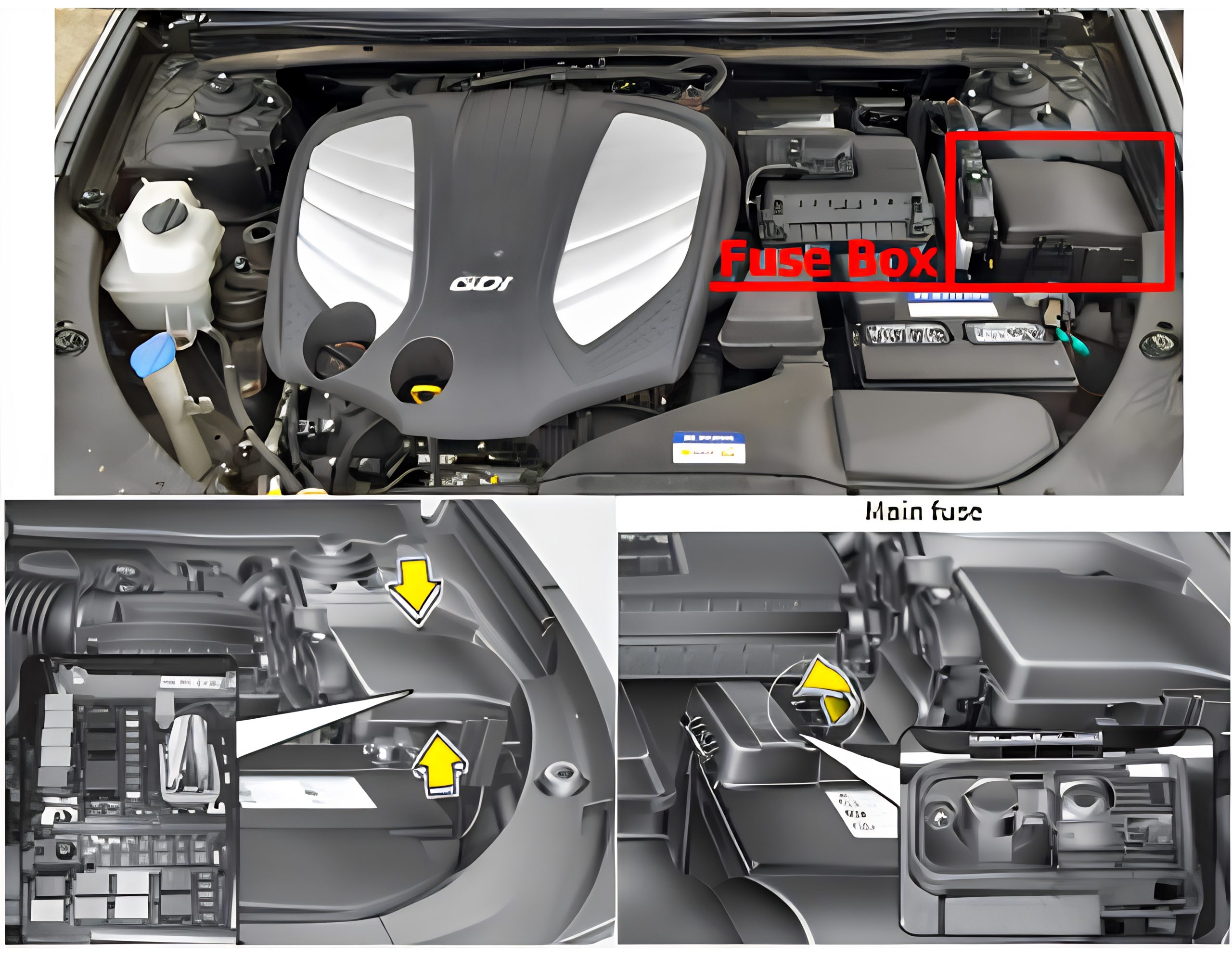

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams
Passenger Compartment Fuse Box
Instrument Panel
| Type | No. | Description |
| Fuse MINI 7.5A | 1 | Immobilizer Module, Smart Key Control Module |
| Fuse MINI 7.5A | 2 | Instrument Cluster |
| Fuse MINI 20A | 3 | 2014: – SPARE I 2015 & 2016: Transaxle Range Switch |
| Fuse MINI 10A | 4 | AMP. MAP Lamp, Front Monitor, Smart Key Control Module, ER Fuse & Relay Box/RLY. 13). A/V & Navigation Head Unit 2014: AMP, MAP Lamp, Front Monitor, E/R Fuse & Relay Box (Power Outlet Relay), A/V & Navigation Head Unit, Smart Key Control Module, Telematics Unit, A/C Control Module |
| Fuse MINI 7.5A | 5 | ABS/ESP Control Module Steering Angle Sersor, Rear Seat Warmer LH/RH, Rear Power Window Switch LHIRH, Console Switch LH/RH, A/C Control Module, Active Incar Sensor, Driver IMS Module, Front/Rear Parking Assist Sensor LH/RH/LH(Center/RH(Center) 2014: ABS/ESC Control Module, Rear Seat Warmer LH/RH, Console Switch, A/C Control Module, Active Incar Sensor, Driver IMS Module, Rear Parking Assist Sensor LH/RH/LH(Center)/RH(Center) 2015 & 2016: Front/Rear Parking Assist, Steering Angle Sensor, A/C Control Module. Driver IMS Module, ESP Control Module, Sensor LH/RH/LH(Center)/RH(Center) |
| Fuse MINI 10A | 6 | Driver/Passenger Power Seat Switch Console Switch LH, Driver/Passenger Seat Warmer Module, Head Lamp Leveling Device Switch, Driver/Passenger Door Module, Stop Lamp Switch Driver/Passenger CCS Control Module Smart Cruise Control Radar, ER Fuse & Relay Box(RLY. 6), Instrument Cluster, Crash Pad Switch, Multifunction Switch, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module Electric Parking Brake Module, Electro Chromic Mirror, ATM Lever indicator, Tire Pressure Monitori ng Module |
| Fuse MINI 10A | 7 | Driver/Passenger Power Outside Mirror, A/C Control Module |
| Fuse MINI 7.5A | 8 | MDPS [Some models] 2015 & 2016: Spare |
| Fuse MINI 20A | 9 | Center Tray Outlet |
| Fuse MINI 15A | 10 | SRS Control Module, A/C Control Module |
| Fuse MINI 7.5A | 11 | Panorama Sunroof, Instrument Cluster, Rain Sensor, Smart Key Control Module, ICM Relay Box (Head Lamp Washer Relay), Rear Seat Warmer LH/RH |
| Fuse MINI 7.5A | 12 | A/C Control Module, E/R Fuse & Relay (RLY. 14), Driver Active Seat Module, Cluster lonizer, Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module |
| Fuse MINI 10A | 13 | Steering Wheel Heater |
| Fuse MINI 15A | 13 | Steering Wheel Heater |
| Fuse MINI 20A | 14 | E/R Fuse & Relay Box (F11, F12, F13) 2014: E/R Fuse & Relay Box (ECU 5 10A, ECU 4 10A, IGN 1 15A) |
| Fuse MINI 20A | 15 | 2014: – SPARE 2 |
| Fuse MINI 10A | 16 | Driver Power Seat Switch, Data Link Connector, A/C Control Module, Driver/Passenger Door Module, Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor 2014: Data Link Connector, A/C Control Module, Driver/Passenger Door Module, Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor |
| Fuse MINI 10A | 17 | Cup Holder Lamp, Rear Door Lamp LH/RH, MAP Lamp, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp, Driver/Passenger Door Scuff Lamp, Rear Door Mood Lamp LH/RH, Varity Lamp Switch LH/RH, Rear Door Scuff Lamp LHRH, Trunk Room Lamp, Center Tray Lamp, Garnish Lamp LH/RH, Rear Personal Lamp Center/LH/RH |
| Fuse MINI 25A | 18 | Wiper Motor, E/R Fuse & Relay Box (RLY. B. RLY. 11, RLY. 12) 2014: Wiper Motor, E/R Fuse & Relay Box (Washer Relay, Wiper (Low) Relay, Wiper (High) Relay) |
| Fuse MINI 10A | 19 | Immobilizer Module, Smart Key Control Module. Stop Lamp Switch, Start Stop Button Switch |
| Fuse MINI 15A | 20 | ICM Relay Box (Rear Fog Lamp Relay) |
| Fuse MINI 7.5A | 21 | RF Receiver |
| Fuse MINI 10A | 22 | Front Monitor, Audio, A/V & Navigation Head Unit |
| Fuse MINI 7.5A | 23 | Transaxle Range Switch, PCM, ICM Relay Box (Burglar Alam Relay) |
| Fuse MINI 20A | 24 | Power Seat Relay Box RH, Passenger Reclining Limit Switch |
| Fuse MINI 20A | 25 | Panorama Sunroof |
| Fuse MINI 10A | 26 | Trunk Lid Relay. Fuel Filer Door & Trunk Lid Switch |
| Fuse MINI 20A | 27 | Rear Seat Warmer LH/RH |
| Fuse MINI 10A | 28 | Driver Active Seat Module |
| Fuse MINI 25A | 29 | Driver Safety Window Module, Rear Power Window Switch LH |
| Fuse MINI 25A | 30 | AMP |
| Fuse MINI 25A | 31 | SPARE 5 2014: Passenger Reclining Limit Switch, Passenger Seat Relay Box |
| Fuse MINI 25A | 32 | Passenger Safety Window Module, Rear Power Window Switch RH |
| Fuse MINI 25A | 33 | 2014: – SPARE 4 |
| Fuse MINI 25A | 34 | Smart Key Control Module |
| Fuse MINI 15A | 35 | Key Solenoid, Sport Mode Switch Steering Tilt & Telescopic Module |
| Fuse MINI 20A | 36 | Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module |
| Fuse MINI 20A | 37 | Door Lock/Unlack Relay |

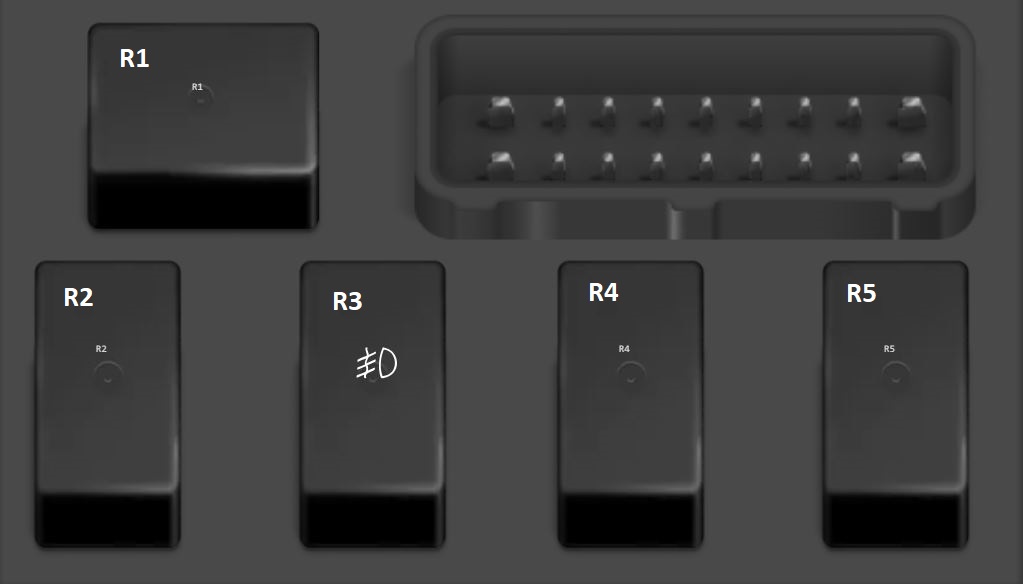

ICM Relay Box (2011-2013)
| Type | No. | Description |
| Relay | R1 | Burglar Alarm Relay |
| Relay | R2 | Burglar Horn Relay |
| Relay | R3 | Rear Fog Lamp Relay |
| Relay | R4 | Two Turn Unlock Relay (Not Used) |
| Relay | R5 | Head Lamp Wahser Relay |

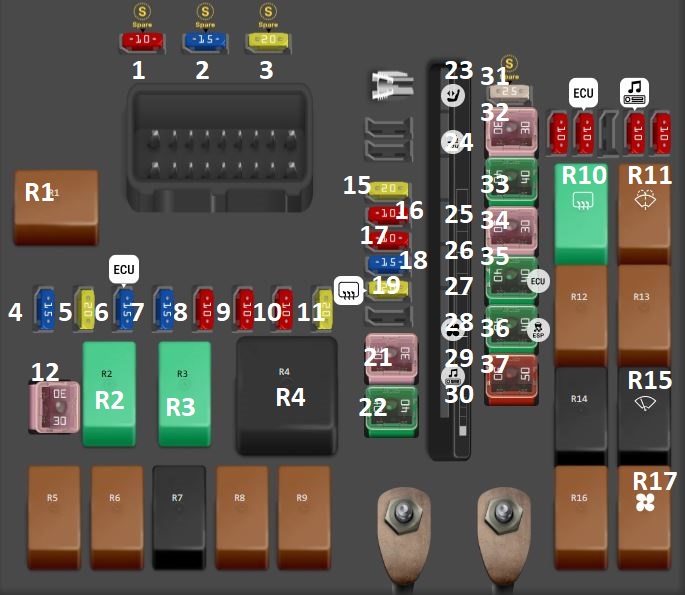

Engine Compartment Fuse Box
| Type | Description |
| F1 | 2014: F1 SPARE 4 |
| F2 | 2014: F2 SPARE 3 |
| F3 | 2014: F3 SPARE 2 |
| – | – |
| Fuse MINI 15A | F4 EMS Box (RLY. 2: Horn Relay), ICM Relay Box(Burglar Horn Relay) [G4KE & G6DE] 2014: (HORN) EMS box (horn relay), ICM relay box(burglar horn relay) |
| Fuse MINI 20A | F5 EMS Box (RLY.1 : Fuel Pump Relay) [G4KE & G6DE] 2014: (F/PUMP) EMS box (fuel pump relay) |
| Fuse MINI 15A | F6 Crankshaft Position Sensor, Oxygen Sensor(UP/DOWN), Purge Control Solenoid Valve, PCM, Variable Intake Solenoid Valve [G4KE] / Oxygen Sensor #1 ~ #4, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1,2, Oil Control Valve #1 ~ #4, PCM [G6DE] 2014: (ECU/SENSOR 1) Oxygen sensor #1~#4, PCM |
| Fuse MINI 10A | F7 EMS Box (RLY. 1: Fuel Pump Relay), Injector #1 – #4 [G4KE] / EMS Box (RLY. 1 : Fuel Pump Relay), Injector #1 ~ #6 [G6DE] 2014: (INJECTOR) EMS box (fuel pump relay), PCM |
| Fuse MINI 10A | F8 – 2014: (EUC 2) IDB (injector driver box) |
| Fuse MINI 10A | F9 Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2, E/R Fuse & Relay Box (RLY. 3: C/FAN (HI) Relay) [G4KE] / Camshaft Position Sensor #1~#4, E/R Fuse & Relay Box (RLY. 3 : C/FAN (HI) Relay), PCM [G6DE] 2014: (ECU/SENSOR 2) IDB (injector driver box), PCM, purge control solenoid valve, oil control valve #1 – #4, variable intake solenoid valve #1, #2, canister close valve, E/R fuse & relay box (C/FAN (HI) relay) |
| Fuse MINI 20A | F10 Ignition Coil #1~#4, Condenser [G4KE]/ Ignition Coil #1~#6, Condenser #1/#2 [G6DE] 2014: (IGN COIL) Ignition coil #1~#6, condenser #1/#2 |
| Fuse MINI 15A | F11 PCM [G4KE & G6DE] 2014: (ECU 3) PCM |
| Fuse FMX/JCase 30A | F12 EMS Box (RLY.3 : Engine Control Relay) [G4KE & G6DE] 2014: (ECU 1) EMS box (engine control relay) |
| Fuse MINI – | F13 – |
| Fuse MINI 20A | F14 Multipurpose Check Connector 2014: (DIAGNOSIS) Multipurpose check connector |
| Fuse MINI 25A
20A | F15 RLY. 13 (P/Outlet Relay) 2014: (POWER OUTLET) Power outlet relay 2015 & 2016: (DIAGNOSIS) Multipurpose Check Connector |
| Fuse MINI 10A | F16 Battery Sensor |
| Fuse MINI 10A | F17 Smart Cruise Control Radar |
| Fuse MINI 15A | F18 RLY. 6 (Stop LP Relay), Stop Signal Relay 2014: (STOP LAMP) Stop lamp relay, stop signal relay |
| Fuse MINI 20A | F19 RLY. 7 (Deicer Relay) |
| Fuse MINI 20A | F20 ICM Relay Box (Head Lamp Washer Relay) |
| Fuse FMX/JCase 30A | F21 Driver Lumbar Support Limit Switch(W/O Active Seat), Driver IMS Module, Power Seat Relay Box LH, Driver Reclining Limit Switch 2014: (DRV P/SEAT) Driver lumbar support limit switch, driver IMS module, power seat relay box, driver reclining limit switch |
| Fuse FMX/JCase 40A | F22 Smart Junction Box (Fuse F37 / F34, Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut Switch, IPS 5)), E/R Fuse & Relay Box (Fuse – F22) 2015 & 2016: (B+1) Smart J unction Box (DR LOCK 20A, SMART KEY 1 25A, Leak Current Autocut Device (Leak Current Autocut Relay, Leak Current Autocut Switch, IPS 5)) 2014: (IP B+1) Smart junction box (DR LOCK 20A, SMART KEY 1 25A, leak current autocut device (leak current autocut relay, leak current autocut switch, IPS 5)), E/R fuse & relay box (DIAGNOSIS 20A) |
| Multi fuse block MUSB | F23 Smart Junction Box (Fuse – F20 / F25 / F28 / F35, IPS 1, IPS 2, ARISU-LT 1) 2014: (IP B+2) Smart junction box (P/HANDLE 15A, SUNROOF 20A, DRV P/SEAT 10A, IPS 2, ARISU-LT 1) |
| Multi fuse block MUSB | F24 Smart Junction Box (Fuse – F26 / F29 / F32 / F36) 2014: (IP B+3) Smart junction box (P/WDW 25A, P/WDW RH 25A, S/HEATER FRT 10A, TRUNK 10A) 2015 & 2016: (B+3) Smart J unction Box (P/WDW 25A, P/WDW RH 25A, S/HEATER FRT 10A, TRUNK 10A, P/OUTLET 1 20A) |
| Multi fuse block MUSB | F25 W/O Smart Key – Ignition Switch, With Smart Key – RLY. 2 (PDM 1 (ACC) Relay), RLY. 9 (PDM 2 (IG1) Relay) 2014: (IGN1) W/O smart key – ignition switch. With smart key – PDM 1 (ACC) relay, PDM 2 (IG1) relay |
| Multi fuse block MUSB | F26 ESP Control Module, ABS Control Module 2014: (ESC1) ESC control module, ABS control module |
| Multi fuse block MUSB | F27 RLY. 1 (RR HTD Relay) |
| Multi fuse block MUSB | F28 RLY. 14 (Blower Relay) |
| Multi fuse block MUSB | F29 Smart Junction Box (Fuse – F19 / F24 / F27 / F30, IPS 3, IPS 4, ARISU-LT 2) 2014: (IP B+4) Smart junction box (STOP LAMP 10A, S/HEATER RR 20A, IPS 4, ARISU-LT 2) |
| Multi fuse block MUSB | F30 – 2014: (MDPS) MDPS unit |
| Fuse MINI 25A | F31 – 2014: (SPARE) Spare |
| Fuse FMX/JCase 30A | F32 Electric Parking Brake Module 2014: (EPB 2) EPB 2 |
| Fuse FMX/JCase 40A | F33 RLY. 5 (Start Relay), W/O Smart Key – Ignition Switch, With Smart Key – RLY. 10 (PDM 3 (IG2) Relay) 2014: (IGN 2) Start relay, W/O smart key – ignition switch, with smart key – PDM 3 (IG2) relay |
| Fuse FMX/JCase 30A | F34 Electric Parking Brake Module 2014: (EPB 1) EPB 1 |
| Fuse FMX/JCase 40A | F35 EMS Box (Fuse – F36 / F37 / F38 / F39) 2014: (EMS) EMS box (ECU 3 15A, ECU 1 30A, F/PUMP 20A, HORN 15A) |
| Fuse FMX/JCase 40A | F36 ESP Control Module, ABS Control Module 2014: (ESC 2) ESC control module, ABS control module |
| Fuse FMX/JCase 50A | F37 RLY. 3 (C/Fan (HI) Relay), RLY. 4 (C/Fan (LO) Relay) 2014: (C/FAN) C/Fan (HI) relay, C/Fan (LO) relay |
| Fuse MINI 10A | F38 Multipurpose Check Connector 2014: (ECU 5) Multipurpose check connector |
| Fuse MINI 10A | F39 PCM 2014: (ECU 4) PCM |
| Fuse MINI 15A | F40 Transaxle Range Switch |
| Fuse MINI 10A | F41 Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit 2014: (B/UP LP) Rear combination lamp (IN) LH/RH, electro chromic mirror, A/V & navigation head unit |
| Fuse MINI 10A | F42 A/C Control Module |
| Fuse puller | Fuse Puller Extraction tool for fuse replacement. |
| Relay | R1 RR HTD Relay |
| Relay | R2 Fuel Pump Relay |
| Relay | R3 Horn Relay |
| Relay | R4 Engine Control Relay 2014: (ECU) ECU |
| Relay | R5 PDM 1 (ACC) Relay |
| Relay | R6 C/FAN (HI) Relay 2014: (C/FAN (HI)) Cooling fan (HI) |
| Relay | R7 C/FAN (LO) Relay 2014: (C/FAN (LO)) Cooling fan (LO) |
| Relay | R8 START Relay |
| Relay | R9 STOP LP Relay 2014: STOP LAMP |
| Relay | R10 DEICER Relay |
| Relay | R11 WASHER Relay |
| Relay | R12 PDM 2 (IG1) Relay |
| Relay | R13 PDM 3 (IG2) Relay |
| Relay | R14 WIPER (LO) Relay |
| Relay | R15 WIPER (HI) Relay |
| Relay | R16 P/OUTLET Relay 2014: (POWER OULET) Power oulet |
| Relay | R17 BLOWER Relay |
