Hyundai Creta (2020 – 2023) Fuse Box Location & Diagrams
Finding the correct fuse box in your Hyundai Creta (2020–2023) is essential for diagnosing and fixing electrical problems. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments, making it easier to identify, inspect, and replace the correct fuse for various vehicle systems safely.
Fuse Box Location

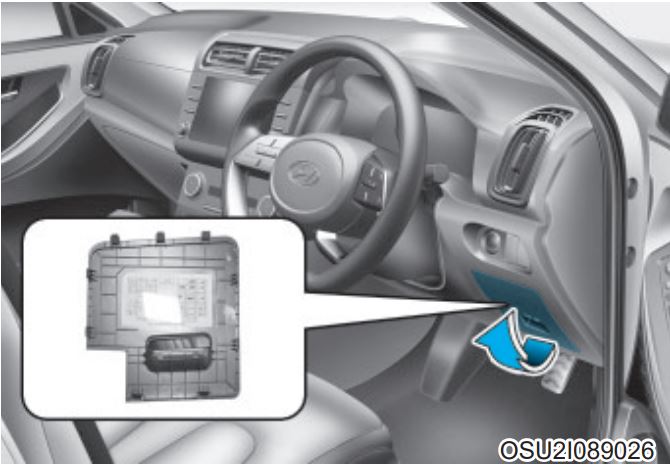

Passenger Compartment Fuse Box
This box is inside the cabin. It is located under the dashboard on the lower left side (by the driver’s knee).

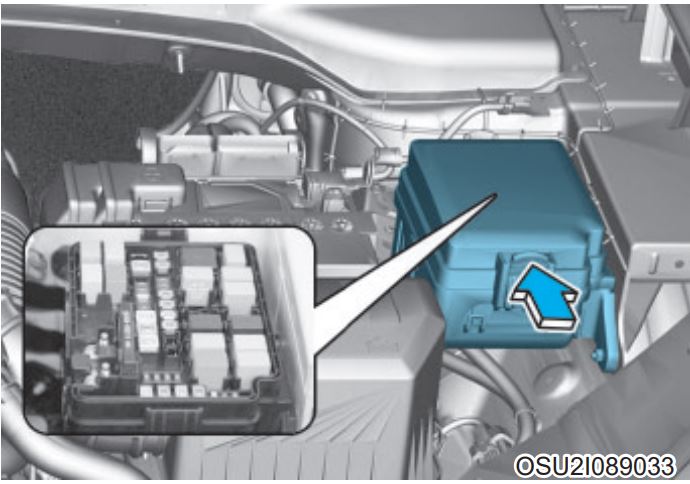

Engine Compartment Fuse Box
This box sits under the hood, near the car battery.
Fuse Box Diagrams

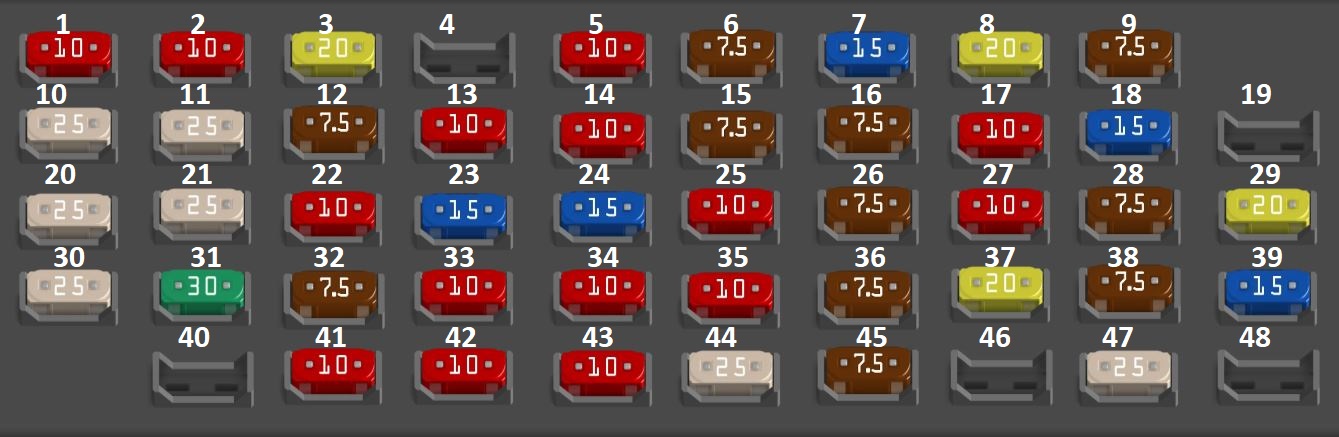

Passenger Compartment Fuse Box
Hyundai Creta (2020 – 2022)
| Type | No. | Description |
| Fuse MICRO2 10A | 1 | Rear Seat RH Control Module |
| Fuse MICRO2 10A | 2 | Tailgate Relay |
| Fuse MICRO2 20A | 3 | Door Lock/Unlock Relay |
| Fuse MICRO2 | 4 | Spare |
| Fuse MICRO2 10A | 5 | Spare |
| Fuse MICRO2 7.5A | 6 | Instrument Cluster |
| Fuse MICRO2 15A | 7 | SRS Control Module |
| Fuse MICRO2 20A | 8 | Luggage USB Charger RH, Rear USB Charger 2020: (POWER OUTLET2) E/R Junction Block (RLY. 11 – Power Outlet Relay), Front Power Outlet #2 |
| Fuse MICRO2 7.5A | 9 | IBU, IAU |
| Fuse MICRO2 25A | 10 | Driver Safety Power Window Module (LHD) |
| Fuse MICRO2 25A | 11 | Driver Safety Power Window Module (RHD) |
| Fuse MICRO2 7.5A | 12 | Data Link Connector, Rain Sensor, Driver/passenger Power Outside Mirror, Driver IMS Control Module, Outside Mirror Folding/Unfolding Relay |
| Fuse MICRO2 10A | 13 | Spare |
| Fuse MICRO2 10A | 14 | Front A/C Control Module, Blower Resistor, Blower Motor, E/R Junction Block (RLY. 15) 2020: (A/C2) A/C Control Module, Blower Resistor, Blower Motor, E/R Junction Block (RLY. 15 – Blower Relay) |
| Fuse MICRO2 7.5A | 15 | Front Radar, Rear Radar LH/RH, Dosing Control Module, ESP Control Switch, Crash Pad Switch, Electric Parking Brake Switch, Console Switch RH, Drive Switch 2020: (MODULE4) ESP Control Switch, Electric Parking Brake Switch, Clutch Sensor (M/T) |
| Fuse MICRO2 7.5A | 16 | IAU, A/T Shift Lever |
| Fuse MICRO2 10A | 17 | Front USB Charger, Front Smart Phone Wireless USB Charger |
| Fuse MICRO2 15A | 18 | Rear Wiper Motor, E/R Junction Block (RLY. 17) |
| Fuse MICRO2 25A | 20 | Power Window Main Switch, Passenger Power Window Switch(LHD) |
| Fuse MICRO2 25A | 21 | AMP |
| Fuse MICRO2 10A | 22 | IBU, ECM/PCM, Front Wiper Motor, E/R Junction Block (RLY. 9) 2020: (FRONT WIPER1) IBU, ECM/PCM, Front Wiper Motor, E/R Junction Block (RLY. 9Wiper High Relay) |
| Fuse MICRO2 15A | 23 | IBU, IAU, Driver Door NFC Module |
| Fuse MICRO2 15A | 24 | Audio, A/V & Navigation Head Unit |
| Fuse MICRO2 10A | 25 | ABS Control Module, ESP Control Module |
| Fuse MICRO2 7.5A | 26 | Instrument Cluster |
| Fuse MICRO2 10A | 27 | AMP, Luggage USB Charger LH, Power Outside Mirror Switch, IBU, Audio, A/V & Navigation Head Unit, ADAS Unit (Parking), Emergency Call (E-Call) Unit, IAU, Console Keyboard Unit (Audio), Front A/C Control Module, Low DC-DC Converter, E/R Junction Block (RLY. 11-1) 2020: (MODULE2) IBU, Audio, A/V & Navigation Head Unit, AMP, Surround View Monitor Unit, Power Outside Mirror Switch |
| Fuse MICRO2 7.5A | 28 | Front A/C Control Module, E/R Junction Block (RLY. 15), PM Sensor |
| Fuse MICRO2 20A | 29 | Sunroof Glass Motor |
| Fuse MICRO2 25A | 30 | Power Window Main Switch, Passenger Power Window Switch(LHD) |
| Fuse MICRO2 30A | 31 | Driver Power Seat Switch, Driver IMS Control Module |
| Fuse MICRO2 7.5A | 32 | ECM/PCM, IBU, E/R Junction Block (RLY. 2), Transaxle Range Switch, Ignition Lock & Clutch Switch 2020: (START) ECM/PCM, IBU, E/R Junction Block (RLY. 2- ACC Relay), Transaxle Range Switch, Ignition Lock & Clutch Switch |
| Fuse MICRO2 10A | 33 | E/R Junction Block (RLY. 11-2) 2020: (REAR A/C) Rear Blower Motor |
| Fuse MICRO2 10A | 34 | SPARE |
| Fuse MICRO2 10A | 35 | Audio, A/V & Navigation Head Unit, Front A/C Control Module, Head Lamp LH/RH, AMP, Front Air Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat LH Control Module |
| Fuse MICRO2 7.5A | 36 | MDPS Unit |
| Fuse MICRO2 20A | 37 | Front Power Outlet #1 |
| Fuse MICRO2 7.5A | 38 | E/R Junction Block (RLY.11-2), lonizer 2020: (MODULE7) lonizer, Front Air Ventilation Seat Control Module |
| Fuse MICRO2 15A | 39 | Multifunction Switch |
| Fuse MICRO2 10A | 41 | Front A/C Control Module, Driver/Passenger Power Outside Mirror, ECM/PCM |
| Fuse MICRO2 10A | 42 | IBU, Stop Lamp Switch |
| Fuse MICRO2 10A | 43 | Instrument Cluster, Front A/C Control Module, Low DC-DC Converter |
| Fuse MICRO2 25A | 44 | E/R Junction Block (Fuse – F33/F34-1/F34-2/F35) |
| Fuse MICRO2 7.5A | 45 | IBU |
| Fuse MICRO2 25A | 47 | Front Wiper Motor, E/R Junction Block (RLY. 9) |

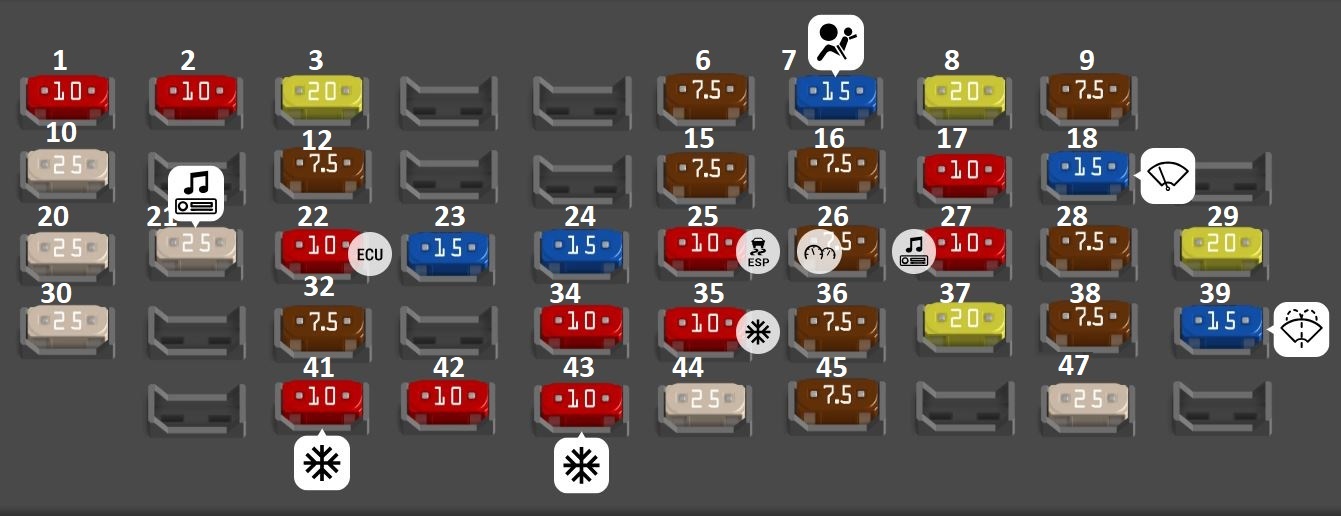

Hyundai Creta (2023)
| Type | No. | Description |
| Fuse MICRO2 10A | 1 | (SEAT VENT) Driver Ventilation Seat Control Module. Passenger Ventilation Seat Control Module |
| Fuse MICRO2 10A | 2 | (TAILGATE OPEN) Tailgate Relay |
| Fuse MICRO2 20A | 3 | (DOOR LOCK) Center Door Lock Relay. Center Door Unlock Relay |
| Fuse MICRO2 7.5A | 6 | (A/BAG IND.) Instrument Cluster |
| Fuse MICRO2 15A | 7 | (AIRBAG) SRS Control Module |
| Fuse MICRO2 20A | 8 | (POWER OUTLET2) Luggage Power Outlet |
| Fuse MICRO2 7.5A | 9 | (MODULE6) IBU |
| Fuse MICRO2 25A | 10 | (SAFETY P/WINDOW LH) Driver Safety Power Window Module |
| Fuse MICRO2 7.5A | 12 | (MODULE1) Data Link Connector, A/T Shift Lever, Outside Mirror Folding Relay. Outside Mirror Unfolding Relay |
| Fuse MICRO2 7.5A | 15 | (MODULE4) Blind-Spot Collision Warning Unit RH, Ignition Lock & Clutch Switch. Rear Parking Distance Warning Buzzer, Console Switch. IBU. Blind-Spot Collision Warning Unit LH. Multifunction Front View Camera |
| Fuse MICRO2 7.5A | 16 | (MODULE3) Stop Lamp Switch |
| Fuse MICRO2 10A | 17 | (USB CHARGER) Front/Rear USB Charger |
| Fuse MICRO2 15A | 18 | (REAR WIPER) E/R Junction Block (Rear Wiper Relay). Rear Wiper Motor |
| Fuse MICRO2 25A | 20 | (POWER WINDOWRH) Power Window Main Switch. [LHD] Passenger Power Window Switch |
| Fuse MICRO2 25A | 21 | (AMP) AMP |
| Fuse MICRO2 10A | 22 | (FRONT WIPER1) E/R Junction Block (Front Wiper Low Relay). Front Wiper Motor, IBU, ECM, PCM |
| Fuse MICRO2 15A | 23 | (IBU1) IBU |
| Fuse MICRO2 15A | 24 | (MULTI MEDIA) Audio |
| Fuse MICRO2 10A | 25 | (ABS3) ABS Control Module, ESP Control Module, Data Link Connector |
| Fuse MICRO2 7.5A | 26 | (CLUSTER) Instrument Cluster |
| Fuse MICRO2 10A | 27 | (MODULE2) Audio, IBU, Emergency Call (E-CALL) Module, Power Out Side Mirror, AMP |
| Fuse MICRO2 7.5A | 28 | (A/CON2) A/C Control Module, Dual Pressure Switch, E/R Junction Block (Blower Relay) |
| Fuse MICRO2 20A | 29 | (SUNROOF) Sunroof Motor |
| Fuse MICRO2 25A | 30 | (POWER WINDOWLH) Power Window Main Switch [RHD] Passenger Power Window Switch |
| Fuse MICRO2 7.5A | 32 | (START) Sunroof Motor |
| Fuse MICRO2 10A | 34 | (E-CALL) Emergency Call (E-CALL) Module |
| Fuse MICRO2 10A | 35 | (MODULE5) Head Lamp LH/RH. Audio, A/C Control Module. AMP. Emergency Call (E-CALL) Module. Front Wireless Charger, Head Lamp Leveling Device Switch A/T Shift Lever Indicator, Driver/Passenger Ventilation Seat Control Module |
| Fuse MICRO2 7.5A | 36 | (MDPS2) MDPS Unit |
| Fuse MICRO2 20A | 37 | (POWER OUTLET1) Front Power Outlet |
| Fuse MICRO2 7.5A | 38 | (MODULE7) Driver/Passenger Ventilation Seat Control Module |
| Fuse MICRO2 15A | 39 | (WASHER) Multifunction Switch |
| Fuse MICRO2 10A | 41 | (REAR HEATED2) ECM. PCM, A/C Control Module |
| Fuse MICRO2 10A | 42 | (BRAKE SWITCH) IBU, Stop Lamp Switch |
| Fuse MICRO2 10A | 43 | (MEMORY) Instrument Cluster, A/C Control Module |
| Fuse MICRO2 25A | 44 | (IG1) E/R Junction Block (Fuse – TCU/ECU6) |
| Fuse MICRO2 7.5A | 45 | (IBU2) IBU |
| Fuse MICRO2 25A | 47 | (FRONT WIPER2) E/R Junction Block (Front Wiper Low Relay). Front Wiper Motor |
Engine Compartment Fuse Box

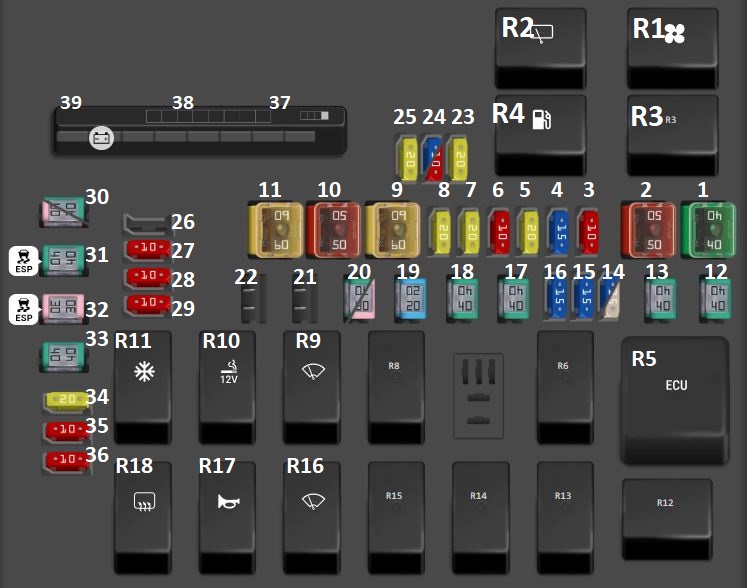

Hyundai Creta (2020 – 2022)
| Type | No. | Description |
| Fuse FMX/JCase 40A | 1 | 2021-2022: (C/FAN) RLY. 7/RLY. 8 (Cooling Fan #2 Relay/ Cooling Fan #1 Relay) 2020 (G4FL : GAMMA-II 1.5L MPI): (C/FAN) RLY. 7/RLY. 8 (Cooling Fan #2 Relay/ Cooling Fan #1 Relay) |
| Fuse FMX/JCase 50A | 2 | (B+4) ICU Junction Block (Long Term Load Auto Cut Relay, Fuse – – F3/F12/F23/F33/F42) |
| Fuse MINI 10A | 3 | (A/C) RLY. 13 (A/C Relay) |
| Fuse MINI 15A | 4 | (Horn) RLY. 12/RLY. 16 (Horn Relay/Burglar Alarm Horn Relay) |
| Fuse MINI 20A | 5 | (POWER OUTLET) RLY. 11 (Power Outlet Relay) |
| Fuse MINI 10A | 6 | (AMS) Battery Sensor |
| Fuse MINI 20A | 7 | (VACUUM PUMP1) Vacuum Pump |
| Fuse MINI 20A | 8 | (FUEL PUMP) RLY. 18 (Fuel Pump Relay) |
| Fuse FMX/JCase 60A | 9 | (B+3) ICU Junction Block (Power Window Main Relay, Fuse – F1/F2/F10/F11/F21/F29/F31) |
| Fuse FMX/JCase 50A | 10 | (B+2) ICU Junction Block (IPS2/IPS5/IPS6/IPS7/IPS11) |
| Fuse FMX/JCase 60A | 11 | (B+1) ICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10/IPS12) |
| Fuse FMM/MCase 40A | 12 | (IG1) RLY. 2/RLY. 4 (ACC Relay/IG1 Relay) |
| Fuse FMM/MCase 40A | 13 | (IG2) RLY. 3/RLY. 6 (Start Relay/IG2 Relay) |
| Fuse MINI 15A | 14 | (ECU5) ECM/PCM |
| Fuse MINI 25A | 14 | (ECU5) ECM/PCM 2020 [D4FA : U-II 1.5L TCI: (ECU5) TCM |
| Fuse MINI 15A | 15 | (ECU2) PCM |
| Fuse MINI 15A | 16 | (DCT3) Electronic clutch Module (M/T) |
| Fuse FMM/MCase 40A | 17 | (DCT2) TCM |
| Fuse FMM/MCase 40A | 18 | (DCT1) Electronic clutch Module (M/T) |
| Fuse FMM/MCase 20A | 19 | (ECU1) RLY. 1 (Engine Control Relay) |
| Fuse FMM/MCase 40A | 20 | (SGA) Smart Gear Actuator |
| Fuse FMM/MCase 30A | 20 | (SGA) Smart Gear Actuator 2020 [D4FA : U-II 1.5L TCI: (SGA) RLY. 5 (Fuel Filter Heater Relay) |
| Fuse MINI 20A | 23 | (IGN COIL) Ignition Coil #1/#2/#3/#4 |
| Fuse MINI 15A | 24 | (INJECTOR) Injector #1/#2/#3/#4 |
| Fuse MINI 10A | 24 | (INJECTOR) Injector #1/#2/#3/#4 2020 [D4FA : U-II 1.5L TCI: (SENSOR3) EGR Cooling Bypass Solenoid Valve, PM Sensor, Mass Air Flow Sensor, Electronic VGT Actuator |
| Fuse MINI 20A | 25 | (ECU3) ECM |
| Fuse MINI 10A | 27 | (ECU6) TCM, Transaxle Range Switch |
| Fuse MINI 10A | 28 | (VACUUM PUMP2) Vacuum Pump |
| Fuse MINI 10A | 29 | (ECU6) PCM |
| Fuse FMM/MCase 30A | 30 | (REAR DEFOGGER) RLY. 14 (Rear Defogger Relay) |
| Fuse FMM/MCase 40A | 30 | (REAR DEFOGGER) RLY. 14 (Rear Defogger Relay) |
| Fuse FMM/MCase 40A | 31 | (ABS1) ABS Control Module, ESP Control Module |
| Fuse FMM/MCase 30A | 32 | (ABS2) ABS Control Module, ESP Control Module |
| Fuse FMM/MCase 40A | 33 | (BLOWER) RLY. 15 (Blower Relay) |
| Fuse MINI 20A | 34 | (ECU4) ECM/PCM |
| Fuse MINI 10A | 35 | (SENSOR1) RLY. 18 (Fuel Pump Relay) |
| Fuse MINI 10A | 36 | (SENSOR2) Oil Control Valve #1/#2 (Intake/Exhaust), Oxygen Sensor (Up/Down), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Oil Pump Control Valve |
| Multi fuse block MUSB | 37 | (C/FAN) Cooling Fan Controller (BLDC) |
| Multi fuse block MUSB | 37 | (C/FAN) Cooling Fan Controller (BLDC) (DSL) |
| Multi fuse block MUSB | 38 | (MDPS) MDPS Unit |
| Multi fuse block MUSB | 39 | (ALT) Alternator, Fuse – – F4/F5/F6/F7 |
| Multi fuse block MUSB | 39 | (ALT) Alternator, Fuse – – F4/F5/F6/F7 (DSL) |
| Relay | R1 | Blower Relay |
| Relay | R2 | Rear Wiper Relay |
| Relay | R3 | Burglar Alarm Horn Relay |
| Relay | R4 | Fuel Pump Relay |
| Relay | R5 | Engine Control Relay |
| Relay Relay | R6 R7 | Start Relay 2020 [D4FA : U-II 1.5L TCI: Fuel Filter Heater Relay |
| Relay | R8 | Cooling Fan #2 Relay (G4FL) |
| Relay | R9 | Wiper High Relay |
| Relay | R10 | Power Outlet Relay |
| Relay | R11 | A/C Relay |
| Relay | R12 | ACC Relay |
| Relay | R13 | IG1 Relay |
| Relay | R14 | IG2 Relay |
| Relay | R15 | Cooling Fan #1 Relay (G4FL) |
| Relay | R16 | Wiper Low Relay |
| Relay | R17 | Horn Relay |
| Relay | R18 | Rear Defogger Relay |

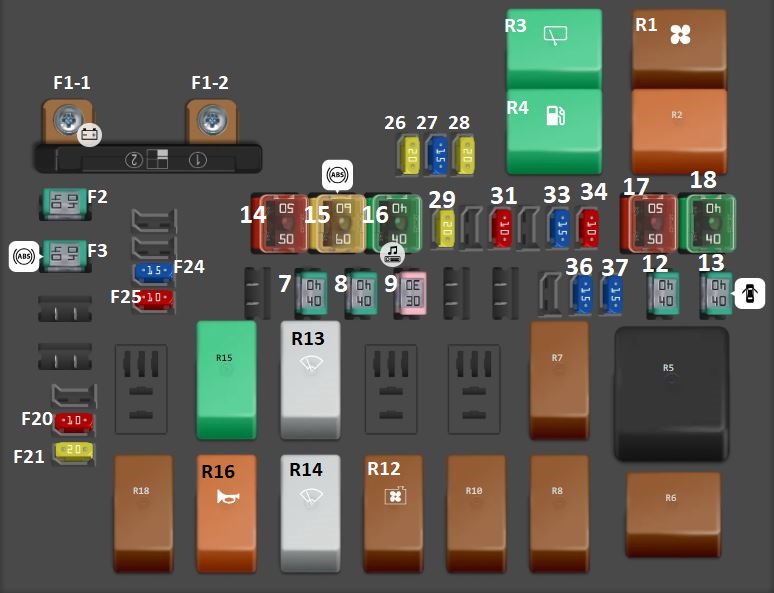

Hyundai Creta (2023)
| Type | No. | Description |
| Multi fuse block MUSB | F1-1 | (ALT) Alternator, Fuse : ABS2, REAR HEATED |
| Multi fuse block MUSB | F1-2 | (MDPS) MDPS Unit |
| Fuse FMM/MCase 40A | F2 | (REAR HEATED1) ICU Junction Block (Rear Heated Relay) |
| Fuse FMM/MCase 40A | F3 | (ABS2) ESP Control Module, ABS Control Module |
| Fuse FMM/MCase 40A | F7 | (B+1) ICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10/IPS12) |
| Fuse FMM/MCase 40A | F8 | (B+2) ICU Junction Block (IPS2/IPS5/IPS8/IPS11) |
| Fuse FMM/MCase 30A | F9 | (ECU1) ICU Junction Block (Main Relay) |
| Fuse FMM/MCase 40A | F12 | (IG2) [With Smart Key] ICU Junction Block (Start Relay/IG2 Relay). [W/O Smart Key] Ignition Switch |
| Fuse FMM/MCase 40A | F13 | (B+4) ICU Junction Block (Long Term Load Auto Cut Relay, Fuse – BRAKE SWITCH, MODULE1, DOOR LOCK, IBU1) |
| Fuse FMX/JCase 50A | F14 | (BLOWER) ICU Junction Block (Blower Relay) |
| Fuse FMX/JCase 60A | F15 | (ABS1) ESP Control Module, ABS Control Module |
| Fuse FMX/JCase 40A | F16 | (B+3) ICU Junction Block (Power Window Main Relay. Fuse – TAILGATE OPEN, SUNROOF, P/WINDOW SAFETY, AMP, SEAT VENT) |
| Fuse FMX/JCase 50A | F17 | (IG1) [With Smart Key] ICU Junction Block (ACC Relay/IG1 Relay). [W/O Smart Key] Ignition Switch |
| Fuse FMX/JCase 40A | F18 | (COOLING FAN) ICU Junction Block (Cooling Fan Relay) |
| Fuse MICRO2 10A | F20 | (SENSOR) Oxygen Sensor (Up/Down). Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake/Exhaust). Variable Intake Solenoid Valve, ICU Junction Block (Cooling Fan Relay/A/Con Relay) |
| Fuse MICRO2 20A | F21 | (ECU5) ECM, PCM |
| Fuse MICRO2 15A | F24 | (TCU) Transaxle Range Switch |
| Fuse MICRO2 10A | F25 | (ECU6) ECM. PCM |
| Fuse MICRO2 20A | F26 | (ECU4) ECM, PCM |
| Fuse MICRO2 15A | F27 | (INJECTOR) Injector #1-#4 |
| Fuse MICRO2 20A | F28 | (IGN COIL) ignition Coil #1-#4 |
| Fuse MICRO2 20A | F29 | (FUEL PUMP) ICU Junction Block (Fuel Pump Relay) |
| Fuse MICRO2 10A | F31 | (AMS) Battery Sensor |
| Fuse MICRO2 15A | F33 | (HORN) ICU Junction Block (Horn Relay. B/Alarm Horn Relay) |
| Fuse MICRO2 10A | F34 | (A/CON1) ICU Junction Block (A/Con Relay) |
| Fuse MICRO2 15A | F36 | (ECU2) ECM, PCM, Ignition Lock & Clutch Switch |
| Fuse MICRO2 15A | F37 | (ECU3) ECM, PCM |
| Relay | R1 | Blower Relay |
| Relay | R2 | B/Alarm Horn Relay |
| Relay | R3 | Rear Wiper Relay |
| Relay | R4 | Fuel Pump Relay |
| Relay | R5 | Main Relay |
| Relay | R6 | ACC Relay |
| Relay | R7 | Start Relay |
| Relay | R8 | IG1 Relay |
| Relay | R10 | IG2 Relay |
| Relay | R12 | Cooling Fan Relay |
| Relay | R13 | Front Wiper Low Relay |
| Relay | R14 | Front Wiper High Relay |
| Relay | R15 | A/Con Relay |
| Relay | R16 | Horn Relay |
| Relay | R18 | Rear Heated Relay |
